H-2500

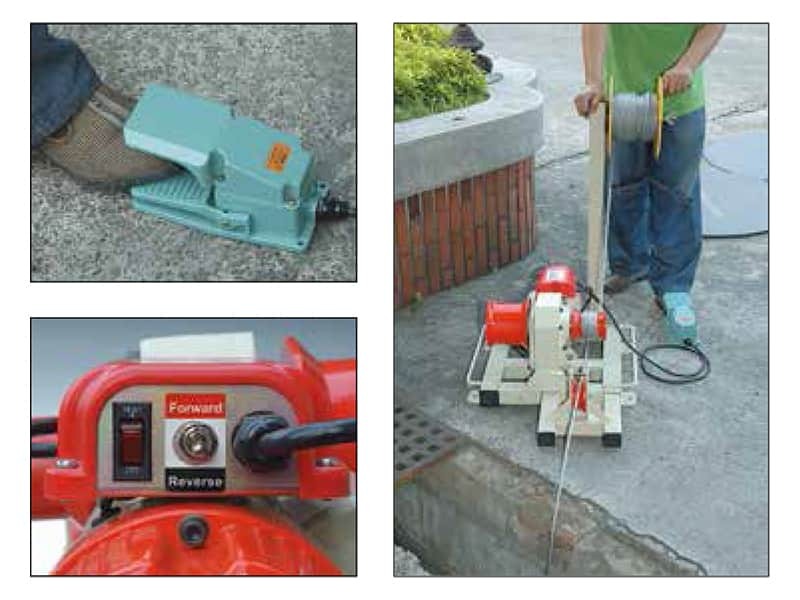

COMEUP H-2500 is a twin-drum electric cable puller with pulling capacities of 2,500 kg on the small drum and 1,500 kg on the large drum, running on single-phase power. It is made for continuous cable pulling on walls, on the ground and underground.

Dual pulling capacities of 2,500 kg and 1,500 kg.
Dual speed vary according to drum size.
A overload protection switch ensure automatic shut-off.
Electromagnetic spring-applied failsafe brake.
Heavy duty high efficiency ball bearings on all running surfaces.
Rugged high power induction motor of proven reliability.
Case hardened gear train for maximum mechanical efficiency.
Suitable for continuous pulling to tackle the toughest wall, ground and underground pulling applications.

Technical Specifications

Pulling capacity	Large drum :1,500 kg Small drum ; 2,500 kg
Rope speed	Large drum, 50 Hz: 4.0 m/min; 60Hz: 5.0 m/min Small drum, 50 Hz: 2.5 m/min; 60 Hz: 3.0 m/min
Power source	1 phase, 110V/220V/230V/240V
Motor rating IP44	0.6 kw x 4 poles
Gear train	hypoid gear plus spur gears
Gear ratio	154:1
Wire rope	8 mm x 50 m
Drum length	Large drum: 124 mm Small drum: 104 mm
Drum dia.	Large drum: 130 mm Small drum: 74 mm
Drum flange dia.	Large drum: 150 mm Small drum 94 mm

* Above performance ratings are based on 50Hz supply. (60Hz motor available as option resulting in a reduction of lifting capacities by 20% and a speed increase of 20%

Warning

A minimum of five(5) wraps of rope around the drum are necessary to support the rated load.
Do not use a cable puller as a lifting device or a hoist for vertical lifting.

Warranty

Each new puller is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase. WIRE ROPES ARE NOT INCLUDED UNDER WARRANTY.

Accessories

Standard Accessories:

Rope arm
Base plate
Wire rope 8 mm x 50 m
Detachable rope storage roller
Foot control kit with 2.0 mm² x 3C x 2 m lead
Power lead comes with 1.5 mm² x 3C x 3 m and plug

Packaging

Cable puller weight : 60 kg
Gross weight : 83 kg

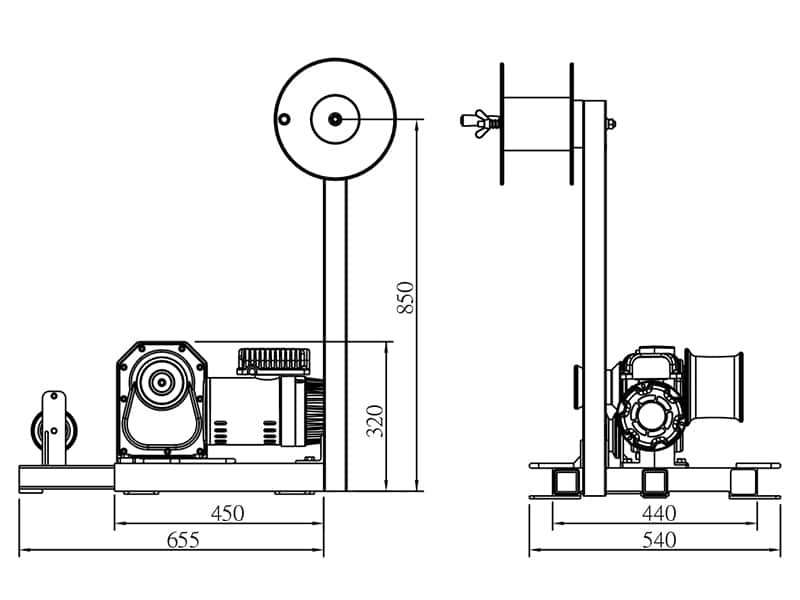

Body dimension, (L x D x H) : 457 x 362 x 267 mm
Box dimension, (L x D x H) : 610 x 720 x 500 mm

Downloads

Document	Date	Format	Download
H-2500 Operation Manual	2021-07-31	PDF, 0.23 MB	Download
