GTD-3300

COMEUP GTD-3300 – 1,500 kg Heavy Duty Hoist. GTD and DH DC electric hoists for truck-mounted cranes and special-purpose vehicles.

Provides an answer to the health and safety recommendations for manual lifting
High efficient low amp. draw and sealed permanent magnet motor.
Lightweight and compact design is ideal for easy installation.
Mechanical cone brake and permanent motor dynamic brakes together for safe, controlled load.
Waterproof industrial remote control with 5 m lead
Full metal 3 stage planetary gear train for greater pulling force.
Submersible sealed contactor handles high amps and allows higher duty cycle
In compliance with standard of ASME B30.5 for D/d≥18 and rope safety factor ≥3.5

Technical Specifications

Part number	PN 753140 (12V) w/ controls and rope assembly PN 753150 (24V) w/ controls and rope assembly
Rated load	1,500 kg (3,300 lb)
Line speed (at 1st layer of rope): 12V	4.8 mpm / 15.7 fpm 60A at no load 3.6 mpm / 11.8 fpm 200A at full load 24V : 6.0 mpm / 19.7 fpm 40A at no load 4.4 mpm / 14.4 fpm 130A at full load
Motor	2,830 w / 3.8 hp 12V permanent magnet 1,940 w / 2.6 hp 24V permanent magnet
Gear ratio	3-stage planetary gear 315:1
Brake (outside the drum)	Mechanical cone brake and permanent motor dynamic brakes together
Hoist construction	Aluminum die cast housings with cast iron drum

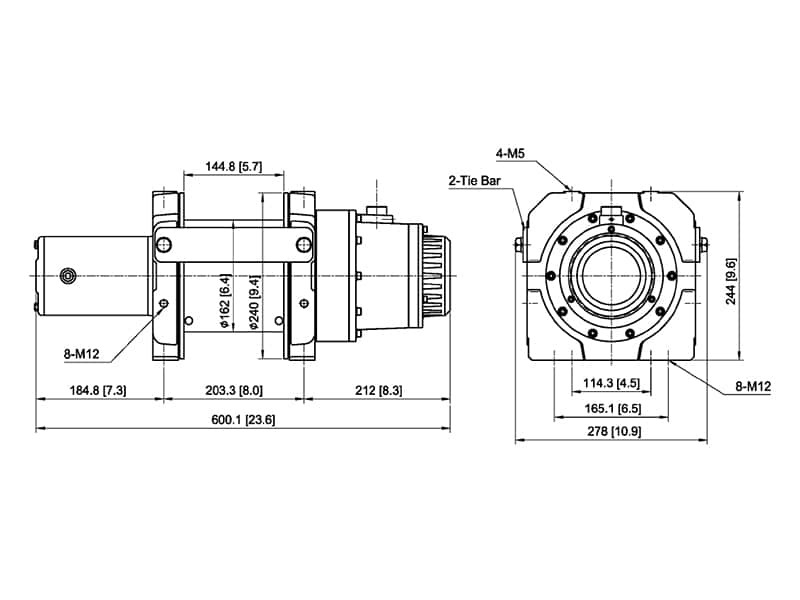

Drum size	162 x 240 x 144.8 mm (6.4” x 9.4" x 5.7"L)
Control	Remote control with 5 m (17') lead
Rope type	Galvanized aircraft A7 x 19
Rope size	9.5 mm x 26.5 m (3/8" x 87')
Mounting bolt pattern	203.3 x 165.1 mm (8.0” x 6.5”) ; 203.3 x 114.3 mm (8.0" x 4.5") ASME

Standard Compliance:

- CE Machinery Directive 2006/42/EC

- CE EMC Directive 2014/30/EU

B30.5

Line Speed and Amp. Draw (1st layer of wire rope on the drum):

Line Pull,	Line Speed, mpm / fpm		Amp Draw, A		Percentage Duty Cycle,
kg / lb	12V	24V	12V	24V	Min / 10 min
No load	4.8 / 15.7	6.0 / 19.7	60	40	Count.
272 / 600	4.4 / 14.4	5.7 / 18.7	70	50	7.0
544 / 1,200	4.3 / 14.1	5.5 / 18.0	100	70	4.5
816 / 1,800	4.1 / 13.5	5.2 / 17.1	125	85	3.0
1,089 / 2,400	3.9 / 12.8	5.0 / 16.4	140	95	2.5
1,134 / 2,500	3.8 / 12.5	4.7 / 15.4	165	110	2.0
1,500 / 3,300	3.6 / 11.8	4.4 / 14.4	200	130	1.5

Line Pull and Rope Capacity:

Layer of Wire Rope	Load by Layer, kg / lb	Line Speed, mpm / fpm		Total Rope on the Drum, m / ft
Layer of Wire Rope	Load by Layer, kg / lb	12V	24V	Total Rope on the Drum, m / ft
1^st	1,500 / 3,300	3.6 / 11.8	4.4 / 14.4	7.9 / 25.9
2^nd	1,350 / 2,976	4.0 / 13.1	4.9 / 16.1	16.8 / 55.1
3^rd	1,228 / 2,707	4.4 / 14.4	5.4 / 17.7	26.5 / 87.0

Warning

The hoist is not intended to be used in any manner for the movement or lifting of personnel.
The rated load shown is based on the first layer of rope on the drum.
The rope winding on the drum shall remain 5 wraps from the drum.

Warranty

Each new hoist is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase. Wire rope are not included under warranty.
