GTD-2800

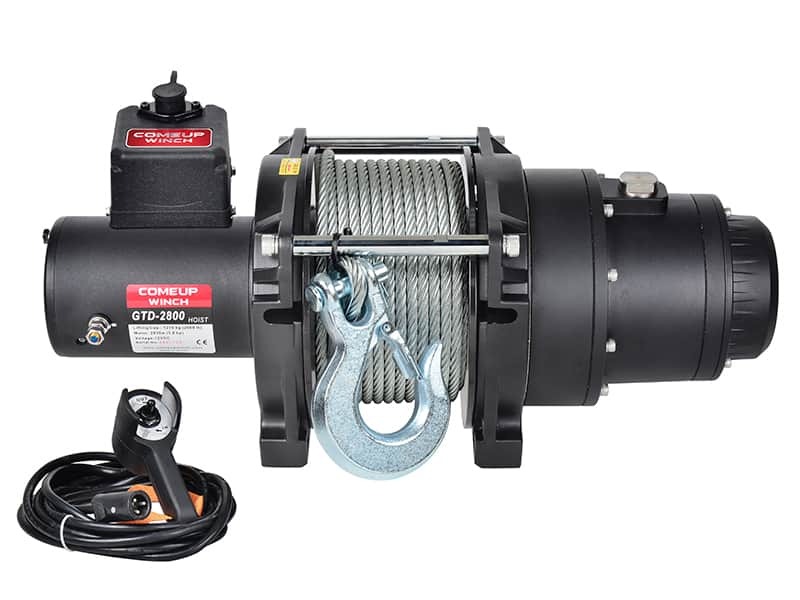

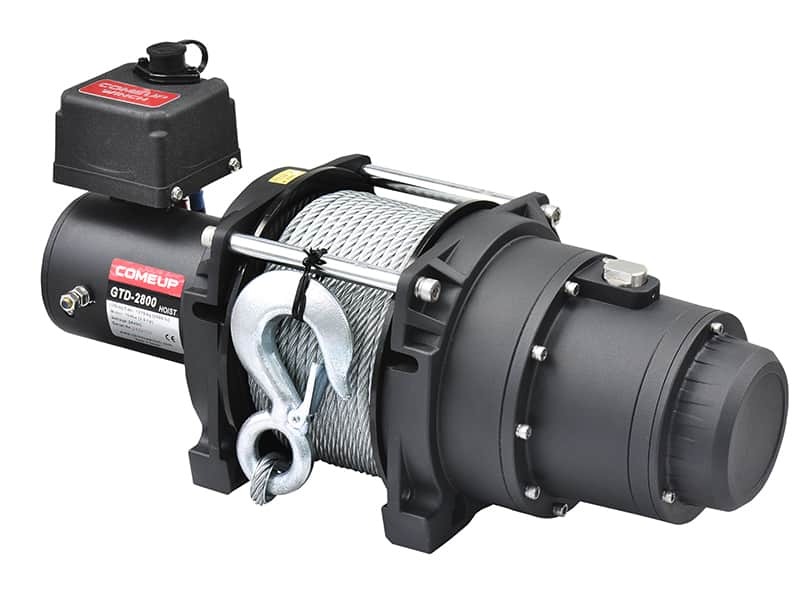

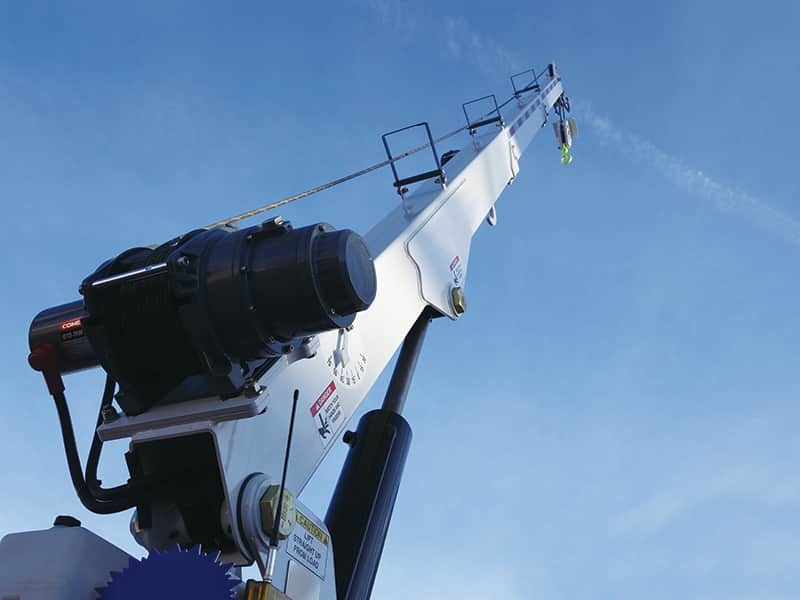

COMEUP GTD-2800 – 1,270 kg Heavy Duty Hoist. GTD and DH DC electric hoists for truck-mounted cranes and special-purpose vehicles.

Provides an answer to the health and safety recommendations for manual lifting
High efficient low amp. draw and sealed permanent magnet motor.
Lightweight and compact design is ideal for easy installation.
Mechanical cone brake and permanent motor dynamic brakes together for safe, controlled load.
Waterproof industrial remote control with 5 m lead
Full metal 3 stage planetary gear train for greater pulling force.
Submersible sealed contactor handles high amps and allows higher duty cycle
In compliance with standard of ASME B30.5 for D/d≥18 and rope safety factor ≥3.5

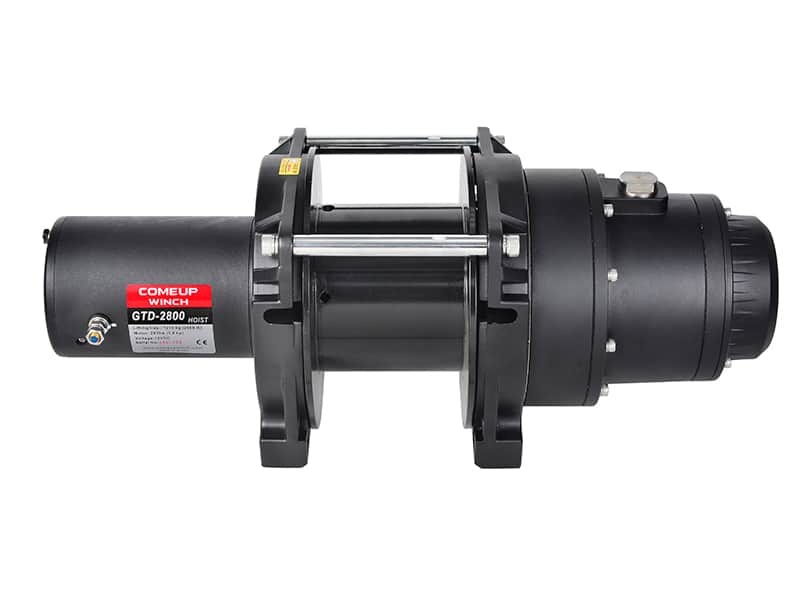

Technical Specifications

Part number	PN 753022 (12V) / PN 753033 (24V) PN 753002 (12V) w / o controls and rope assembly PN 753003 (24V) w / o controls and rope assembly
Rated load	1,270 kg (2,800 lb)
Line speed (at 1st layer of rope): 12V	4.6 mpm / 15.1 fpm 25A at no load 3.0 mpm / 9.7 fpm 140A at full load 24V : 6.0 mpm / 19.7 fpm 22A at no load 4.4 mpm / 14.4 fpm 100A at full load
Motor	2,830 w / 3.8 hp 12V permanent magnet 1,940 w / 2.6 hp 24V permanent magnet
Gear ratio	3-stage planetary gear 261:1
Brake (outside the drum)	Mechanical cone brake and permanent motor dynamic brakes together
Hoist construction	Aluminum die cast housings with cast iron drum

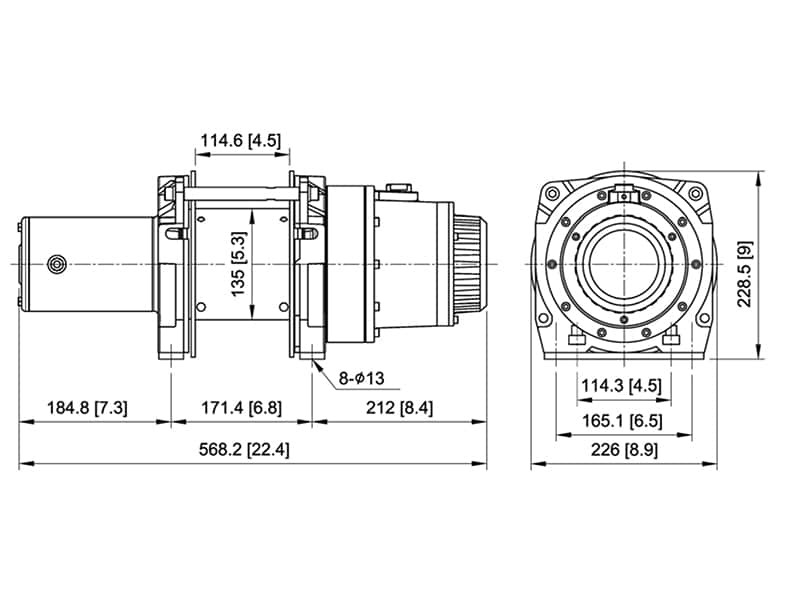

Drum size	135 x 114.6 mm (5.3” x 4.5")
Control	Remote control with 5 m (17') lead
Rope type	Galvanized aircraft A7 x 19
Rope size	7.9 mm x 28 m (5/16" x 92')
Mounting bolt pattern	114.3 x 171 mm (4.5” x 6.8”) ; 165.1 x 171 mm (6.5" x 6.8") Standard Compliance: - CE EMC Directive 2014/30/EU ASME

- CE Machinery Directive 2006/42/EC

B30.5

Line Speed and Amp. Draw (1st layer of wire rope on the drum):

Line Pull,	Line Speed, mpm / fpm		Amp Draw, A		Percentage Duty Cycle,
kg / lb	12V	24V	12V	24V	Min / 10 min
No load	5.8 / 19	6.0 / 19.7	30	22	Count.
227 / 500	5.5 / 18	5.7 / 18.7	45	30	7.0
454 / 1,000	5.1 / 16.7	5.5 / 18.0	70	45	4.5
680 / 1,500	4.6 / 15.1	5.3 / 17.4	95	60	3.0
907 / 2,000	4.3 / 14.1	4.6 / 15.1	135	80	2.5
1,270 / 2,800	4.0 / 13.1	4.4 / 14.4	160	100	2.0

Line Pull and Rope Capacity:

Layer of Wire Rope	Load by Layer, kg / lb	Line Speed, mpm / fpm		Total Rope on the Drum, m / ft
Layer of Wire Rope	Load by Layer, kg / lb	12V	24V	Total Rope on the Drum, m / ft
1^st	1,270 / 2,800	4.0 / 13.1	4.4 / 14.4	6.3 / 20.7
2^nd	1,144 / 2,522	4.4 / 14.4	4.9 / 16.1	13.3 / 43.6
3^rd	1,040 / 2,292	4.8 / 15.7	5.4 / 17.7	21 / 68.6
^4th	954 / 2,103	5.3 / 17.4	5.8 / 19.0	28 / 92

Warning

The hoist is not intended to be used in any manner for the movement or lifting of personnel.
The rated load shown is based on the first layer of rope on the drum.
The rope winding on the drum shall remain 5 wraps from the drum.

Warranty

Each new hoist is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase. Wire rope are not included under warranty.

Document	Date	Format	Download
GTD-2800 Operation Manual	2022-04-29	PDF, 0.69 MB	Download
GTD-2800 (w/o controls and rope assembly) Operation Manual	2022-04-29	PDF, 0.60 MB	Download
