GTD-2200

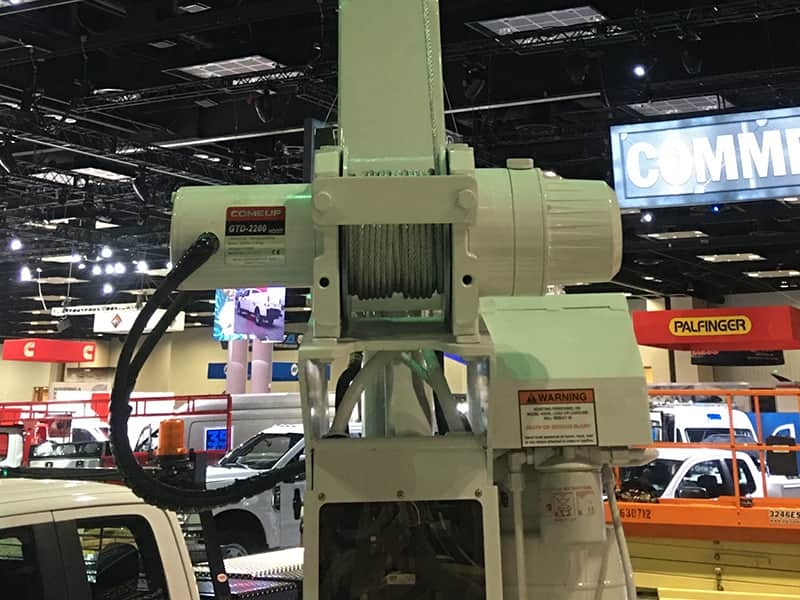

COMEUP GTD-2200 – 998 kg Heavy Duty Hoist. GTD and DH DC electric hoists for truck-mounted cranes and special-purpose vehicles.

Provides an answer to the health and safety recommendations for manual lifting
High efficient low amp. draw and sealed permanent magnet motor.
Lightweight and compact design is ideal for easy installation.
Mechanical cone brake and permanent motor dynamic brakes together for safe, controlled load.
Waterproof industrial remote control with 5 m lead
Full metal 3 stage planetary gear train for greater pulling force.
Submersible sealed contactor handles high amps and allows higher duty cycle.
In compliance with standard of ASME B30.5 for D/d≥18 and rope safety factor ≥3.5

Technical Specifications

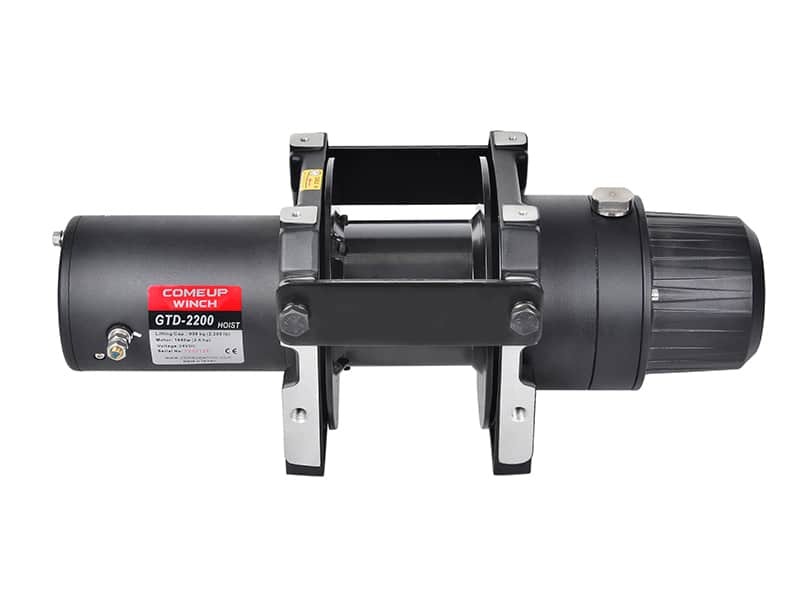

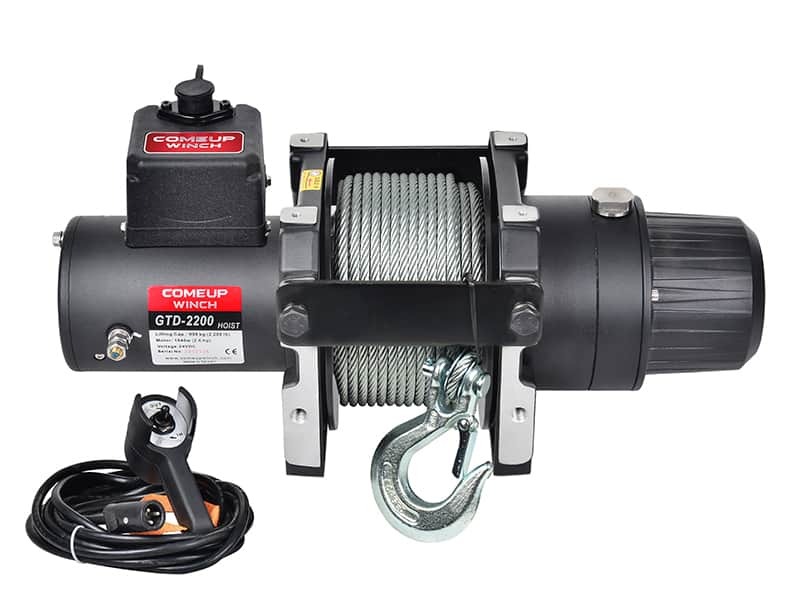

Part number	PN 752103 (12V) / PN 752104 (24V) PN 752003 (12V) w / o controls and rope assembly PN 752004 (24V) w / o controls and rope assembly
Rated line lift	998 kg (2,200 lb) 907 kg (2,000 lb) ANSI B30.5 rating
Line speed (at 1st layer of rope): 12V	4.5 mpm / 14.8 fpm 25A at no load 3.5 mpm / 11.5 fpm 120A at full load 24V : 5.8 mpm / 19 fpm 18A at no load 5.0 mpm / 16.4 fpm 50A at full load
Motor	2,830 w / 3.8 hp 12V permanent magnet 1,940 w / 2.6 hp 24V permanent magnet
Gear ratio	3-stage planetary gear 211:1
Brake (outside the drum)	Mechanical cone brake and permanent motor dynamic brakes together
Hoist construction	Aluminum die cast housings with cast iron drum

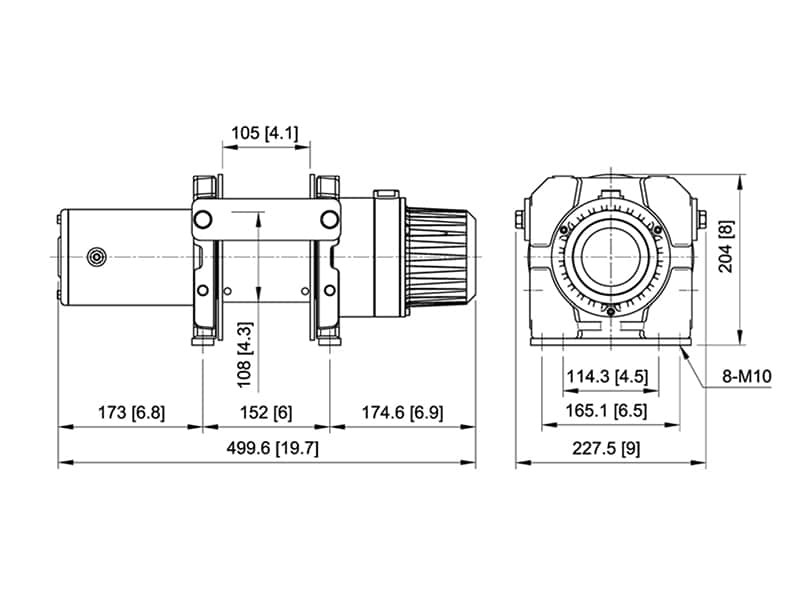

Drum size	108 x 105 mm (4.3” x 4.1")
Control	Remote control with 5 m (17') lead
Rope type	Galvanized aircraft A7 x 19
Rope size	6.4 mm x 30 m (1/4" x 100')
Mounting bolt pattern	114.3 x 152 mm (4.5” x 6”) ; 165.1 x 152 mm (6.5" x 6") Standard Compliance: - CE Machinery Directive 2006/42/EC - CE EMC Directive 2014/30/EU - ASME B30.5

Line Speed and Amp. Draw (1st layer of wire rope on the drum):

Line Pull,	Line Speed, mpm / fpm		Amp Draw, A		Percentage Duty Cycle,
kg / lb	12V	24V	12V	24V	Min / 10 min
No load	5.3 / 17.4	5.8 / 19.0	25	18	Cont.
181 / 400	5.2 / 17.1	5.7 / 18.7	50	25	8.0
362 / 800	5.1 / 16.7	5.6 / 18.4	75	35	6.0
544 / 1,200	4.8 / 15.7	5.5 / 18	95	55	4.0
771 / 1,700	4.6 / 15.1	5.3 / 17.4	115	70	3.0
998 / 2,200	4.2 / 13.8	5.0 / 16.4	135	90	2.0

Line Pull and Rope Capacity:

Layer of Wire Rope	Load by Layer, kg / lb	Line Speed, mpm / fpm		Total Rope on the Drum, m / ft
Layer of Wire Rope	Load by Layer, kg / lb	12V	24V	Total Rope on the Drum, m / ft
1^st	998 / 2,200	4.2 / 13.8	5.0 / 16.4	5.6 / 18.4
2^nd	898 / 1,980	4.6./ 15.1	5.5 / 18.0	11.8 / 38.7
3^rd	816 / 1,799	5.1 / 16.7	6.1 / 20.0	18.7 / 61.4
^4th	747 / 1,647	5.6 / 18.4	6.6 / 21.6	26.2 / 66
5^th	689 / 1,519	6.0 / 19.7	7.2 / 23.6	30 / 100

Warning

The hoist is not intended to be used in any manner for the movement or lifting of personnel.
The rated load shown is based on the first layer of rope on the drum.
The rope winding on the drum shall remain 5 wraps from the drum.

Warranty

Each new hoist is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase. Wire rope are not included under warranty.
