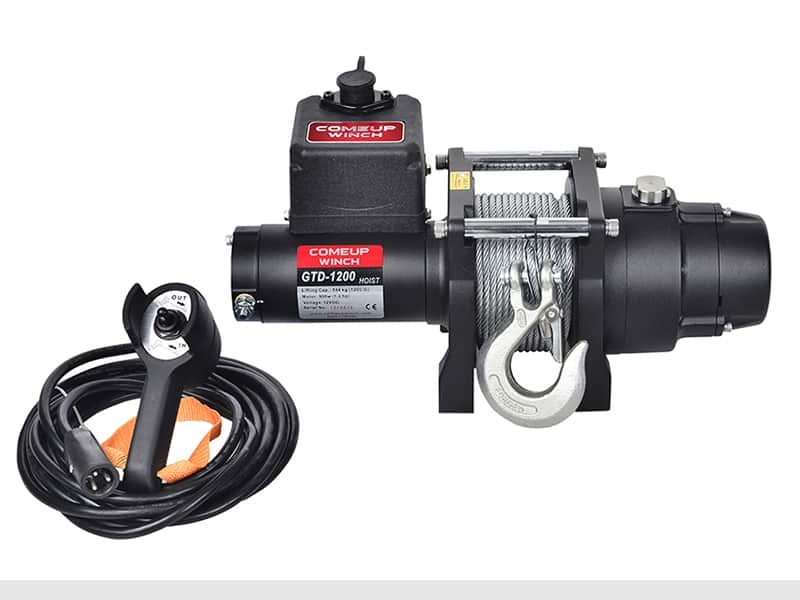

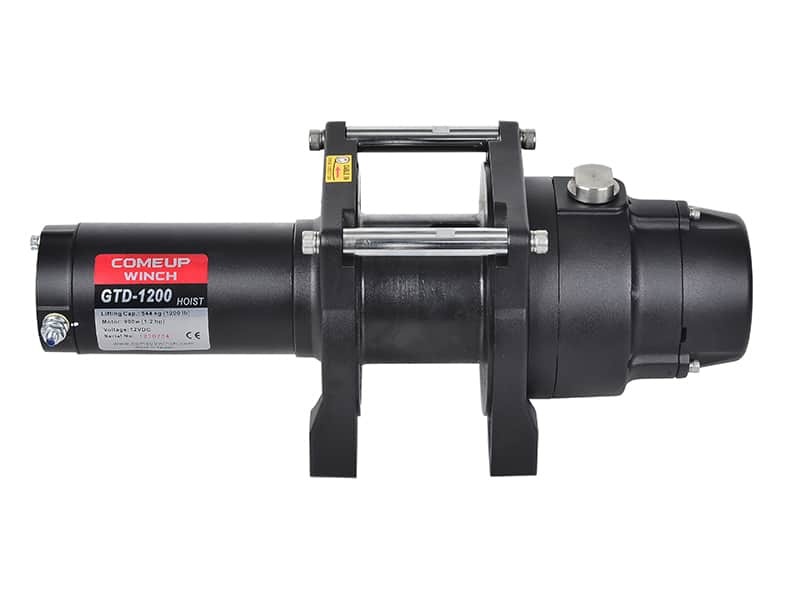

GTD-1200

COMEUP GTD-1200 belongs to the COMEUP Electric Crane Hoists range. GTD and DH DC electric hoists for truck-mounted cranes and special-purpose vehicles.

544 kg Heavy Duty Hoist
  • Provides an answer to the health and safety recommendations for manual lifting.
  • High efficient low amp. draw and sealed permanent magnet motor.
  • Lightweight and compact design is ideal for easy installation.
  • Mechanical cone brake and permanent motor dynamic brakes together for safe, controlled load.
  • Waterproof industrial remote control with 5 m lead.
  • Full metal 3 stage planetary gear train for greater pulling force.
  • Submersible sealed contactor handles high amps and allows higher duty cycle.
  • In compliance with standard of ASME B30.5 for D/d≥18 and rope safety factor ≥3.5

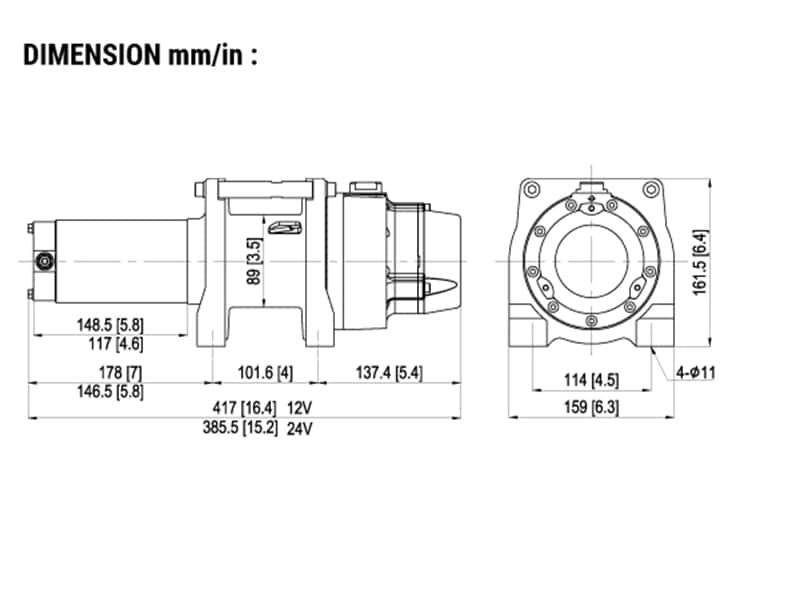

Technical Specifications

Part numberPN 751321 (12V) / PN 751375 (24V)
PN 751220 (12V) w / o controls and rope assembly
PN 751265 (24V) w / o controls and rope assembly
Rated load544 kg / 1,200 lb
Line speed (at 1st layer of rope): 12V7.4 mpm / 24.3 fpm 30A at no load
5.5 mpm / 18.0 fpm 130A at full load
24V : 5.9 mpm / 19.4 fpm 15A at no load
5.0 mpm / 16.4 fpm 50A at full load
Motor900 w / 1.2 hp 12/24V permanent magnet
Gear ratio3-stage planetary gear 216:1
Brake (outside the drum)Mechanical cone brake and permanent motor dynamic brakes together
Hoist constructionAluminum die cast housings with cast iron drum
Drum size89 x 73 mm (3.5” x 2.9")
ControlRemote control with 5 m (17') lead
Rope typeGalvanized aircraft A7 x 19
Rope size4.8 mm x 18.3 m (3/16" x 60')
Mounting bolt pattern114 x 101.6 mm (4.5” x 4”)

Standard Compliance:
- CE Machinery Directive 2006/42/EC
- CE EMC Directive 2014/30/EU
- ASME B30.5

Performance Data

Line Speed and Amp. Draw (1st layer of wire rope on the drum):

Line Pull, Line Speed, mpm / fpmAmp Draw, APercentage Duty Cycle,
kg / lb12V24V12V24VMin / 10 min
No load7.4 / 24.35.9 / 19.430152.5
136 / 3006.9 / 22.65.7 / 18.755192.3
272 / 6006.4 / 21.05.5 / 18.075252.0
408 / 9005.9 / 19.45.2 / 17.195361.8
544 / 1,2005.5 / 18.05.0 / 16.4130501.5


Line Pull and Rope Capacity:

Layer of Wire RopeLoad by Layer, kg / lbLine Speed, mpm / fpmTotal Rope on the Drum, m / ft
1st544 / 1,2005.5 / 1.84.2 / 13.8
2nd494 / 1,0896.1 / 19.98.8 / 28.9
3rd452 / 9666.6 / 21.713.8 / 45.3
4th416 / 9177.2 / 23.618.3 / 60


Warning

  • The hoist is not intended to be used in any manner for the movement or lifting of personnel.
  • The rated load shown is based on the first layer of rope on the drum.
  • The rope winding on the drum shall remain 5 wraps from the drum.

Warranty

  • Each new hoist is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase. WIRE ROPES ARE NOT INCLUDED UNDER WARRANTY.

Accessories

  • Wire rope 4.8 mm x 18.3 m w/clevis hook (Sold separately)
  • Remote control with 5 m lead (Sold separately)
  • Control box (Sold separately)

Packaging

  • Hoist weight (including rope): 15.3 kg / 33.7 lb
  • Gross weight : 20.2 kg / 44.5 lb
  • Box dimension, (L x D x H) : 504 x 214 x 363 mm (19.8" x 8.4" x 14.3")

Downloads

DocumentDateFormatDownload
GTD-1200 Operation Manual2023-08-14PDF, 0.34 MBDownload
GTD-1200 (w/o controls and rope assembly) Operation Manual 2023-08-14PDF, 0.35 MBDownload
