GIO 80s

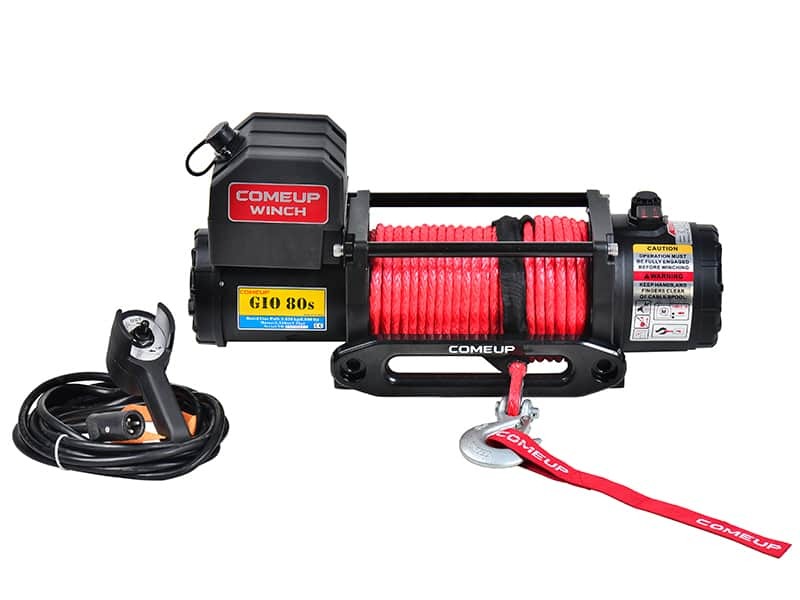

COMEUP GIO 80s – 3.6 Tonnes Self-Recovery Winch. Earlier COMEUP automotive winch models, listed for reference and spare-parts lookup.

12V DC reliable recovery winch rated at 8,000 lb. pulling exceeds your expectations.
Series-wound motor for power and fast line speed.
Compact control pack fixed above motor for quick installation. It is also removable for various mounting options.
Exclusive brake design with No. 37C device for better winching control.
Durable, smooth, and reliable three-stage planetary gear train.
Fine powder coated finish provides better weather resistance.
Waterproof rated IP 68.

Technical Specifications

Part number	PN 853818
Rated line pull	3,630 kg / 8,000 lb single line
Motor	3,356 w / 4.5 hp 12V series wound
Gear train	3-stage planetary 234.6:1
Clutch (freespooling)	Rotating ring gear
Brake (inside the drum)	Exclusive brake design with No. 37C device
Winch construction	Aluminum die cast housings with steel drum

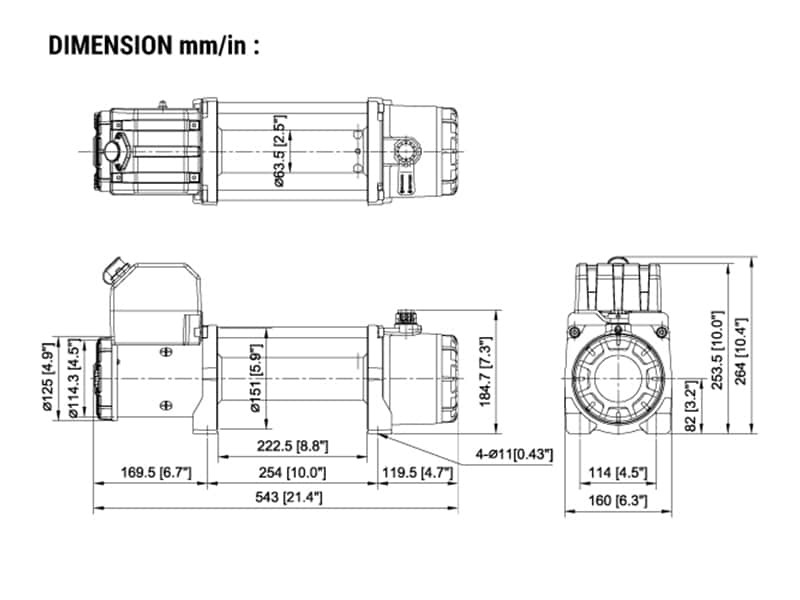

Drum size	63.5 mm x 222.5L mm (2.5” x 8.8”L)
Control	Waterproof reomte w/ 5 m (17') cord
Rope	size: Synthetic rope, 8 mm x 30.5 m (5/16" x 100')
Mounting bolt pattern	254 mm x 114 mm (10” x 4.5”)
Mounting	Foot forward or foot down mounting workable
Finish	Matte black powder-coated

Line Speed and Amp. Draw (1st layer of wire rope on the drum):

Line Pull and Rope Capacity:

Warning

The winch is not intended to be used in any manner for the movement or lifting of personnel.
The rated line pull shown is based on the first layer of wire rope on the drum.
The wire rope winding on the drum shall remain 5 wraps from the drum.

Warranty

Limited lifetime warranty for mechanical components and one ( 1 ) years warranty for electrical components from date of purchase. Wire ropes are not included under warranty after initia use.

Standard Accessories:

Document	Date	Format	Download
GIO 80s Operation Manual	2022-04-29	PDF, 0.48 MB	Download
