FullSharp · since 1991

GIO 120

COMEUP GIO 120 – 5.4 Tonnes Self-Recovery Winch. GIO series: entry-level automotive winches for basic self-recovery.

  • 12V DC reliable recovery winch rated at 12,000 lb.pulling exceeds your expectations.
  • Series-wound motor for power and fast line speed.
  • Compact control pack fixed above motor for quick installation. It is also removable for various mounting options.
  • Exclusive brake design with No. 37C device for better winching control.
  • Durable, smooth, and reliable three-stage planetary gear train.
  • Fine powder coated finish provides better weather resistance.
  • Waterproof rated IP 68.

Technical Specifications

Part numberPN 853832
Rated line pull5,443 kg / 12,000 lb single line
Motor4,847 w / 6.5 hp 12V series wound
Gear train3-stage planetary 234.6:1
Clutch (freespooling)Rotating ring gear
Brake (inside the drum)Exclusive brake design with No. 37C device
Winch constructionAluminum die cast housings with steel drum

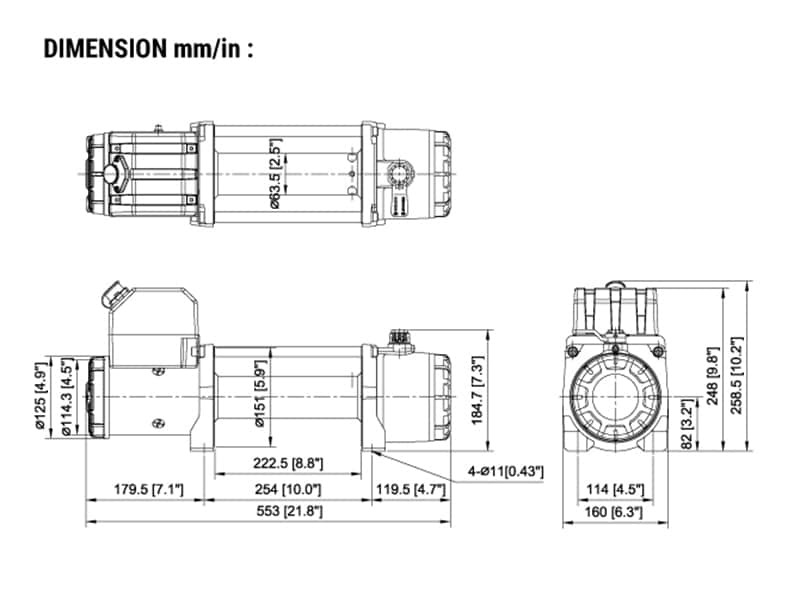

Drum size63.5 mm x 222.5L mm (2.5” x 8.8”L)
ControlWaterproof reomte w/ 5 m (17') cord
Ropesize: Galvanized aircraft A7 x 19 wire rope, 10.3 mm x 25.5 m (13/32” x 83.7’)
Mounting bolt pattern254 mm x 114 mm (10” x 4.5”)
MountingFoot forward or foot down mounting workable
FinishMatte black powder-coated

Performance Data

Line Speed and Amp. Draw (1st layer of wire rope on the drum):

Line Pull,
kg / lb		Line Speed,
mpm / fpm		Amp. Draw, A
12V
No load7.8 / 25.645
1,361 / 3,0004.5 / 14.6110
2,722 / 6,0004.0 / 13165
4,082 / 9,0003.5 / 11.4220
5,443 / 12,0002.7 / 8.9340

Line Pull and Rope Capacity:

Layer of RopePull by layer, kg / lbTotal Rope on the Drum, m / ft
1st5,443 / 12,0004.9 / 16.0
2nd4,188 / 9,23311.1 / 36.4
3rd3,404 / 7,50518.7 / 61.4
4th2,867 / 6,32125.5 / 83.7

Warning

  • The winch is not intended to be used in any manner for the movement or lifting of personnel.
  • The rated line pull shown is based on the first layer of wire rope on the drum.
  • The wire rope winding on the drum shall remain 5 wraps from the drum.

Warranty

  • Limited lifetime warranty for mechanical components and one ( 1 ) years warranty for electrical components from date of purchase. Wire ropes are not included under warranty after initia use.

Accessories

Standard Accessories

  • Roller fairlead
  • Remote control w/5 m (17’) cord
  • Wire rope w/clevis hook
  • 1.8 m (6’) 2 gauge battery lead
  • Handsaver strap

Packaging

  • Winch weight: 37.7 kg / 83.1 lb
  • Gross weight: 52.7 kg / 116 lb
  • Box dimension (L x D x H) : 650 x 195 x 415 mm (25.6” x 7.7” x 16.3”)

Downloads

DocumentDateFormatDownload
GIO 120 Operation Manual2022-04-29PDF, 0.71 MBDownload
