GIO 100

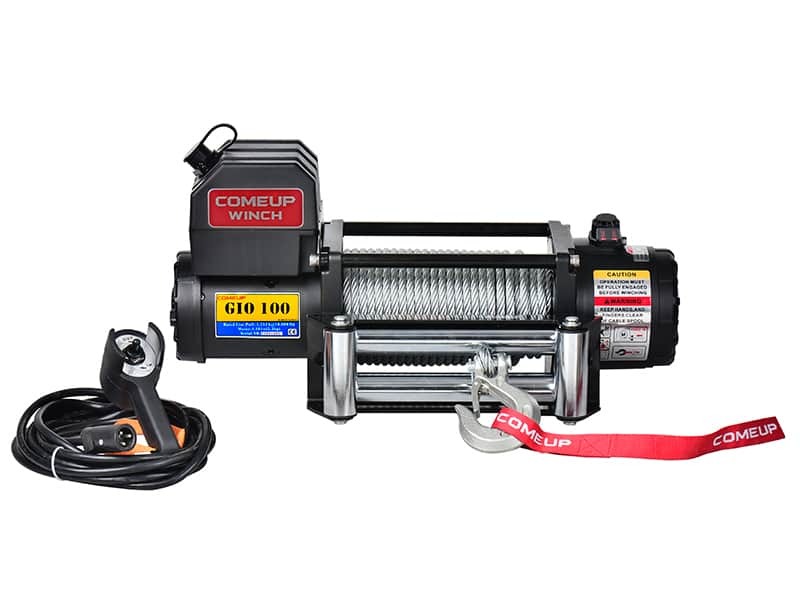

COMEUP GIO 100 – 4.5 Tonnes Self-Recovery Winch. GIO series: entry-level automotive winches for basic self-recovery.

  • 12V DC reliable recovery winch rated at 10,000 lb. pulling exceeds your expectations.
  • Series-wound motor for power and fast line speed.
  • Compact control pack fixed above motor for quick installation. It is also removable for various mounting options.
  • Exclusive brake design with No. 37C device for better winching control.
  • Durable, smooth, and reliable three-stage planetary gear train.
  • Fine powder coated finish provides better weather resistance.
  • Waterproof rated IP 68.

Technical Specifications

Part numberPN 853841
Rated line pull4,535 kg / 10,000 lb single line
Motor4,101 w / 5.5 hp 12V series wound
Gear train3-stage planetary 234.6:1
Clutch (freespooling)Rotating ring gear
Brake (inside the drum)Exclusive brake design with No. 37C device
Winch constructionAluminum die cast housings with steel drum

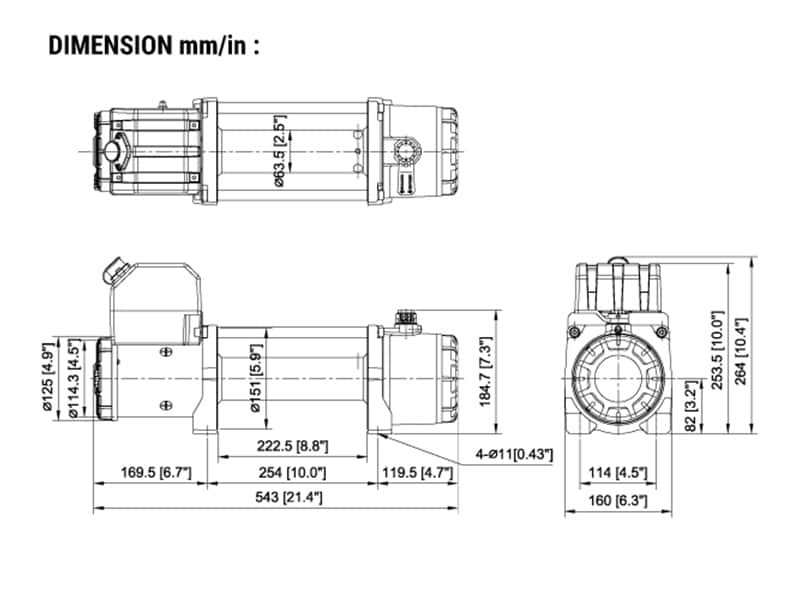

Drum size63.5 mm x 222.5L mm (2.5” x 8.8”L)
ControlWaterproof reomte w/ 5 m (17') cord
Ropesize: Galvanized aircraft A7 x 19 wire rope, 9.5 mm x 26 m (3/8” x 85.3’)
Mounting bolt pattern254 mm x 114 mm (10” x 4.5”)
MountingFoot forward or foot down mounting workable
FinishMatte black powder-coated

Performance Data

Line Speed and Amp. Draw (1st layer of wire rope on the drum):

Line Pull,
kg / lb		Line Speed,
mpm / fpm		Amp. Draw, A
12V
No load8.3 / 27.245
1,134 / 2,5004.0 / 13.1120
2,268 / 5,0003.3 / 10.9200
3,402 / 7,5003.1 / 10.3260
4,535 / 10,0002.9 / 9.5310

Line Pull and Rope Capacity:

Layer of RopePull by layer, kg / lbTotal Rope on the Drum, m / ft
1st4,535 / 10,0005.3 / 17.4
2nd3,598 / 7,93211.9 / 39
3rd2,982 / 6,57419.9 / 65.3
4th2,547 / 5,61526 / 85.3

Warning

  • The winch is not intended to be used in any manner for the movement or lifting of personnel.
  • The rated line pull shown is based on the first layer of wire rope on the drum.
  • The wire rope winding on the drum shall remain 5 wraps from the drum.

Warranty

  • Limited lifetime warranty for mechanical components and one ( 1 ) years warranty for electrical components from date of purchase. Wire ropes are not included under warranty after initia use.

Accessories

Standard Accessories

  • Roller fairlead
  • Remote control w/5 m (17’) cord
  • Wire rope w/clevis hook
  • 1.8 m (6’) 2 gauge battery lead
  • Handsaver strap

Packaging

  • Winch weight: 35.6 kg / 78.5 lb
  • Gross weight: 50.6 kg / 111.5 lb
  • Box dimension (L x D x H) : 650 x 195 x 415 mm ( 25.6 ” x 7.7 ” x 16.3”)

Downloads

DocumentDateFormatDownload
GIO 100 Operation Manual2022-04-29PDF, 0.48 MBDownload
