FullSharp · since 1991

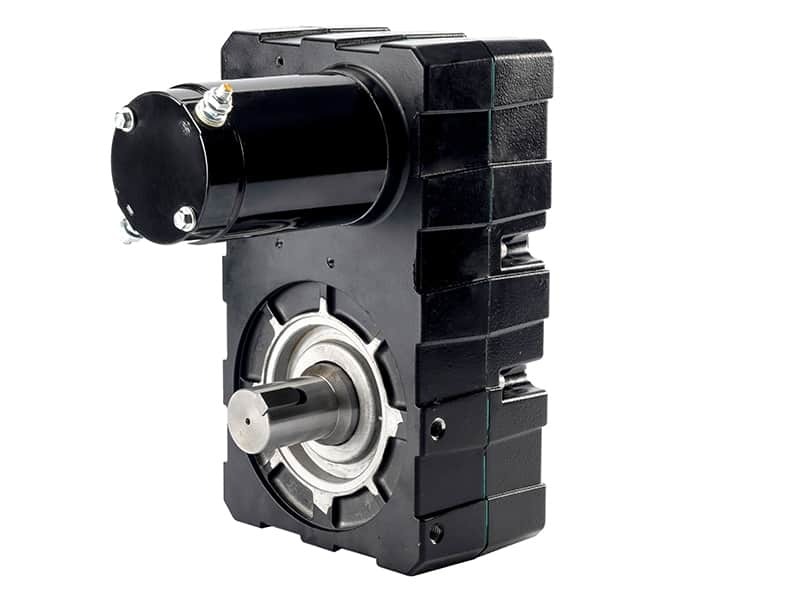

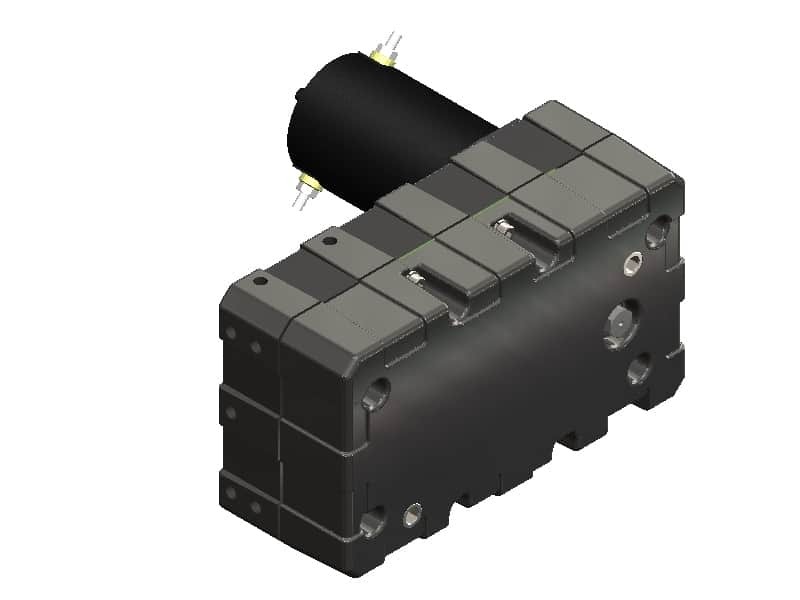

FSD-952 / 1272

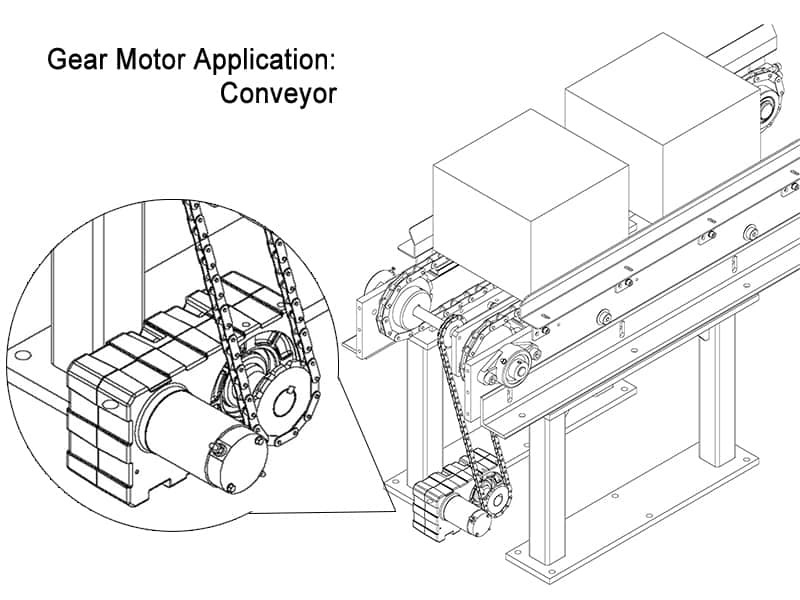

COMEUP FSD-952 / 1272 – FSD series DC gear motor. COMEUP FSD series DC gear motors for drive mechanisms and lifting or pulling equipment.

  • High Torque, Low speed.
  • 100% Dual mechanical ratchet brakes.
  • Manual override in case power is lost.

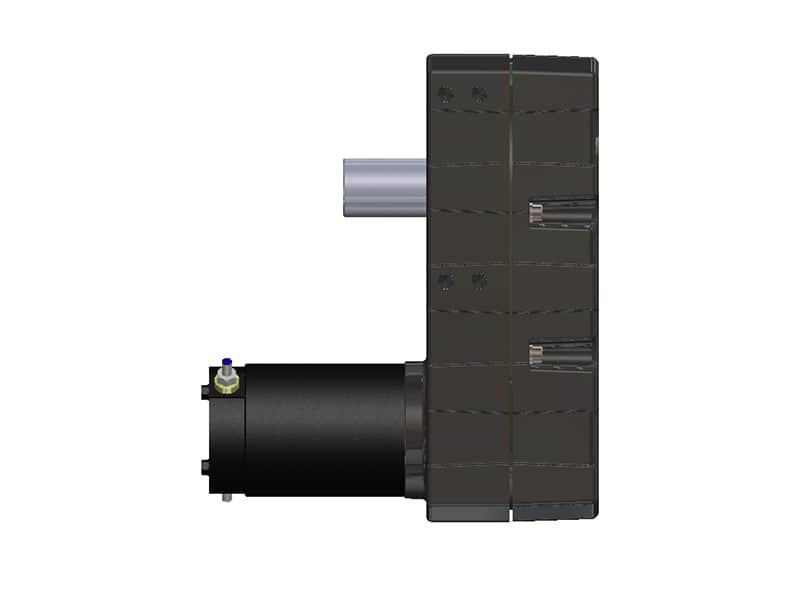

  • Vertical & Horizontal mount applicable
  • Aluminum die-cast housing.
  • Indoor & outdoor applicable.
  • Industrial and commercial application.
  • IP 65

Technical Specifications

Model NameFSD-952FSD-1272
MotorDC 800W 12V / 24V / 48VDC 1,300W 12V
Output Torque952 (kg-cm)1,272 (kg-cm)
Gear Ratio228.7 : 1228.7 : 1
ED% Rate15%20%
RPM6.1 / 7.0 / 6.18.3

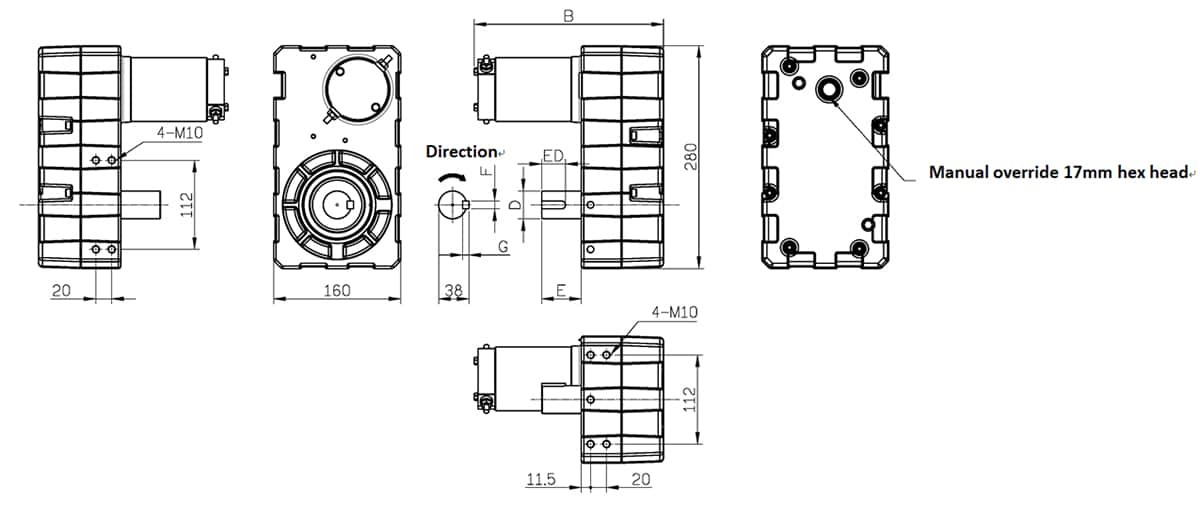

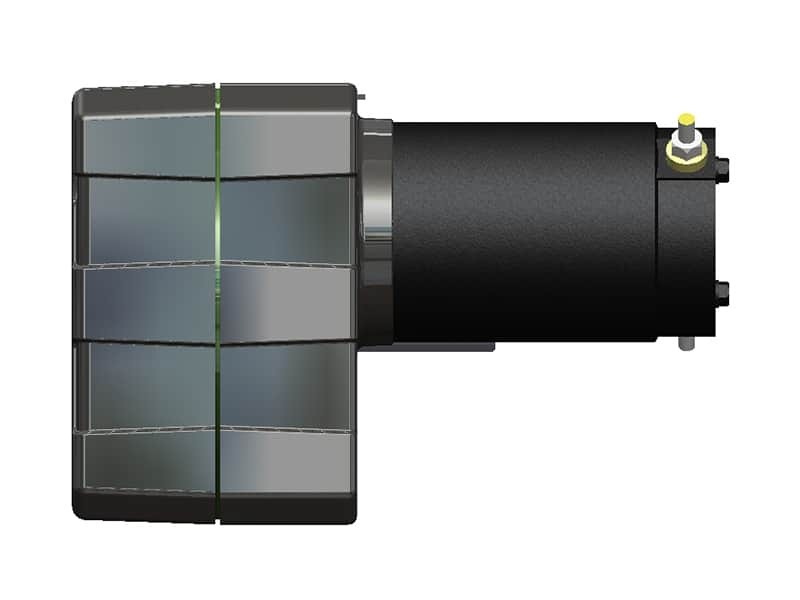

Dimensions

Unit: in mm

FSD-952 / 1272

Shaft dimension:
D: 35mm
E: 50mm
F: 10mm
G: 8mm
ED: 30mm		Motor size (B):
  • FSD-952: 239mm
  • FSD-1272: 271mm
Contact FullSharp for a quotation
