EL-300/500/1000

COMEUP EL-300/500/1000 – Easylift: 300/500/1000 kg lifting load. Earlier COMEUP AC winch models, listed for reference and spare-parts lookup.

Permanent magnetic motor features constant output and low noise level.
Lightweight and compact designs are ideal for easy installation.
Dual brakes for mechanical ratchet pawls and a motor dynamic brake provide slip free operation.
Power cutoff switch prevent the overloading of the hoist
Tough Steel Alloy die cast housing provides massive structural durability.
Can operate on standard domestic power supply and equip with industrial plug
A switch w/emergency stop comes as standard
A 360° top hook fitted with a self-locking latch is capable of swiveling with the safe working load applied
Standard Compliance: CE Machinery Directive 2006/42/EC, CE EMC Directive 2014/30/EU, CE LVD Directive 2014/35/EU.
Unlimited lifting height, based on the length of the used wire rope.

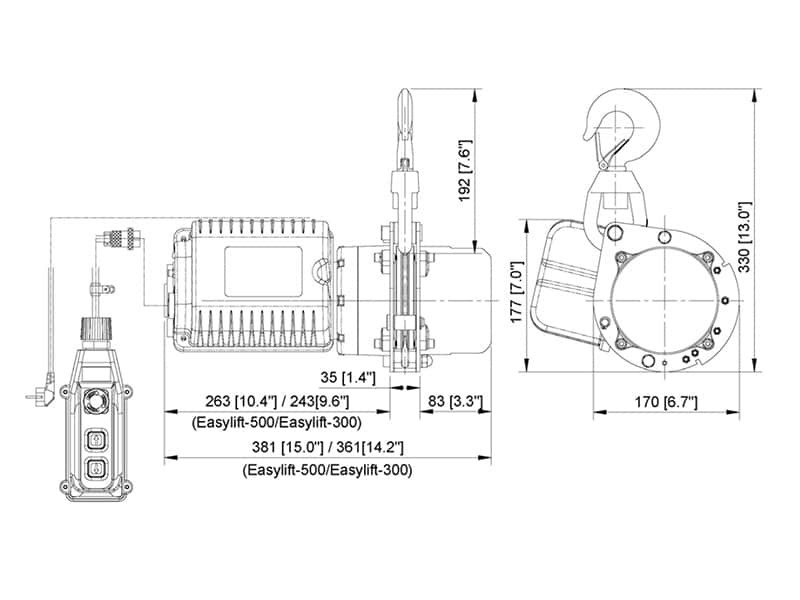

Technical Specifications

Part Number: EL-300 PN 363200
EL-500 PN 364920
EL-1000 PN 360010

Model	EL-300	EL-500	EL-1000
Duty Cycle	10% ED with at 100%of rated load
Motor Output	500W	800W
Voltage	200~240V AC, single phase
Lifting Load	300 kg	500 kg	1,000 kg
Gear Ratio	235.5:1
Line Speed	6.0 m/min	4.8 m/min	2.4 m/min
Lifting Height	30M		15M
Lifting Height	Full capacity maximum continuos lifting
Brake	brakes for mechanical ratchet pawls and motor dynamic brake
Wire Rope	Standard with A7x19,Ø6.3mm x 15 M
Switch Code	10m with emergency stop
Protection	Overload Protector (manual reset)

Warning:

The hoist is not intended to be used in any manner for the movement or lifting of personnel.
The fixing point for baby hoist shall be capable of supporting the load required.

Warranty:

Each new hoist is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase. Chain are not included under warranty

Standard Accessories:

Document	Date	Format	Download
EL-300 Operation Manual	2021-07-31	PDF, 0.19 MB	Download
EL-500 Operation Manual	2021-07-31	PDF, 0.15 MB	Download
EL-1000 Operation Manual	2021-07-31	PDF, 0.21 MB	Download
