DV-9s

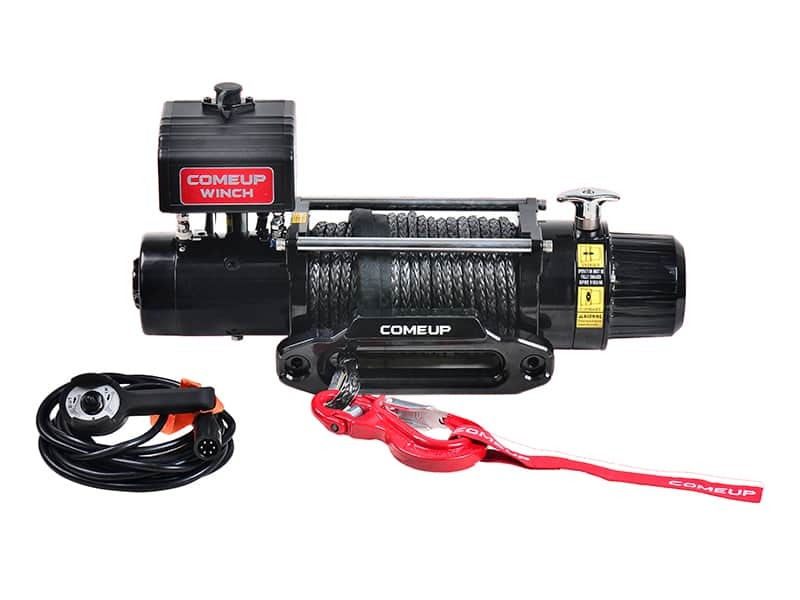

COMEUP DV-9s – 9,000 lb Self- Recovery Winch. DV Premium series: COMEUP premium automotive winches for recovery and self-recovery.

Reliable electric winch for working and playing in offroad environments.
3,430w/12V or 1,940w/24V or 3,430 w /48V series wound motor.

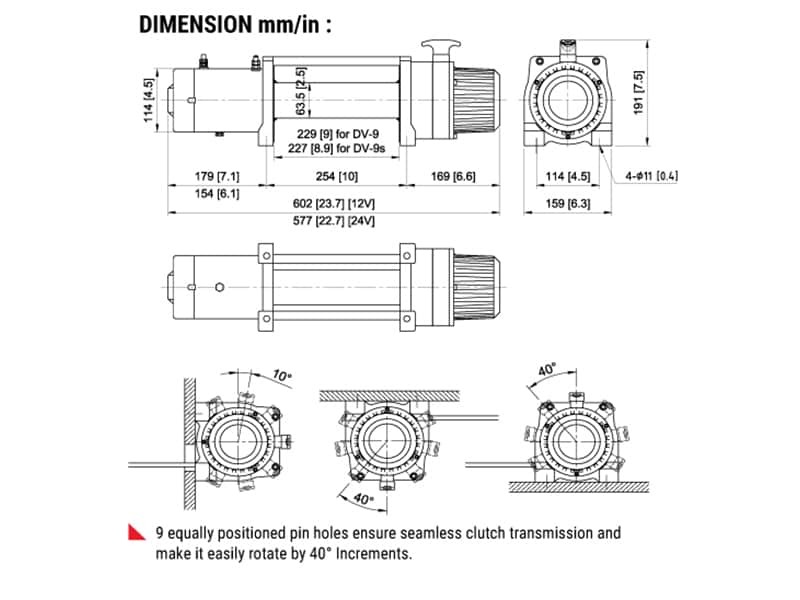

9 equally positioned pin holes with an ergonomic T-handle make it possible to reposition in 40 degree Increments.
Hardened steel, 3-stage planetary gear train for efficient and reliable operation.
12 strand construction synthetic rope, coated to improve abrasion resistance and to protect from the ingress of dirt and grit.
Water-proof remote control with thermometric LED indicator alerts when the motor is over-heated.
U.S. Germany, U.K. France, etc patented mechanical cone brake holds the full load without slipping.
Submersible sealed contactor handles high amps and allows higher duty cycle.

Technical Specifications

Part number	PN 859252 (12V) / PN 859262 (24V) / PN 859220 (48V)
Rated line pull	4,082 kg / 9,000 lb single line
Line speed (1st layer)	13.2 mpm / 43.3 fpm 55A / 12V or 30A / 24V or 13A / 48V at no load 2.0 mpm / 6.5 fpm 350A / 12V or 210A / 24V or 105A / 48V at full load
Motor	3,430 w / 4.6 hp 12V series wound 1,940 w / 2.6 hp 24V series wound 3,430 w / 4.6 hp 48V series wound
Gear train	3-stage planetary 156:1
Clutch (freespooling)	Rotating ring gear
Brake (outside the drum)	Automatic, full load CBS (Cone Brake Structure)
Winch construction	Aluminum die cast housings with steel drum
Drum size	63.5 mm x 227L mm (2.5” x 8.9”L)
Control	Waterproof remote with thermometric indicator LED w/ 5 m (17') cord
Rope type	Synthetic rope
Rope size	10 mm x 30.5 m (3/8” x 100’)
Mounting bolt pattern	254 mm x 114 mm (10” x 4.5”)

Line Speed and Amp. Draw (1st layer of wire rope on the drum):

Line Pull and Rope Capacity:

Warning

The winch is not intended to be used in any manner for the movement or lifting of personnel.
The rated line pull shown is based on the first layer of rope on the drum.
The rope winding on the drum shall remain 5 wraps from the drum.

Warranty

Limited lifetime warranty for mechanical components and one(1) year warranty for electrical components from date of purchase. Wire/Synthetic ropes are not included under warranty.

Standard Accessories	Option Accessories
Hawse fairlead Remote control w/5 m (17’) cord Detachable control box Synthetic rope w/sling hook 1.8 m (6’) 2 gauge battery lead Handsaver strap	Mounting channel Snatch block Winch accessory kit

Document	Date	Format	Download
DV-9s Operation Manual	2022-04-29	PDF, 0.69 MB	Download
[QUICK START GUIDE] Connecting the cables of the control box to the motor terminals (triangle type)	2021-07-31	PDF, 0.34 MB	Download
