DV-9i

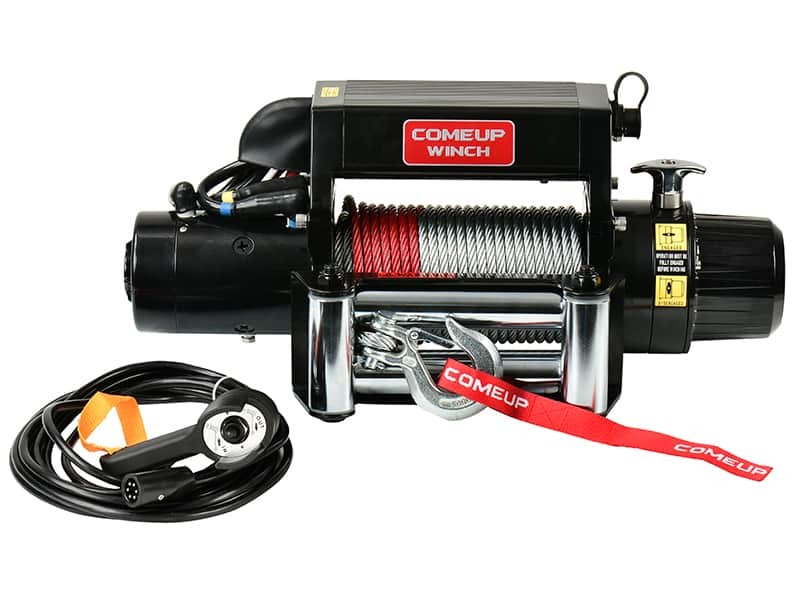

COMEUP DV-9i – 9,000 lb Self- Recovery Winch. DV Premium series: COMEUP premium automotive winches for recovery and self-recovery.

  • Reliable electric winch for working and playing in offroad environments.
  • 3,430w/12V or 1,940w/24V or 3,430 w /48V series wound motor.

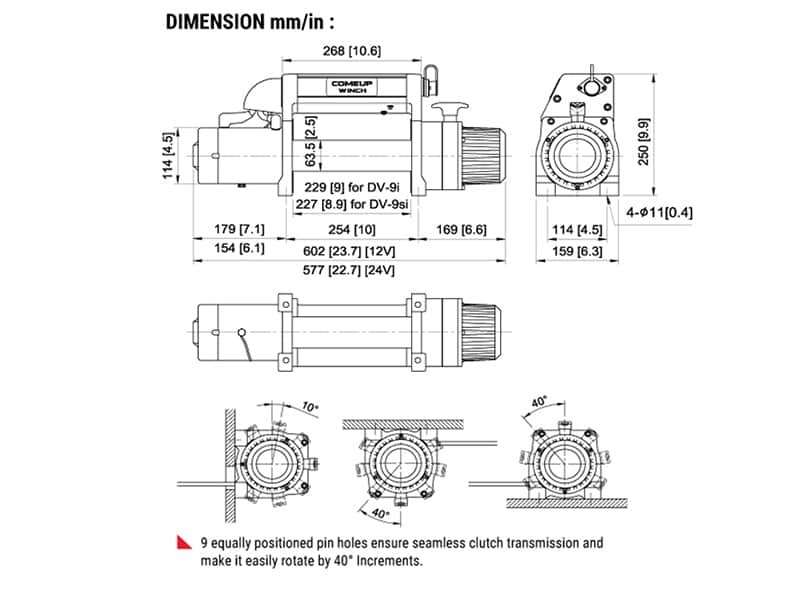

  • 9 equally positioned pin holes with an ergonomic T-handle make it possible to reposition in 40 degree Increments.
  • Hardened steel, 3-stage planetary gear train for efficient and reliable operation
  • Water-proof remote control with thermometric LED indicator alerts when the motor is over-heated.
  • U.S. Germany, U.K. France, etc patented mechanical cone brake holds the full load without slipping.
  • Submersible sealed contactor handles high amps and allows higher duty cycle.

Technical Specifications

Part numberPN 856360 (12V) / PN 856388 (24V) / PN 856390 (48V)
Rated line pull4,082 kg / 9,000 lb single line
Line speed (1st layer)13.4 mpm / 44 fpm 55A / 12V or 30A / 24V or 13A / 48V at no load
2.0 mpm / 6.4 fpm 350A / 12V or 210A / 24V or 105A / 48V at full load
Motor3,430 w / 4.6 hp 12V series wound
1,940 w / 2.6 hp 24V series wound
3,430 w / 4.6 hp 48V series wound
Gear train3-stage planetary 156:1
Clutch (freespooling)Rotating ring gear
Brake (outside the drum)Automatic, full load CBS (Cone Brake Structure)
Winch constructionAluminum die cast housings with steel drum
Drum size63.5 mm x 229L mm (2.5” x 9”L)
ControlWaterproof remote with thermometric indicator LED w/ 5 m (17') cord
Rope typeGalvanized aircraft A7 x 19
Rope size8.3 mm x 30.5 m (21/64” x 100’)
Mounting bolt pattern254 mm x 114 mm (10” x 4.5”)

Performance Data

Line Speed and Amp. Draw (1st layer of wire rope on the drum):

Line Pull,
kg / lb		Line Speed,
mpm / fpm		Amp. Draw, A
12V24V48V
No load13.4 / 44.0553013
907 / 2,0004.6 / 15.11106531
1,814 / 4,0003.4 / 11.220010050
2,722 / 6,0002.7 / 9.023013065
3,629 / 8,0002.3 / 7.526017088
4,082 / 9,0002.0 / 6.4350210105

Line Pull and Rope Capacity:

Layer of RopePull by layer, kg / lbTotal Rope on the Drum, m / ft
1st4,082 / 9,0006.1 / 20.0
2nd3,316 / 7,31013.6 / 44.7
3rd2,792 / 6,15422.6 / 74.0
4th2,410 / 5,31430.5 / 100

Warning

  • The winch is not intended to be used in any manner for the movement or lifting of personnel.
  • The rated line pull shown is based on the first layer of wire rope on the drum.
  • The wire rope winding on the drum shall remain 5 wraps from the drum.

Warranty

  • Limited lifetime warranty for mechanical components and one(1) year warranty for electrical components from date of purchase. Wire/Synthetic ropes are not included under warranty.

Accessories

Standard AccessoriesOption Accessories
  • Roller fairlead
  • Remote control w/5 m (17’) cord
  • Detachable control box
  • Wire rope w/clevis hook
  • 1.8 m (6’) 2 gauge battery lead
  • Handsaver strap
  • Mounting channel
  • Snatch block
  • Winch accessory kit

Packaging

  • Winch weight (including rope): 37 kg / 81.6 lb
  • Gross weight: 44 kg / 97 lb
  • Box dimension (L x D x H) : 650 x 192 x 415 mm (25.6” x 7.7” x 16.3”)

Downloads

DocumentDateFormatDownload
DV-9i Operation Manual2022-04-29PDF, 0.73 MBDownload
