DV-3500i

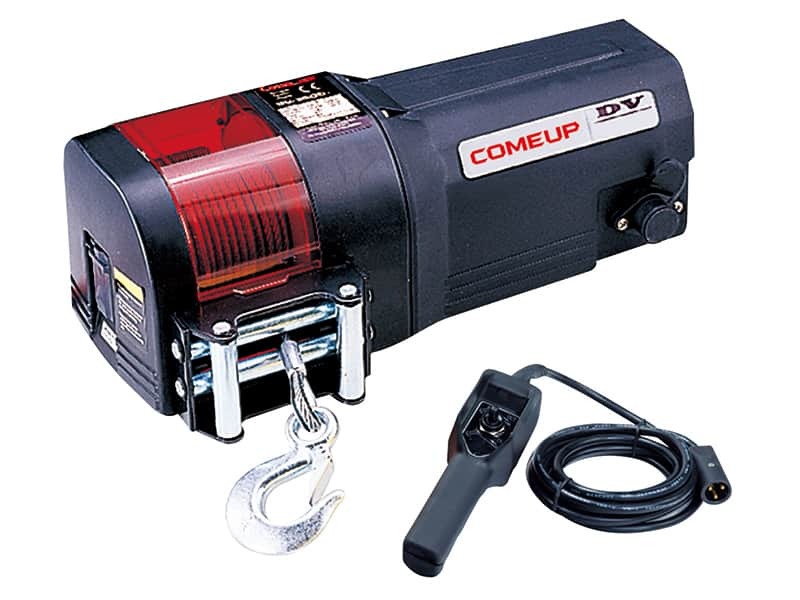

COMEUP DV-3500i – 3,500 lb Utility Duty Winch. Earlier COMEUP automotive winch models, listed for reference and spare-parts lookup.

Power in and power out
Sliding ramping clutch for rapid wire rope payout
Circuit breakers shut off winch to prevent overheating of motor
Weather-resistant plastic housing for extra durability
Dynamic and mechanical brake holds full load
Integrated contactor for complete protection of wirings
Compact and light weight allow a wide range of applications on trailers and boats

Technical Specifications

Part number	PN 641101 (12V) / PN 641371 (24V)
Rated line pull	1,588 kg / 3,500 lb single line
Motor	900 w / 1.2 hp 12/24V permanent magnet
Gear train	3-stage planetary 170:1
Clutch (freespooling)	Sliding ramping
Brake (outside the drum)	Automatic load-holding mechanical brake
Drum size	54 mm x 83L mm (2.1” x 3.3”L)
Control	Handheld pendant switch remote control
Rope type	Galvanized aircraft A7 x 19
Rope size	5.5 mm x 15.2 m (7/32” x 50’)

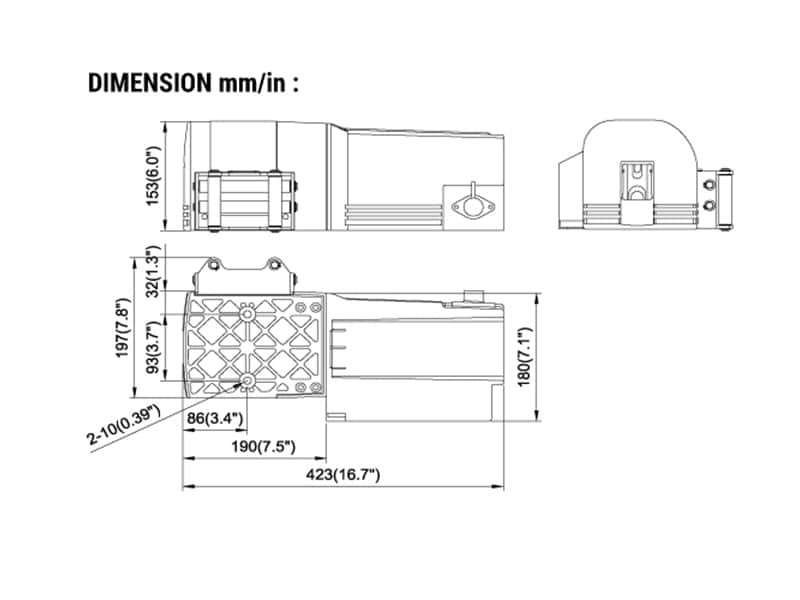

Mounting bolt pattern	86 mm x 93 mm (3.4” x 3.7”)

Line Speed and Amp. Draw (1st layer of wire rope on the drum):

Line Pull and Rope Capacity:

Warning

The winch is not intended to be used in any manner for the movement or lifting of personnel.‧
The rated line pull shown is based on the first layer of rope on the drum.
The rope winding on the drum shall remain 5 wraps from the drum.

Warranty

Limited lifetime warranty for mechanical components and one(1) year warranty for electrical components from date of purchase. Wire/Synthetic ropes are not included under warranty

Standard Accessories	Option Accessories
Wire rope w/safety hook Remote control w/3 m cord 1.5 m (5') 6 gauge battery lead Roller fairlead Circuit breakers Handsaver strap	Snatch block Winch accessory kit Wireless remote control Gloves

Document	Date	Format	Download
DV-3500i Operation Manual	2022-04-29	PDF, 0.63 MB	Download
