DV-18

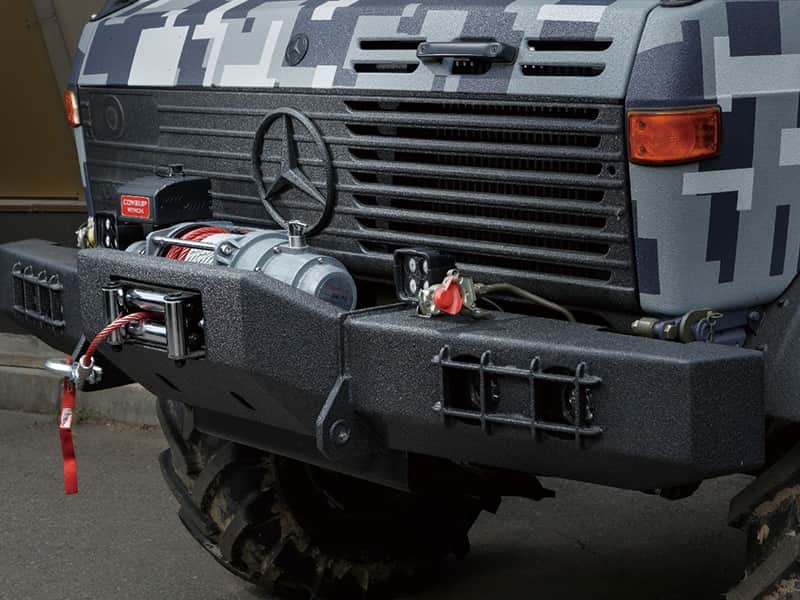

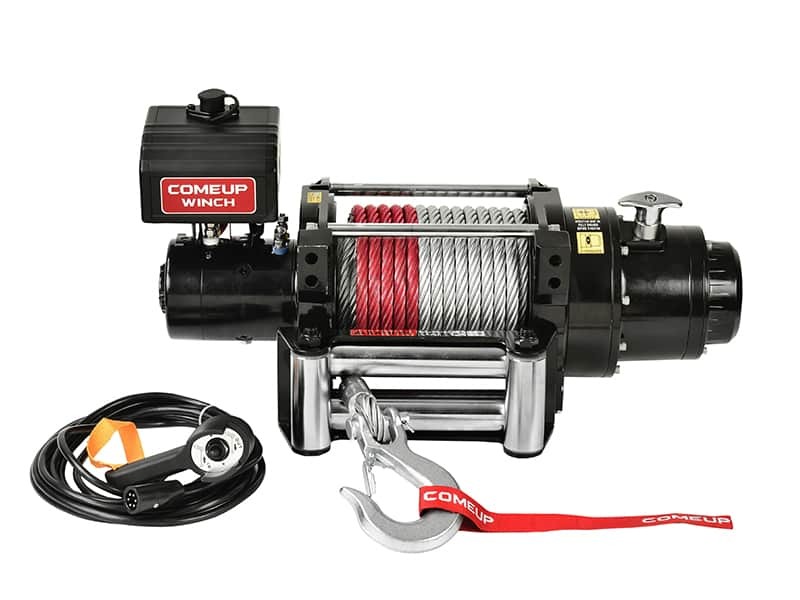

COMEUP DV-18 – 8.1 Tonnes Severe Duty Winch. DV Premium series: COMEUP premium automotive winches for recovery and self-recovery.

  • Features compact size, light-weight, extreme low profile and spec. leading 18,000 lb pulling make it the optimal winch to fit in the limited space on most of the current vehicles.
  • 10 equally positioned pin holes with an ergonomic T-handle make it possible to reposition in 36 degree Increments.
  • Hardened steel, 3-stage planetary gear train for efficient and reliable operation
  • Water-proof remote control with thermometric LED indicator alerts when the motor is over-heated.
  • U.S. Germany, U.K. France, etc patented mechanical cone brake holds the full load without slipping.
  • Meets international standards of CE Machinery Directive 2006/42/EC, CE Electromagnetic Compatibility Directive 2014/30/EU, and SAE J706 Surface Vehicle standard 2003-08 rev

Technical Specifications

Part numberPN 851823 (12V) / PN 851838 (24V)
Rated line pull8,181 kg / 18,000 lb single line
Motor5,220 w / 7.0 hp 12V series wound w/thermal protcetion switch
4,474 w / 6.0 hp 24V series wound w/thermal protcetion switch
Gear train3-stage planetary 315:1
Clutch (freespooling)Rotating ring gear
Brake (outside the drum)Automatic, full load CBS (Cone Brake Structure)
Winch constructionAluminum die cast housings with steel drum
Drum size89 mm x 192L mm (3.5" x 7.6"L)
ControlWaterproof remote with thermometric indicator LED w/ 5 m (17') cord
Rope type6 × 29 - IWRC
Rope size12.7 mm x 25 m (1/2” x 82’)
Mounting bolt pattern254 mm x 114 mm (10” x 4.5”)
254 mm x 165 mm (10" x 6.5")
MountingFoot forward mounting only
* Remark: Only foot forward mounting can meet SAE J706

Performance Data

Line Speed and Amp. Draw (1st layer of wire rope on the drum):

Line Pull,
kg / lb		Line Speed,
mpm / fpm		Amp. Draw, A
12V24V
No load8.6 / 28.23540
1,814 / 4,0004.0 / 13.111570
3,630 / 8,0003.6 / 12.0200140
4,535 / 10,0003.2 / 10.6230180
5,443 / 12,0002.8 / 9.3260210
6,804 / 15,0002.3 / 7.5320240
8,181 / 18,0001.0 / 3.3350290

Line Pull and Rope Capacity:

Layer of RopePull by layer, kg / lbTotal Rope on the Drum, m / ft
1st8,181 / 18,0004.7 / 15.4
2nd6,546 / 14,43110.5 / 34.4
3rd5,456 / 12,02817.5 / 57.4
4th4,677 / 10,31125.0 / 82.0

Warning

  • The winch is not intended to be used in any manner for the movement or lifting of personnel.
  • The rated line pull shown is based on the first layer of rope on the drum.
  • The rope winding on the drum shall remain 5 wraps from the drum.

Warranty

  • Limited lifetime warranty for mechanical components and one(1) year warranty for electrical components from date of purchase. Wire/Synthetic ropes are not included under warranty.

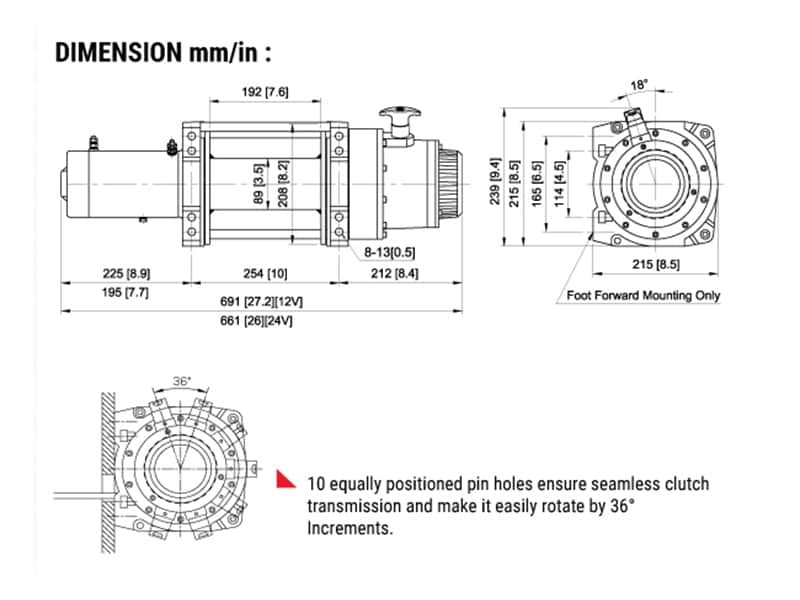

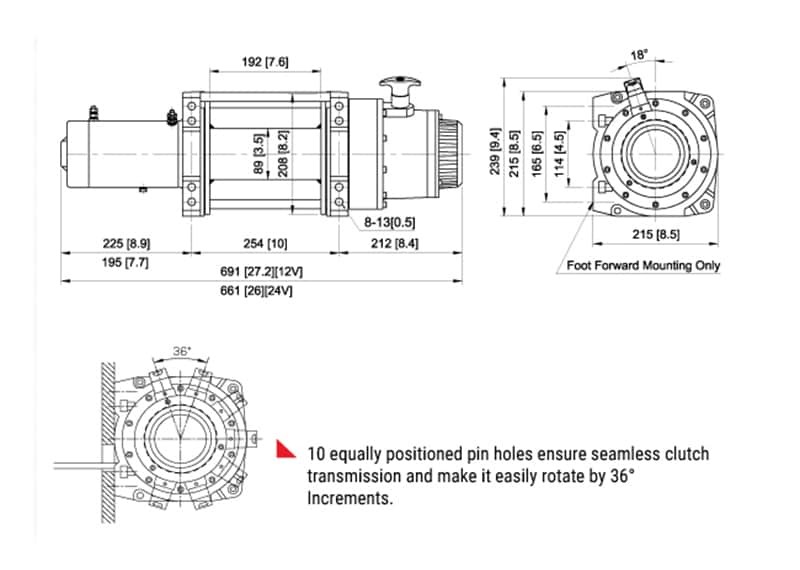

Dimensions

DV-18

Accessories

Standard AccessoriesOption Accessories
  • Roller fairlead
  • Remote control w/5 m (17’) cord
  • Detachable control box
  • Wire rope w/clevis hook
  • 1.8 m (6’) 2 gauge battery lead
  • Handsaver strap
  • Cable Tensioner
  • Winch accessory kit

Packaging

  • Winch weight: 59 kg / 130 lb
  • Gross weight: 71.0 kg / 156.5 lb
  • Box dimension (L x D x H) : 695 x 265 x 420 mm (27.3” x 10.4” x 16.5”)

Downloads

DocumentDateFormatDownload
DV-18 Operation Manual2022-04-29PDF, 0.67 MBDownload
[QUICK START GUIDE] Connecting the cables of the control box to the motor terminals (triangle type)2021-07-31PDF, 0.34 MBDownload
