DV-15

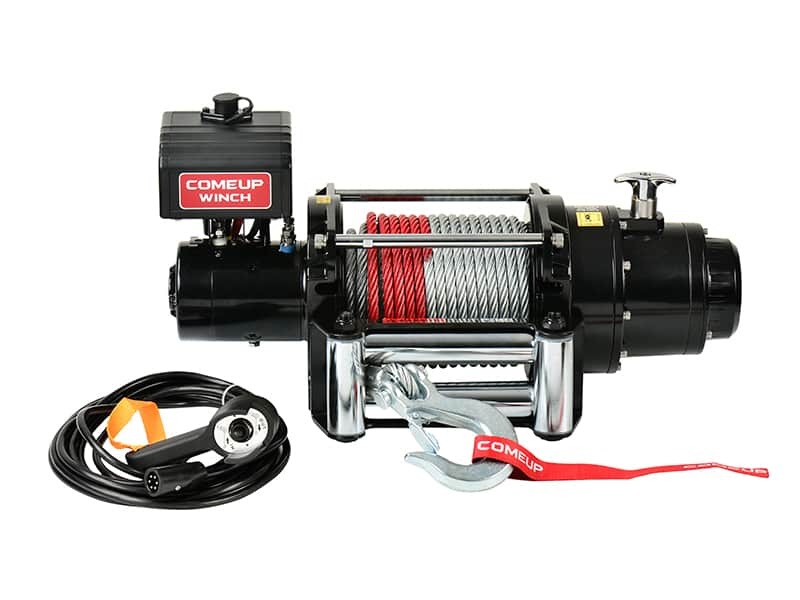

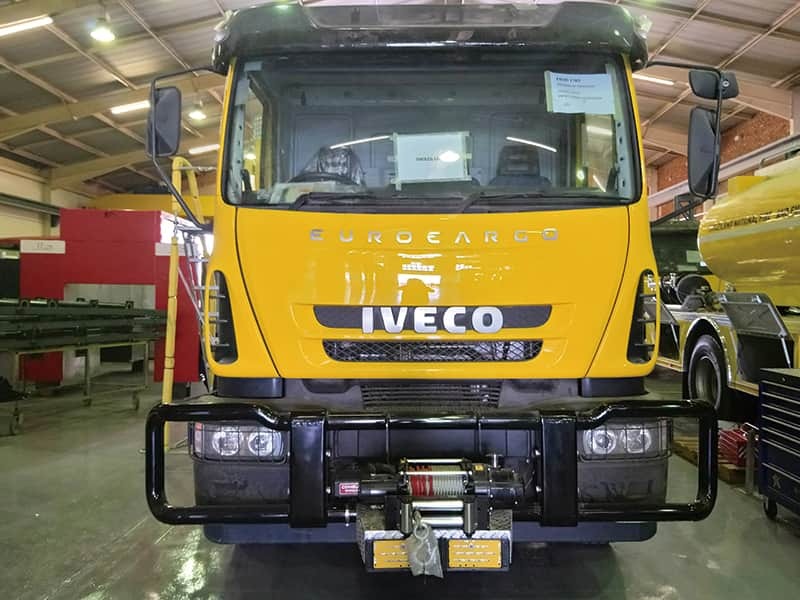

COMEUP DV-15 – 6.8 Tonnes Self- Recovery Winch. DV Premium series: COMEUP premium automotive winches for recovery and self-recovery.

  • Reliable electric winch for working and playing in off-road environments.
  • 4,180 w/12V or 2,690 w/24V or 4,180 w /48V series wound motor.

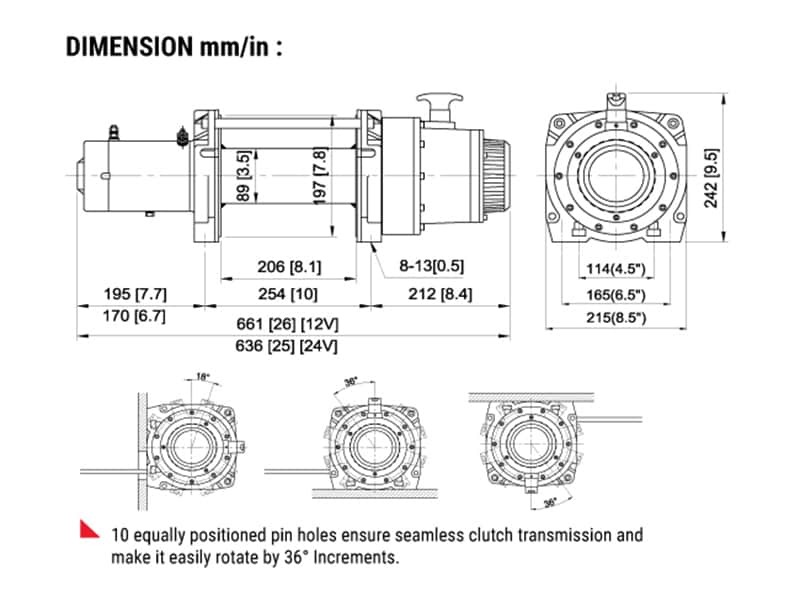

  • 10 equally positioned pin holes with a stainless steel ergonomic T-handle make it possible to reposition in 36 degree Increments.
  • Hardened steel, 3-stage planetary gear train for efficient and reliable operation
  • Water-proof remote control with thermometric LED indicator alerts when the motor is over-heated.
  • U.S. Germany, U.K. France, etc patented mechanical cone brake holds the full load without slipping.
  • Submersible sealed contactor handles high amps and allows higher duty cycle.
  • Meets international standards such as SAE J706, CE Machinery Directive 2006/42/EC and CE EMC directive 2014/30/EU

Technical Specifications

Part numberPN 857326 (12V) / PN 857431 (24V) / PN 857440 (48V)
Rated line pull6,804 kg / 15,000 lb single line
Line speed (1st layer)6.9 mpm / 22.6 fpm, 60A / 12V or 50A / 24V or 15A / 48V at no load
0.8 mpm / 2.5 fpm, 460A / 12V or 340A / 24V or 110A / 48V at full load
Motor4,180 w / 5.6 hp 12V series wound
2,690 w / 3.6 hp 24V series wound
4,180 w / 5.6 hp 48V series wound
Gear train3-stage planetary 315:1
Clutch (freespooling)Rotating ring gear
Brake (outside the drum)Automatic, full load CBS (Cone Brake Structure)
Winch constructionAluminum die cast housings with steel drum
Drum size89 mm x 206L mm (3.5” x 8.1”L)
ControlWaterproof remote with thermometric indicator LED w/ 5 m (17') cord
Rope type6 × 29 - IWRC
Rope size11.1 mm x 27 m (7/16” x 89’)
Mounting bolt pattern254 mm x 114 mm (10” x 4.5”)
254 mm x 165 mm (10" x 6.5")

Performance Data

Line Speed and Amp. Draw (1st layer of wire rope on the drum):

Line Pull,
kg / lb		Line Speed,
mpm / fpm		Amp. Draw, A
12V24V48V
No load6.9 / 22.6605015
1,814 / 4,0001.6 / 5.41809030
3,629 / 8,0001.2 / 3.828019065
4,536 / 10,0001.0 / 3.333022075
5,443 / 12,0000.9 / 2.938526085
6,804 / 15,0000.8 / 2.5460340110

Line Pull and Rope Capacity:

Layer of RopePull by layer, kg / lbTotal Rope on the Drum, m / ft
1st6,804 / 15,0005.7 / 18.6
2nd5,569 / 12,27712.6 / 41.4
3rd4,713 / 10,39120.8 / 68.3
4th4,086 / 9,00727 / 89

Warning

  • The winch is not intended to be used in any manner for the movement or lifting of personnel.
  • The rated line pull shown is based on the first layer of rope on the drum.
  • The rope winding on the drum shall remain 5 wraps from the drum.

Warranty

  • Limited lifetime warranty for mechanical components and one(1) year warranty for electrical components from date of purchase. Wire/Synthetic ropes are not included under warranty.

Accessories

Standard AccessoriesOption Accessories
  • Roller fairlead
  • Remote control w/5 m (17’) cord
  • Detachable control box
  • Wire rope w/clevis hook
  • 1.8 m (6’) 2 gauge battery lead
  • Handsaver strap
  • Mounting channel
  • Snatch block
  • Winch accessory kit

Packaging

  • Winch weight: 57 kg / 125.4 lb
  • Gross weight: 69 kg / 152 lb
  • Box dimension (L x D x H) : 695 x 265 x 420 mm (27.3” x 10.4” x 16.5”)

Downloads

DocumentDateFormatDownload
DV-15 (PN 857326) 12V Operation Manual2022-04-28PDF, 0.79 MBDownload
DV-15 (PN 857431) 24V Operation Manual2022-04-28PDF, 0.67 MBDownload
[QUICK START GUIDE] Connecting the cables of the control box to the motor terminals (triangle type)2021-07-31PDF, 0.34 MBDownload
Contact FullSharp for a quotation
