FullSharp · since 1991

DV-12 lite

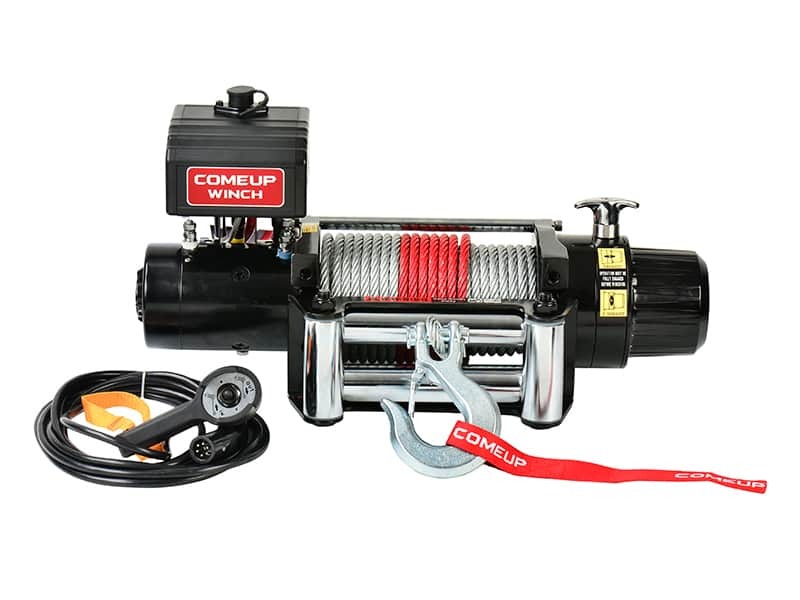

COMEUP DV-12 lite – 5.4 Tonnes Self- Recovery Winch. DV Premium series: COMEUP premium automotive winches for recovery and self-recovery.

  • Reliable electric winch for working and playing in off-road environments.
  • 3,430w/12V or 1,940w/24V or 3,430w/48V series wound motor.

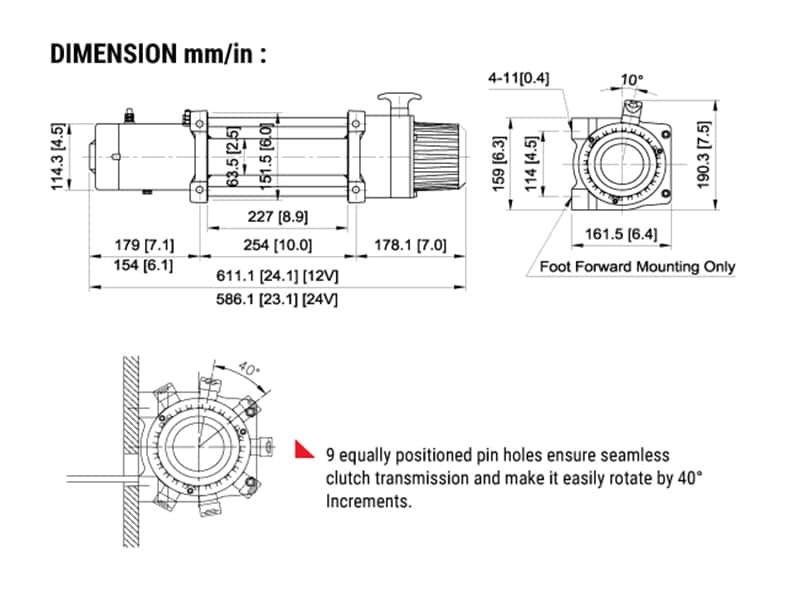

  • 9 equally positioned pin holes with an ergonomic T-handle make it possible to reposition in 40 degree Increments.
  • Hardened steel, 3-stage planetary gear train for efficient and reliable operation
  • Water-proof remote control with thermometric LED indicator alerts when the motor is over-heated.
  • U.S. Germany, U.K. France, etc patented mechanical cone brake holds the full load without slipping.
  • Submersible sealed contactor handles high amps and allows higher duty cycle.

Technical Specifications

Part numberPN 850012 (12V) / PN 850124 (24V) / PN 850134 (48V)
Rated line pull5,443 kg / 12,000 lb single line
Line speed (1st layer)8.0 mpm / 26.2 fpm 50 A at 12V or 30A / 24V or 15A / 48V at no load
1.0 mpm / 3.3 fpm 350 A at 12 V or 210A / 24V or 95A / 48V at full load
Motor3,430 w / 4.6 hp 12V series wound
1,940 w / 2.6 hp 24V series wound
3,430 w / 4.6 hp 48V series wound
Gear train3-stage planetary 211:1
Clutch (freespooling)Rotating ring gear
Brake (outside the drum)Automatic, full load CBS (Cone Brake Structure)
Winch constructionAluminum die cast housings with steel drum
Drum size63.5mm x 227L mm (2.5” x 8.9”L)
ControlWaterproof remote with thermometric indicator LED w/ 5 m (17') cord
Rope typeGalvanized aircraft A7 x 19
Rope size9.5 mm x 25 m (3/8” x 82’)
Mounting bolt pattern254 mm x 114 mm (10” x 4.5”)
MountingFoot forward mounting only
* Remark: Only foot forward mounting can meet SAE J706

Performance Data

Line Speed and Amp. Draw (1st layer of wire rope on the drum):

Line Pull,
kg / lb		Line Speed,
mpm / fpm		Amp. Draw, A
12V24V48V
No load8.0 / 26.2503015
1,814 / 4,0003.0 / 9.81207038
3,629 / 8,0001.5 / 5.023014065
4,536 / 10,0001.2 / 4.029018077
5,443 / 12,0001.0 / 3.335021095

Line Pull and Rope Capacity:

Layer of RopePull by layer, kg / lbTotal Rope on the Drum, m / ft
1st5,443 / 12,0005.4 / 17.7
2nd4,319 / 9,52212.2 / 40.0
3rd3,580 / 7,89320.5 / 67.3
4th3,056 / 6,73725.0 / 82.0

Warning

  • The winch is not intended to be used in any manner for the movement or lifting of personnel.
  • The rated line pull shown is based on the first layer of rope on the drum.
  • The rope winding on the drum shall remain 5 wraps from the drum.

Warranty

  • Limited lifetime warranty for mechanical components and one(1) year warranty for electrical components from date of purchase. Wire/Synthetic ropes are not included under warranty.

Accessories

Standard AccessoriesOption Accessories
  • Roller fairlead
  • Remote control w/5 m (17’) cord
  • Detachable control box
  • Wire rope w/clevis hook
  • 1.8 m (6’) 2 gauge battery lead
  • Handsaver strap
  • Mounting channel
  • Snatch block
  • Winch accessory kit

Packaging

  • Winch weight: 39 kg / 86 lb
  • Gross weight: 49 kg / 108 lb
  • Box dimension (L x D x H) : 650 x 192 x 415 mm ( 25.6” x 7.7 ” x16.3”)

Downloads

DocumentDateFormatDownload
DV-12 lite Operation Manual2024-02-15PDF, 0.61 MBDownload
[QUICK START GUIDE] Connecting the cables of the control box to the motor terminals (triangle type)2021-07-31PDF, 0.34 MBDownload
