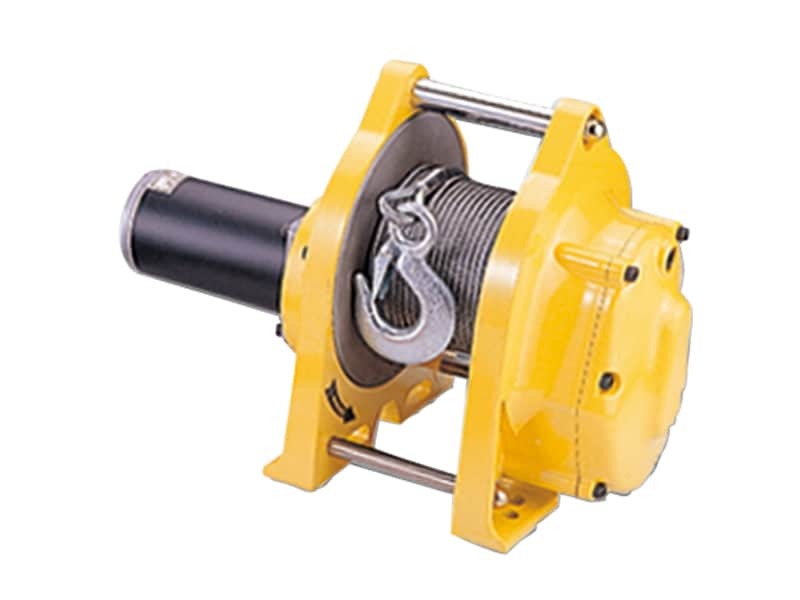

DH-300(A)

COMEUP DH-300(A) – Purpose Built For Mobile Vehicle Crane Hoist. GTD and DH DC electric hoists for truck-mounted cranes and special-purpose vehicles.

The COMEUP DH-series hoist offers a fresh perspective for mobile vehicle crane hoist - hoists rigorously design for mobile crane operators. The drum and cable system delivers maximum speed from the very top layer. DH-series hoist is rated at their top layer of wire rope on the drum, 25% ED duty cycle and maximum starting frequency of 150 times/h at 63% load. In addition, DH-series hoist passed 100% load 200 hrs life test.

DH-series delivers smooth running over heavy-duty the speed range, low amp. draw and low sound level plus the lightweight and compact design for easy installation. This product lineup is designed specifically for light to heavy duty mobile vehicle crane. It's also suitable for wide range of strict lifting applications.

The COMEUP DH-Series reflects our commitment to help our customers gain more sales with quality, design, innovation and service that benefit their customers.

Technical Specifications

Part numberPN 752589 (DH-300)
PN 752155 (DH-300A)
Rated Line Lift300 kg (661 lb)
Lifting Height12 m
Lifting Speed5 mpm / 16.4 fpm
Motor Output300 W x 35A at DC 12V (DH-300)
300 W x 20A at DC 24V (DH-300A)
Power SupplyDC 12V (DH-300) / DC 24V (DH-300A)
Gear Ratio240:1
BrakeElectromagnetic and mechanical ratchets

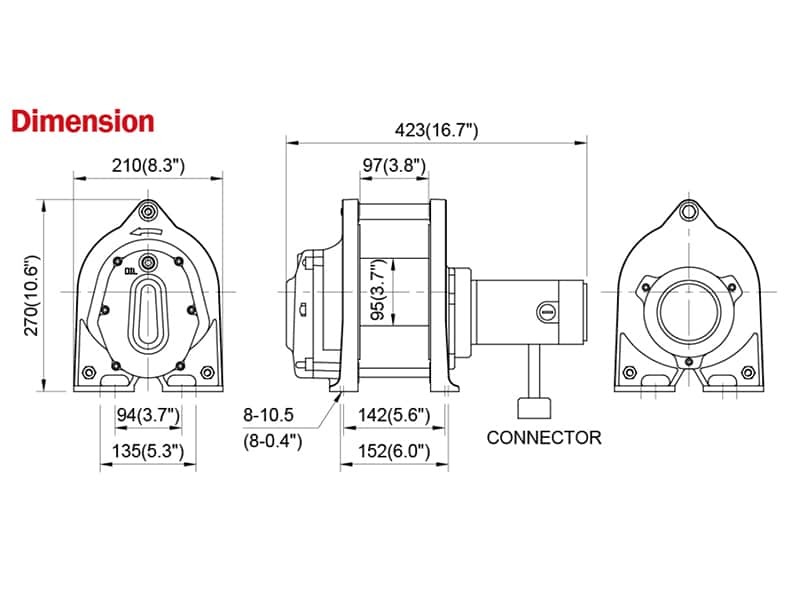

Drum Size95 mm x 97 mm (3.7” x 3.8”)
Wire Rope4.8 mm x 12 m (3/16” x 39’) , Galvanized aircraft A7 x 19
HookSafety hook
Controls- Type: Indirect (DH-300) / Direct (DH-300A)
- Power cord: 5.5 mm² x 2C x 3.9 m (DH-300)
5.5 mm² x 2C x 4.2 m (DH-300A)
- Switch cord: 0.75 mm² x 3C x 4.4 m (DH-300)
5.5 mm² x 2C x 2.9 m (DH-300A)
- Pendant switch: CPB-161 (DH-300) / CPB-271 (DH-300A)
- Control box: Yes (DH-300) / No (DH-300A)

Warning

  • Hoists are not to be used for the lifting or moving of persons

Warranty

  • Each new hoist is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase. WIRE ROPES ARE NOT INCLUDED UNDER WARRANTY.

Accessories

Standard Accessories

  • Wire rope with hook
  • Remote control w/4.4 m (14.4’) cord
  • Control box (DH-300)

Packaging

  • Hoist Weight: 15.2 kg / 33.5 lb
  • Gross Weight: 20.2 kg / 44.5 lb
  • Box Dimension: 580 x 250 x 290 mm (22.8” x 9.8” x 11.4”)

Downloads

DocumentDateFormatDownload
DH-300 Operation Manual2021-07-31PDF, 0.18 MBDownload
DH-300A Operation Manual2023-09-11PDF, 0.49 MBDownload
