CWS-230

COMEUP CWS-230 is a lightweight compact electric winch rated at 230 kg on the top rope layer, running on single-phase 110 / 220 / 230 / 240 V power. It installs easily in small workshops, on construction sites and for maintenance work.

Lightweight and compact design
Allows easy installation
Upper hoisting limit switch
When rope touches the limit arm, hoisting is automatically stopped
Lower hoisting limit switch
Sensor arm automatically stops motor if the wire rope is under-wound
Dynamic and mechanical ratchet brake
Double ratchet pawl brakes provide instant and safe braking
Can operate on standard domestic power supply
Wire rope comes with a safety-latch weight hook
Emergency stop function switch is available upon request

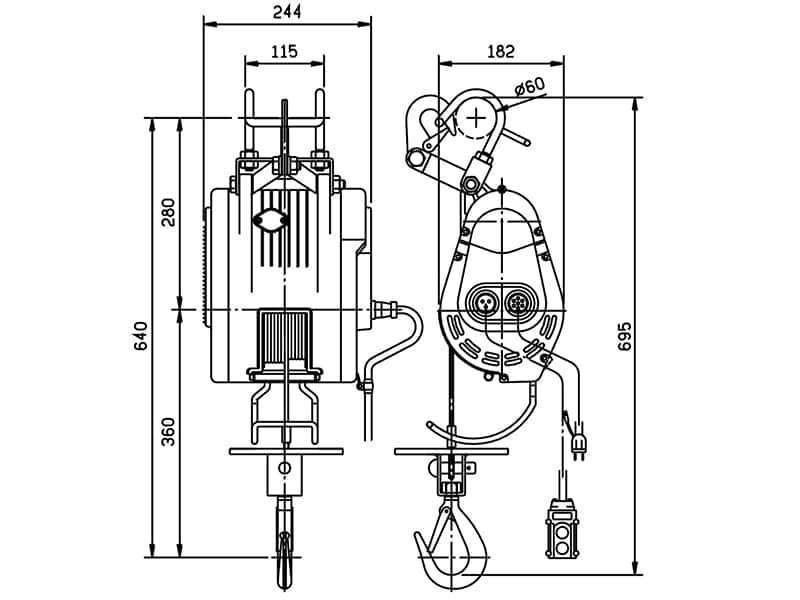

Technical Specifications

Lifting capacity	230 kg at wire rope top layer
Lifting speed	9 – 14 m/min
Motor rating IP44	1 phase, 110V : 1.2 kw x 12 A series wound 1 phase, 220V / 230V / 240V : 1.2 kw x 6 A series wound
Gear ratio	272:1
Maximum lifting height	24 m
Braking methods	for motor: Electromagnetic for gear: mechanical ratchet
Wire rope	5 mm x 25 m
Drum length	60 mm
Drum dia.	90 mm
Drum flange dia.	170 mm

* Above performance ratings are based on 50Hz supply. (60Hz motor available as option resulting in a reduction of lifting capacities by 20% and a speed increase of 20%

Performance Data

Lifting Capacity, Lifting Speed and Rope Capacity:

Layer of Wire rope	Lifting Capacity, kg	Lifting Speed, m / min	Total Rope on the Drum, m
1^st	351	9	3.3
2^nd	318	10.3	6.9
3^rd	290	11.3	10.9
4^th	267	12.3	15.2
5^th	247	13.3	19.9
6^th	230	14	25

Note: Above performance ratings are based on 50Hz supply.

Warning

The hoist is not intended to be used in any manner for the movement or lifting of personnel.
Keep hands, clothing, jewelry, etc. away from wire rope, drum and other moving parts

Warranty

Each new hoist is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase. WIRE ROPES ARE NOT INCLUDED UNDER WARRANTY.

Accessories

Standard Accessories	Option Accessories

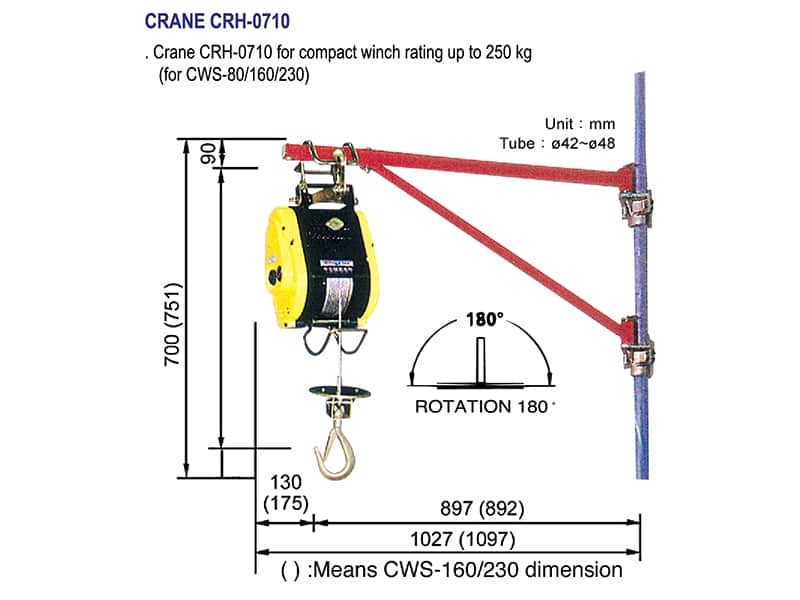

Wire rope 5 mm x 25 m Weight hook CHW-0033 Remote control, CPB-313 * Switch cord 1.25 mm² x 6C x 10 m * Pendant switch CPB-313 Power lead 1.5 mm x 3C x 5 m and industry plug	Remote control, PB-417 * Switch cord 1.25 mm² x 6C x 10 m * Pendant switch PB-417 w/an emergency stop button Crane CRH-0710 for compact winch ratings 250 kg

Packaging

Net weight : 15 kg
Gross weight : 24 kg
Box dimension, (L x D x H) : 425 x 365 x 300 mm
