CWL-80

COMEUP CWL-80 is a lightweight compact electric winch rated at 80 kg on the top rope layer, running on single-phase 110 / 220 / 230 / 240 V power. It installs easily in small workshops, on construction sites and for maintenance work.

  • Lightweight and compact design for easy installation
  • Single mechanical ratchet brake provides instant and safe braking
  • Operates on standard household power supply
  • Wire rope comes with a safety-latch weight hook
  • Enclosed drum flange prevents ropes becoming trapped between drum and support castings
  • Emergency stop function switch is available upon request

Technical Specifications

Lifting capacity80 kg at wire rope top layer
Lifting speed16 – 25 m/min
Motor rating IP441 phase, 110V: 0.3 kw x 6A series wound
1 phase, 220V / 230V / 240V : 0.3 kw x 3A series wound
Gear ratio56:1
Maximum lifting height23 m
Braking methodsfor motor: Electromagnetic
for gear: mechanical ratchet
Wire rope4 mm x 24 m
Drum length46 mm
Drum dia.70 mm
Drum flange dia.158 mm
Mounting bolt pattern120 mm x 90 mm ; 125 mm x 135 mm

* Above performance ratings are based on 50Hz supply. (60Hz motor available as option resulting in a reduction of lifting capacities by 20% and a speed increase of 20%

Performance Data

Lifting Capacity, Lifting Speed and Rope Capacity:

Layer of Wire ropeLifting Capacity, kgLifting Speed, m / minTotal Rope on the Drum, m
1st132162.4
2nd11917.25.1
3rd10818.98.1
4th10020.611.3
5th9222.314.8
6th862418.6
7th802524

Note: Above performance ratings are based on 50Hz supply.

Pulling Load Capacity for Various Inclines in kg

ModelLevel SurfaceGradient % inclines / angle in degrees
10% 6°20% 11°40% 22°60% 31°80% 39°
CWL-80670360260170130110

Note:

  1. All rating are based on the top layer. For each layer reduction on the drum pulling capacity is increased by 10%
  2. Use a snatch block for double line operation, to increase line pull by approximately 85%
  3. The pulling capacities are based on a pulling load and 15% has been allowed for friction (specific applications will vary)

Warning

  • The winch is not intended to be used in any manner for the movement or lifting of personnel.
  • The rated lifting capacity shown is based on the top rope layer on the drum
  • The rope winding on the drum shall remain 5 wraps from the drum

Warranty

  • Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase. WIRE ROPES ARE NOT INCLUDED UNDER WARRANTY.

Accessories

Standard AccessoriesOption Accessories
  • Wire rope 4 mm x 24 m
  • Weight hook, CHW-0031
  • Power lead 1.5 mm2 x 3C x 3 mm and industry plug
  • Remote control, CPB-413
    - Switch cord 1.25 mm2 x 6C x 3m
    - Pendant switch CPB-413
  • Remote Control, PB-317A
    - Switch cord 1.25 mm2 x 6C x 3m
    - Pendant switch PB-317A w/an emergency stop button

Packaging

  • Net weight (standard version) : 16 kg
  • Gross weight : 18 kg

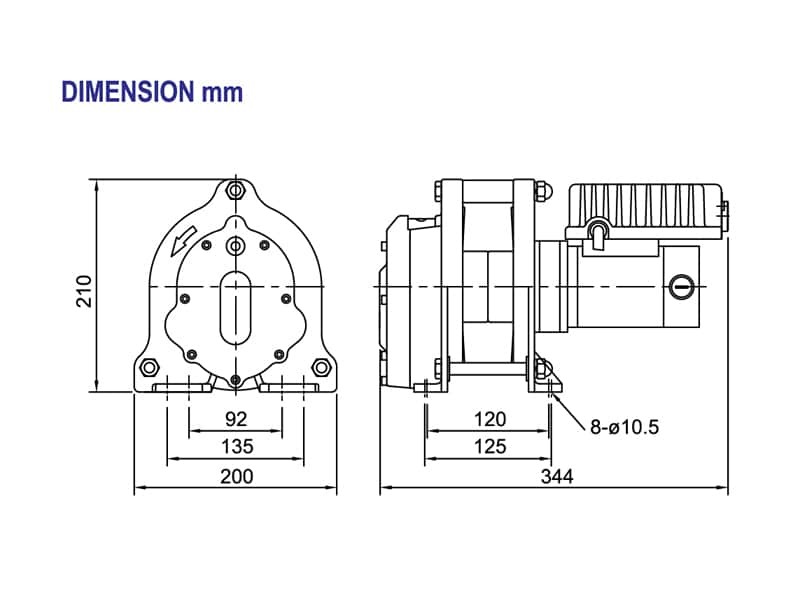

  • Body dimension, (L x D x H) : 344 x 200 x 210 mm
  • Box dimension, (L x D x H) : 376 x 330 x 240 mm

Downloads

DocumentDateFormatDownload
CWL-80 Operation Manual2021-07-31PDF, 0.53 MBDownload
CWL-80-ES Operation Manual2021-07-31PDF, 0.48 MBDownload
