CWL-301L

COMEUP CWL-301L is a lightweight longer-rope compact electric winch rated at 300 kg on the top rope layer, running on single-phase 220 / 230 / 240 V power. The drum holds more wire rope for greater lifting heights.

  • Lightweight and compact design for easy installation
  • Double mechanical ratchets brake provide instant and safe braking
  • Operates on standard household power supply
  • Wire rope comes with a safety-latch weight hook
  • Enclosed drum flange prevents ropes becoming trapped between drum and support castings
  • Emergency stop function switch is available upon request

Technical Specifications

Lifting capacity300 kg at wire rope top layer
Lifting speed16 – 25 m/min
Motor rating IP441 phase, 220V / 230V / 240V : 2.3 kw x 11 A series wound
Gear ratio110:1
Maximum lifting height58 m
Braking methodsfor motor: Electromagnetic
for gear: mechanical ratchet
Wire rope6 mm x 60 m
Drum length147 mm
Drum dia.95 mm
Drum flange dia.190 mm

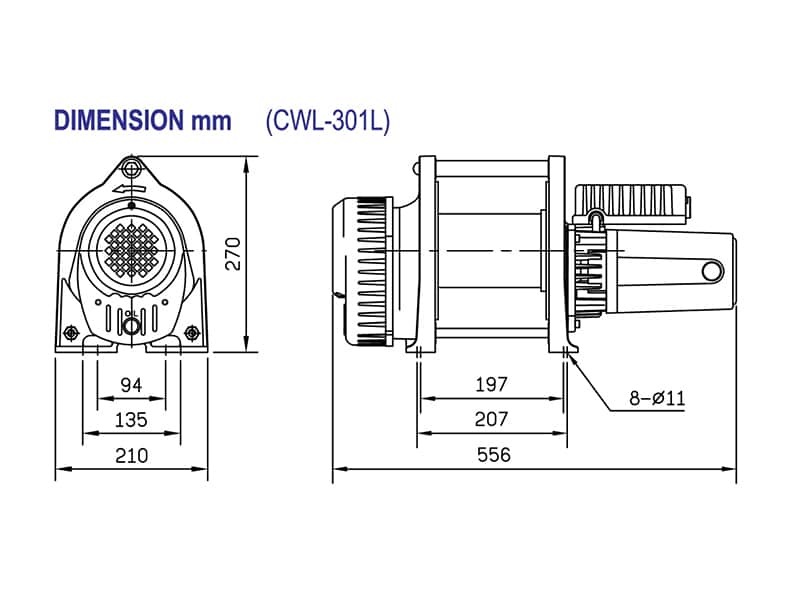

Mounting bolt pattern197 mm x 94 mm ; 207 mm x 135 mm

* Above performance ratings are based on 50Hz supply. (60Hz motor available as option resulting in a reduction of lifting capacities by 20% and a speed increase of 20%

Performance Data

Lifting Capacity, Lifting Speed and Rope Capacity:

Layer of Wire ropeLifting Capacity, kgLifting Speed, m / minTotal Rope on the Drum, m
1st478167.5
2nd42717.715.8
3rd38619.625
4th35321.535.1
5th32423.446.1
6th3002560

Note: Above performance ratings are based on 50Hz supply.

Pulling Load Capacity for Various Inclines in kg

ModelLevel SurfaceGradient % inclines / angle in degrees
10% 6°20% 11°40% 22°60% 31°80% 39°
CWL-301L2,5001,340970620490410

Note:

  1. All rating are based on the top layer. For each layer reduction on the drum pulling capacity is increased by 10%
  2. Use a snatch block for double line operation, to increase line pull by approximately 85%
  3. The pulling capacities are based on a pulling load and 15% has been allowed for friction (specific applications will vary)

Warning

  • The winch is not intended to be used in any manner for the movement or lifting of personnel.
  • The rated lifting capacity shown is based on the top rope layer on the drum
  • The rope winding on the drum shall remain 5 wraps from the drum

Warranty

  • Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase. WIRE ROPES ARE NOT INCLUDED UNDER WARRANTY.

Accessories

Standard AccessoriesOption Accessories
  • Wire rope 6 mm x 60 m
  • Weight hook, CHW-0031
  • Remote control, CPB-313
    - Switch cord 2.0 mm2 x 6C x 10 m
    - Pendant switch CPB-313
  • Remote Control, PB-417
    - Switch cord 2.0 mm2 x 6C x 10 m
    - Pendant switch PB-417 w/an emergency stop button

Packaging

  • Net weight (standard version) : 40 kg
  • Gross weight : 42 kg
  • Body dimension, (L x D x H) : 556 x 210 x 270 mm
  • Box dimension, (L x D x H) : 630 x 395 x 350 mm

Downloads

DocumentDateFormatDownload
CWL-301L Operation Manual2021-07-31PDF, 0.59 MBDownload
CWL-301L-ES Operation Manual2021-07-31PDF, 0.48 MBDownload
Contact FullSharp for a quotation
