CWL-200

COMEUP CWL-200 is a lightweight compact electric winch rated at 200 kg on the top rope layer, running on single-phase 110 / 220 / 230 / 240 V power. It installs easily in small workshops, on construction sites and for maintenance work.

Lightweight and compact design for easy installation
Double mechanical ratchets brake provide instant and safe braking
Operates on standard household power supply
Wire rope comes with a safety-latch weight hook
Enclosed drum flange prevents ropes becoming trapped between drum and support castings
Emergency stop function switch is available upon request

Technical Specifications

Lifting capacity	200 kg at wire rope top layer
Lifting speed	11 – 16 m/min
Motor rating IP44	1 phase, 110V: 1.2 kw x 12 A series wound 1 phase, 220V / 230V / 240V : 1.5 kw x 7.5 A series wound
Gear ratio	240:1
Maximum lifting height	45 m
Braking methods	for motor: Electromagnetic for gear: mechanical ratchet
Wire rope	5 mm x 46 m
Drum length	97 mm
Drum dia.	95 mm
Drum flange dia.	190 mm
Mounting bolt pattern	142 mm x 94 mm ; 152 mm x 135 mm

* Above performance ratings are based on 50Hz supply. (60Hz motor available as option resulting in a reduction of lifting capacities by 20% and a speed increase of 20%

Performance Data

Lifting Capacity, Lifting Speed and Rope Capacity:

Layer of Wire rope	Lifting Capacity, kg	Lifting Speed, m / min	Total Rope on the Drum, m
1^st	320	11	5.8
2^nd	291	11.6	12.1
3^rd	267	12.6	19.1
4^th	246	13.7	26.6
5^th	229	14.7	34.7
6^th	213	15.8	43.4
7^th	200	16	46

Note: Above performance ratings are based on 50Hz supply.

Pulling Load Capacity for Various Inclines in kg

Model	Level Surface	Gradient % inclines / angle in degrees
Model	Level Surface	10% 6°	20% 11°	40% 22°	60% 31°	80% 39°
CWL-200	1,670	890	650	410	320	280350

Note:

All rating are based on the top layer. For each layer reduction on the drum pulling capacity is increased by 10%
Use a snatch block for double line operation, to increase line pull by approximately 85%
The pulling capacities are based on a pulling load and 15% has been allowed for friction (specific applications will vary)

Warning

The winch is not intended to be used in any manner for the movement or lifting of personnel.
The rated lifting capacity shown is based on the top rope layer on the drum
The rope winding on the drum shall remain 5 wraps from the drum

Warranty

Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase. WIRE ROPES ARE NOT INCLUDED UNDER WARRANTY.

Accessories

Standard Accessories	Option Accessories
Wire rope 5 mm x 46 m Weight hook, CHW-0031 Power lead 1.5 mm² x 3C x 3 mm and industry plug Remote control, CPB-313 - Switch cord 1.25 mm² x 6C x 10 m - Pendant switch CPB-313	Remote Control, PB-417 - Switch cord 1.25 mm² x 6C x 10 m - Pendant switch PB-417 w/an emergency stop button

Packaging

Net weight (standard version) : 30 kg
Gross weight : 32 kg

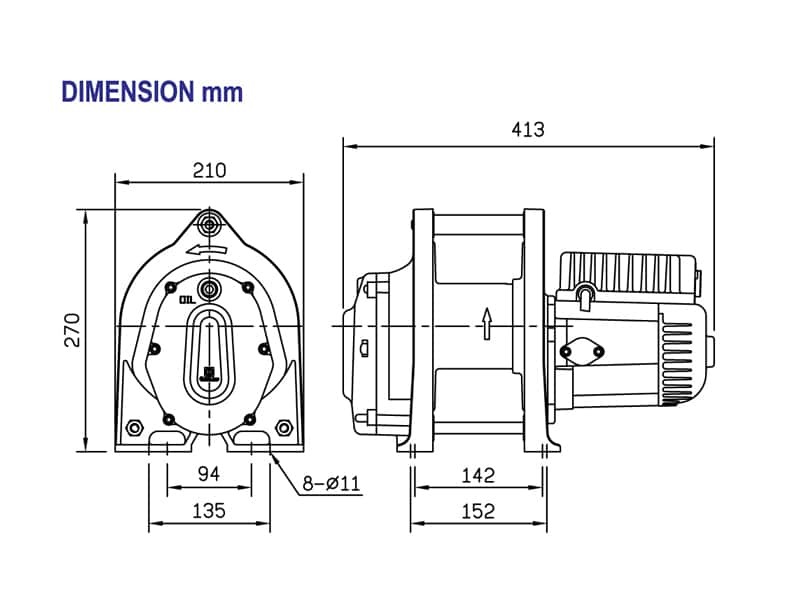

Body dimension, (L x D x H) : 413 x 210 x 270 mm
Box dimension, (L x D x H) : 515 x 395 x 350 mm

Downloads

Document	Date	Format	Download
CWL-200 Operation Manual	2021-07-31	PDF, 0.62 MB	Download
CWL-200-ES Operation Manual	2021-07-31	PDF, 0.54 MB	Download

Contact FullSharp for a quotation
