CWG-500TH

COMEUP CWG-500TH is an AC electric winch driven by an induction motor, rated at 500 kg on the top rope layer and powered by three-phase 220 / 380 / 400 / 415 / 440 V. It is built for lifting and pulling loads in factories, on construction sites and in warehouses.

Lightweight and compact design is ideal for easy installation.
Electromagnetic spring-applied failsafe brake.
Planetary gears for maximum mechanical efficiency.
Cast steel foot mountings.
Heavy duty high efficiency ball bearings on all running surfaces
Enclosed drum flanges to prevent rope becoming trapped between drum and support castings
24 VAC low voltage control comes as standard
Rated capacity limiter limits driving power of motor to prevent overloading of the winch

Technical Specifications

Lifting capacity	500 kg at wire rope top layer
Lifting speed	19 – 34 m/min
Power source	3 phase, 220V / 380V / 400V / 415V / 440V
Motor rating IP54	3.7 kw x 2 poles induction motor
Maximum lifting height	127 m
Braking methods	Electromagnetic spring-applied failsafe brake
Wire rope	8 mm x 130 m, 6 x 19, with 2,970 breaking strength

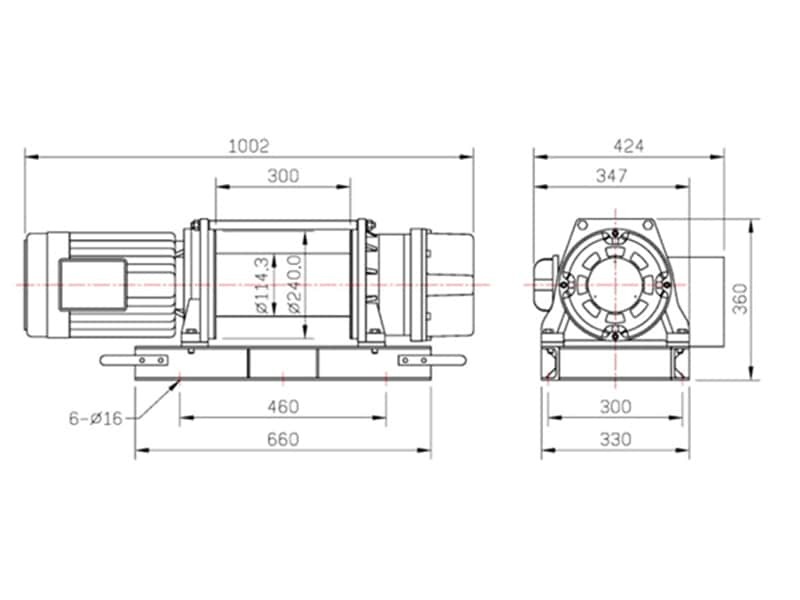

Drum length	300 mm
Drum dia.	114.3 mm
Drum flange dia.	240 mm
Mounting bolt pattern	460 mm x 300 mm
Compliant with EN 14492-1 requirements	* For hoisting application: The working coefficient for the first rope layer on the drum shall be at least 5. The D/d ratio to the center of the rope shall be at least 15 for the drum. A switch with emergency stop and limit functions are requested. * For pulling application: The working coefficient for the first rope layer on the drum shall be at least 3. The D/d ratio to the center of the rope shall be at least 12 for the drum. A switch with emergency stop and limit functions are requested

Performance Data

Lifting Capacity, Lifting Speed and Rope Capacity:

Layer of Wire rope	Lifting Capacity, kg	Lifting Speed, m / min at 50 Hz	Total Rope on the Drum, m
1^st	893	19	14
2^nd	789	22	30
3^rd	707	24	48
4^th	641	27	67
5^th	586	29	89
6^th	540	32	112
7^th	500	34	130

Note:

All rating are based on the top layer. For each layer reduction on the drum pulling capacity is increased by 10%
Use a snatch block for double line operation, to increase line pull by approximately 85%
The pulling capacities are based on a pulling load and 15% has been allowed for friction (specific applications will vary)

Warning

The winch is not intended to be used in any manner for the movement or lifting of personnel.
The rated lifting capacity shown is based on the top rope layer on the drum
The rope winding on the drum shall remain 5 wraps from the drum

Warranty

Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase. WIRE ROPES ARE NOT INCLUDED UNDER WARRANTY.

Accessories

Standard Accessories	Option Accessories
Wire rope 8 mm x 130 with safety-latch hook Remote control, CPB-161 * Switch cord 1.25 mm² x 3C x 3m * Pendant switch CPB-161 Low voltage control, LV-320 Base plate	Remote control, PB-306 assembly (switch with an emergency stop button)

Packaging

Net weight (standard version) : 155 kg
Gross weight : 183 kg
Body dimension, (L x D x H) : 1,002 x 424 x 360 mm
Box dimension, (L x D x H) : 1,140 x 590 x 520 mm

Downloads

Document	Date	Format	Download
CWG-500TH-LV-ES Operation Manual	2021-07-31	PDF, 0.21 MB	Download
