CWG-34000

COMEUP CWG-34000 is an AC electric winch driven by an induction motor, rated at 5,000 kg on the top rope layer and powered by three-phase 220 / 380 / 415 / 440 V. It is built for lifting and pulling loads in factories, on construction sites and in warehouses.

Electromagnetic spring-applied failsafe brake
Heavy duty high efficiency ball bearing on all running surfaces
Planetary gears for maximum mechanical efficiency
Cast steel foot mountings
Fabricated steel drum
Supplied on steel base plate ready to mount
Rated capacity limiter limits driving power of the motor to prevent overloading of the winch
Quiet running
Low voltage control ass'y comes as standard
Emergency stop function switch is available upon request

Technical Specifications

Lifting capacity	5,000 kg at wire rope top layer
Lifting speed	Option A: 8 – 12.2 m/min Option B: 5.3 – 8 m/min
Power source	3 phase, 220V / 380V / 415V / 440V
Motor rating IP54	Option A: 11 kw x 4 poles induction motor Option B: 7.5 kw x 6 poles induction motor
Gear ratio	197:1
Maximum lifting height	192 m
Braking methods	Electromagnetic
Wire rope	22.4 mm x 200 m
Drum length	680 mm
Drum dia.	324 mm
Drum flange dia.	570 mm
Mounting bolt pattern	920 mm x 680 mm

* Above performance ratings are based on 50Hz supply. (60Hz motor available as option resulting in a reduction of lifting capacities by 20% and a speed increase of 20%

Performance Data

Lifting Capacity, Lifting Speed and Rope Capacity:

Layer of Wire rope	Lifting Capacity, kg	Lifting Speed, m / min		Total Rope on the Drum, m
Layer of Wire rope	Lifting Capacity, kg	A	B	Total Rope on the Drum, m
1^st	7,587	8	5.3	32
2^nd	6,718	9.1	5.9	68
3^rd	6,028	10.1	6.6	108
4^th	5,466	11.1	7.3	153
5^th	5,000	12.1	8	200

Note:Above performance ratings are based on 50Hz supply.

Pulling Load Capacity for Various Inclines in kg

Model	Level Surface	Gradient % inclines / angle in degrees
Model	Level Surface	10% 6°	20% 11°	40% 22°	60% 31°	80% 39°
CWG-34000	41,670	22,330	16,200	10,360	8,090	6,920

Note:

All rating are based on the top layer. For each layer reduction on the drum pulling capacity is increased by 10%
Use a snatch block for double line operation, to increase line pull by approximately 85%
The pulling capacities are based on a pulling load and 15% has been allowed for friction (specific applications will vary)

Warning

The winch is not intended to be used in any manner for the movement or lifting of personnel.
The rated lifting capacity shown is based on the top rope layer on the drum
The rope winding on the drum shall remain 5 wraps from the drum

Warranty

Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase. WIRE ROPES ARE NOT INCLUDED UNDER WARRANTY.

Accessories

Standard Accessories	Option Accessories
Wire rope 22.4 mm x 200 m with safety-latch hook Low voltage control ass'y LV-360 - Remote control, CPB-161 * Switch cord 1.25 mm² x 3C x 3m * Pendant switch CPB-161 - Low voltage control, LV-360 Base Plate	Low voltage control ass'y LV-360 - Remote control, PB-306 Switch cord 1.25 mm² x 3C x 3m Pendant switch PB-306 w/an emergency stop button - Low voltage control, LV-360

Packaging

Net weight (standard version) : 1,380 kg
Gross weight : 1,465 kg

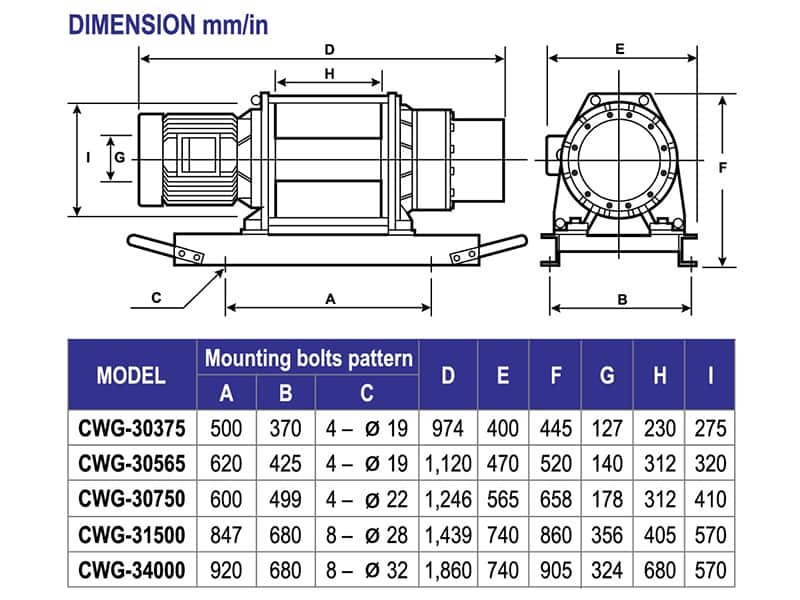

Body dimension, (L x D x H) : 1,860 x 740 x 905 mm
Box dimension, (L x D x H) : 2,040 x 840 x 1,170 mm
