CWG-30075

COMEUP CWG-30075 is an AC electric winch driven by an induction motor, rated at 300 kg on the top rope layer and powered by three-phase 220 / 380 / 415 / 440 V. It is built for lifting and pulling loads in factories, on construction sites and in warehouses.

Positive retention of wire rope on to drum
Electromagnetic spring-applied failsafe brake
Heavy duty high efficiency ball bearing on all running surfaces
Planetary gears for maximum mechanical efficiency
Enclosed drum flange to prevent rope becoming trapped between drum and support steel plates
Quiet running
Emergency stop function switch is available upon request
Low voltage control ass'y is available upon request

Technical Specifications

Lifting capacity	300 kg at wire rope top layer
Lifting speed	10 – 15 m/min
Power source	3 phase, 220V / 380V / 415V / 440V
Motor rating IP44	0.75 kw x 4 poles induction motor
Gear ratio	43:1
Maximum lifting height	29 m
Braking methods	Electromagnetic
Wire rope	6 mm x 30 m
Drum length	110 mm
Drum dia.	94 mm
Drum flange dia.	154 mm
Mounting bolt pattern	142 mm x 142 mm

*Above performance ratings are based on 50Hz supply. (60Hz motor available as option resulting in a reduction of lifting capacities by 20% and a speed increase of 20%

Performance Data

Lifting Capacity, Lifting Speed and Rope Capacity:

Layer of Wire rope	Lifting Capacity, kg	Lifting Speed, m/min	Total Rope on the Drum, m
1^st	444	10	5.4
2^nd	396	11.4	11.5
3^rd	358	12.5	18.3
4^th	326	13.8	25.7
5^th	300	15	30

Note: Above performance ratings are based on 50Hz supply.

Pulling Load Capacity for Various Inclines in kg

Model	Level Surface	Gradient % inclines / angle in degrees
Model	Level Surface	10% 6°	20% 11°	40% 22°	60% 31°	80% 39°
CWG-30075	2,500	1,340	970	620	490	410

Note:

All rating are based on the top layer. For each layer reduction on the drum pulling capacity is increased by 10%
Use a snatch block for double line operation, to increase line pull by approximately 85%
The pulling capacities are based on a pulling load and 15% has been allowed for friction (specific applications will vary)

Warning

The winch is not intended to be used in any manner for the movement or lifting of personnel.
The rated lifting capacity shown is based on the top rope layer on the drum
The rope winding on the drum shall remain 5 wraps from the drum

Warranty

Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase. WIRE ROPES ARE NOT INCLUDED UNDER WARRANTY.

Accessories

Standard Accessories	Option Accessories
Wire rope 6 mm x 30 m Weight hook CHW-0031 Remote control, HOB-213 * Switch cord 1.25 mm² x 5C x 3 m * Pendant switch HOB-213	Remote control, PB-331 * Switch cord 1.25 mm² x 5C x 3 m * Pendant switch PB-331 w/an emergency stop button Low voltage control ass'y LV-320 - Remote control, PB-306 * Switch cord 1.25 mm² x 3C x 3m * Pendant switch PB-306 w/an emergency stop button - Low voltage control, LV-320

Packaging

Net weight(standard version) : 32 kg
Gross weight : 34 kg

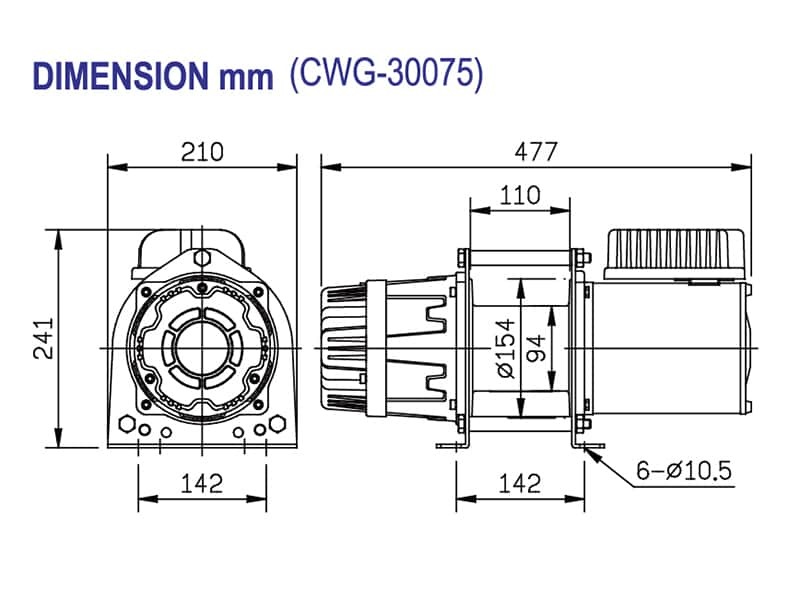

Body dimension, (L x D x H) : 477 x 210 x 241 mm
Box dimension, (L x D x H) : 635 x 296 x 290 mm
