FullSharp · since 1991

CWG-10077

COMEUP CWG-10077 is an AC electric winch driven by an induction motor, rated at 300 kg on the top rope layer and powered by single-phase 110 / 220 / 230 / 240 V. It is built for lifting and pulling loads in factories, on construction sites and in warehouses.

  • Positive retention of wire rope on to drum
  • Electromagnetic spring-applied failsafe brake
  • Heavy duty high efficiency ball bearing on all running surfaces
  • Planetary gears for maximum mechanical efficiency
  • Enclosed drum flange to prevent rope becoming trapped between drum and support steel plates
  • Quiet running
  • Emergency stop function switch is available upon request
  • Low voltage control ass'y is available upon request

Technical Specifications

Lifting capacity300 kg at wire rope top layer
Lifting speed12 – 19 m/min
Power source1 phase, 110V / 220V / 230V / 240V
Motor rating IP441.5 kw x 4 poles induction motor
Gear ratio41:1
Maximum lifting height58 m
Braking methodsElectromagnetic
Wire rope6 mm x 60 m

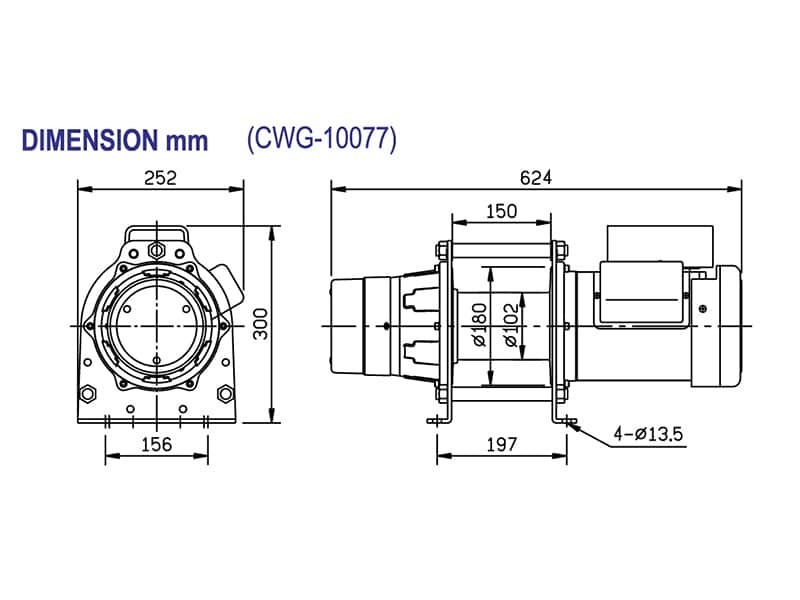

Drum length150 mm
Drum dia.102 mm
Drum flange dia.180 mm
Mounting bolt pattern197 mm x 156 mm

*Above performance ratings are based on 50Hz supply. (60Hz motor available as option resulting in a reduction of lifting capacities by 20% and a speed increase of 20%

Performance Data

Lifting Capacity, Lifting Speed and Rope Capacity:

Layer of Wire ropeLifting Capacity, kgLifting Speed, m/minTotal Rope on the Drum, m
1st467128.1
2nd42013.517.2
3rd38214.927.1
4th35016.238
5th32317.650
6th3001960

Note: Above performance ratings are based on 50Hz supply.

Pulling Load Capacity for Various Inclines in kg

ModelLevel SurfaceGradient % inclines / angle in degrees
10% 6°20% 11°40% 22°60% 31°80% 39°
CWG-100772,5001,340970620490410

Note:

  1. All rating are based on the top layer. For each layer reduction on the drum pulling capacity is increased by 10%
  2. Use a snatch block for double line operation, to increase line pull by approximately 85%
  3. The pulling capacities are based on a pulling load and 15% has been allowed for friction (specific applications will vary)

Warning

  • The winch is not intended to be used in any manner for the movement or lifting of personnel.
  • The rated lifting capacity shown is based on the top rope layer on the drum
  • The rope winding on the drum shall remain 5 wraps from the drum

Warranty

  • Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase. WIRE ROPES ARE NOT INCLUDED UNDER WARRANTY.

Accessories

Standard Accessories Option Accessories
  • Wire rope 6 mm x 60 m
  • Weight hook CHW-0031
  • Remote control, HOB-213
    * Switch cord 3.5 mm2 x 5C x 3 m
    * Pendant switch HOB-213
  • Remote control, PB-331
    * Switch cord 3.5 mm2 x 5C x 3 m
    * Pendant switch PB-331 w/an emergency stop button
  • Low voltage control ass'y LV-320
    - Remote control, PB-306
    * Switch cord 1.25 mm2 x 3C x 3m
    * Pendant switch PB-306 w/an emergency stop button
    - Low voltage control, LV-320

Packaging

  • Net weight (standard version) : 42 kg
  • Gross weight : 44 kg
  • Body dimension, (L x D x H) : 624 x 252 x 300 mm
  • Box dimension, (L x D x H) : 700 x 280 x 375 mm

Downloads

DocumentDateFormatDownload
CWG-10077 Operation Manual2021-07-31PDF, 0.56 MBDownload
CWG-10077-ES Operation Manual2021-07-31PDF, 0.53 MBDownload
CWG-10077-LV-ES Operation Manual2021-07-31PDF, 0.20 MBDownload
