Cub 4s

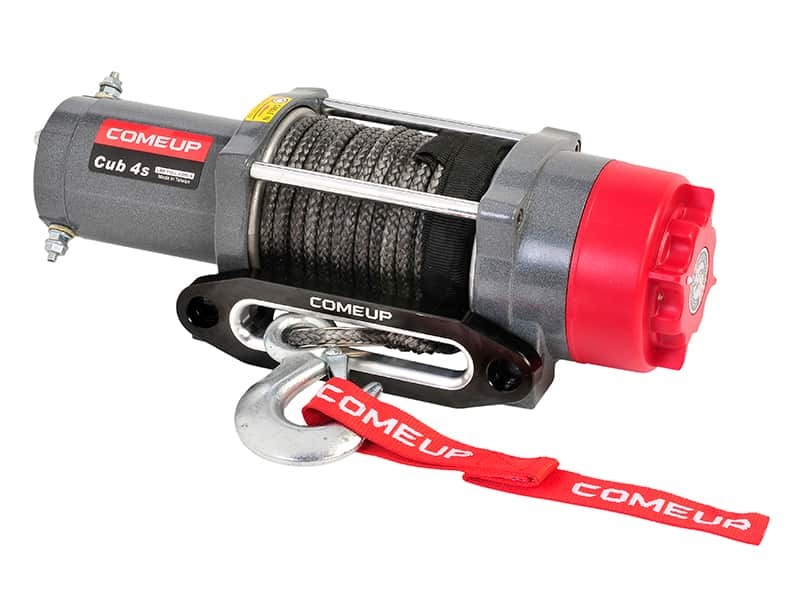

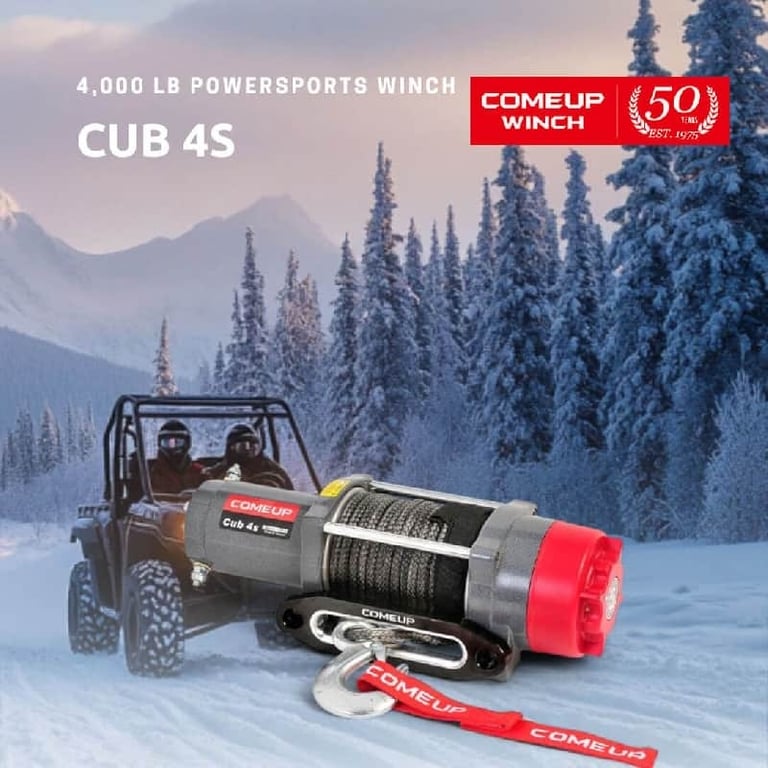

COMEUP Cub 4s – 4,000 lb Powersports Winch. Cub series: compact winches for ATVs and UTVs, vehicle-mounted or portable.

High efficient low amp. draw and sealed permanent magnet motor.
Lightweight and compact design is ideal for easy installation.

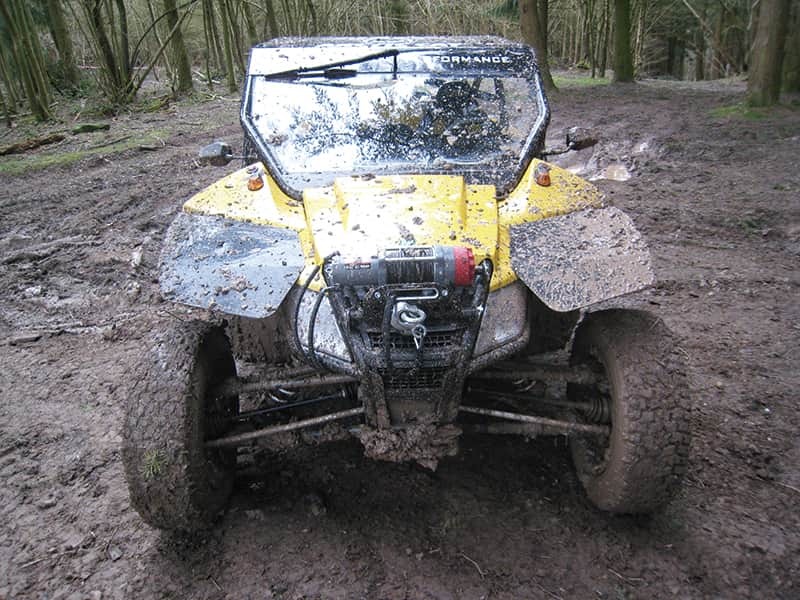

Winch drum centered avoids tire interference of rope and provides streamlined appearance.
Mechanical spring applied and permanent magnet motor dynamic brakes together.
Cam activated clutch device for rapid rope payout.
Full metal 3 stage planetary gear train for greater pulling force.
Submersible sealed contactor handles high amps and allows higher duty cycle.

Technical Specifications

Part number	PN 129410 (12V) / PN 123952 (48V)
Rated line pull	1,814 kg (4,000 lb) single line
Line speed (1st layer)	4.6 mpm / 15.1 fpm, 30A / 12V or 3.6 mpm / 11.8 fpm 5A / 48V at no load 2.0 mpm / 6.6 fpm, 230A / 12V or 1.8 mpm / 5.9 fpm 5A / 48V at full load
Motor	800 w / 1.0 hp 12V permanent magnet 800 w / 1.0 hp 48V permanent magnet
Gear train	3-stage planetary 191:1
Clutch (freespooling)	Sliding pin and ring gear
Brake	Mechanical spring applied and permanent magnet motor dynamic brakes together
Winch construction	Aluminum die cast housings and drum

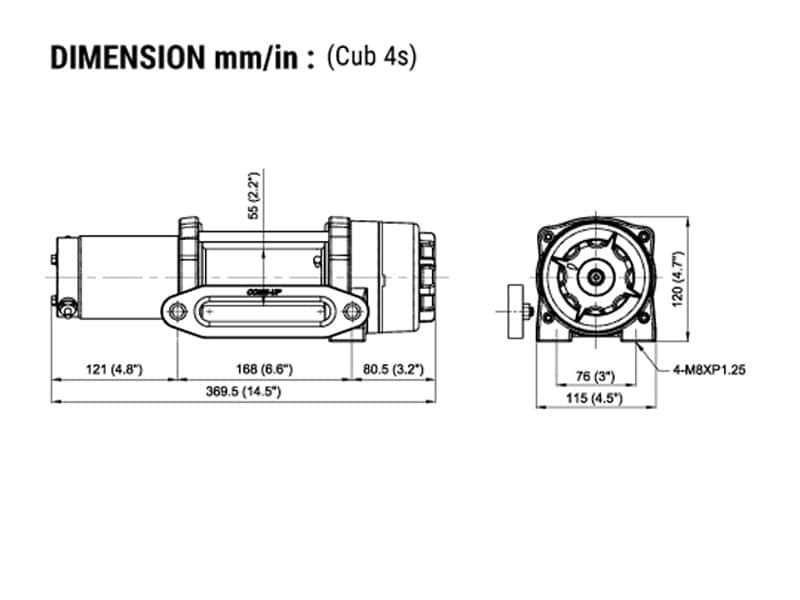

Drum size	55 x 104 x 119 L mm (2.2” x 4" x 4.7” L)
Control	Handlebar rocker switch
Rope type	Synthetic rope
Rope size	5.5 mm x 15.2 m (7/32” x 50’)
Mounting bolt pattern	76 x 168 mm (3” x 6.6”) Standard Compliance: - CE Machinery Directive 2006/42/EC - CE EMC Directive 2014/30/EU

Line Speed and Amp. Draw (1st layer of wire rope on the drum):

Line Pull and Rope Capacity:

Warning

The winch is not intended to be used in any manner for the movement or lifting of personnel.
The rated line pull shown is based on the first layer of wire rope on the drum.
The wire rope winding on the drum shall remain 10 wraps from the drum.

Warranty

Limited lifetime warranty for mechanical components and one(1) year warranty for electrical components from date of purchase. Wire/Synthetic ropes are not included under warranty.

Standard Accessories

Document	Date	Format	Download
Cub 4s Operation Manual	2021-07-31	PDF, 0.22 MB	Download
