Cub 2

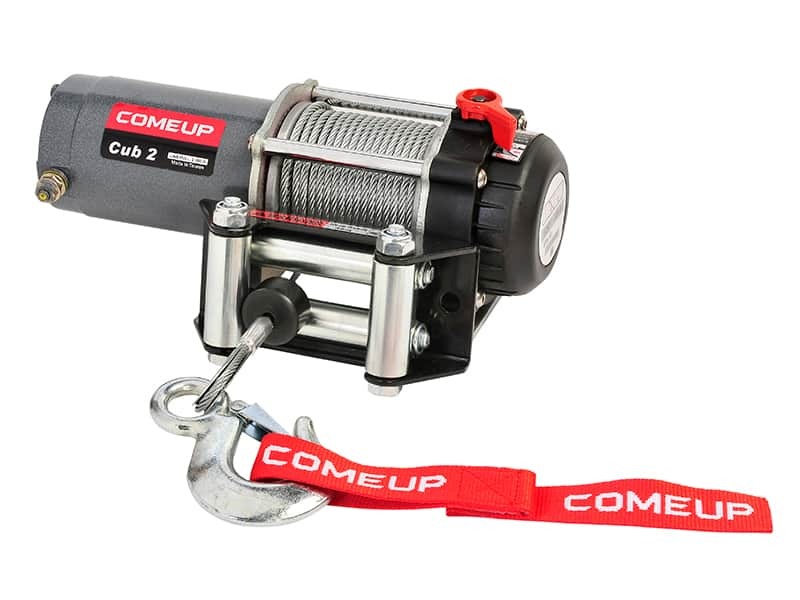

COMEUP Cub 2 – 0.9 Tonnes Powersports Winch. Cub series: compact winches for ATVs and UTVs, vehicle-mounted or portable.

High efficient low amp. draw and sealed permanent magnet motor.
Lightweight and compact design is ideal for easy installation.
Winch drum centered avoids tire interference of rope and provides streamlined appearance.
Mechanical spring applied and permanent magnet motor dynamic brakes together.
Cam activated clutch device for rapid wire rope payout.
Full metal 3 stage planetary gear train for greater pulling force.
Submersible sealed contactor handles high amps and allows higher duty cycle.

Technical Specifications

Part number	PN 122012
Rated line pull	907 kg (2,000 lb) single line
Motor	600 w / 0.8 hp 12V permanent magnet
Gear train	3-stage planetary 103:1
Clutch (freespooling)	Cam activated
Brake	Mechanical spring applied and permanent magnet motor dynamic brakes together
Winch construction	Aluminum die cast drum and steel plate housings
Drum size	38 x 75 mm (1.5” x 3”)
Control	Handlebar rocker switch
Rope type	Galvanized aircraft A7 x 19
Rope size	4 mm x 15.2 m (5/32” x 50’)

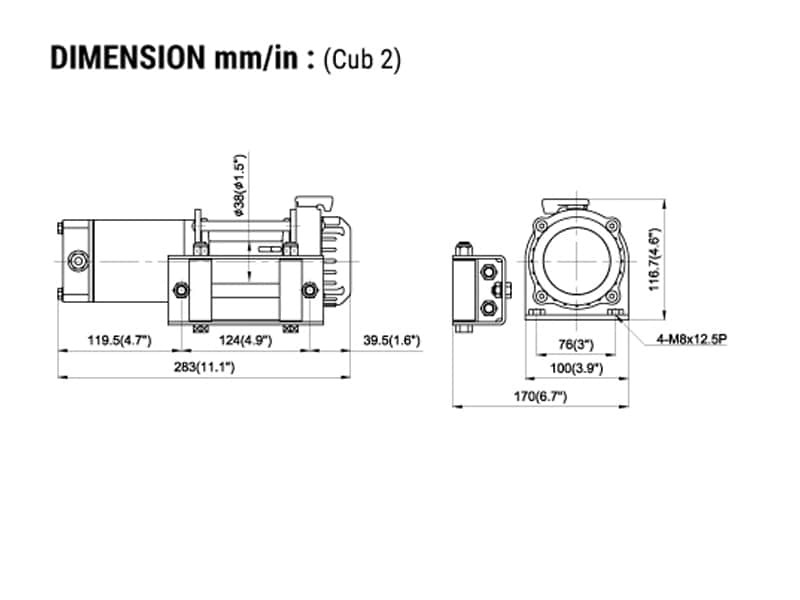

Mounting bolt pattern	76 x 124 mm (3” x 4.9”) Standard Compliance: - CE Machinery Directive 2006/42/EC - CE EMC Directive 2014/30/EU

Line Speed and Amp. Draw (1st layer of wire rope on the drum):

Line Pull and Rope Capacity:

Warning

The winch is not intended to be used in any manner for the movement or lifting of personnel.
The rated line pull shown is based on the first layer of wire rope on the drum.
The wire rope winding on the drum shall remain 5 wraps from the drum.

Warranty

Limited lifetime warranty for mechanical components and one(1) year warranty for electrical components from date of purchase. Wire/Synthetic ropes are not included under warranty.

Standard Accessories

Document	Date	Format	Download
Cub 2 Operation Manual	2021-07-31	PDF, 0.21 MB	Download
