CP-750T

COMEUP CP-750T is an AC electric winch driven by an induction motor, rated at 750 kg on the top rope layer and powered by three-phase 220 / 380 / 415 / 440 V. It is built for lifting and pulling loads in factories, on construction sites and in warehouses.

  • Lightweight and compact design for easy installation
  • Electromagnetic spring-applied failsafe brake
  • Heavy duty high efficiency ball bearing on all running surfaces
  • Planetary gears for maximum mechanical efficiency
  • Enclosed drum flange to prevent rope becoming trapped between drum and support castings
  • Cast steel foot mountings
  • Quiet running
  • Rated capacity limiter limits driving power of the motor to prevent overloading of the winch
  • Low voltage control ass'y comes as standard
  • Emergency stop function switch is available upon request

Technical Specifications

Lifting capacity750 kg at wire rope top layer
Lifting speed10 – 15 m/min
Power source3 phase, 220V / 380V / 415V / 440V
Motor rating IP542.2 kw x 4 poles induction motor
Gear ratio58:1
Maximum lifting height58 m
Braking methodsElectromagnetic
Wire rope9 mm x 60 m
Drum length240 mm
Drum dia.114 mm
Drum flange dia.240 mm
Mounting bolt pattern300 mm x 400 mm

* Above performance ratings are based on 50Hz supply. (60Hz motor available as option resulting in a reduction of lifting capacities by 20% and a speed increase of 20%

Performance Data

Lifting Capacity, Lifting Speed and Rope Capacity:

Layer of Wire ropeLifting Capacity, kgLifting Speed, m / minTotal Rope on the Drum, m
1st1,188109.9
2nd1,0361121.3
3rd92012.434.2
4th82613.848.5
5th7501560

Note: Above performance ratings are based on 50Hz supply.

Pulling Load Capacity for Various Inclines in kg

ModelLevel SurfaceGradient % inclines / angle in degrees
10% 6°20% 11°40% 22°60% 31°80% 39°
CP-750T6,2503,3502,4301,5501,2101,040

Note:

  1. All rating are based on the top layer. For each layer reduction on the drum pulling capacity is increased by 10%
  2. Use a snatch block for double line operation, to increase line pull by approximately 85%
  3. The pulling capacities are based on a pulling load and 15% has been allowed for friction (specific applications will vary)

Warning

  • The winch is not intended to be used in any manner for the movement or lifting of personnel.
  • The rated lifting capacity shown is based on the top rope layer on the drum
  • The rope winding on the drum shall remain 5 wraps from the drum

Warranty

  • Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase. WIRE ROPES ARE NOT INCLUDED UNDER WARRANTY.

Accessories

Standard Accessories Option Accessories
  • Wire rope 9mm x 60 m with safety-latch hook
  • Low voltage control ass'y LV-320
    - Remote control, CPB-161
    * Switch cord 1.25 mm2 x 3C x 3m
    * Pendant switch CPB-161
    - Low voltage control, LV-320
  • Base plate
  • Low voltage control ass'y LV-320
    - Remote control, PB-306
    * Switch cord 1.25 mm2 x 3C x 3m
    * Pendant switch PB-306 w/an emergency stop button
    - Low voltage control, LV-320

Packaging

  • Net weight (standard version) : 135 kg
  • Gross weight : 165 kg

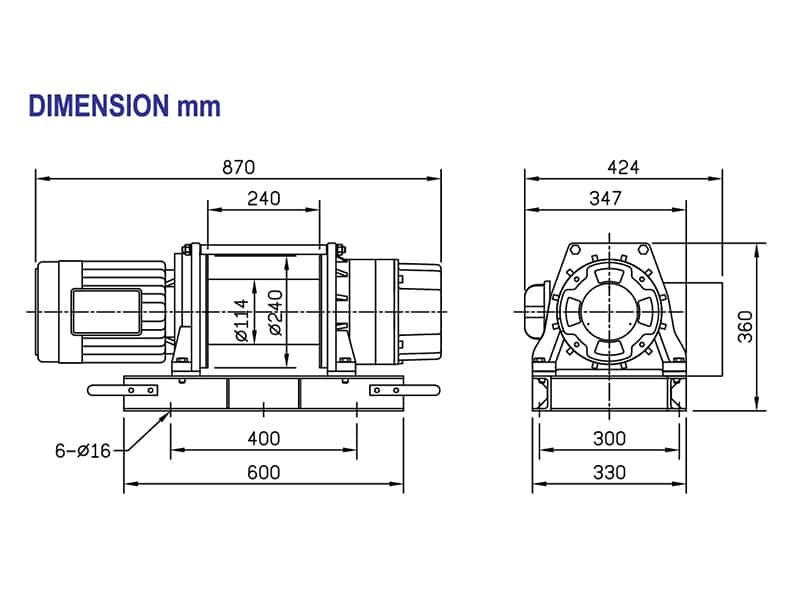

  • Body dimension, (L x D x H) : 870 x 424 x 360 mm
  • Box dimension, (L x D x H) : 970 x 530 x 520 mm

Downloads

DocumentDateFormatDownload
CP-750T-LV Operation Manual2021-07-31PDF, 0.66 MBDownload
CP-750T-LV-ES Operation Manual2021-07-31PDF, 0.62 MBDownload
Contact FullSharp for a quotation
