FullSharp · since 1991

CP-250

COMEUP CP-250 is an AC electric winch driven by an induction motor, rated at 250 kg on the top rope layer and powered by single-phase 110 / 220 / 230 / 240 V. It is built for lifting and pulling loads in factories, on construction sites and in warehouses.

  • Positive retention of wire rope on to drum
  • Electromagnetic spring-applied failsafe brake
  • Heavy duty high efficiency ball bearing on all running surfaces
  • Planetary gears for maximum mechanical efficiency
  • Enclosed drum flanges to prevent rope becoming trapped between drum and support steel plates
  • Quiet running
  • Emergency stop function switch is available upon request
  • Low voltage control ass'y is available upon request

Technical Specifications

Lifting capacity250 kg at wire rope top layer
Lifting speed10 – 15 m/min
Power source1 phase, 110V / 220V / 230V / 240V
Motor rating IP440.75 kw x 4 poles induction motor
Gear ratio43:1
Maximum lifting height29 m
Braking methodsElectromagnetic
Wire rope6 mm x 30 m
Drum length110 mm
Drum dia.94 mm
Drum flange dia.154 mm
Mounting bolt pattern142 mm x 142 mm 142 mm x 94 mm

*Above performance ratings are based on 50Hz supply. (60Hz motor available as option resulting in a reduction of lifting capacities by 20% and a speed increase of 20%

Performance Data

Lifting Capacity, Lifting Speed and Rope Capacity:

Layer of Wire ropeLifting Capacity, kgLifting Speed, m/minTotal Rope on the Drum, m
1st370105.4
2nd33011.311.5
3rd29812.518.3
4th27213.825.7
5th2501530

Note: Above performance ratings are based on 50Hz supply.

Pulling Load Capacity for Various Inclines in kg

ModelLevel SurfaceGradient % inclines / angle in degrees
10% 6°20% 11°40% 22°60% 31°80% 39°
CP-2502,0801,120810520400350

Note:

  1. All rating are based on the top layer. For each layer reduction on the drum pulling capacity is increased by 10%
  2. Use a snatch block for double line operation, to increase line pull by approximately 85%
  3. The pulling capacities are based on a pulling load and 15% has been allowed for friction (specific applications will vary)\

Warning

  • The winch is not intended to be used in any manner for the movement or lifting of personnel.
  • The rated lifting capacity shown is based on the top rope layer on the drum
  • The rope winding on the drum shall remain 5 wraps from the drum

Warranty

  • Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase. WIRE ROPES ARE NOT INCLUDED UNDER WARRANTY.

Accessories

Standard Accessories Option Accessories
  • Wire rope 6 mm x 30 m
  • Weight hook, CHW-0031
  • Power lead 1.5mm2 x 3C x 3 mm and industry plug
  • Remote control, HOB-213
    - Switch cord 1.25 mm2 x 5C x 3m
    - Pendant switch HOB-213
  • Remote Control, PB-331
    - Switch cord 1.25 mm2 x 5C x 3m
    - Pendant switch PB-331 w/an emergency stop button
  • Low voltage control ass'y LV-320
    - Remote control, PB-306
    * Switch cord 1.25 mm2 x 3C x 3m
    * Pendant switch PB-306 w/an emergency stop button
    - Low voltage control, LV-320

Packaging

  • Net weight (standard version) : 34 kg
  • Gross weight : 36.5 kg

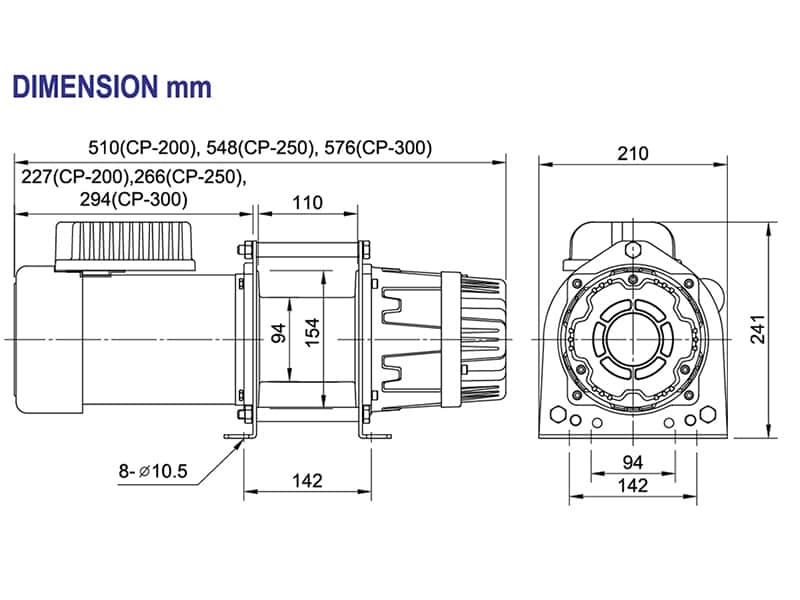

  • Body dimension, (L x D x H) : 548 x 210 x 241 mm
  • Box dimension, (L x D x H) : 630 x 285 x 285 mm

Downloads

DocumentDateFormatDownload
CP-250 Operation Manual2021-07-31PDF, 0.56 MBDownload
CP-250-ES Operation Manual2021-07-31PDF, 0.58 MBDownload
CP-250-LV-ES Operation Manual2021-07-31PDF, 0.22 MBDownload
