CK-500

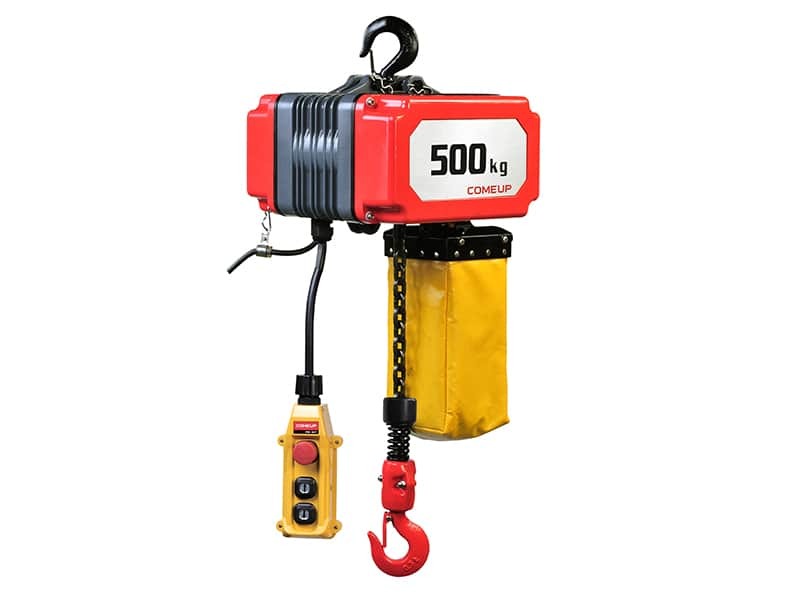

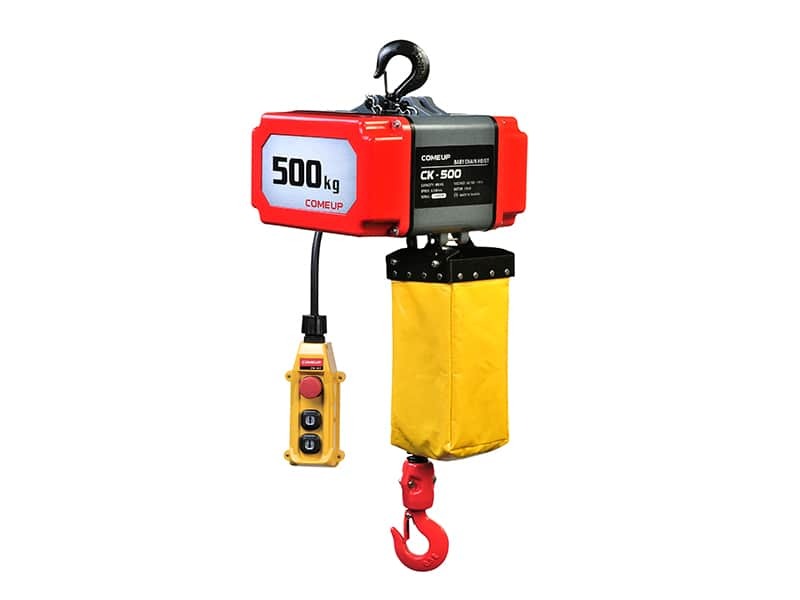

COMEUP CK-500 is an electric chain hoist with a permanent-magnet motor, rated at 500 kg and powered by single-phase 100–120 V or 200–240 V. It has a compact die-cast aluminum housing, dual brakes and an industrial plug.

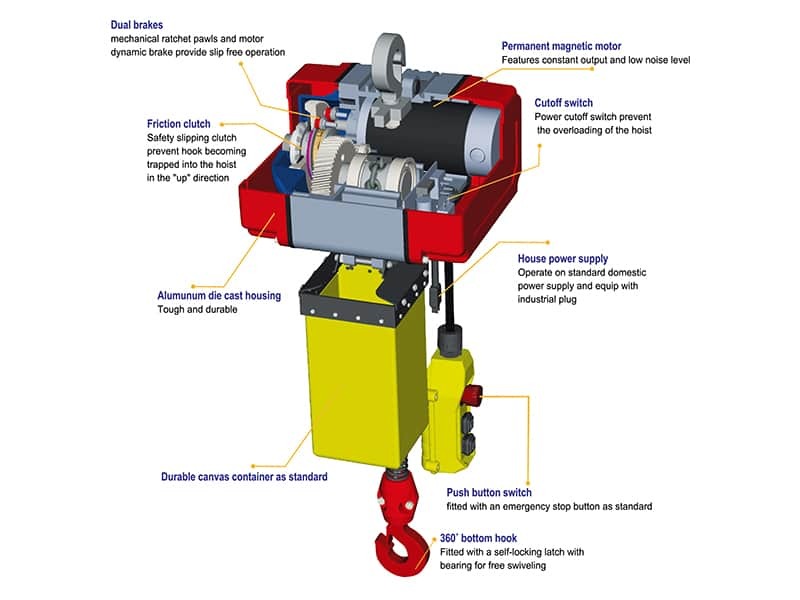

Permanent magnetic motor features constant output and low noise level.
Lightweight and compact designs are ideal for easy installation.
Dual brakes for double mechanical ratchet pawls and a motor dynamic brake provide slip free operation.
Safety slipping clutch prevents hook becoming trapped into the hoist in the "up" direction
Power cutoff switch prevent the overloading of the hoist
Tough aluminum die cast housing provides massive structural durability.
Can operate on standard domestic power supply and equip with industrial plug
A switch w/emergency stop comes as standard;
A 360° bottom hook fitted with a self-locking latch has a bearing is capable of swiveling with the safe working load applied
Standard Compliance: CE Machinery Directive 2006/42/EC, CE EMC Directive 2014/30/EU, EN 14492-2 Power Driven hoists 2006, JIS B8815, ISO 4301-1 and ASME B30.7

Technical Specifications

Model	CK-500
Duty Cycle	25% ED at 63% of rated load
Drive Group	FEM: 9,511 1Bm, ISO: 4301-1 M3
Voltage	100 – 120V, 200 – 240V AC, single phase
Lifting Load	500 kg
Lifting Height	3 M	6 M
Type of Fall	Single
Motor Output	100 – 120 V / 750w, 9.5A permanent magnetic 200 – 240 V / 750w, 4.5A permanent magnetic
Line Speed	6.5 m/min
Brake	Dual brakes of double mechanical ratchet pawls and motor dynamic brake
Gear Ratio	70.2 :1
Load Chain	Grade 80– Links 6.3 mm dia. x 19 mm long

The lifting height shown is the maximum using the standard chain storage bag. For further options are also available upon request

Warning:

The hoist is not intended to be used in any manner for the movement or lifting of personnel.
The fixing point for baby hoist shall be capable of supporting the load required.

Warranty:

Each new hoist is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase. Chain are not included under warranty.

Accessories

Standard Accessories

Load chain Grade 80
Remote control w/emergency stop w/1.25 mm² x 6C x 3 m cord
Industrial plug w/1.5 mm² x 3C x 3 m
CK-500: hook tackle
Hook suspension
Chain bag
Power cutoff switch

Packaging

Hoist weight: 19.3 kg
Gross weight: 27 kg
Box dimension: 380 x 410 x 345 mm

Downloads

Document	Date	Format	Download
CK-500 Operation Manual	2021-07-31	PDF, 0.33 MB	Download
CK-500 (Lifting Height 6M) Operation Manual	2021-07-31	PDF, 0.19 MB	Download
