COMEUP Electric Grooved Winch

COMEUP Electric Grooved Winch

CEP-500(S)

COMEUP CEP-500(S) is an electric grooved-drum winch. The rope lies in a single layer on the drum, so it spools evenly with less rope wear. Lifting capacity is 500 kg on double fall, power supply is single-phase 220–240 V or three-phase 380–415 V, and upper and lower hoisting limit switches are fitted.

Single Rope

Technical Specifications

Model number	Single phase		CEP-500S- □M
	Three phase		CEP-500- □M
Double fall load	kg		500
Double fall speed	M/min		8.3
Motor	hp x P		1 hp x 4 P
Power Source	1ø 50Hz		220/230/240V
	3ø 50Hz		380/400/415V
Lifting height	M		5	8
Wire rope	ø mm x M		8 x 16	8 x 22

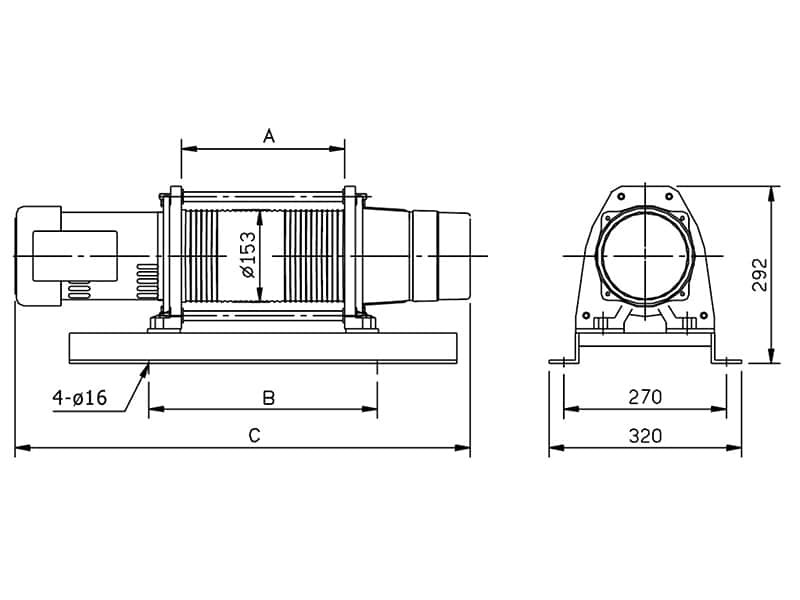

Dimension	A mm		265	365
	B mm		380	480
	C mm		770	870
Net weight	kg		68	73
Gross weight	kg		86	94

□ Means Lifting Height

Note:

The winch is not intended to be used in any manner for the movement or lifting of personnel.
60 Hz motor is available upon request.
Use a tackle block for double line operation, to increase the rated load of the winch by approximately 85%
