CEP-3001

COMEUP CEP-3001 is an electric grooved-drum winch. The rope lies in a single layer on the drum, so it spools evenly with less rope wear. Lifting capacity is 3,000 kg on double fall, power supply is three-phase 380 / 400 / 415 V, and upper and lower hoisting limit switches are fitted.

Double Ropes

Technical Specifications

Model number	Three phase	CEP-3001- □M

Double fall load	kg	3,000
Double fall speed	M/min	5.8
Motor	hp x P	7.5 hp x 4 P
Power Source	3ø 50Hz	380/400/415V

Lifting height	M	5	8	14
Wire rope	ø mm x M	12 x 16	12 x 22	12 x 34

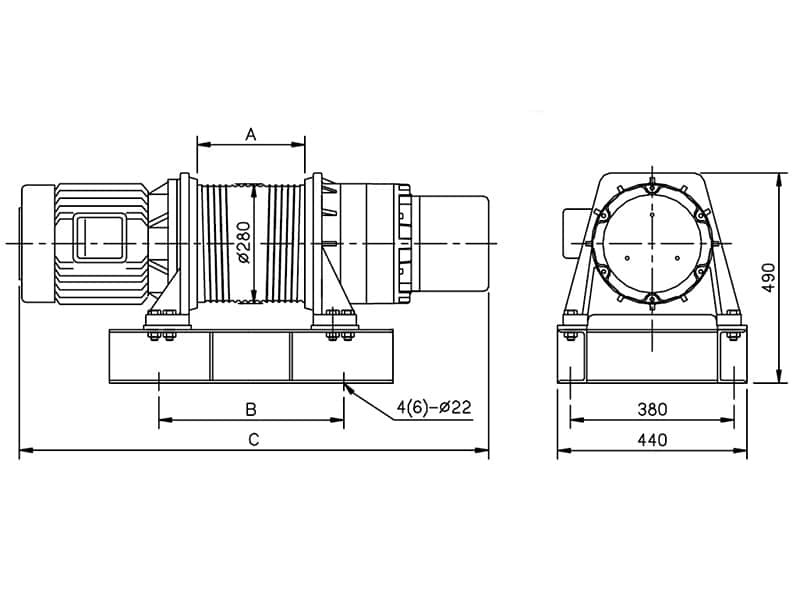

Dimension	A mm	460	610	970
	B mm	640	790	970
	C mm	1300	1450	1630
Net weight	kg	239	252	283
Gross weight	kg	289	307	348

□ Means Lifting Height

Note:

The winch is not intended to be used in any manner for the movement or lifting of personnel.
60 Hz motor is available upon request.
Use a tackle block for double line operation, to increase the rated load of the winch by approximately 85%.

Downloads

Document	Date	Format	Download
CEP-3001-8/11/14MD (380V 50Hz) Operation Manual	2021-11-09	PDF, 0.20 MB	Download
