CEP-2000

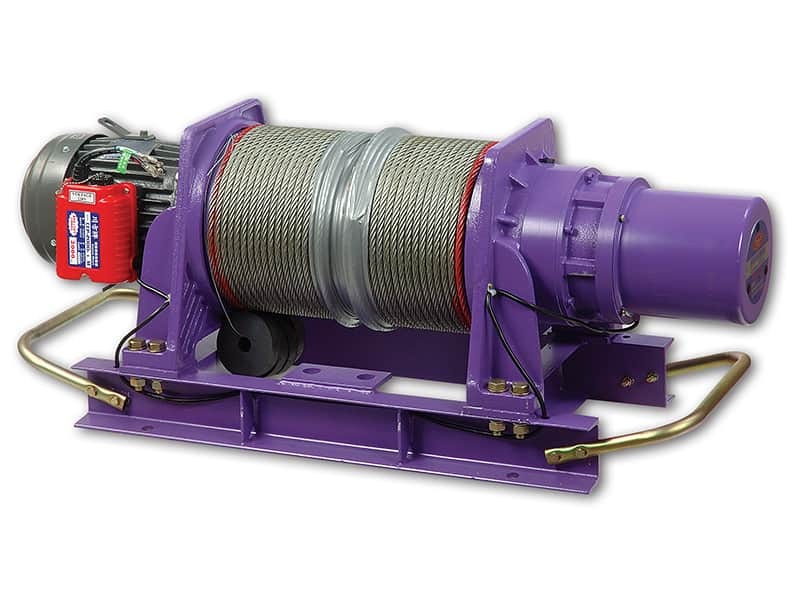

COMEUP CEP-2000 is an electric grooved-drum winch. The rope lies in a single layer on the drum, so it spools evenly with less rope wear. Lifting capacity is 2,000 kg on double fall, power supply is three-phase 380 / 400 / 415 V, and upper and lower hoisting limit switches are fitted.

Double Ropes

Technical Specifications

Model number	Three phase	CEP-2000- □M

Double fall load	kg	2,000
Double fall speed	M/min	5.1
Motor	hp x P	3 hp x 4 P
Power Source	3ø 50Hz	380/400/415V

Lifting height	M	5	8	14
Wire rope	ø mm x M	10 x 16	10 x 22	10 x 34

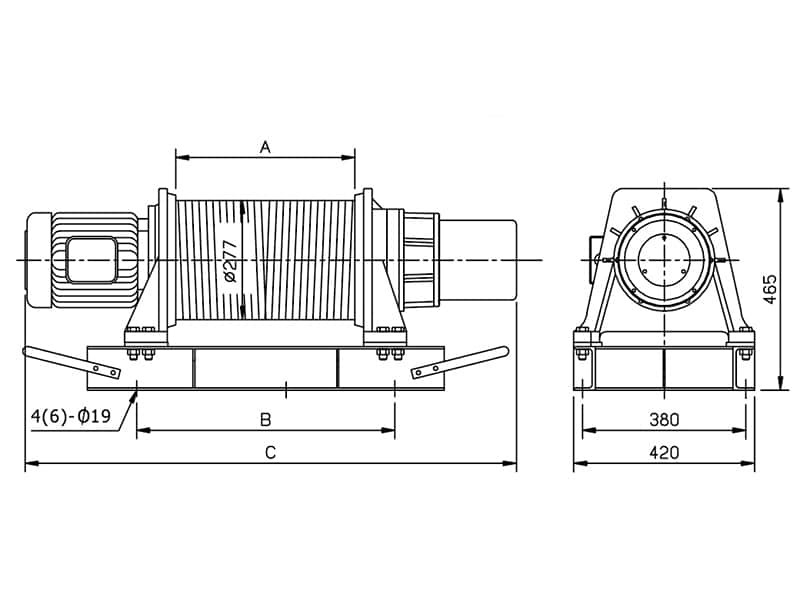

Dimension	A mm	427	522	812
	B mm	600	700	850
	C mm	1170	1265	1405
Net weight	kg	190	215	265
Gross weight	kg	240	265	315

□ Means Lifting Height

Note:

The winch is not intended to be used in any manner for the movement or lifting of personnel.
* 60 Hz motor is available upon request.
* Use a tackle block for double line operation, to increase the rated load of the winch by approximately 85%.

Downloads

Document	Date	Format	Download
CEP-2000 Operation Manual	2021-07-31	PDF, 0.24 MB	Download
