CEP-1000(S)

COMEUP CEP-1000(S) is an electric grooved-drum winch. The rope lies in a single layer on the drum, so it spools evenly with less rope wear. Lifting capacity is 1,000 kg on double fall, power supply is single-phase 220–240 V or three-phase 380–415 V, and upper and lower hoisting limit switches are fitted.

Double Ropes

Technical Specifications

Model number	Single phase	CEP-1000S- □M
	Three phase	CEP-1000- □M
Double fall load	kg	1,000
Double fall speed	M/min	7.5
Motor	hp x P	2 hp x 4 P
Power Source	1ø 50Hz	220/230/240V
	3ø 50Hz	380/400/415V
Lifting height	M	5	8	14
Wire rope	ø mm x M	8 x 16	8 x 22	8 x 34

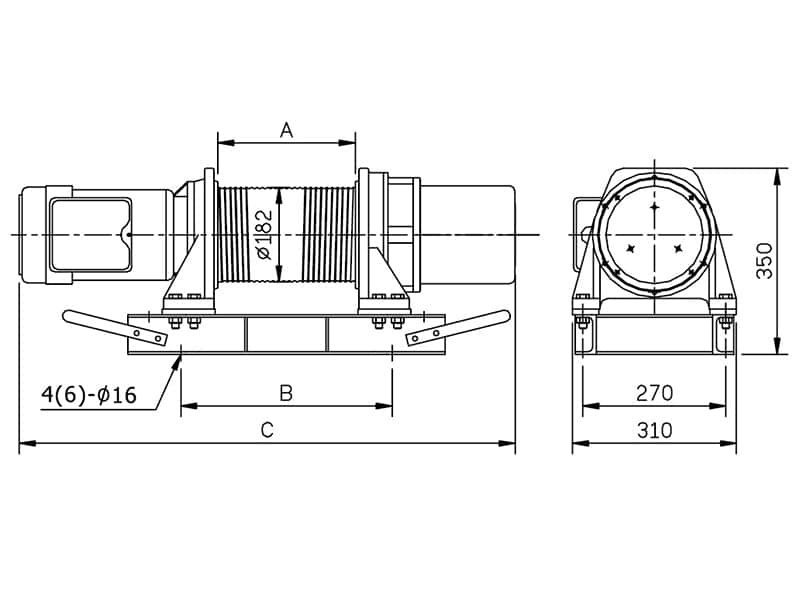

Dimension	A mm	470	670	1070
	B mm	600	800	1200
	C mm	1150	1350	1750
Net weight	kg	111	126	156
Gross weight	kg	151	166	196

□ Means Lifting Height

Note:

The winch is not intended to be used in any manner for the movement or lifting of personnel.
60 Hz motor is available upon request.
Use a tackle block for double line operation, to increase the rated load of the winch by approximately 85%.

Downloads

Document	Date	Format	Download
CEP-1000-8MD (60Hz / 50Hz 380V) Operation Manual	2021-07-31	PDF, 0.27 MB	Download
CEP-1000-14MD (50Hz 380V) Operation Manual	2021-07-31	PDF, 3.2 MB	Download
