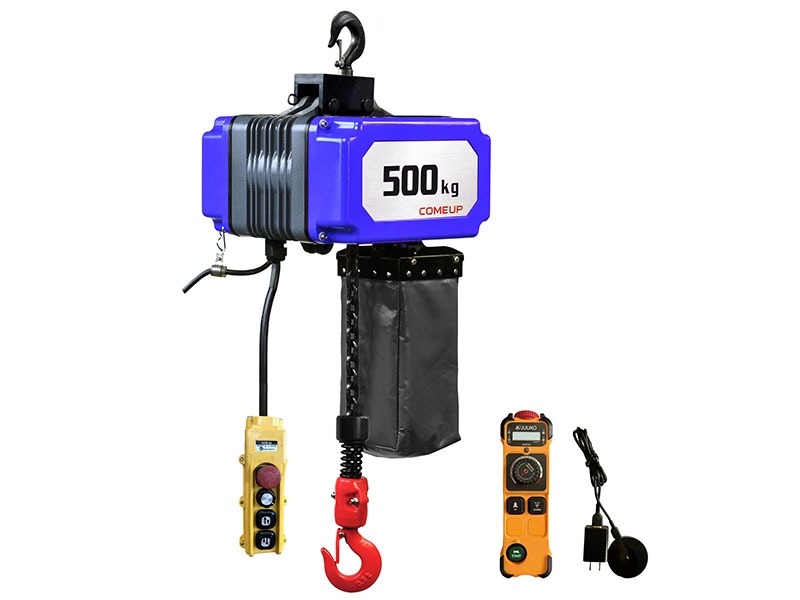

BMC-500r

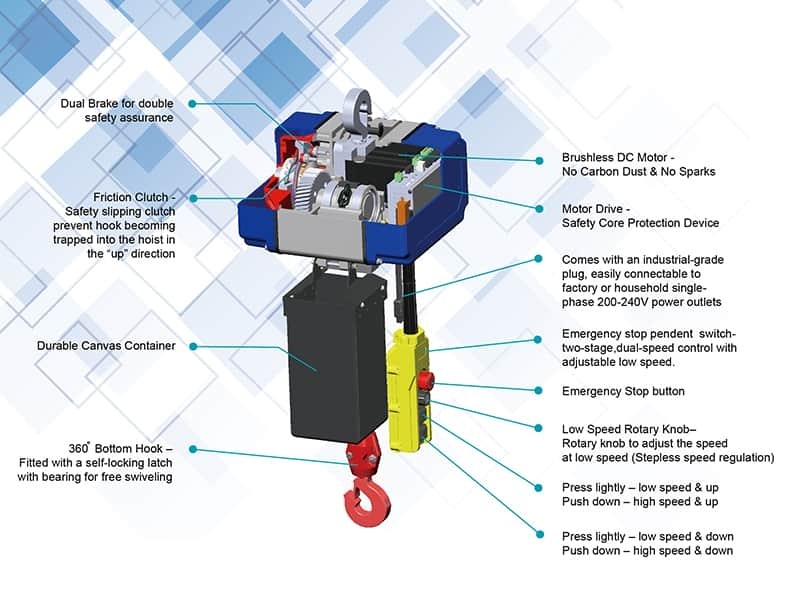

COMEUP BMC-500r is an electric chain hoist with a brushless DC motor and a wireless remote controller, rated at 500 kg and powered by single-phase 200–240 V. Dual speed with an adjustable low speed gives precise positioning for mold handling and material feeding.

Brushless motor generates no carbon dust or sparks, and has long lifespan.
Excellent energy-saving efficiency using DC variable frequency control, which provides low startup and rated current, and ensures smooth operation.
The system operates on 2.4GHz wireless frequency for stable, interference-free control.
Equipped with both wired and wireless dual-speed push-button switches, including emergency stop. Low-speed setting adjustable via rotary switch.
These wireless dual-speed push-button switches are equipped with wireless charging to simplify daily use.
It is especially suitable for industries requiring precise positioning and accurate material feeding
Equipped with 6 major safety features:
1. Auto power-off on motor overheating.
2. Auto power-off for crane overload.
3. Auto power-off for abnormal input voltage (too high /too low).
4. Auto power-off for motor stall.
5. Safety torque limiter to prevent hook from getting stuck.
6. Upper and lower limit switches to prevent chain over-wrapping
Brake System driven by motor dynamic brake, paired with mechanical ratchet pawls for maximum safety
IP55 rating.
Aluminum alloy housing provides durability to overall structure.
Comes with an industrial-grade plug, which can be directly inserted into a single-phase 200-240V power.
Standard Compliance: CE Machinery Directive 2006/42/EC, CE EMC Directive 2014/30/EU, EN 14492-2 Power Driven hoists 2006, JIS B8815, ISO 4301-1 and ASME B30.7.

Technical Specifications

Model	BMC-500r
Duty Cycle	25% ED
Machinery Directive	1Bm(FEM), M3(ISO)
Power	AC200-240V 50/60Hz, single phase
Lifting Load	500 kg
Lifting Height	3 m
Type of Fall	Single
Motor Output	500w, 6.6A Brushless DC motor
Line Speed	0.2~1.8 / 6.5 m/min
Brake (220V 60Hz)	Dual brakes of motor dynamic brake, paired with mechanical ratchet pawls
Gear Ratio	70.2 :1
Load Chain	Grade 80– Links 6.3 mm dia. x 19 mm long

The lifting height shown is the maximum using the standard chain storage bag. For further options are also available upon request

Warning:

The hoist is not intended to be used in any manner for the movement or lifting of personnel.
The fixing point for baby hoist shall be capable of supporting the load required.

Warranty:

Each new hoist is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase. Chain are not included under warranty.

Dimensions

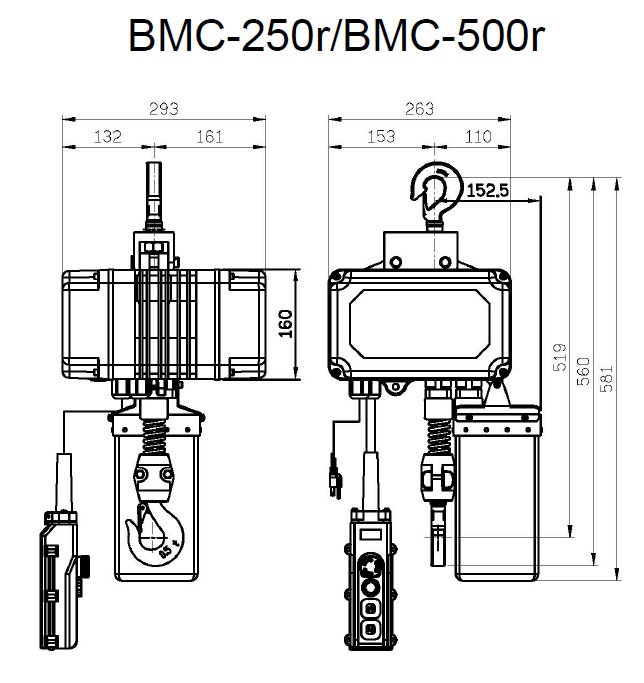

BMC-250r/500r Dimension

Accessories

Standard Accessories

Load chain Grade FC 80
Wireless transmitter (100m unobstructed range)
Charger set
Remote control w/emergency stop w/0.5 mm² x 7C x 3 m cord
Industrial plug w/ 1.5 mm² x 3C x 3 m
BMC-500r: hook tackle
Hook suspension
Chain bag

Packaging

Hoist weight: 20.3 kg
Gross weight: 28 kg
Box dimension: 380 x 410 x 345 mm
