FullSharp · since 1991

Bison 40t

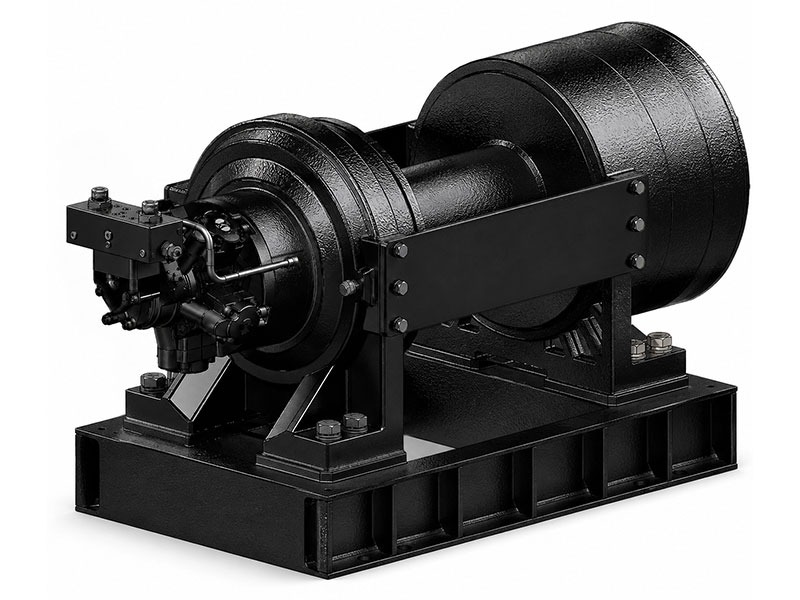

COMEUP Bison 40t – Dual-Speed Hydraulic Recovery Winch. Bison and HV hydraulic recovery winches for recovery vehicles, heavy trucks and special-purpose vehicles, built for continuous duty.

Traditional hydraulic winches require a trade-off between line speed and pulling force. The Bison 40t Dual-Speed Hydraulic Recovery Winch eliminates that compromise by delivering both in a single winch. Operators can switch between High-Speed Mode for rapid cable retrieval and Low-Speed Mode for maximum pulling force, maximizing productivity without increasing hydraulic flow or system pressure.
  • Dual-Speed Operation
    High-Speed Mode for fast no-load recovery; Low-Speed High-Torque Mode for maximum pulling power.
  • 40,000 kg (88,184 lb) Pulling Capacity
    Powered by a 492 cm³/rev hydraulic motor for heavy-duty performance.
  • High-Precision Roller Bearings
    Fitted on drum and gear assemblies to reduce friction and extend service life.
  • Hardened 2-Stage Planetary Gear Train
    53.5:1 gear ratio provides optimal line speed and strength.
  • PTO-Driven System
    Driven by a PTO pump for variable recovery speeds and high work efficiency.
  • Air Clutch System
    Built-in air clutch for rapid and easy wire rope payout.
  • Patented Multi-Disc Brake (MDB)
    Ensures reliable, positive full-load holding safety.
  • Control & Safety Accessories
    Includes cable tensioner and two-way counterbalance valve.
  • Certified Compliance
    Meets SAE J706 and CE Machinery Directive 2006/42/EC.

Technical Specifications

  • Part number:PN 685410
Low SpeedHi Speed
Rated line pull:40,000 kg / 88,184 lb20,000 kg / 44,092 lb
Line speed: 6.1 mpm (20.1 fpm)11.8 mpm (38.7 fpm)
Hydraulic motor:492 cm3 / rev (30.0 in3/rev)255 cm3 / rev (15.6 in3/rev)
Operation pressure: 180 bar / 2,610 psi
Max oil flow:185 l/min (48.9 g/min)
Gear train : 2 stage planetary gears
Gear ratio :53.5 : 1
Winch construction:Cast housings with steel drum
Clutch (Freespooling):Output shaft disengaged
Brake: Multi-Disc Brake (MDB) patented and counterbalance valve supplied
Rotation of winch:Wire rope shall be under-wound orientation only
Drum barrel diameter:250 mm (9.9")
Drum flange diameter:518 mm (20.4”)
Distance between flanges: 568 mm (22.4")
Wire rope recommended:28 mm x 80 m (10/9” x 263’), 1,960 N/mm2 breaking strength of 507 kN required for SAE J706 rating

Performance Data

Line Pull and Rope Capacity

Layer of Wire RopePull by Layer,
kg / lb		Total Rope on the Drum, m / ftLine Speed
Std . drumat 185 l/min (48.9 g/min ), mpm / fpm
Low SpeedHi Speed
1st40,000 / 88,15815.5 / 516.1 / 20.111.8 / 38.9
2nd33,293 / 73,39934.0 / 1127.4 / 24.214.2 / 46.7
3rd28,513 / 62,86055.7 / 1838.6 / 28.216.6 / 54.5
4th24,933 / 54,96780.0 / 2629.8 / 32.319.0 / 62.3

Warning

  • The winch is not intended to be used in any manner for the movement or lifting of personnel.
  • The rated line pull shown is based on the first layer of rope on the drum.
  • The rope winding on the drum shall remain 5 wraps from the drum.

Warranty

  • Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase.

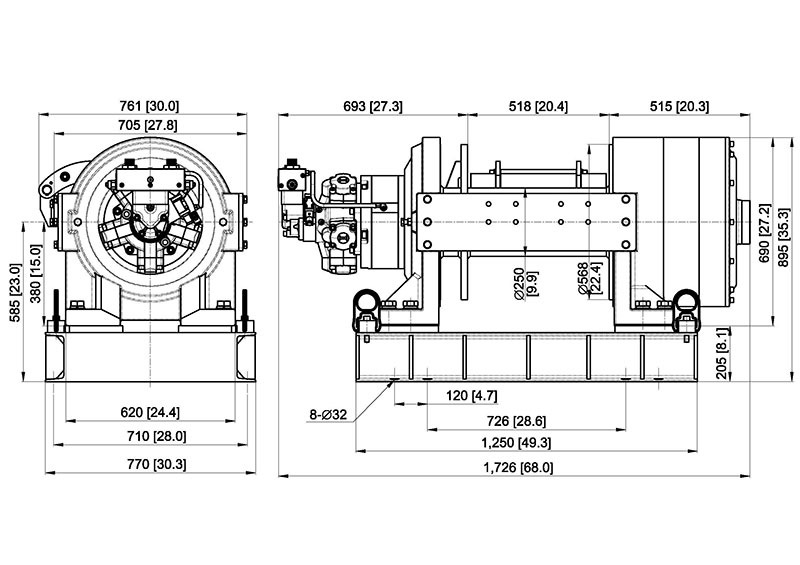

Dimensions

Bison 40t

Packaging

  • Winch weight : 1,710 kg / 3,770 lb

Accessories

Standard Accessories

  • Counterbalance valve
  • Cable tensioner
  • Base Plate kit
