FullSharp · since 1991

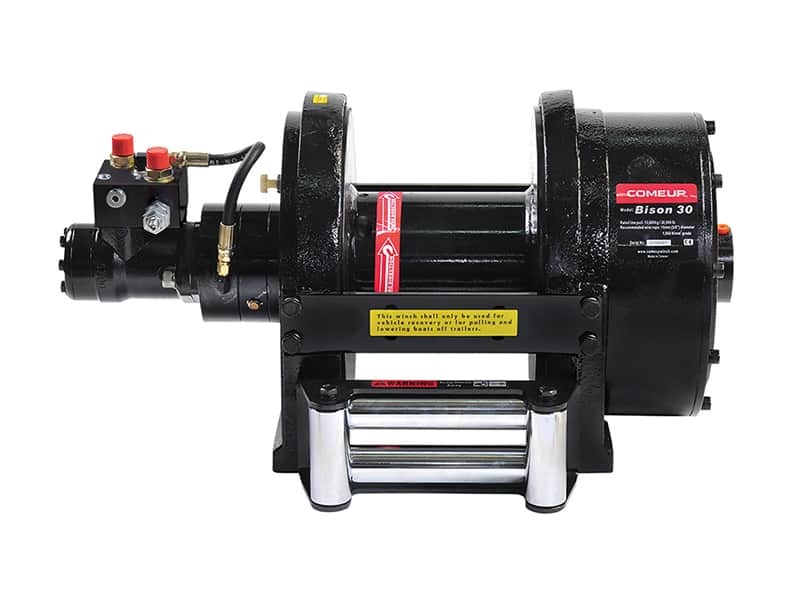

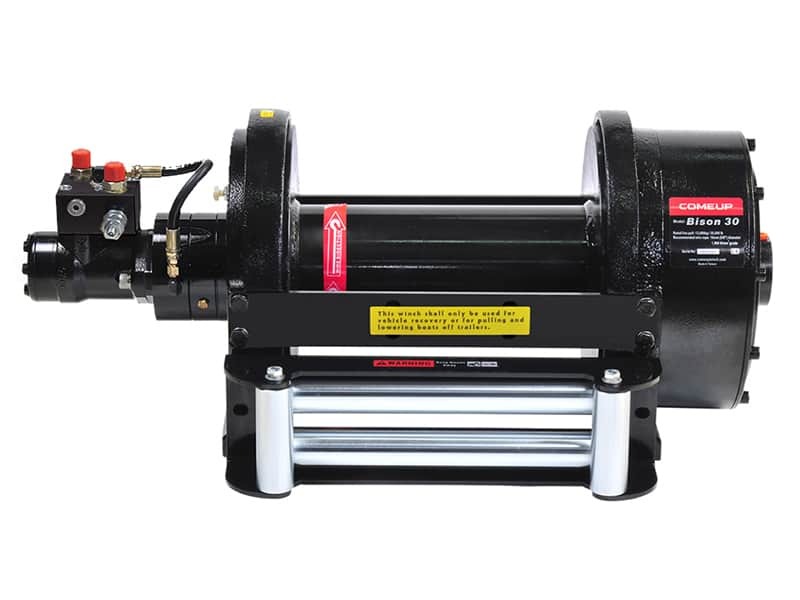

Bison 30

COMEUP Bison 30 – 13.6 Tonnes Hydraulic Recovery Winch. Bison and HV hydraulic recovery winches for recovery vehicles, heavy trucks and special-purpose vehicles, built for continuous duty.

  • Powered by a PTO (power take off unit) driven pump with variable recovery speeds for high working rate
  • 155.7 cm3/rev highly efficient and constant operating torque motor with 13,600 kg / 30,000 lb capacity
  • Hardened 2 stage planetary gear train with 41:1 gear ratio provides faster line speed
  • Built-in air clutch for rapid wire rope payout
  • The Multi-Disc Brake (MDB) patented for holding full load

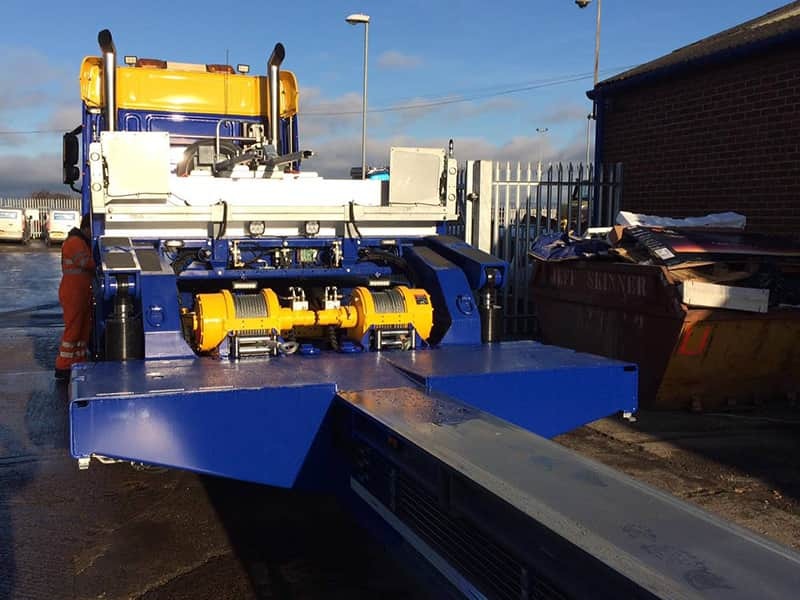

  • Great for severe duty trailers, roll-back carriers, and commercial recovery application
  • Roller fairlead, cable tensioner and two ways counterbalance valve supplied
  • Meets SAE J706 revised AUG2003, CE Machinery Directive 2006/42/EC.

    Remark: EN Version is available upon request.

Technical Specifications

Part numberPN 683030 (Std. drum) / PN 683352 (Long drum)
Rated line pull13,600 kg / 30,000 lb (SAE J706 rating)
Line speed (at 1st layer of rope)5 mpm at 60 l/min (16 fpm at 15.9 g/min)
Operation pressure175 bar / 2,540 psi
Max oil flow60 l/min (15.9 g/min)
Hydraulic motor155.7 cm3/rev (9.5 in3/rev)
Gear ratio2-stage planetary gear 41:1
Winch constructionCast housings with steel drum
Clutch (Freespooling)Output shaft disengaged
BrakeMulti-Disc Brake (MDB) patented and counterbalance valve supplied
Rotation of winchWire rope shall be under-wound orientation only

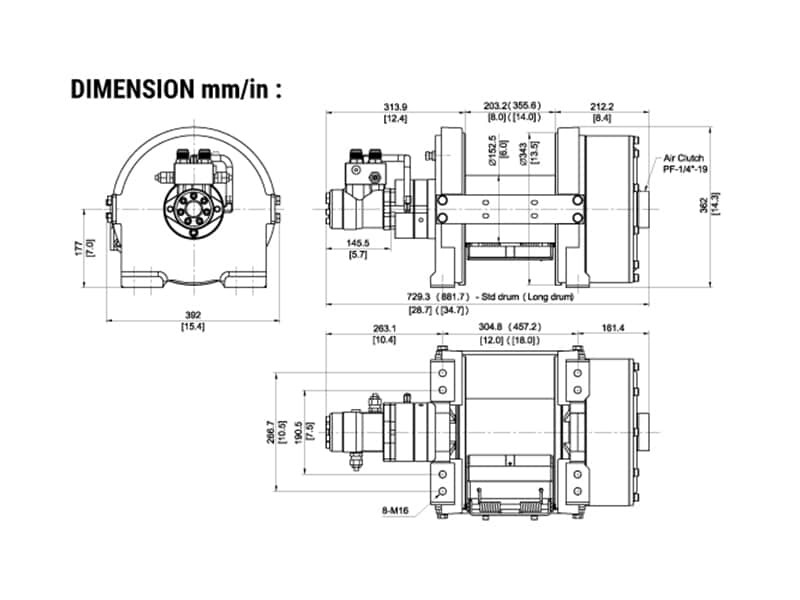

Drum barrel diameter152.5 mm (6")
Drum flange diameter343 mm (13.5”)
Distance between flanges203 mm (8") - Std. drum
355.6 mm (14") - Long drum
Mounting bolt pattern190.5 x 304.8 mm (7.5” x 12”) ; 266.7 x 304.8 mm (10.5” x 12”) - Std. drum
190.5 x 457.2 mm (7.5” x 18”) ; 266.7 x 457.2 mm (10.5” x 18”) - Long drum
Wire rope recommended16 mm x 43 m ( 5/8” x 141’) - Std. drum
16 mm x 75 m ( 5/8” x 246’ ) - Long drum
1,960 N/mm2 (EIPS) grade with a minimum breaking strength of 179 kN (40,167 lbf) required for SAE J706 rating

Performance Data

Line Pull and Rope Capacity

Layer of Wire RopePull by Layer,
kg / lb		Total Rope on the Drum, m / ftLine Speed
Std . drumLong drumat 60 l/min (15.9 g/min ), mpm / fpm
1st13,600 / 30,0006 / 2011 / 365.0 / 16
2nd11,438 / 25,21614 / 4425 / 825.9 / 19
3rd9,864 / 21,74522 / 7340 / 1316.9 / 23
4th8,670 / 19,11532 / 10458 / 1907.8 / 26
5th7,735 / 17,05243 / 14175 / 2468.8 / 29

* Remark: COMEUP Bison series hydraulic winch also provides low-pressure motor or EN version, please contact your sales representative now for further information.

Warning

  • The winch is not intended to be used in any manner for the movement or lifting of personnel.
  • The rated line pull shown is based on the first layer of rope on the drum.
  • The rope winding on the drum shall remain 5 wraps from the drum.

Warranty

  • Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase.

Accessories

Standard Accessories

  • Roller fairlead
  • Counterbalance valve
  • Cable tensioner

Packaging

  • Winch weight : 175 kg / 386 lb - Std. drum
    197 kg / 434 lb - Long drum
  • Gross weight : 198 kg / 437 lb - Std. drum
    235 kg / 518 lb - Long drum
  • Box dimension : 900 x 510 x 530 mm (35.4” x 20.1” x 20.9”) - Std. drum
    1,040 x 620 x 510 mm (40.9” x 24.4” x 20.1”) - Long drum

Downloads

DocumentDateFormatDownload
Bison 30 Operation Manual2021-07-31PDF, 0.79 MBDownload
