FullSharp · since 1991

Bison 30 Dual-Speed

COMEUP Bison 30 Dual-Speed – Dual-Speed Hydraulic Recovery Winch. Bison and HV hydraulic recovery winches for recovery vehicles, heavy trucks and special-purpose vehicles, built for continuous duty.

The Bison 30 dual-speed hydraulic recovery winch delivers a pulling capacity of 13,600 kg. Featuring a PTO-driven hydraulic system, dual-speed motor, hardened planetary gears, air clutch, and patented multi-disc brake, it ensures fast, stable operation for heavy-duty trailers and commercial recovery applications while meeting SAE J706 and CE safety standards.

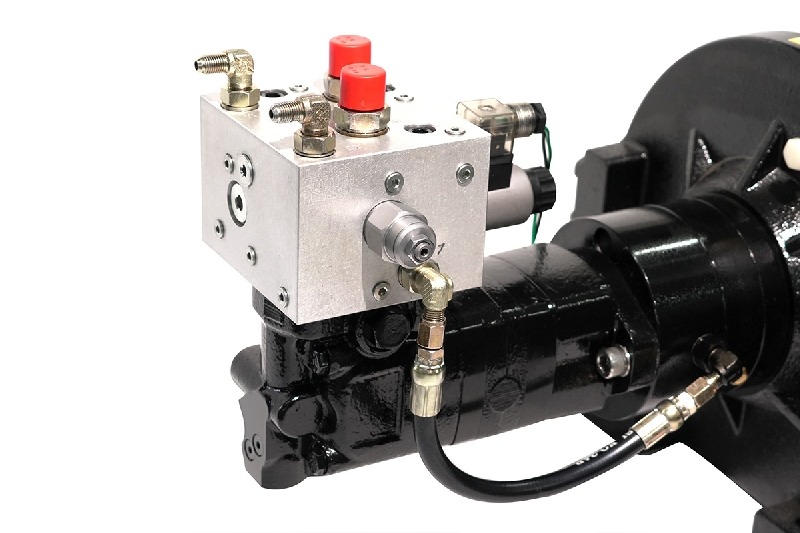

  • Dual-speed hydraulic motor provides two operating modes in one integrated system.
  • Powered by a PTO (power take off unit) driven pump with variable recovery speeds for high working rate
  • 160 cm3/rev highly efficient and constant operating torque motor with 13,600 kg / 30,000 lb capacity
  • Hardened 2 stage planetary gear train with 41:1 gear ratio provides faster line speed
  • Built-in air clutch for rapid wire rope payout
  • The Multi-Disc Brake ( MDB ) patented for holding full load
  • Great for severe duty trailers, roll-back carriers, and commercial recovery application
  • Roller fairlead, cable tensioner and two ways counterbalance valve supplied
  • Meet SAE J706 and CE machinery directive 2006/42/EC

Technical Specifications

  • Part number : PN 683710 Dual-Speed (175 bar / 2,540 psi)
Rated line pull:Low SpeedHi Speed
(at 60 l / min at 1st layer of rope)
13,600 kg / 30,000 lb6,120 kg / 13,500 lb
Line speed: 4.5 mpm / 14.7 fpm9.0 mpm / 29.5 fpm
Operation pressure: 175 bar / 2,540 psi
Max oil flow:60 l/min (15.9 g/min)
Hydraulic motor:160 cm3 / rev (9.8 in3/rev)
Gear train : 2 stage planetary gears
Gear ratio :41 : 1
Winch construction:Cast housings with steel drum
Clutch (Freespooling):Output shaft disengaged
Brake: Multi-Disc Brake (MDB) patented and counterbalance valve supplied
Rotation of winch:Wire rope shall be under-wound orientation only
Drum barrel diameter:152.5 mm (6")
Drum flange diameter:343 mm (13.5”)
Distance between flanges:203.2 mm (8")
Wire rope recommended:16 mm x 43 m (5/8” x 141’), 1,960 N/mm2 breaking strength of 179 kN required for SAE J706 rating

Performance Data

Line Pull and Rope Capacity

Layer of Wire RopePull by Layer,
kg / lb		Total Rope on the Drum, m / ftLine Speed
16 mm ropeat 60 l/min (15.9 g/min ), mpm / fpm
Low SpeedHi SpeedLow SpeedHi Speed
1st13,600 / 30,0006,120 / 13,5006 / 204.5 / 14.79.0 / 29.5
2nd11,429 / 25,1975,143 / 11,33814 / 445.3 / 17.310.6 / 34.8
3rd9,856 / 21,7294,435 / 9,77822 / 736.1 / 20.012.3 / 40.4
4th8,664 / 19,1013,899 / 8,59632 / 1047.0 / 23.014.0 / 46.0
5th7,729 / 17,0403,478 / 7,66843 / 1417.8 / 25.615.7 / 52.0

Warning

  • The winch is not intended to be used in any manner for the movement or lifting of personnel.
  • The rated line pull shown is based on the first layer of rope on the drum.
  • The rope winding on the drum shall remain 5 wraps from the drum.

Warranty

  • Each new winch is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase.

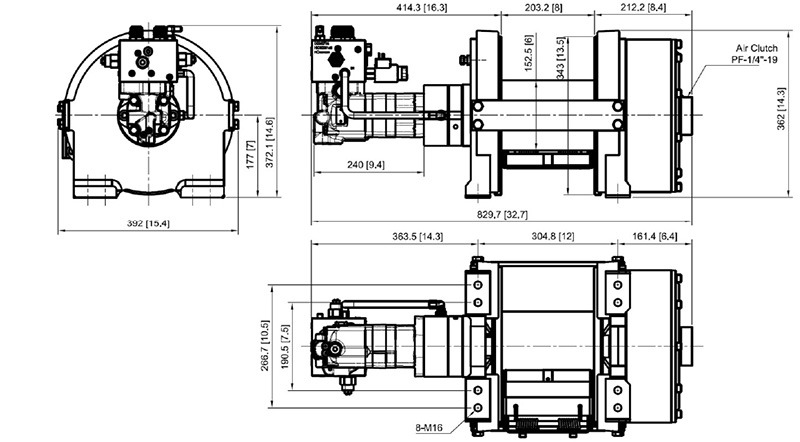

Dimensions

Bison 30 Dual-Speed

Packaging

  • Winch weight : 183 kg / 403 lb
  • Gross weight : 206 kg / 454 lb
  • Box dimension, (L x D x H) : 1,000 x 510 x 530 mm (39.4" x 20.1" x20.9")

Accessories

Standard Accessories

  • Roller Fairlead
  • Counterbalance valve
  • Cable tensioner
