APE 19

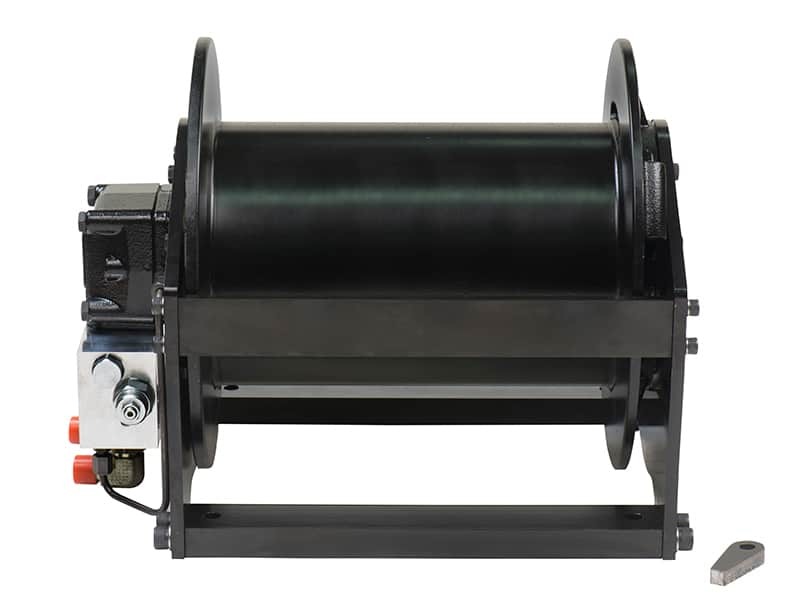

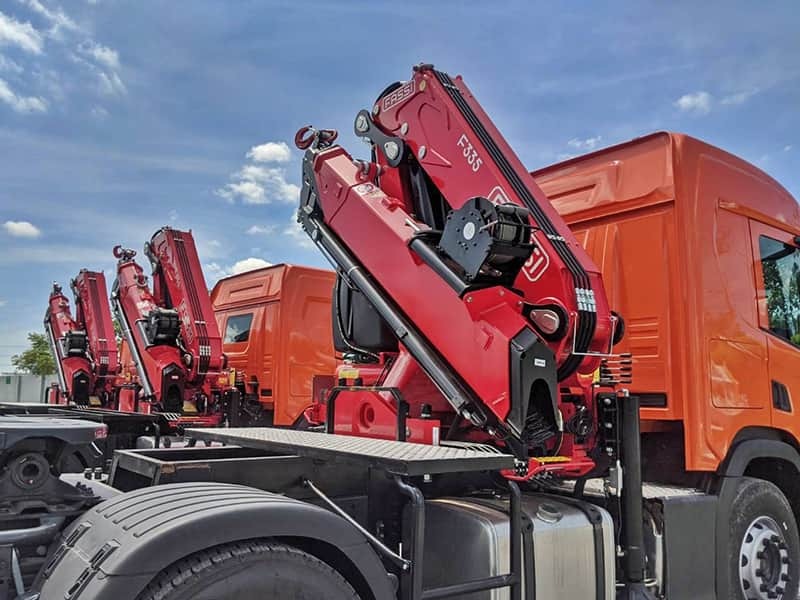

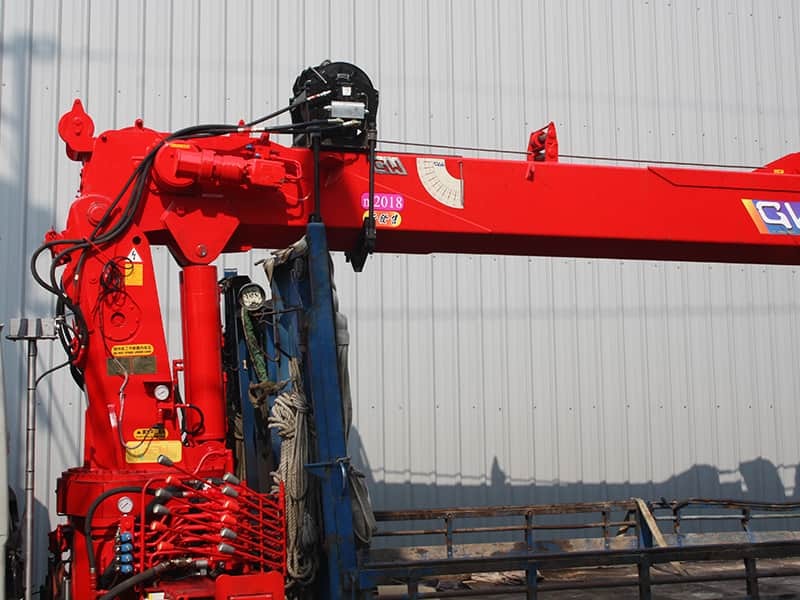

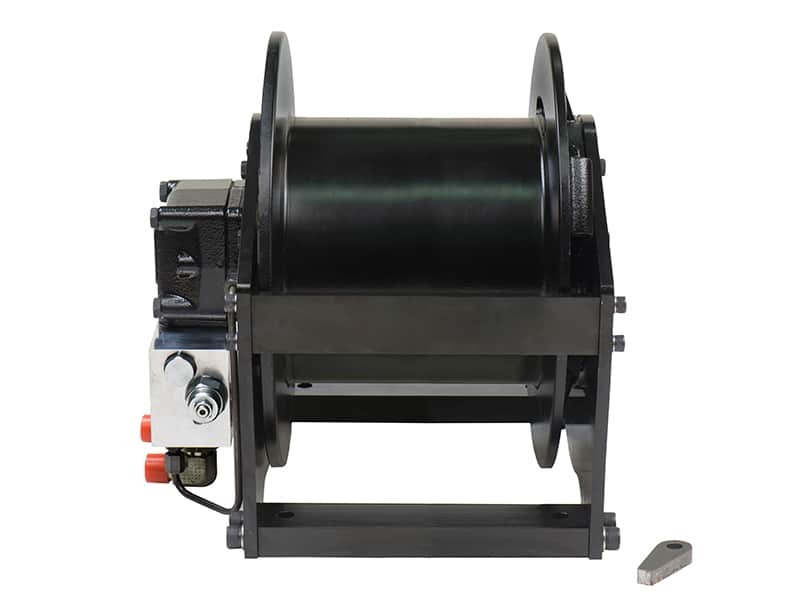

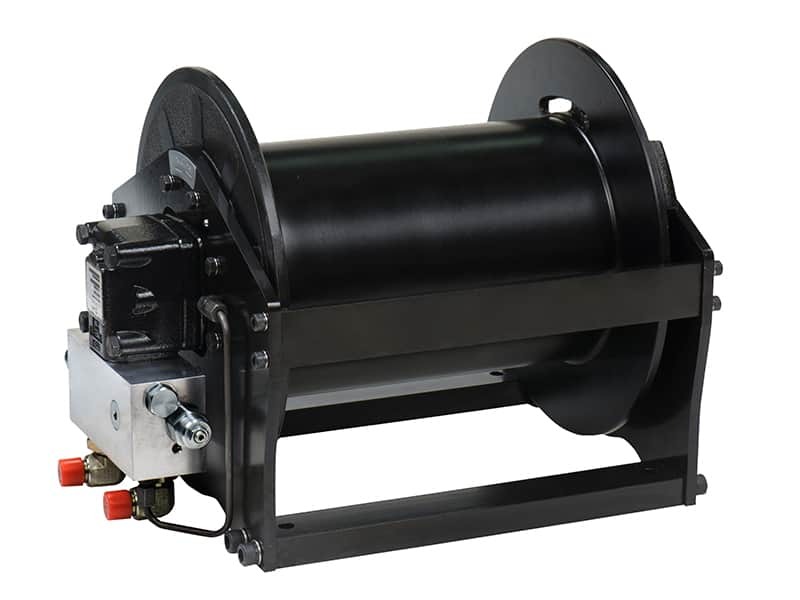

COMEUP APE 19 – 1,900 kg Hydraulic Hoist. APE hydraulic hoists for cranes and vehicle-mounted lifting equipment.

Internally lubricated for reliable power and an exceptionally long service life.
Compact, hardened and high efficiency gear trains reduce power loss and placed inside the drum.
Multi-Disc Brake (MDB) patented and two ways counter-balance valve together for holding full load.
The normal lifting capacity is rated at the top layer of wire rope. It always lifts its rated load no matter what layer of wire rope it is.
The drum is dimensioned to obtain a minimum D/d ratio of 18:1 with a 5:1 minimum safety factor at the rated load.
The hoist meets the requirement of FEM9.511 covering rating and classification and FEM 1001 standard for the calculation of lifting equipment.
Compliance with international standards such as ASME B30.7 and, CE Machinery Directive 2006/42/EC

Technical Specifications

Part number	PN 681930 (Std. drum) / PN 681940 (Long drum)
Rated line lift	1,900 kg ( 4,190 lb ) single line at the top layer of rope
Line speed	46 4 mpm / 153 fpm single line at the top layer of rope
Motor	200 cm³/rev ( 12.2 in³/rev )
Operation pressure	205 bar ( 2,973 psi )with maximum back pressure on return line of 5 bar
Max-Min pump flow	60 - 20 l/min ( 15.9 - 5.3 g/min )
Gear ratio	1-stage planetary 5.8:1
Brake	Multi-Disc Brake (MDB) patented and counter-balance valve together
Winch construction	steel housings with steel drum
Winch Rotation	counter clockwise rotation of the drum

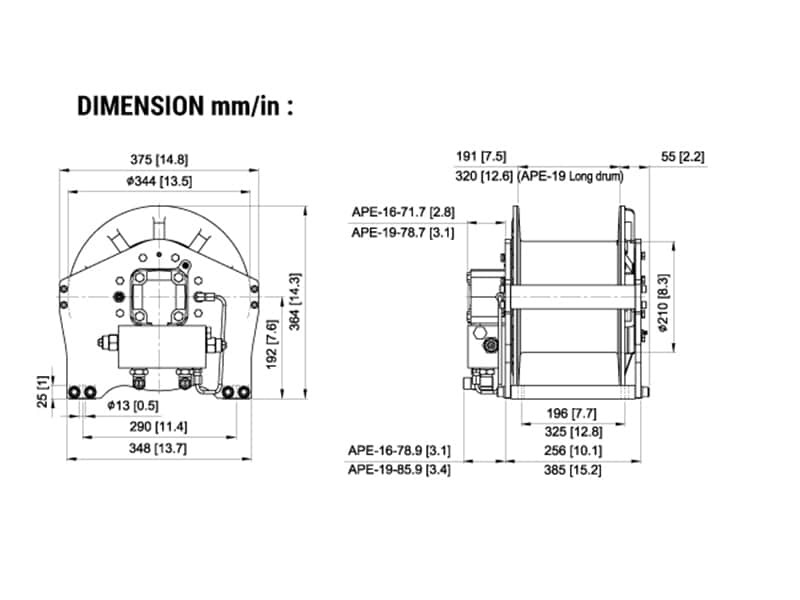

Drum size (dxDxL)	210 x 344 x 191 mm (8.3” x 13.5” x 7.5”) for std. drum 210 x 344 x 320 mm (8.3” x 13.5” x 12.6”) for long drum
Recommended wire rope	12 mm x 48 m for std. drum and 12 mm x 82 m for long drum with 1,960 N/mm² grade with minimum breaking strength of 100. kN for EN 14492-2 rating 1/2” x 157 ft for std. drum and 1/2” x 269 ft for long drum with EIPS grade with minimum breaking strength of 22,487 lbf for ASME B30.7 rating
Mounting bolt pattern	290 x 196 mm ( 11.4” x 7.7”) for std. drum 290 x 325 mm (11.4” x 112.8”) for long drum

Performance Data

Line Lift and Rope Capacity

Layer of Wire Rope	Lift by Layer, kg / lb	Line Speed, mpm/fpm	Total Rope on the Drum, m / ft
Layer of Wire Rope	Lift by Layer, kg / lb	Line Speed, mpm/fpm	Std. drum	Long drum
1^st	2,515 / 5,545	35.0 / 115	10.4 / 34	18 / 59
2^nd	2,270 / 5,004	38.8 / 127	22 / 72	38 / 124
3^rd	2,068 / 4,559	42.6 / 140	35 / 114	60 / 195
4^th	1,900 / 4,190	46.4 / 153	48 / 157	82 / 269

The total rope on the drum may vary from figures stated elsewhere

►Load Rated

Load and speed vary according to how much wire rope is on the
drum. The first layer of rope on the drum delivers the slowest speed
and the maximum load. A full drum delivers the maximum speed and
the minimum load. For this reason, all hydraulic hoisting winches are
rated at their top layer of wire rope on the drum

Leave two free layers below the top of the drum flanges to meet
European lifting rules

Leave a minimum of ½ inch ( 13 mm ) below the tope of the drum
flange to meet ASME 30.7

Warning

The hoist is not intended to be used in any manner for the movement or lifting of personnel.
The rated line pull shown is based on the top layer of rope on the drum.
The rope winding on the drum shall remain 5 wraps from the drum.

Warranty

Each new hoist is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase.

Accessories

Option Accessories

Cable tensioner
Wire rope with hook
Down limit protection device

Packaging

Hoist weight: 88 kg / 194 lb - STD drum
101 kg / 223 lb - Long drum
Gross weight: 106 kg / 234 lb - STD drum
123 kg / 271 lb - Long drum
Box dimension (L x D x H): 490 x 490 x 600 mm (19.3” x 19.3” x 23.6”)- STD drum
620 x 510 x 600 mm (24.4” x 20.1” x 23.6”) - Long drum

Downloads

Document	Date	Format	Download
APE 19 Operation Manual	2021-07-31	PDF, 0.17 MB	Download
