APE 16

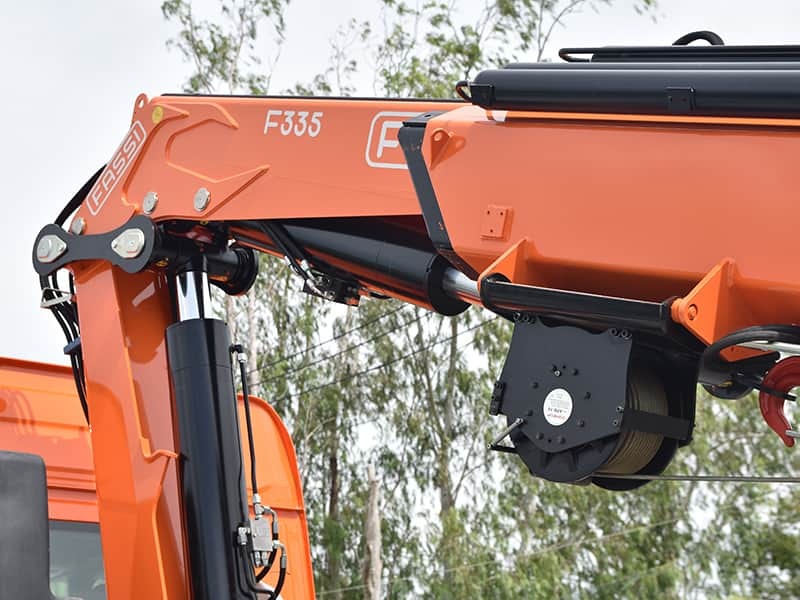

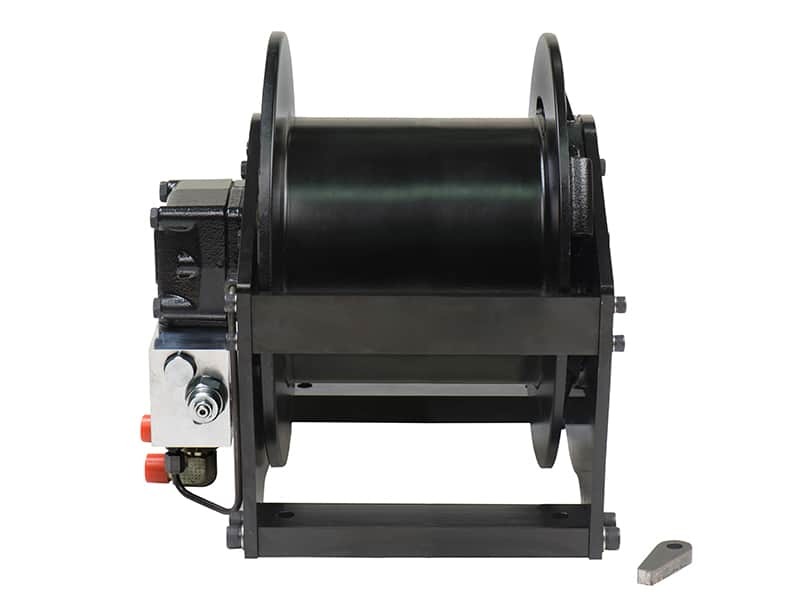

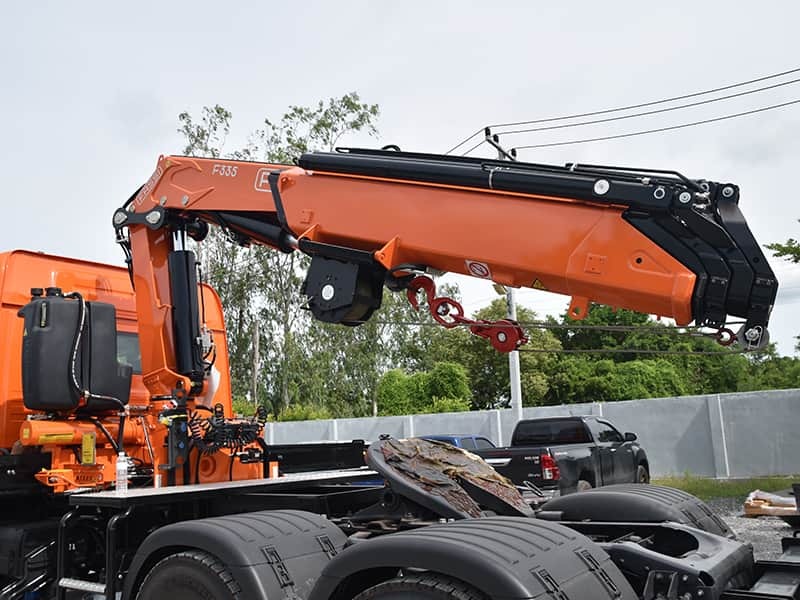

COMEUP APE 16 – 1,600 kg Hydraulic Hoist. APE hydraulic hoists for cranes and vehicle-mounted lifting equipment.

  • Internally lubricated for reliable power and an exceptionally long service life.
  • Compact, hardened and high efficiency gear trains reduce power loss and placed inside the drum.
  • Multi-Disc Brake (MDB) patented and two ways counter-balance valve together for holding full load.
  • The normal lifting capacity is rated at the top layer of wire rope. It always lifts its rated load no matter what layer of wire rope it is.
  • The drum is dimensioned to obtain a minimum D/d ratio of 18:1 with a 5:1 minimum safety factor at the rated load.
  • The hoist meets the requirement of FEM9.511 covering rating and classification and FEM 1001 standard for the calculation of lifting equipment.
  • Compliance with international standards such as ASME B30.7 and, CE Machinery Directive 2006/42/EC

Technical Specifications

Part numberPN 681920
Rated line lift1,600 kg ( 3,527 lb ) single line at the top layer of rope
Line speed43 mpm / 141 fpm single line at the top layer of rope
Motor159 cm3/rev ( 9.7 in3/rev )
Operation pressure205 bar ( 2,973 psi )with maximum back pressure on return line of 5 bar
Max-Min pump flow45 - 15 l/min ( 11.9 - 4.0 g/min )
Gear ratio1-stage planetary 5.8:1
BrakeMulti-Disc Brake (MDB) patented and counter-balance valve together
Winch constructionsteel housings with steel drum
Winch Rotationcounter clockwise rotation of the drum

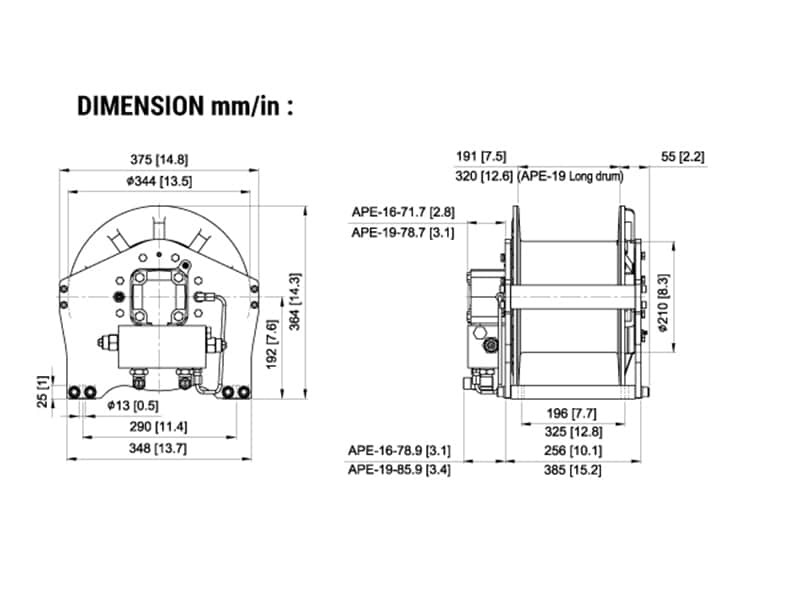

Drum size (dxDxL)210 x 344 x 191 mm (8.3” x 13.5” x 7.5”)
Recommended wire rope10 mm x 57m with 2,160 N/mm2 grade with minimum breaking strength of 78.2 kN for EN 14492-2 rating
3/8” x 187 ft with EIPS grade with minimum breaking strength of 17,593 lbf for ASME B30.7 rating
Mounting bolt pattern290 x 196 mm ( 11.4” x 7.7”)

Performance Data

Line Lift and Rope Capacity

Layer of Wire RopeLift by Layer,
kg / lb		Line Speed,
mpm / fpm		Total Rope on the Drum,
m / ft
1st2,036 / 4,48933.8 / 11112.5 / 41
2nd1,866 / 4,41436.8 /12126.2 / 86
3rd1,723 / 3,79640 / 13141 / 134
4th1,600 / 3,52743 / 14157 / 187

The total rope on the drum may vary from figures stated elsewhere

APE 16

►Load Rated

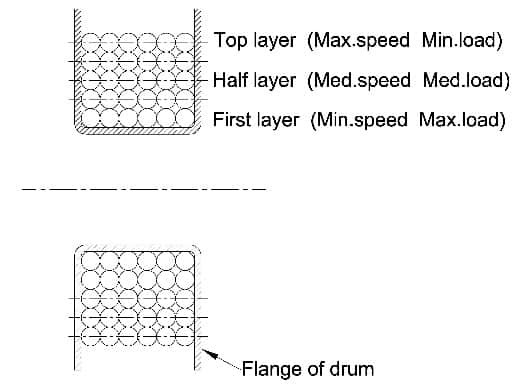

Load and speed vary according to how much wire rope is on the
drum. The first layer of rope on the drum delivers the slowest speed
and the maximum load. A full drum delivers the maximum speed and
the minimum load. For this reason, all hydraulic hoisting winches are
rated at their top layer of wire rope on the drum

Leave two free layers below the top of the drum flanges to meet
European lifting rules

Leave a minimum of ½ inch ( 13 mm ) below the tope of the drum
flange to meet ASME 30.7

Warning

  • The hoist is not intended to be used in any manner for the movement or lifting of personnel.
  • The rated line pull shown is based on the top layer of rope on the drum.
  • The rope winding on the drum shall remain 5 wraps from the drum.

Warranty

  • Each new hoist is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase.

Accessories

Option Accessories

  • Cable tensioner
  • Wire rope with hook
  • Down limit protection device

Packaging

  • Hoist weight: 87 kg / 192 lb
  • Gross weight: 105 kg / 232 lb
  • Box dimension (L x D x H): 490 x 490 x 600 mm (19.3” x 19.3” x 23.6”)

Downloads

DocumentDateFormatDownload
APE 16 Operation Manual2021-07-31PDF, 0.17 MBDownload
Contact FullSharp for a quotation
