APE 12

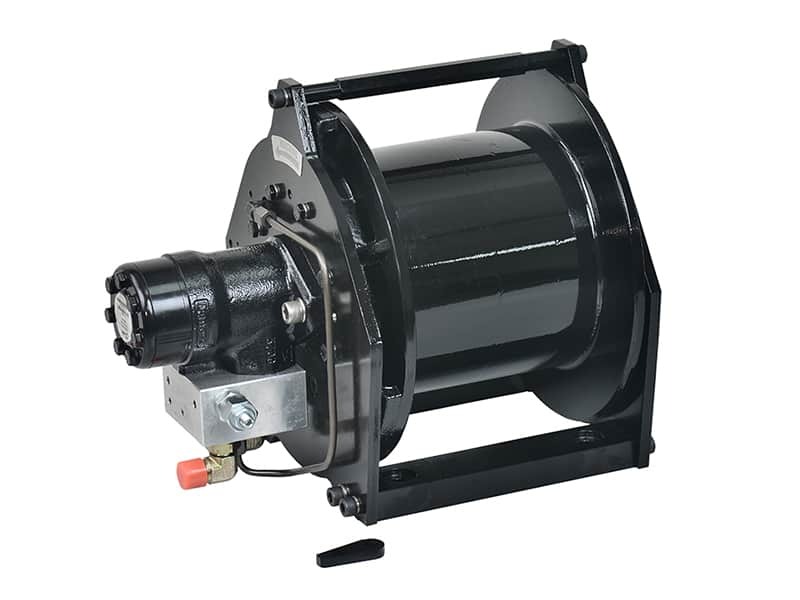

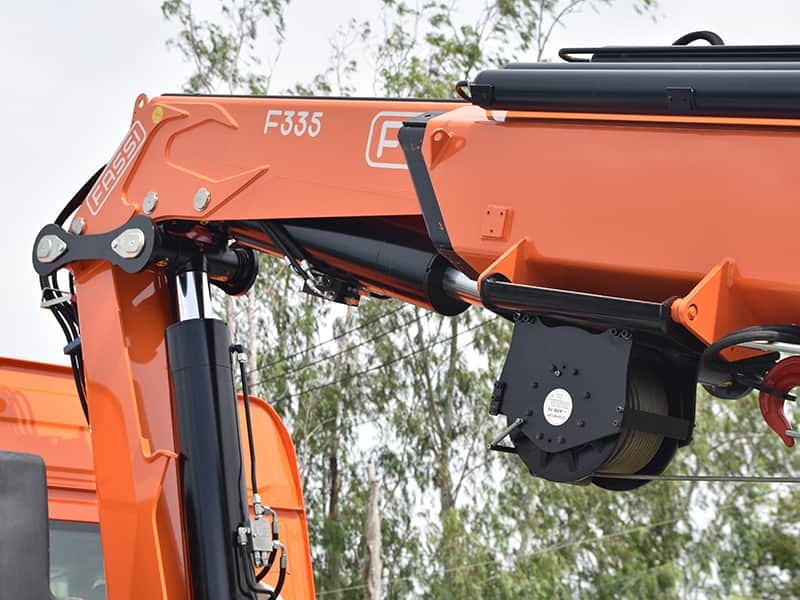

COMEUP APE 12 – 1,200 kg Hydraulic Hoist. APE hydraulic hoists for cranes and vehicle-mounted lifting equipment.

  • Internally lubricated for reliable power and an exceptionally long service life.
  • Compact, hardened and high efficiency gear trains reduce power loss and placed inside the drum.
  • Multi-Disc Brake (MDB) patented and two ways counter-balance valve together for holding full load.
  • The normal lifting capacity is rated at the top layer of wire rope. It always lifts its rated load no matter what layer of wire rope it is.
  • The drum is dimensioned to obtain a minimum D/d ratio of 18:1 with a 5:1 minimum safety factor at the rated load.
  • The hoist meets the requirement of FEM9.511 covering rating and classification and FEM 1001 standard for the calculation of lifting equipment.
  • Compliance with international standards such as ASME B30.7 and, CE Machinery Directive 2006/42/EC

Technical Specifications

Part numberPN 681910
Rated line lift1,200 kg ( 2,640 lb ) single line at the top layer of rope
Line speed35.5 mpm / 116 fpm single line at the top layer of rope
Motor194.6 cm3/rev ( 11.9 in3/rev )
Operation pressure150 bar ( 2,176 psi )with maximum back pressure on return line of 5 bar
Max-Min pump flow40 - 20 l/min ( 10.6 - 5.3 g/min )
Gear ratio1-stage planetary 5:1
BrakeMulti-Disc Brake (MDB) patented and counter-balance valve together
Winch constructionsteel housings with steel drum
Winch Rotationcounter clockwise rotation of the drum

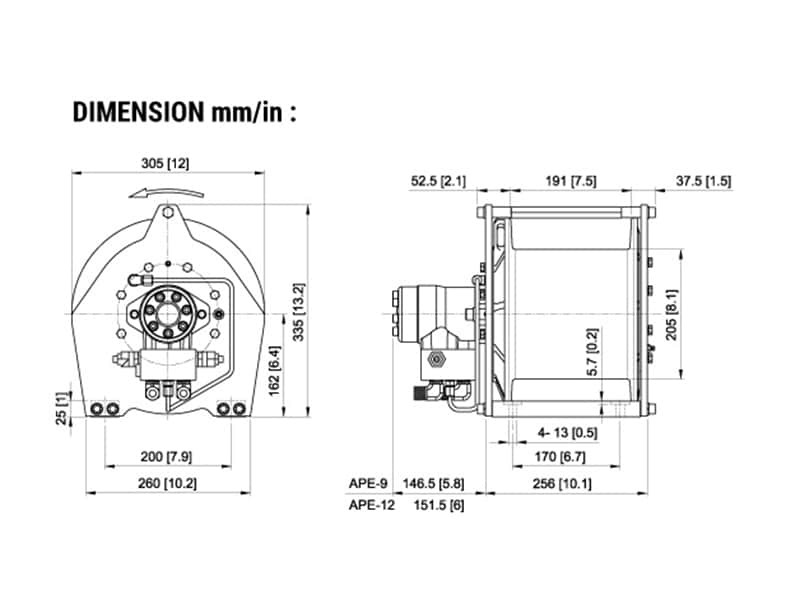

Drum size (dxDxL)205 x 305 x 191 mm (8.1” x 12.0” x 7.5”)
Recommended wire rope10 mm x 55 m with 1,960 N/mm2 grade with minimum breaking strength of 69.8 kN for EN 14492-2 rating
3/8” x 180 ft with EIPS grade with minimum breaking strength of 15,663 lbf for ASME B30.7 rating
Mounting bolt pattern200 x 170 mm ( 7.9” x 6.7”)

Performance Data

Line Lift and Rope Capacity

Layer of Wire RopeLift by Layer,
kg / lb		Line Speed,
mpm/fpm		Total Rope on the Drum,
m / ft
1st1,535 / 3,38427.8 / 9112.2 / 40
2nd1,404 / 3,09430.4 / 10025.6 / 84
3rd1,294 / 2,85333 / 10840 / 131
4th1,200 / 2,64535.5 / 11655 / 180

The total rope on the drum may vary from figures stated elsewhere

APE 12

►Load Rated

Load and speed vary according to how much wire rope is on the
drum. The first layer of rope on the drum delivers the slowest speed
and the maximum load. A full drum delivers the maximum speed and
the minimum load. For this reason, all hydraulic hoisting winches are
rated at their top layer of wire rope on the drum

Leave two free layers below the top of the drum flanges to meet
European lifting rules

Leave a minimum of ½ inch ( 13 mm ) below the tope of the drum
flange to meet ASME 30.7

Warning

  • The hoist is not intended to be used in any manner for the movement or lifting of personnel.
  • The rated line pull shown is based on the top layer of rope on the drum.
  • The rope winding on the drum shall remain 5 wraps from the drum.

Warranty

  • Each new hoist is guaranteed against defects in workmanship and material defects for a period of twelve months from date of purchase.

Accessories

Option Accessories

  • Cable tensioner
  • Wire rope with hook
  • Down limit protection device

Packaging

  • Hoist weight: 64 kg / 141 lb
  • Gross weight: 81 kg / 179 lb
  • Box dimension (L x D x H): 550 x 440 x 570 mm (21.7” x 17.3” x 22.4”)

Downloads

DocumentDateFormatDownload
APE 12 Operation Manual2021-07-31PDF, 0.17 MBDownload
Contact FullSharp for a quotation
