Mobile Pneumatic Jib Crane for Carton Boxes

Loading carton boxes doesn't happen in one fixed spot - today it's the packing area, tomorrow it's the shipping zone. Bolting equipment to the floor only works in one place, and a box sitting in the middle of a pallet is hard to reach by hand.

FullSharp mounts a pneumatic jib crane on a wheeled frame so the whole unit can be pushed wherever it's needed. The working end is a long-handled carton box lifting tool, letting the operator reach a box deep inside the pallet while standing outside it.

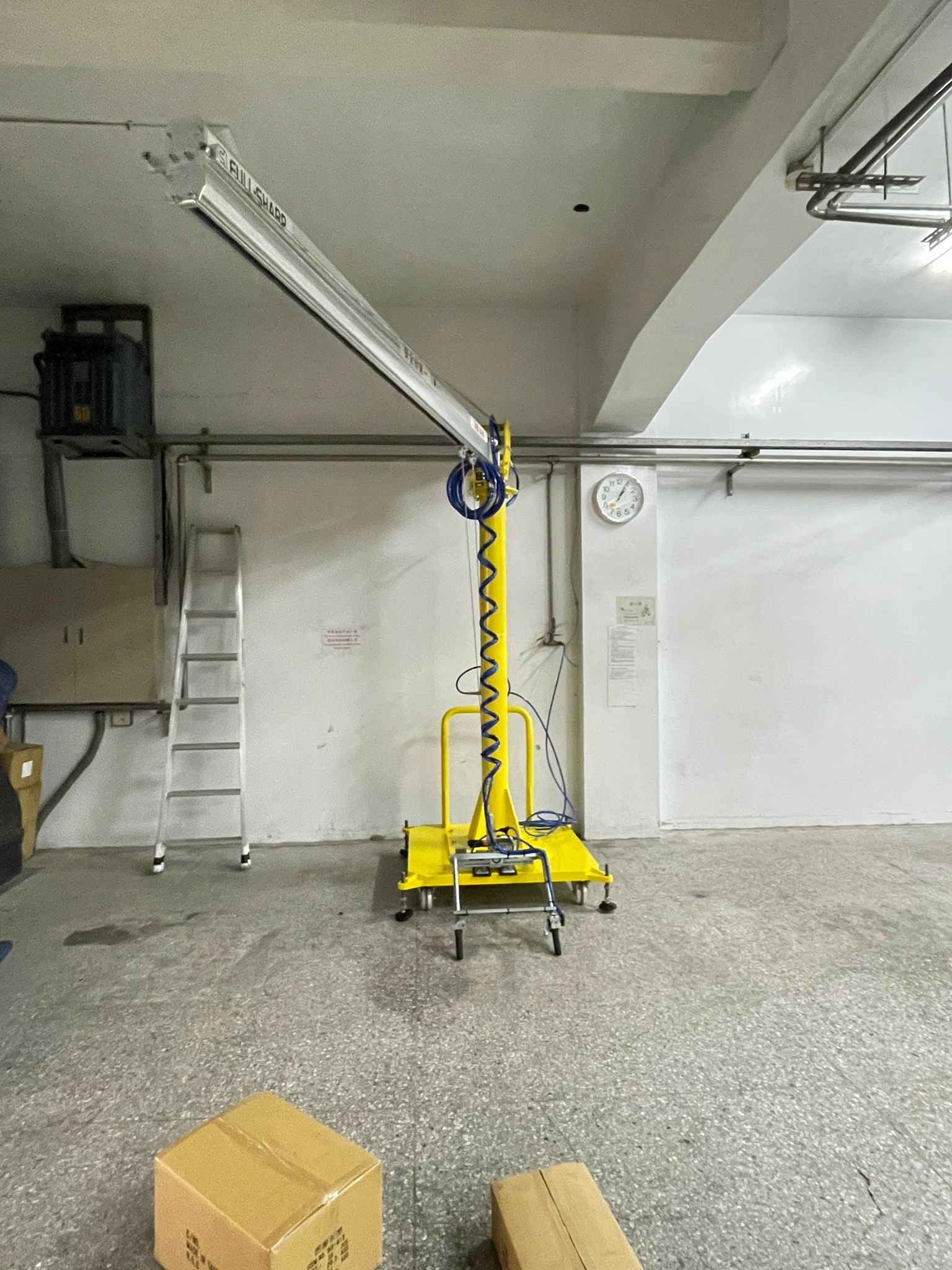

Mobile Pneumatic Jib Crane with Carton Box Lifting Tool

Mobile pneumatic jib crane with a long-handled carton box lifting tool in the packing area.

Equipment Installed

Wheeled base frame: pushes the whole unit to another area, with wheel locks engaged during operation.
Pneumatic jib crane: the arm rotates around the column, running on air for quiet operation with no spark risk.

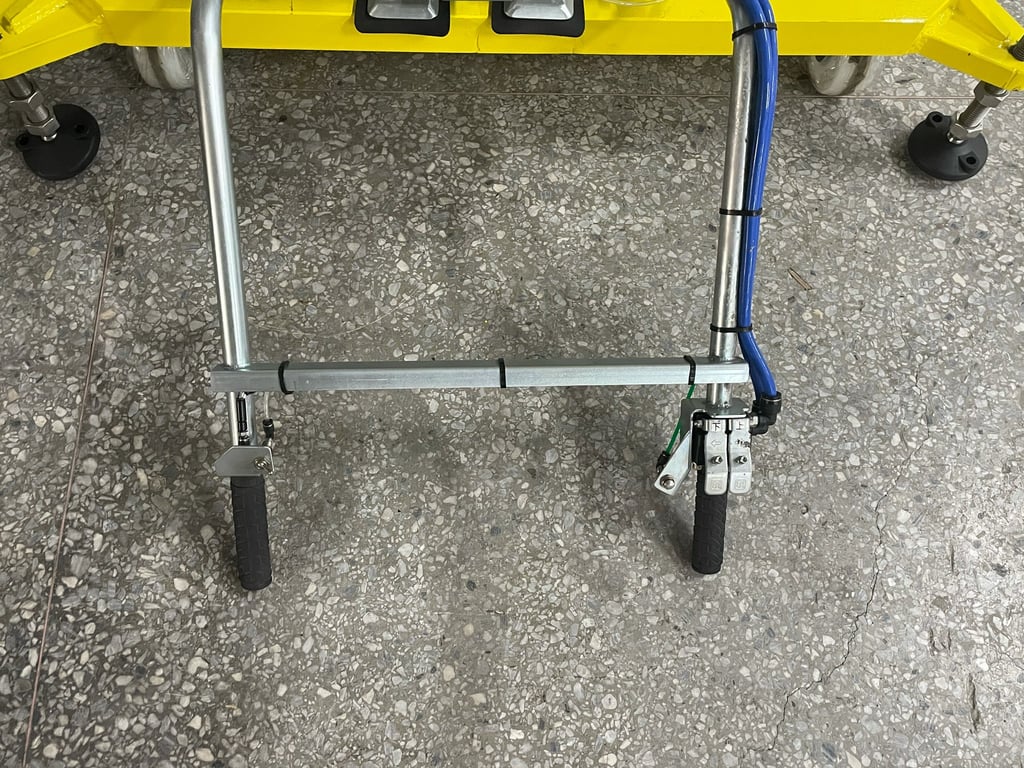

Carton box lifting tool: a long handle reaches a box in the middle of the pallet without having to climb up.

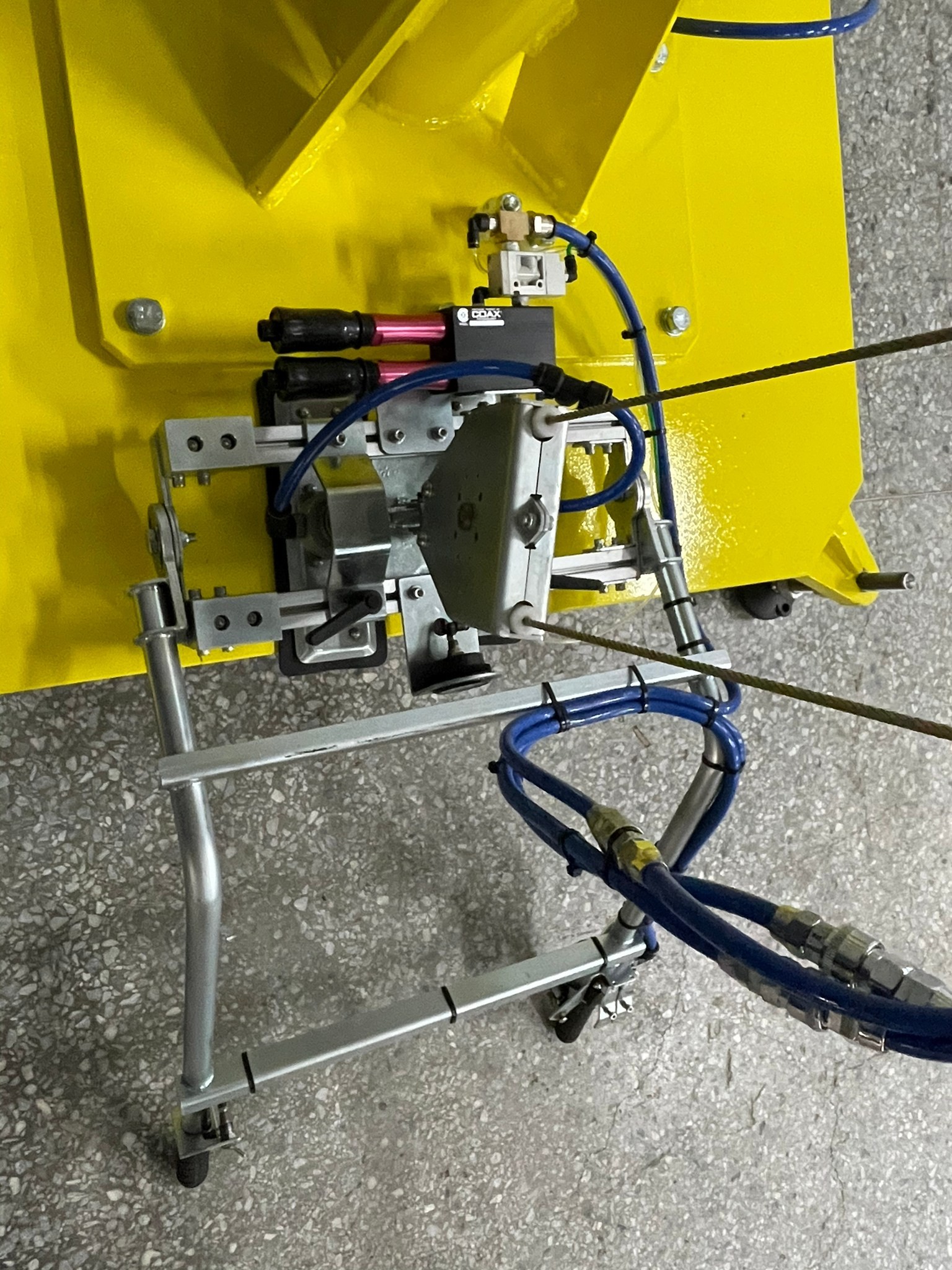

Air valve cluster: lift and lower controls are built into the handle, and releasing it holds the box at its current height.

Benefits for Your Facility

Moves with the job

Wheels let you shift the unit to another area within minutes, with no reinstallation.

Reaches deep into pallets

The long handle picks up boxes from the innermost row, with the operator staying in place.

Quiet and clean

Runs on compressed air, suited to packing areas and zones with hygiene requirements.

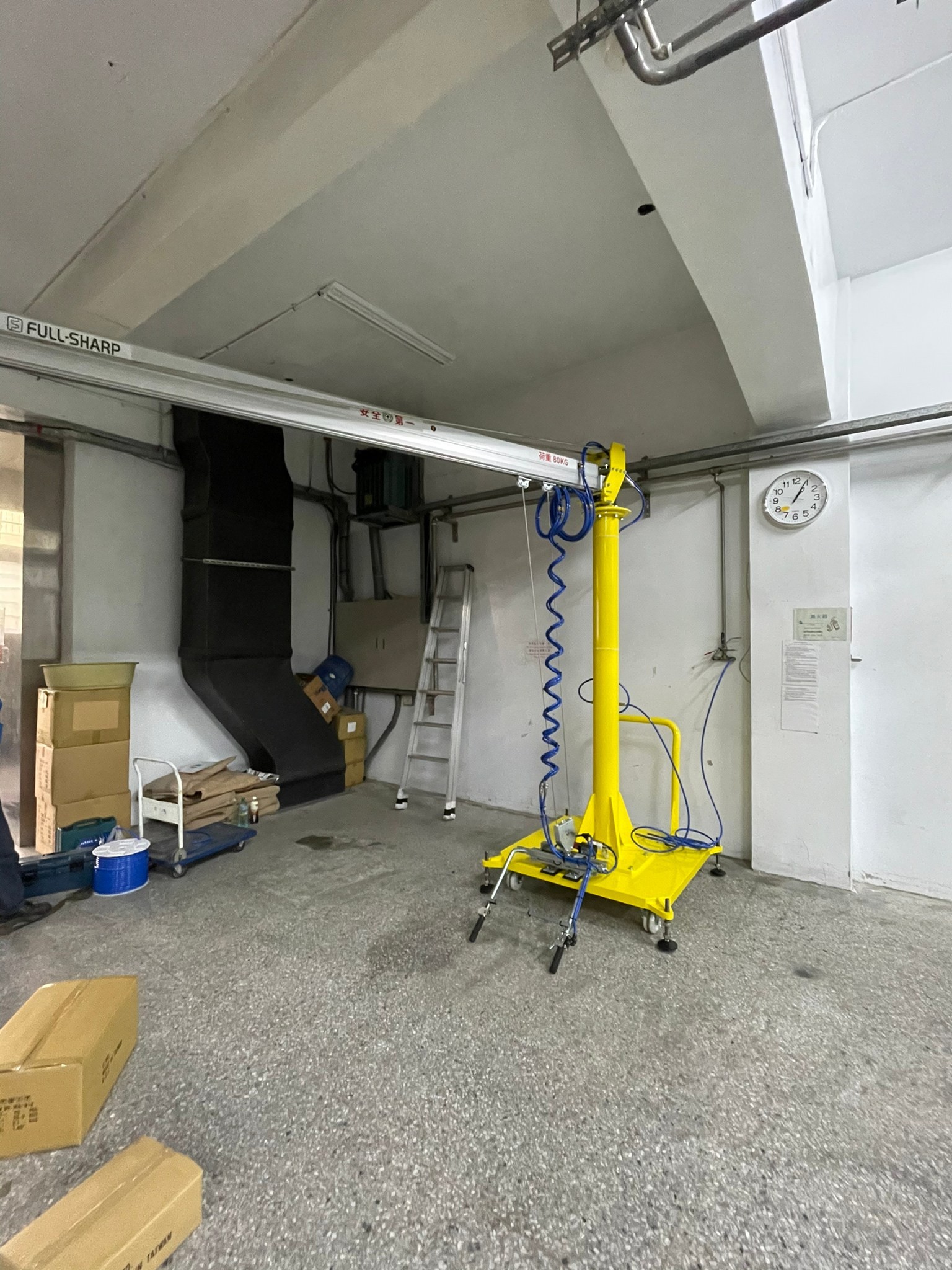

Actual Installation Photos

Mobile Pneumatic Jib Crane with Carton Box Lifting Tool - ảnh 1

Mobile Pneumatic Jib Crane with Carton Box Lifting Tool - ảnh 2

Mobile Pneumatic Jib Crane with Carton Box Lifting Tool - ảnh 3

Mobile Pneumatic Jib Crane with Carton Box Lifting Tool - ảnh 4

Click a photo to enlarge. Album of 4 photos taken on site.

Suitable Applications

End-of-line packing areas
Inbound and outbound warehouses
Food and consumer goods plants
Pallet loading and unloading areas

Installation Consulting for Your Facility

FullSharp measures the box dimensions, pallet height and aisle width to select the reach and handle length. Our engineers also check whether the floor is level enough to push the base frame smoothly. Contact FullSharp to schedule a site survey.
