FullSharp 300kg Manual Push Roll Lifter

FullSharp 300kg manual push roll lifter

Rated load 300 kg, lifting height 1.600 mm
Pneumatic expanding shaft picks the roll from a 3 inch core, customizable for other cores
Electric tilting of the roll from horizontal core to vertical core and back
Electric lifting, manual push travel, wireless remote control
24V/33Ah battery, 24V/5A charger, battery level indicator
Maximum roll diameter 650 mm, suitable for label, film, paper and fabric rolls

Ideal for printing, packaging, label and textile plants, and any line that changes material rolls frequently with a single operator.

FullSharp 300kg manual push roll lifter

The FullSharp 300kg manual push roll lifter is designed to lift and tilt label, film, paper, fabric and other material rolls using an expanding shaft that grips the roll core. Once the roll is held securely on the shaft, the lifter can electrically tilt the roll from horizontal core to vertical core and back.

It is well suited to non-through-shaft applications, such as picking a roll from a pallet, tilting it and loading it onto the fixed shaft of a printing, slitting or laminating machine. Electric lifting, manual push travel, rated load up to 300 kg and lifting height 1.600 mm.

Xe nâng cuộn đẩy tay 300kg góc nhìn tổng thể

Key features

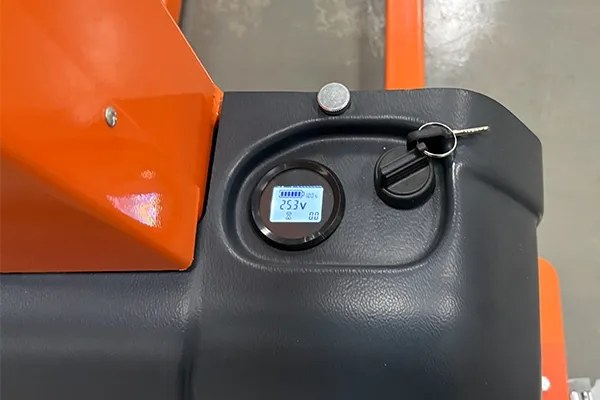

Đồng hồ báo pin — **Battery indicator**
Shows remaining battery capacity in real time, estimates working time and prompts timely charging to extend battery life.

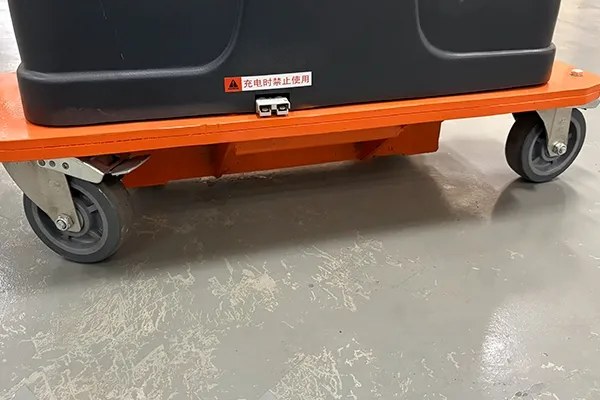

Bánh xe có phanh chân — **Casters with foot brake**
Quickly locks the wheels so the lifter stays in place during handling, releases easily, and still maneuvers freely in narrow aisles.

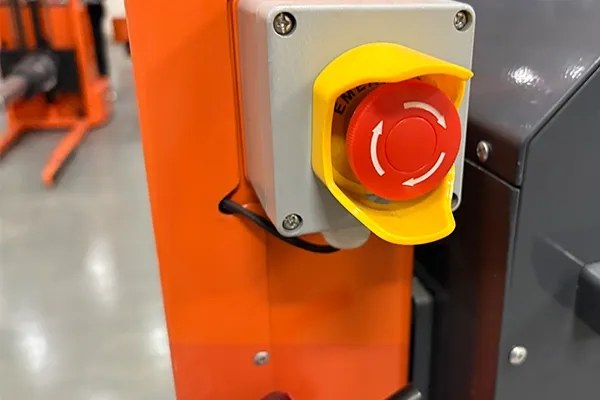

Nút dừng khẩn cấp — **Emergency stop button**
Stops the machine instantly in case of a fault, reducing risk and protecting both the operator and the equipment.

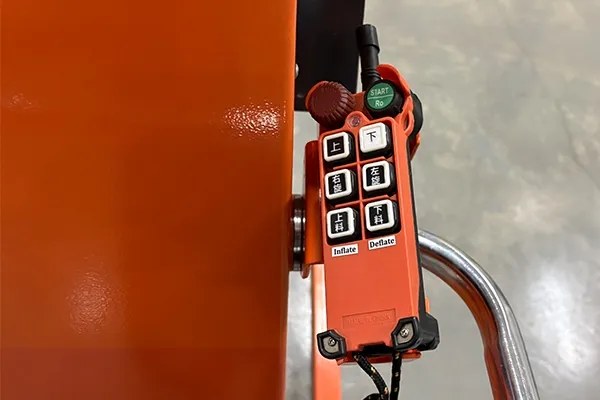

Điều khiển từ xa không dây — **Wireless remote control**
Controls lifting, lowering and shaft expansion/release remotely, so the operator can view from any angle, position precisely, avoid collisions and work alone.

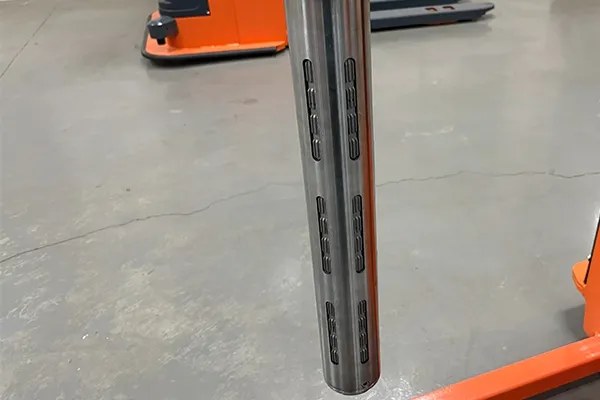

Trục bung khí nén — **Pneumatic expanding shaft**
Responsive expansion and retraction for fast roll changes, compatible with multiple core diameters without damaging the roll.

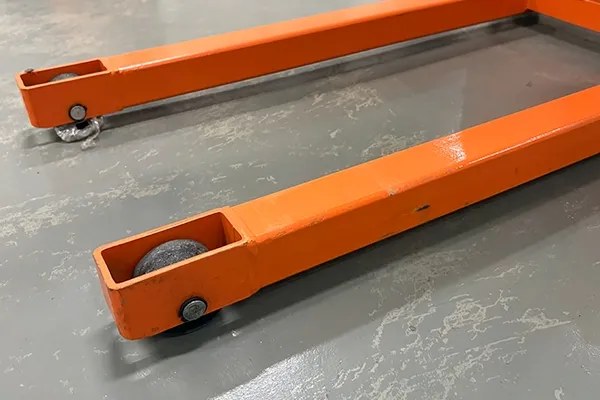

Chân đỡ ngoài — **Outrigger legs**
High load capacity and deformation resistance, improving stability when parked and preventing tipping during handling.

Technical specifications

General

ModelFS-QZ0316
Rated load300 kg
Lifting height1.600 mm
Load center720 mm
Lifting mechanismElectric
OperationManual push, walk-behind
CertificationsCE, ISO, TUV, GS

Dimensions

Length × width × height1.300 × 700 × 2.200 mm
Minimum shaft height above floor190 mm
Maximum shaft height above floor1.600 mm
Minimum turning radius1.320 mm
Roll core diameter3 inch, customizable
Maximum roll diameter650 mm
Wheelbase1.160 mm
Front / rear track width640 / 640 mm
Front wheelsØ70 × 40 mm
Rear wheelsØ150 × 38 mm

Performance

Maximum lifting speed (laden / unladen)50 / 50 mm/s
Maximum lowering speed (laden / unladen)55 / 50 mm/s
Rotation speed6 rpm

Electrical and pneumatic system

Lifting motor0,75 kW / 24V
Tilting motor0,5 kW / 24V
Air pump0,28 kW / 24V
Battery24V / 33Ah
Charger24V / 5A
Air tank3 liters, working pressure 0,5 – 0,6 MPa

Weight and packaging

Lifter weight230 kg
Battery weight18,6 kg
PackagingWooden pallet 130 × 70 × 220 cm
Gross package weight230 kg

Roll core size, lifting height and load capacity can be engineered to your specific requirements. Contact FullSharp for advice on the right configuration for your material rolls.
