WilsonX190D / X220D

youtube.com/watch?v=0BmLarkJ5oY

FULLSHARP · GOODLIFTA

Lifting equipment for
server / rack
WilsonX-RCS

The WilsonX-RCS series comes in two height versions — lift, install and precisely position servers, GPUs, racks & battery packs in cleanroom environments; electric self-propelled, safe one-person operation.

WilsonX190D · 1500 mm WilsonX220D · 1800 mm Cleanroom ESD protection
Series WilsonX190D-RCS / WilsonX220D-RCS
120kg
Lifting capacity
1800mm
Max. stroke
125mm/s
Lifting speed
IP41
Protection rating

Design & highlights

QXPQuick-release battery pack — QXP Lithium battery DC24V20AH × 2, fast swap with no interruption to operation.
DRIVEElectric self-propelled — forward 0–3 km/h, reverse 0–1.5 km/h; soft start/stop, slows down when cornering, no tail swing.
SAFESafety design — FCW automatic forward barrier, ERB anti-pinch when reversing, STA cornering deceleration, anti-pinch wheel covers, MP3 warning sound, (optional) warning light.
ESDCleanroom & ESD protection — Class 1000 compliant; special-material wheels that push easily, resist wear and generate no dust.
WilsonX-RCS – hình ảnh sản phẩm 1

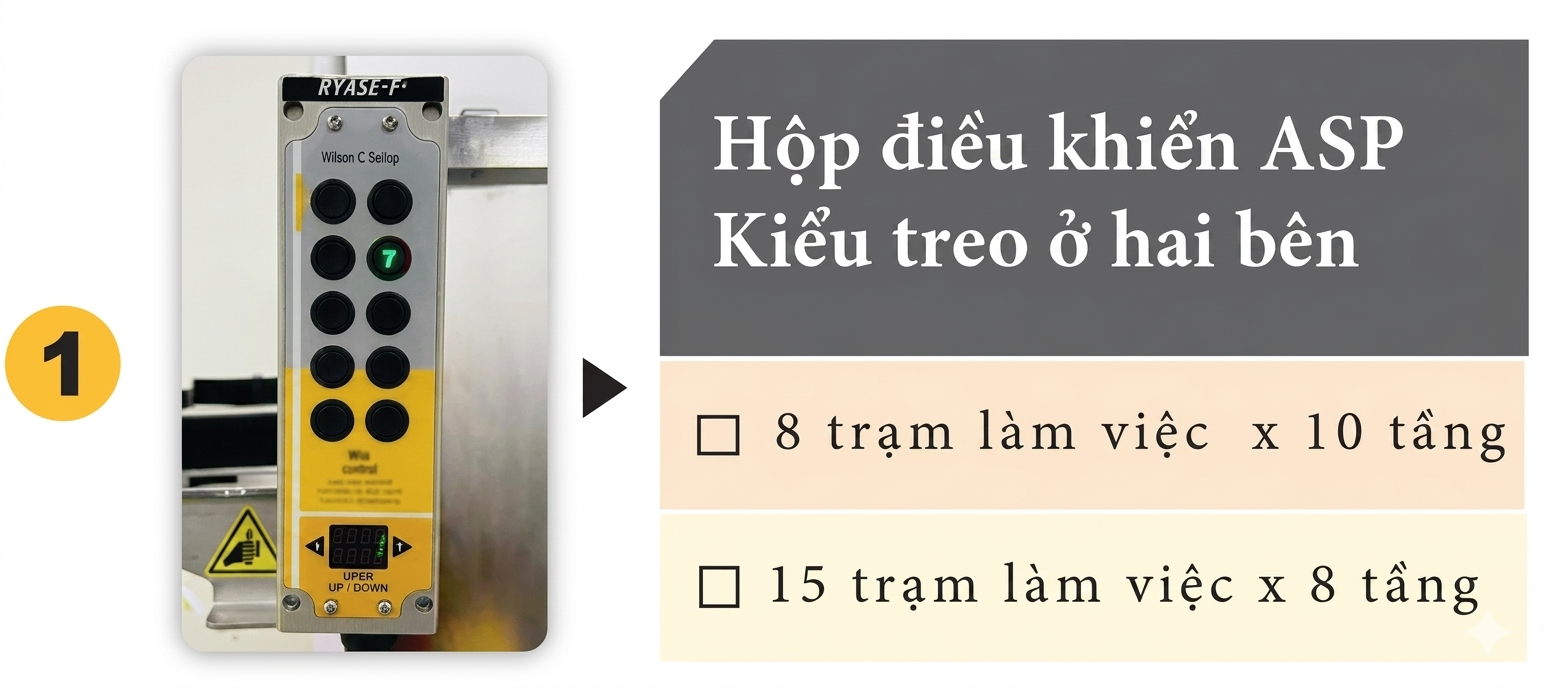

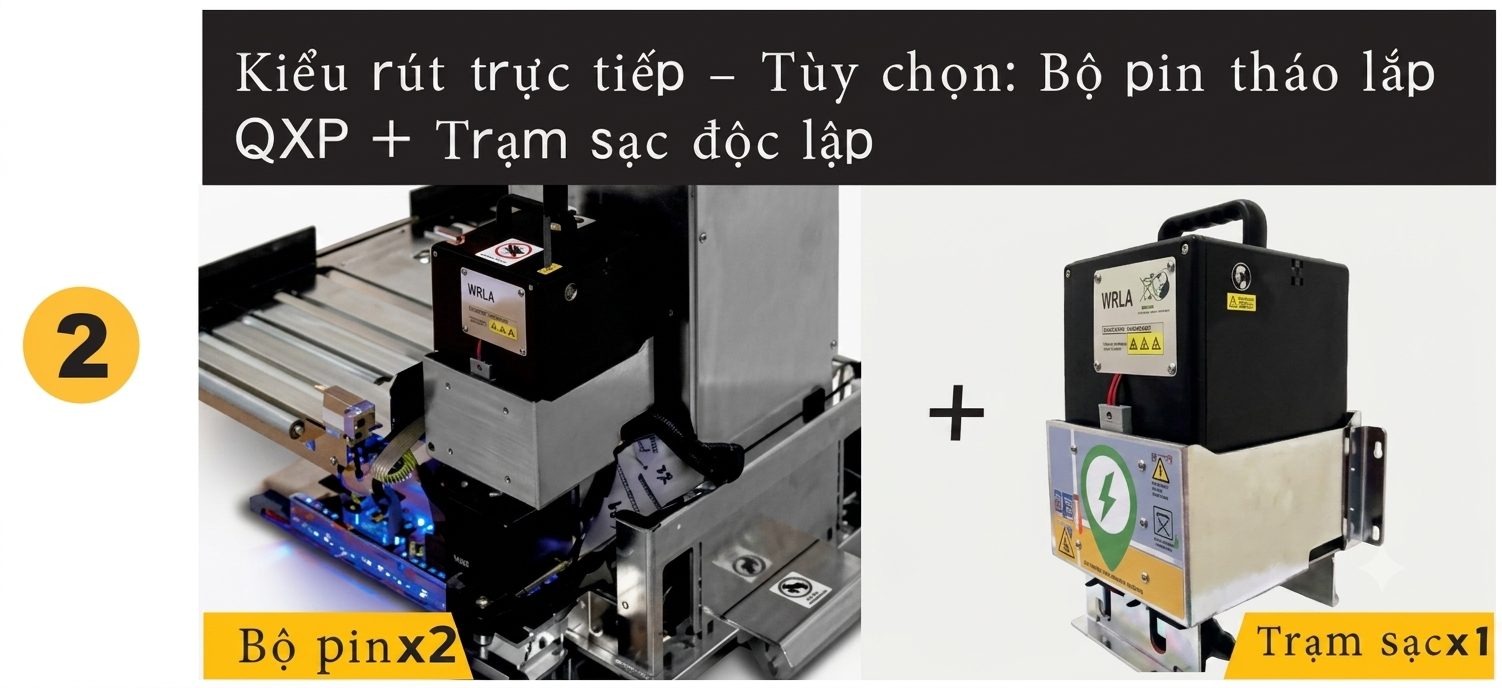

WilsonX-RCS – hộp điều khiển ASPWilsonX-RCS – bộ pin QXP

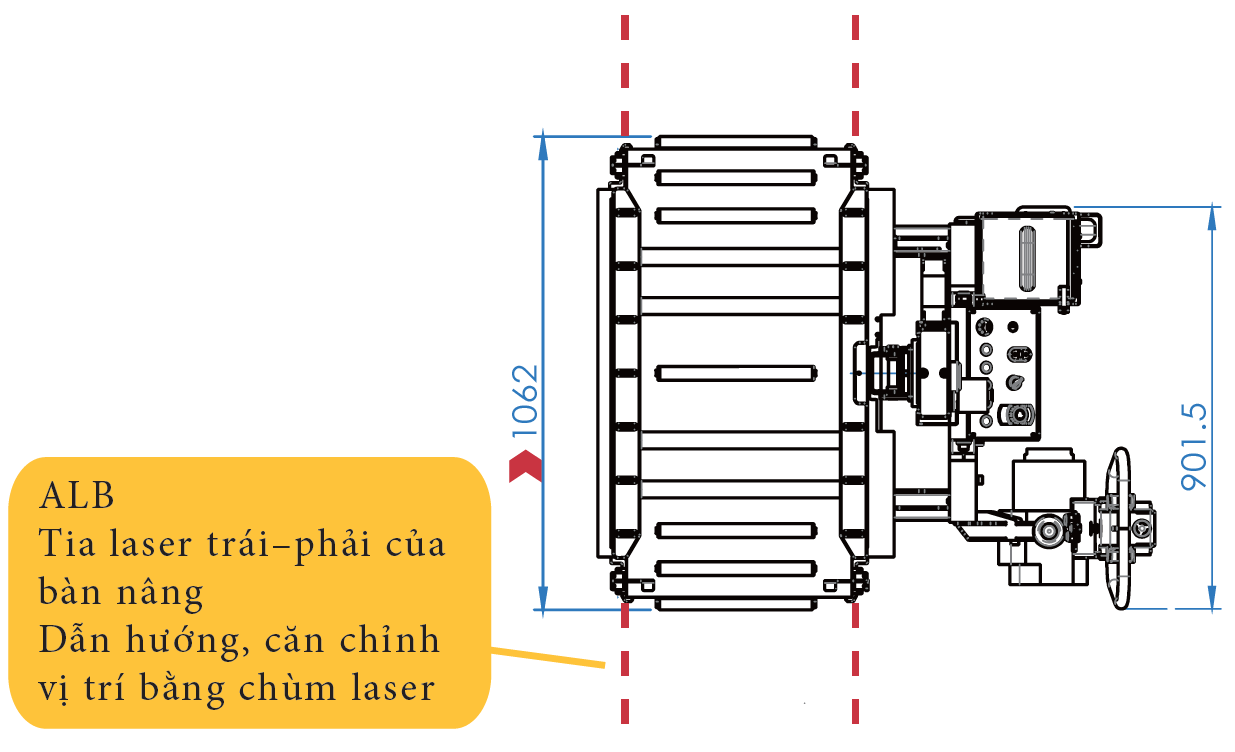

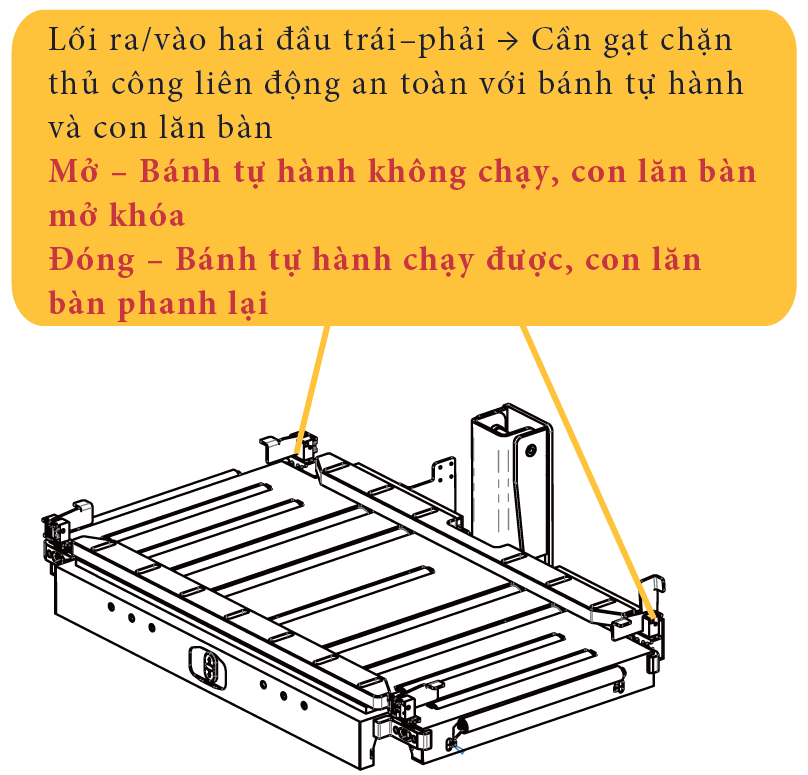

WilsonX-RCS – hình ảnh sản phẩm 4WilsonX-RCS – hình ảnh sản phẩm 5
WilsonX-RCS – hình ảnh sản phẩm 6

Two Height Versions

WilsonX220D-RCS · 2200 mm

  • Lifting stroke (R): 200 – 1800 mm
  • Main column height (H): 2200 mm (linear guide version)
  • Suited to tall racks and a larger working reach
  • Lifting capacity 120 kg

WilsonX190D-RCS · 1900 mm

  • Lifting stroke (R): 200 – 1500 mm
  • Main column height (H): 1900 mm (linear guide version)
  • Compact configuration with a lower overall height
  • Lifting capacity 120 kg

Dimensions

Main height specifications (unit: mm) — refer to the FULLSHARP technical drawing.
WilsonX190D — Lifting stroke (R) 200 – 1500
WilsonX190D — Main column height (H) 1900 (linear guide version)
WilsonX220D — Lifting stroke (R) 200 – 1800
WilsonX220D — Main column height (H) 2200 (linear guide version)

Technical Specifications

Specification WilsonX190D-RCS1900 mm version WilsonX220D-RCS2200 mm version
Lifting stroke (R)mm 200 – 1500 mm 200 – 1800 mm
Main column height (H)mm 1900 mm* Linear guide version (線軌版) 2200 mm* Linear guide version (線軌版)
Lifting capacity 120 kg
Lifting speed 125 mm/s · soft start & stop
IP rating IP41
Battery QXP quick-release battery pack — Lithium battery DC24V20AH × 2* Lithium battery version supplied for the Taiwan market
Charging voltage 100 – 220V AC, 50/60 Hz
Material SUS304 stainless steel + aluminum
Travel speed Forward 0 – 3 km/h · Reverse 0 – 1.5 km/h* Soft start/stop · slows down when cornering, no tail swing
Cleanroom technology
  • Meets Class 1000 cleanroom requirements
  • Electrostatic discharge (ESD) protection
  • Special-material wheels — easy to push, wear-resistant, dust-free
Safety design
  • FCW — automatic forward barrier/warning
  • ERB — deceleration & anti-pinch switch when reversing
  • STA — deceleration when cornering (safe turn assist)
  • Anti-pinch wheel covers
  • MP3 operation warning sound
  • (Optional) Operation warning light

↔ Swipe horizontally to see the full table

Applications

Server Rack GPU Chassis Battery packs Test equipment

Interested in the WilsonX-RCS?

Contact FULLSHARP for advice on choosing the WilsonX190D (1900 mm) or WilsonX220D (2200 mm) height version for your application.

Contact FULLSHARP View all Server Lifters
Product codes: WilsonX190D-RCS (1900 mm version) / WilsonX220D-RCS (2200 mm version). Specifications are subject to change without notice. The Lithium battery configuration is supplied for the Taiwan market.
