WilsonX190A-SCA3

The WilsonX190A-SCA3 series comes in two power versions — lift, install and precisely position servers, racks, GPUs and chassis in cleanroom environments; motorized lifting, multi-joint swivel crane arm, safe one-person operation.

WilsonX190A-SCA3 · Built-in battery WilsonX190A-SCA3-AC · Mains powered Cleanroom Electropolished SUS304

Series WilsonX190A-SCA3 / WilsonX190A-SCA3-AC

200kg

Lifting capacity

1350mm

Lifting stroke (R)

125mm/s

Lifting speed

IP41

Protection rating

Design & highlights

LIFTElectric lifting — motorized lift at 125 mm/s with soft start & stop; ACS sensor prevents collisions when lowering.

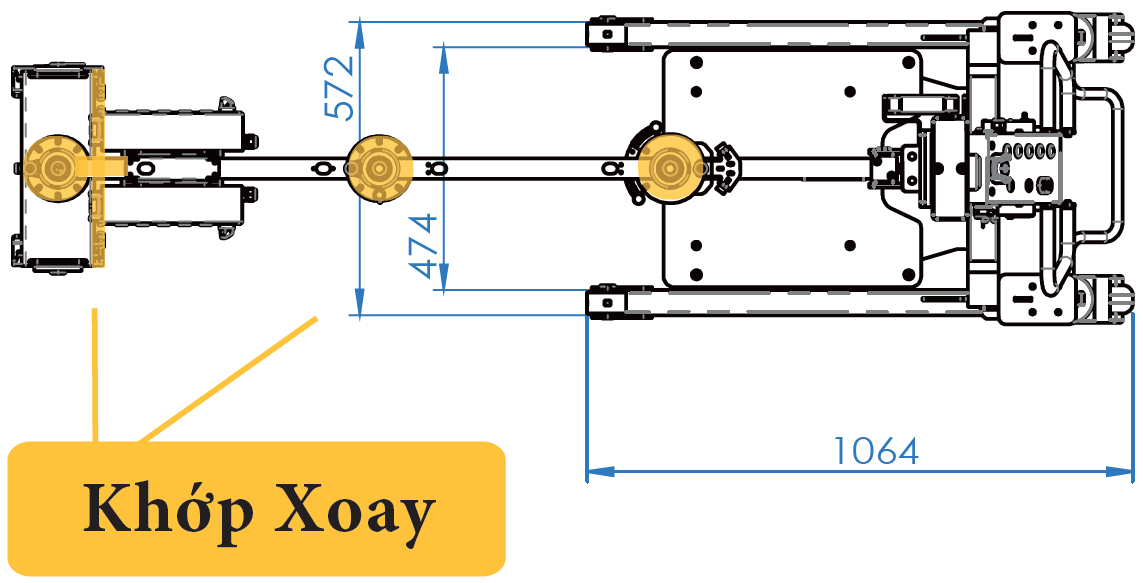

ARMMulti-joint arm — multi-joint swivel crane arm plus a manual hook-n-lift arm designed specifically for GPUs; LED indicator shows the hook arm position.

ASPASP auto positioning — Advanced Sensor Positioning system, programmable auto run (up/down) with 3 workstations × 5 height levels for fast, accurate positioning.

CLEANCleanroom — electropolished SUS304 stainless steel body, ideal for cleanroom applications.

Two Power Versions

WilsonX190A-SCA3 · Built-in battery

Built-in VRLA battery DC24V20Ah
Charging voltage: 100 – 240VAC, 50/60Hz
Moves freely with no power cable in the way
Lifting capacity 200 kg · GPU ≤ 60 kg

WilsonX190A-SCA3-AC · Mains powered

Direct mains-powered version (no battery)
Power supply: 100 – 240VAC, 50/60Hz
Suited to fixed locations with a power outlet
Lifting capacity 200 kg · GPU ≤ 60 kg

Dimensions

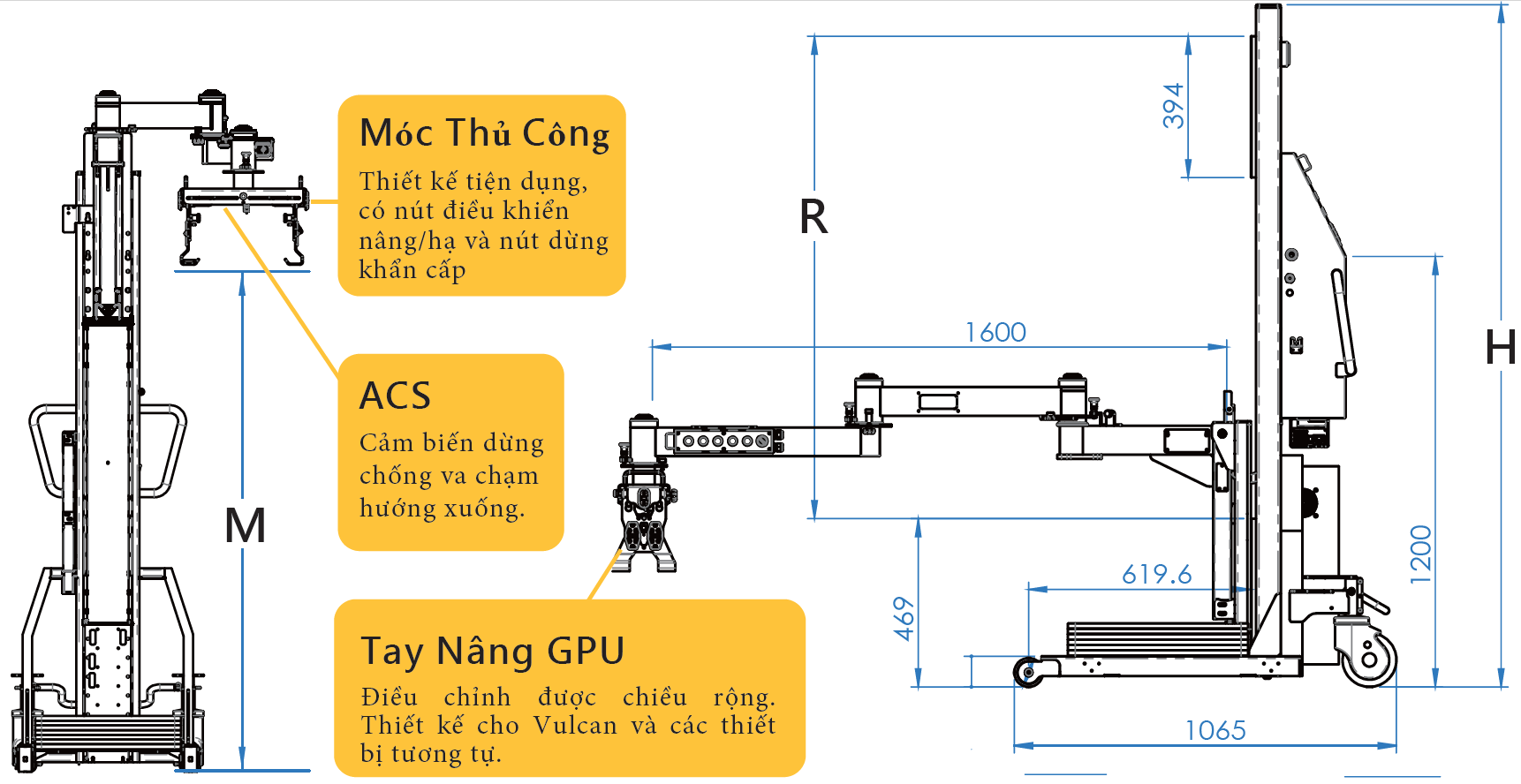

Main height specifications (unit: mm) — refer to the FULLSHARP technical drawing.

Lifting stroke (R)	1350
Main column height (H)	1900 (reinforced linear guides)
Hook height (M)	900 – 1700 (for GPU)

Technical Specifications

Specification	WilsonX190A-SCA3Built-in battery version	WilsonX190A-SCA3-ACMains-powered version
Lifting stroke (R)mm	1350 mm
Main column height (H)mm	1900 mm* Reinforced linear guides
Hook height (H/M)mm	900 – 1700 mm (GPU)
Lifting capacity	200 kg · GPU ≤ 60 kg
Lifting speed	125 mm/s · soft start & stop* Enhanced safety with ACS sensor (anti-collision when lowering)
IP rating	IP41
Battery	Built-in VRLA battery DC24V20Ah	Mains-powered version (no battery)
Charging voltage	Input 100 – 240VAC, 50/60Hz	—
Power supply	—	Input 100 – 240VAC, 50/60Hz
Material	SUS304 stainless steel, electropolished — ideal for cleanroom applications
Easy operation	Motorized lifting Multi-joint swivel crane arm Manual hook-n-lift arm custom-made for GPUs LED indicator for hook arm position
Auto Run	ASP system — Advanced Sensor Positioning Programmable auto run (up/down) with 3 workstations × 5 height levels Positions the lifting arm height quickly and accurately

↔ Swipe horizontally to see the full table

Applications

Server Rack GPU Chassis Cleanroom Test equipment

Interested in the WilsonX190A-SCA3?

Contact FULLSHARP for advice on choosing the WilsonX190A-SCA3 (built-in VRLA battery) or WilsonX190A-SCA3-AC (direct mains power) version for your application.

Contact FULLSHARP View all Server Lifters

Product codes: WilsonX190A-SCA3 (built-in VRLA battery DC24V20Ah) / WilsonX190A-SCA3-AC (direct mains power, no battery). Specifications are subject to change without notice.
