Vacuum Lifting Pad for Steel Sheets, Laser Machines

Steel sheets fed into laser machines are heavy and slick with oil, so even two or three workers lifting a sheet onto the table struggle to position it correctly. Sheets that scrape the table get scratched along with the table itself, and each loading cycle wastes several minutes waiting on workers.

FullSharp supplies a pneumatic vacuum lifting pad with 4 suction points that lifts the sheet straight up off the stack. Vacuum and air pressure gauges let the operator confirm the reading before lifting, so the sheet is set down onto the table gently and in the right position.

Pneumatic Vacuum Lifting Pad for Steel Sheets on Laser Cutting Machines

A pneumatic vacuum lifting pad with four suction points holding a steel sheet before it is placed onto the laser cutting table.

Equipment Installed

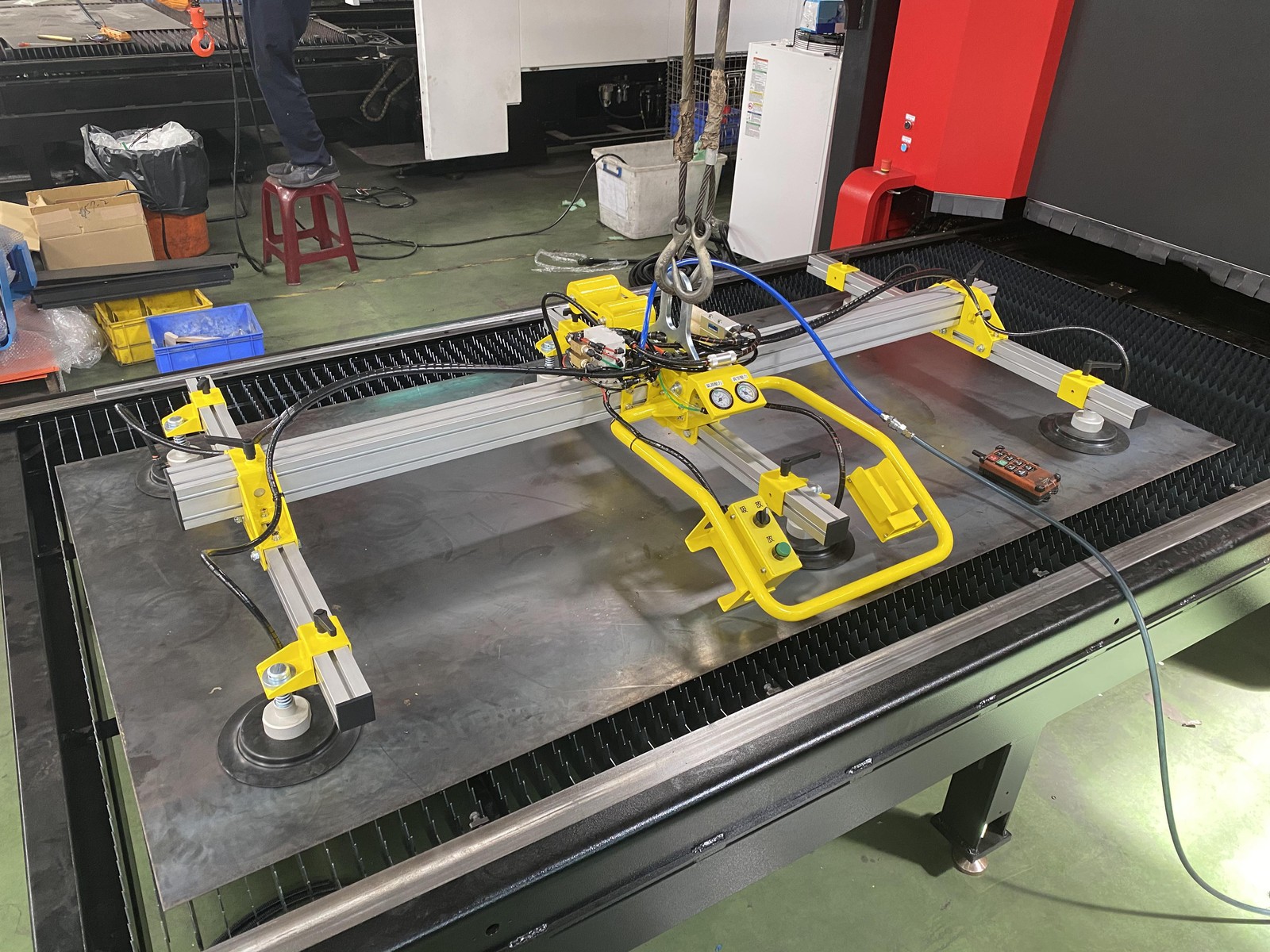

4-point suction frame: four suction cups evenly spaced on the frame, sharing the holding force so the sheet doesn't sag in the middle.

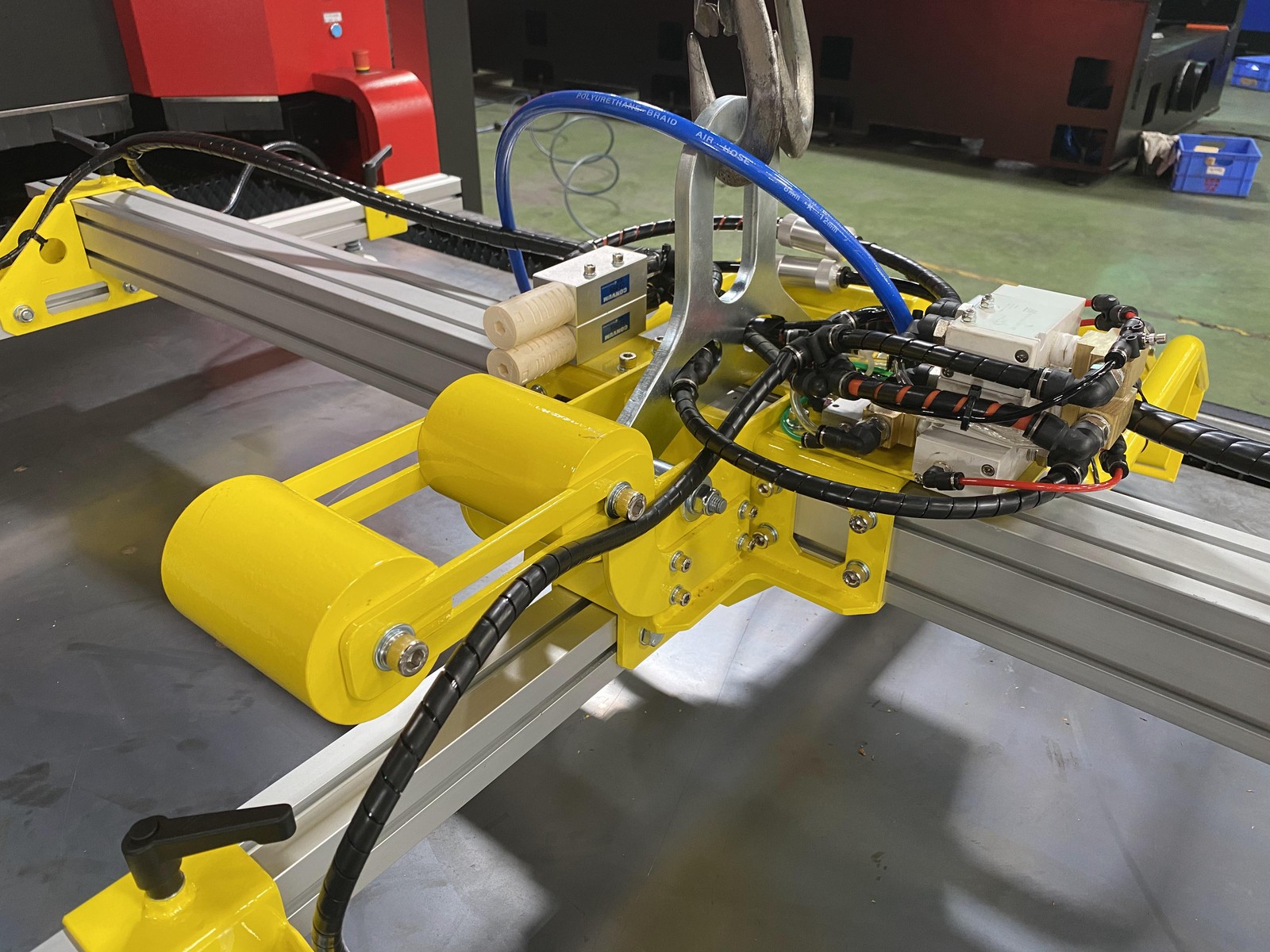

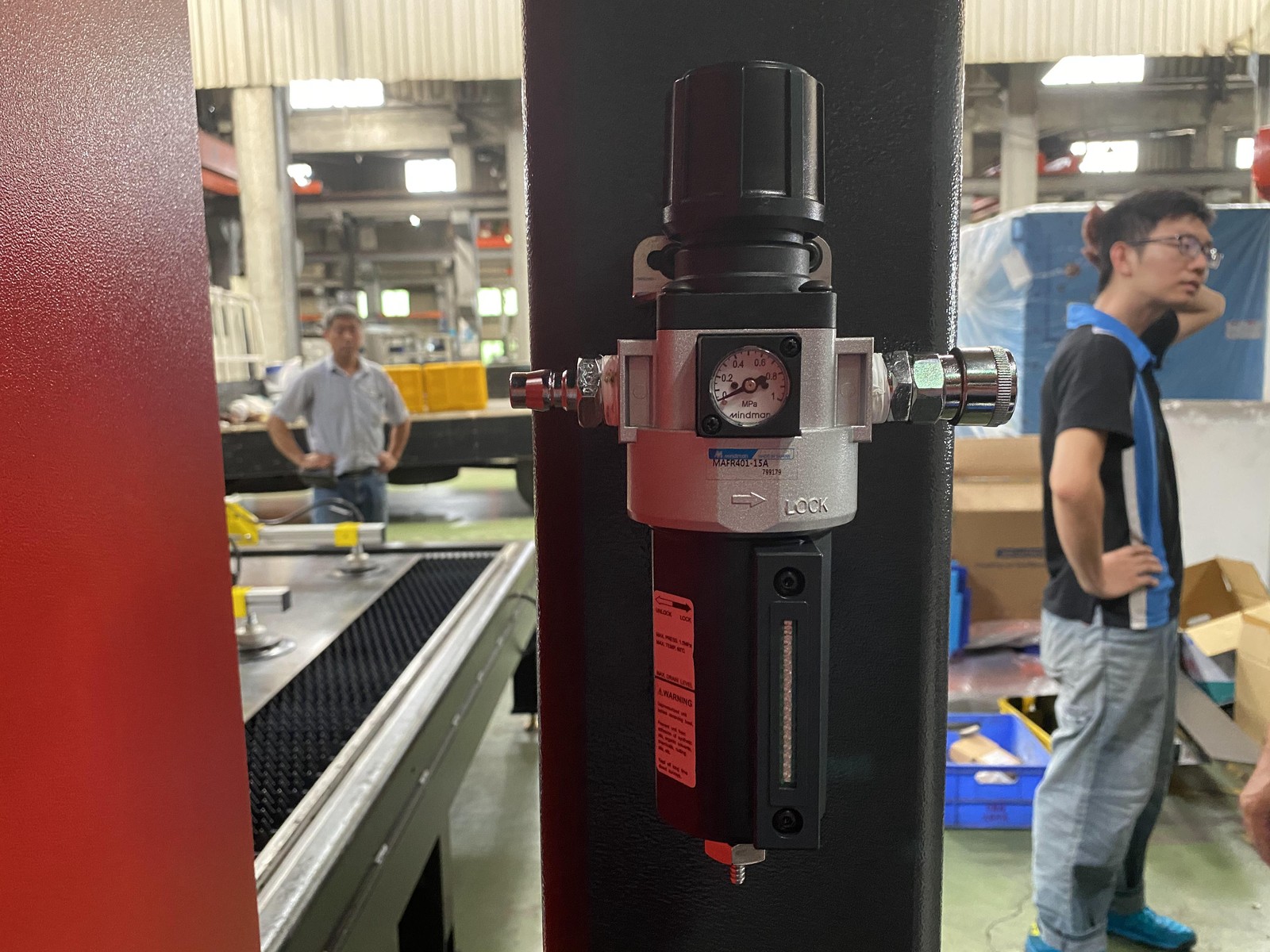

Pneumatic vacuum generator: uses the compressed air already available in the plant, with no need for an additional electric pump.

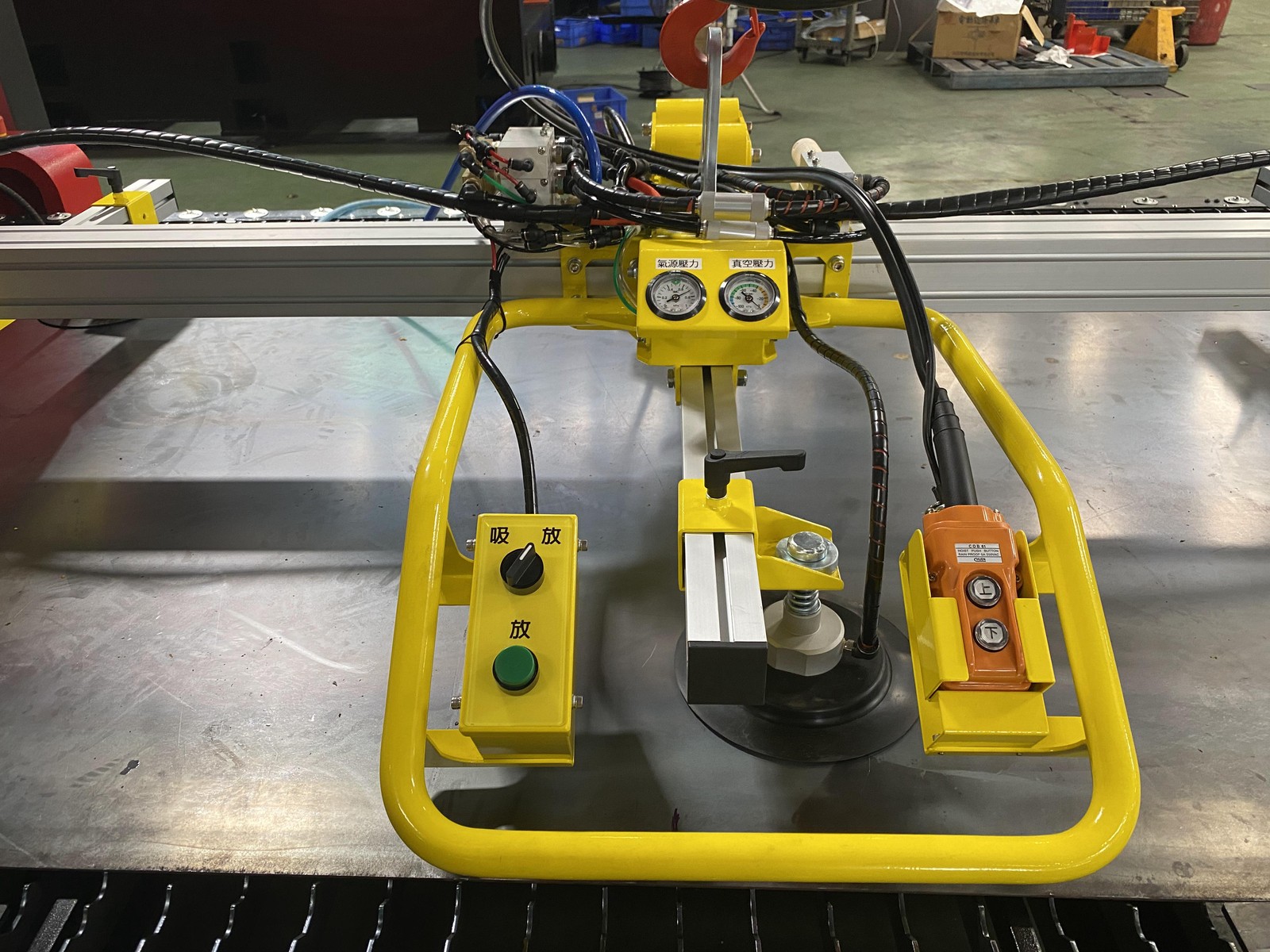

Pressure gauges: one for vacuum level and one for air pressure, checked before every lift.
Vacuum check valve: if air supply drops suddenly, the cups keep holding so the sheet doesn't fall immediately.

Key Specifications

Suction points4
Power sourceCompressed air
Load typeSteel sheets, metal sheets
Installation photos11

Benefits for Your Plant

One-person loading

Replaces two or three workers carrying a sheet by hand. The laser machine spends less time waiting between sheets.

Protects the machine table

The sheet is lifted straight up and set straight down, with no dragging across the table. Both the table and the sheet stay scratch-free.

Safety under control

The pressure gauges show whether vacuum level is sufficient. Operators no longer have to lift by guesswork.

Photos from the Installation

Pneumatic Vacuum Lifting Pad for Steel Sheets on Laser Cutting Machines - ảnh 1

Pneumatic Vacuum Lifting Pad for Steel Sheets on Laser Cutting Machines - ảnh 2

Pneumatic Vacuum Lifting Pad for Steel Sheets on Laser Cutting Machines - ảnh 3

Pneumatic Vacuum Lifting Pad for Steel Sheets on Laser Cutting Machines - ảnh 4

Click a photo to enlarge. 4-photo album taken on site.

Suitable Applications

CNC laser cutting shops
Steel and stainless steel sheet fabrication
Metal sheet warehouses
Bending and stamping lines

Get an Installation Consultation for Your Plant

FullSharp assesses the thickness, size, and surface condition of your sheets, since oily or rusted sheets affect suction force. We also check the compressed air pressure in your plant to choose enough suction cups for an adequate safety margin. Call FullSharp to schedule a site survey.
