MandyGo220C-DDS /-RCS

youtube.com/watch?v=BwJEatXAmZc&t=2s

FULLSHARP · GOODLIFTA

Double & single deck
server lifter

The MandyGo220B series with two deck configurations — precise lifting, installation and positioning of servers, GPUs, racks & battery packs in cleanroom environments, operated by a single person.

DDS double deck RCS single deck Class 1000 cleanroom ESD protection

Series MandyGo220B-DDS / -RCS

200kg

Lifting capacity

2520mm

Max. stroke

125mm/s

Lifting speed

IP41

Protection rating

Design & highlights

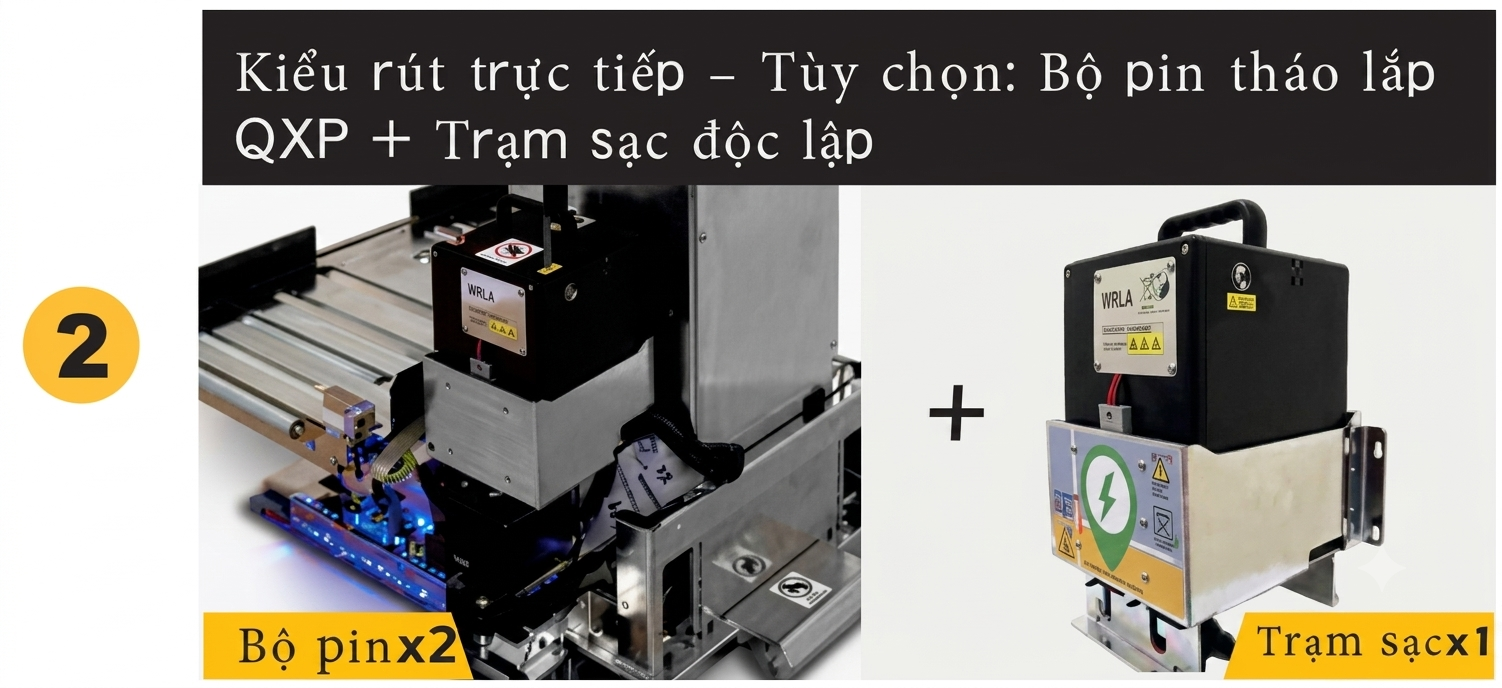

QXPQuick-exchange battery pack — lithium battery 24V20AH x2, swapped in seconds with no downtime.

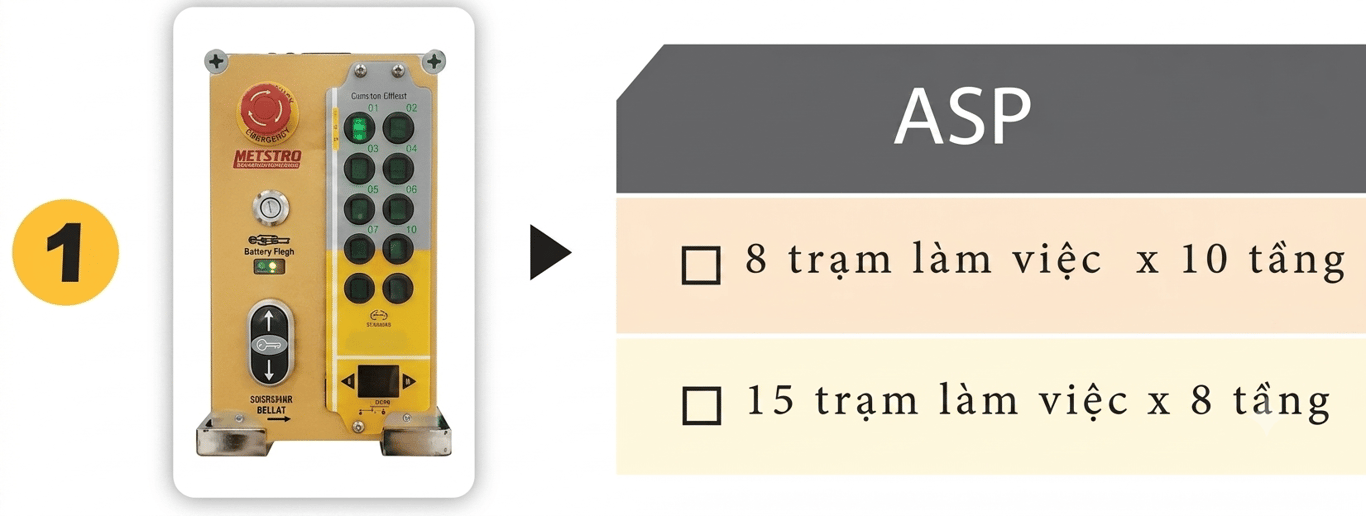

ASPAdvanced sensor positioning — choice of 15 stations × 8 levels or 8 stations × 10 levels, programmable & position memory lock.

DRIVEElectric self-propelled — forward 0–3 km/h, reverse 0–1.5 km/h; smooth start, stop and deceleration.

ESDCleanroom & ESD — meets Class 1000; easy-rolling, wear-resistant, non-shedding materials.

Two deck versions

MandyGo220B-DDS · Double deck

Lower deck (Rb): 360 – 1980 mm
Upper deck (Rt): 900 – 2520 mm
To be used with a cart / work table
Gap between decks = 420 mm → lower deck suits items H ≤ 420 mm / 9U
Net weight 300 kg / 660 lbs

MandyGo220B-RCS · Single deck

Lifting stroke: 300 – 1920 mm
Adjustable to rack requirements
Compact configuration, single working deck
Net weight 250 kg / 550 lbs

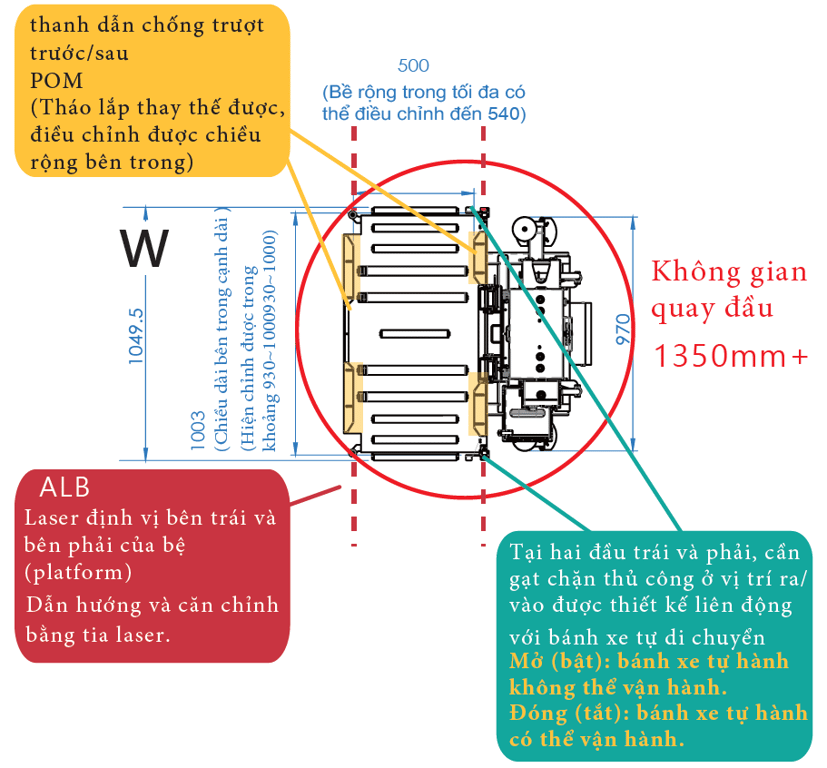

Dimensions

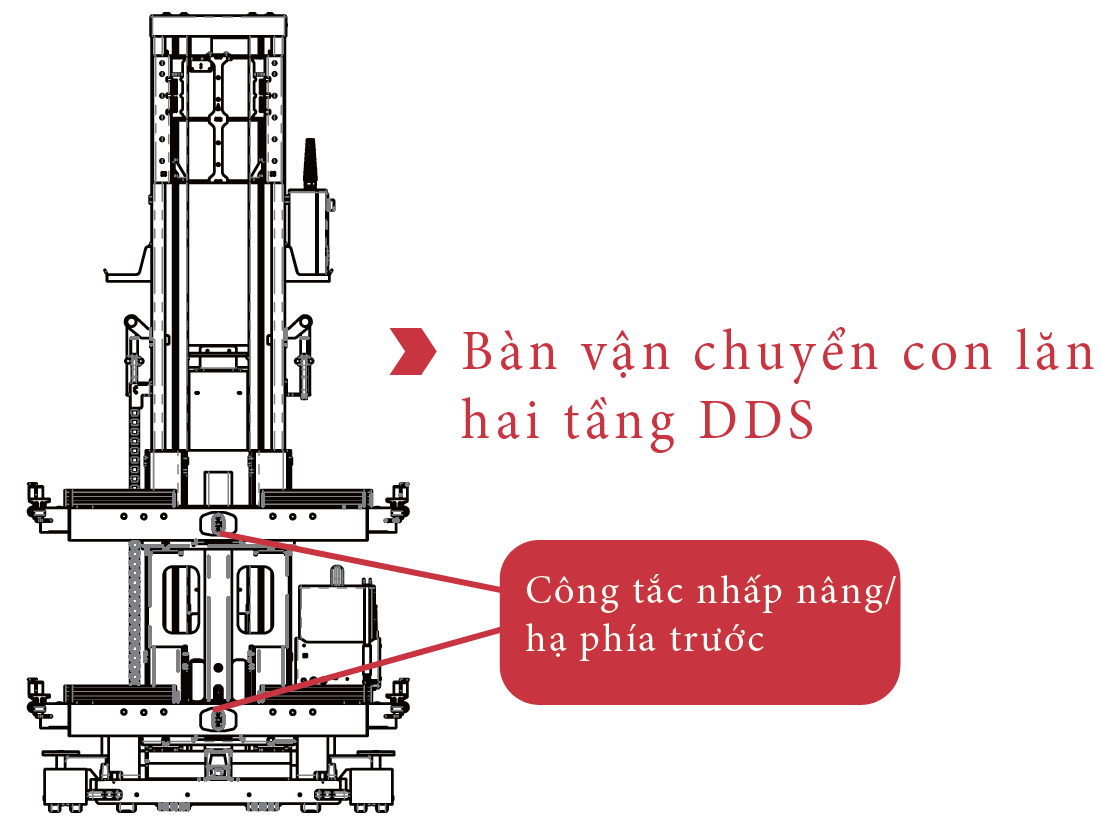

Front view

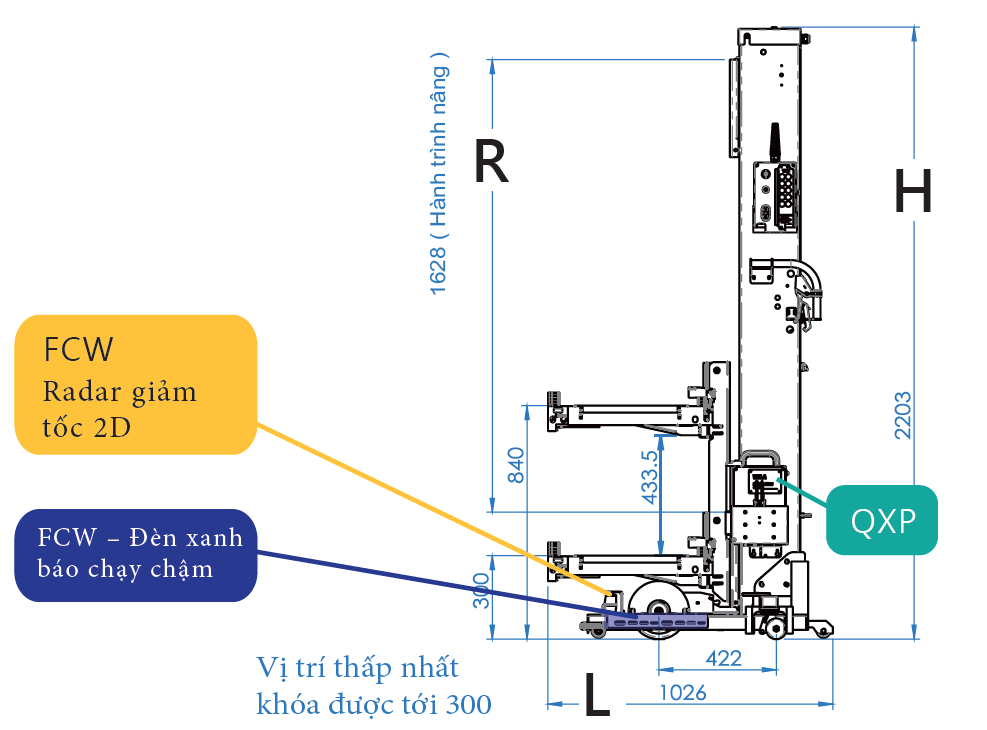

Side view

Main dimensions (unit: mm) — refer to FULLSHARP technical drawings.

Overall dimensions (L × W × H)	1026 × 1050/970 × 2203
Main mast height (H)	2203
DDS lifting stroke — lower deck (Rb)	360 – 1980
DDS lifting stroke — upper deck (Rt)	900 – 2520
RCS lifting stroke (R)	300 – 1920

Specifications

Specification	MandyGo220B-DDSDouble deck	MandyGo220B-RCSSingle deck
Overall dimensions	L1026 × W1050/970 × H2203 mm
Lifting stroke (R)mm	Lower deck (Rb): 360 – 1980 mm Upper deck (Rt): 900 – 2520 mm* To be used with a cart / work table. Gap between decks = 420 mm → lower deck suits items H ≤ 420 mm / 9U	300 – 1920 mm* Adjustable to rack requirements
Main mast height (H)mm	2203 mm
Lifting capacity	200 kg* Combined weight on lower + upper deck	200 kg
Net weight	300 kg / 660 lbs	250 kg / 550 lbs
Lifting speed	125 mm/s, soft start & stop
IP rating	IP41
Battery	QXP quick-exchange battery pack — lithium battery DC24V20AH × 2* The lithium battery version is distributed in the Taiwan market only
Charging voltage	100 – 220V AC, 50/60 Hz
Material	304 stainless steel + aluminum
Control panel	Push-button control panel — bilingual Traditional Chinese / English with icons: Power switch Battery level indicator / LED status light Manual up/down confirm button ASP advanced sensor positioning system — lift lock / automatic sensor counting of positioning points (choose one): 15 stations × 8 levels or 8 stations × 10 levels EMS emergency stop button
Travel speed	Forward 0 – 3 km/h · Reverse 0 – 1.5 km/h* Smooth start, stop and deceleration while traveling
Cleanroom technology	Meets Class 1000 cleanroom requirements Durable, easy-rolling, wear-resistant, non-shedding materials Electrostatic discharge (ESD) protection

↔ Swipe sideways to see the full table

Applications

Server Rack GPU Chassis Battery packs Test equipment

Interested in the MandyGo220B?

Contact FULLSHARP for advice on choosing the double deck (DDS) or single deck (RCS) configuration for your application.

Contact FULLSHARP View all Server Lifters

Product codes: MandyGo220B-DDS (double deck) / MandyGo220B-RCS (single deck). Specifications are subject to change without notice. The lithium battery configuration is distributed in the Taiwan market only.
