Ceiling-Mounted Pneumatic Jib Crane, Force-Sensing Handle

The work area is tight, and adding a support column would eat up walkway space and get in the way of nearby machines. The product also needs to land in an exact spot, and button-controlled lifting takes several nudges before it lines up.

FullSharp suspends a pneumatic jib crane from the ceiling structure, keeping the floor exactly as it was. It's controlled with a force-sensing handle: the sensor reads the operator's push and supplies air accordingly, so the load moves up, down, or sideways with the hand and stops the instant it's released.

Ceiling-Mounted Pneumatic Jib Crane with Force-Sensing Control

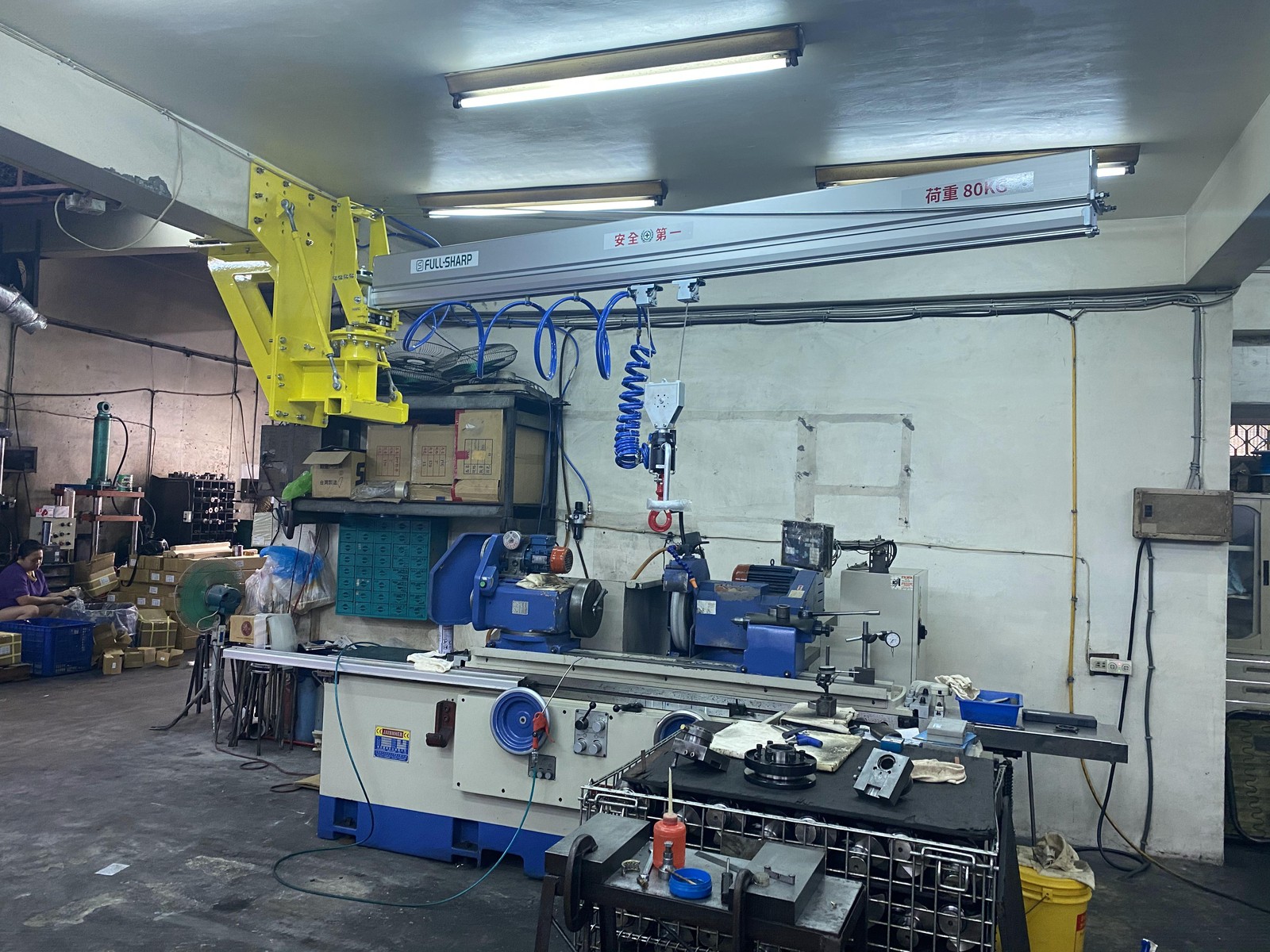

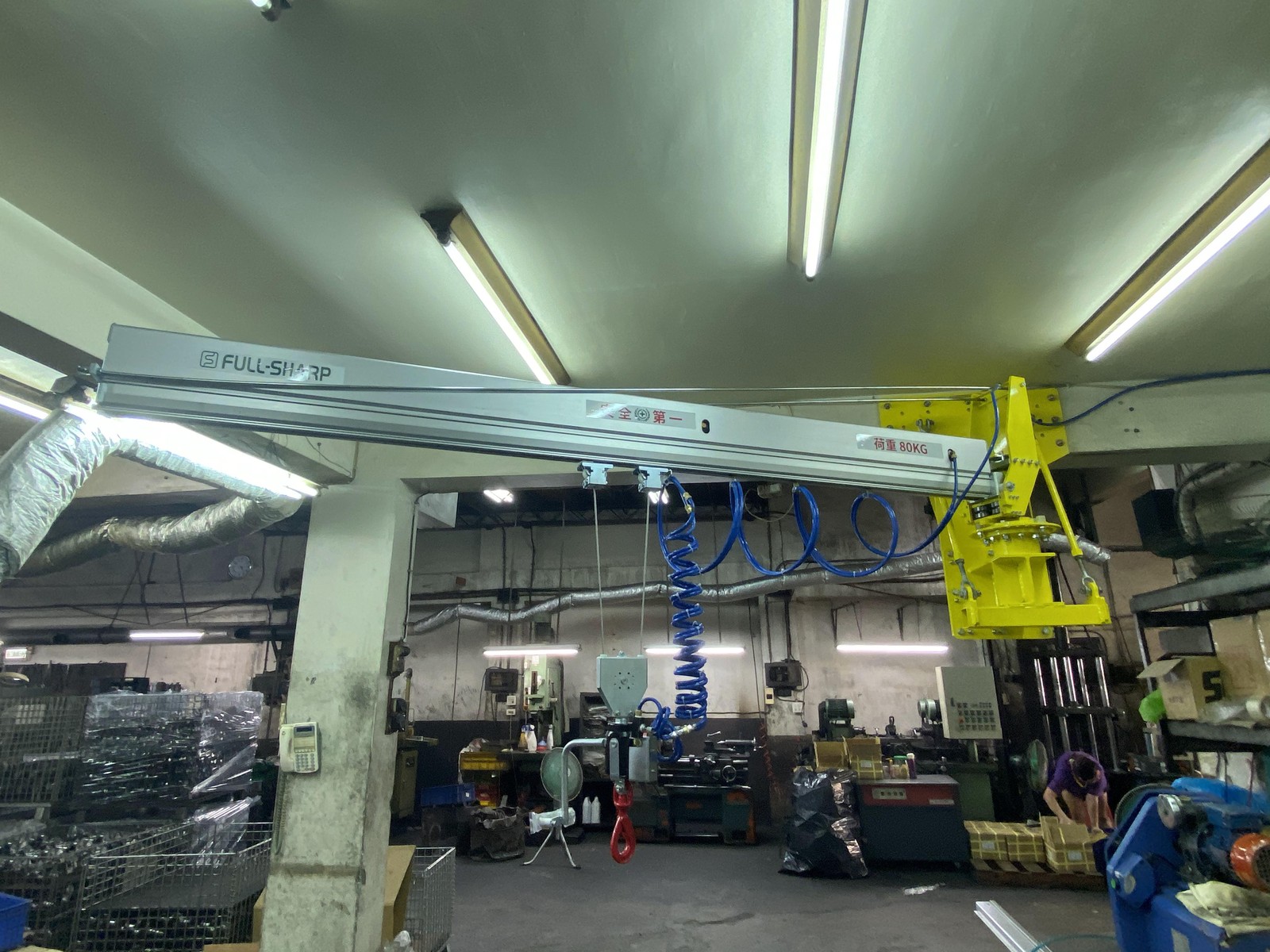

Ceiling-mounted pneumatic jib crane with a force-sensing handle in the production area.

Equipment Installed

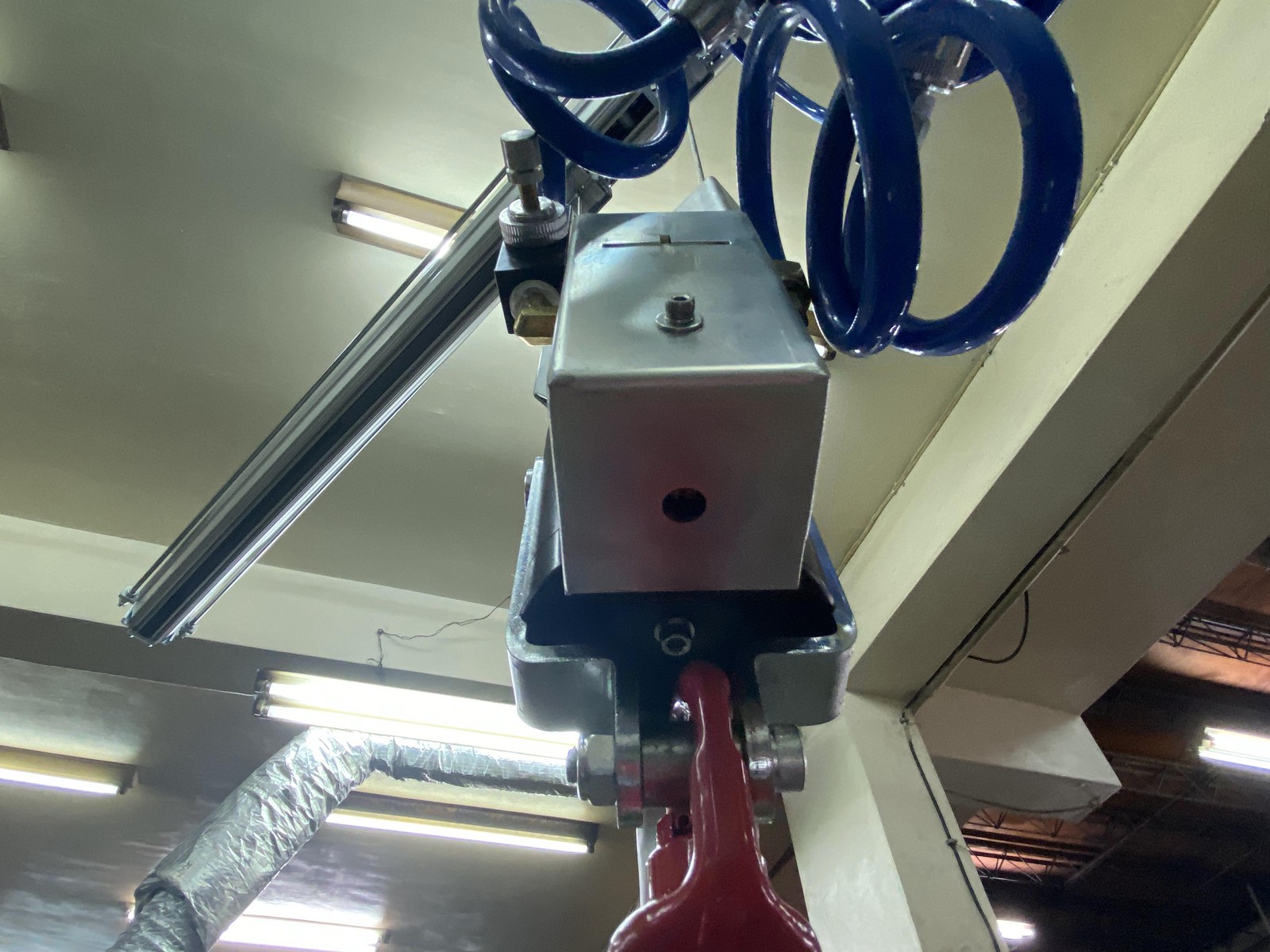

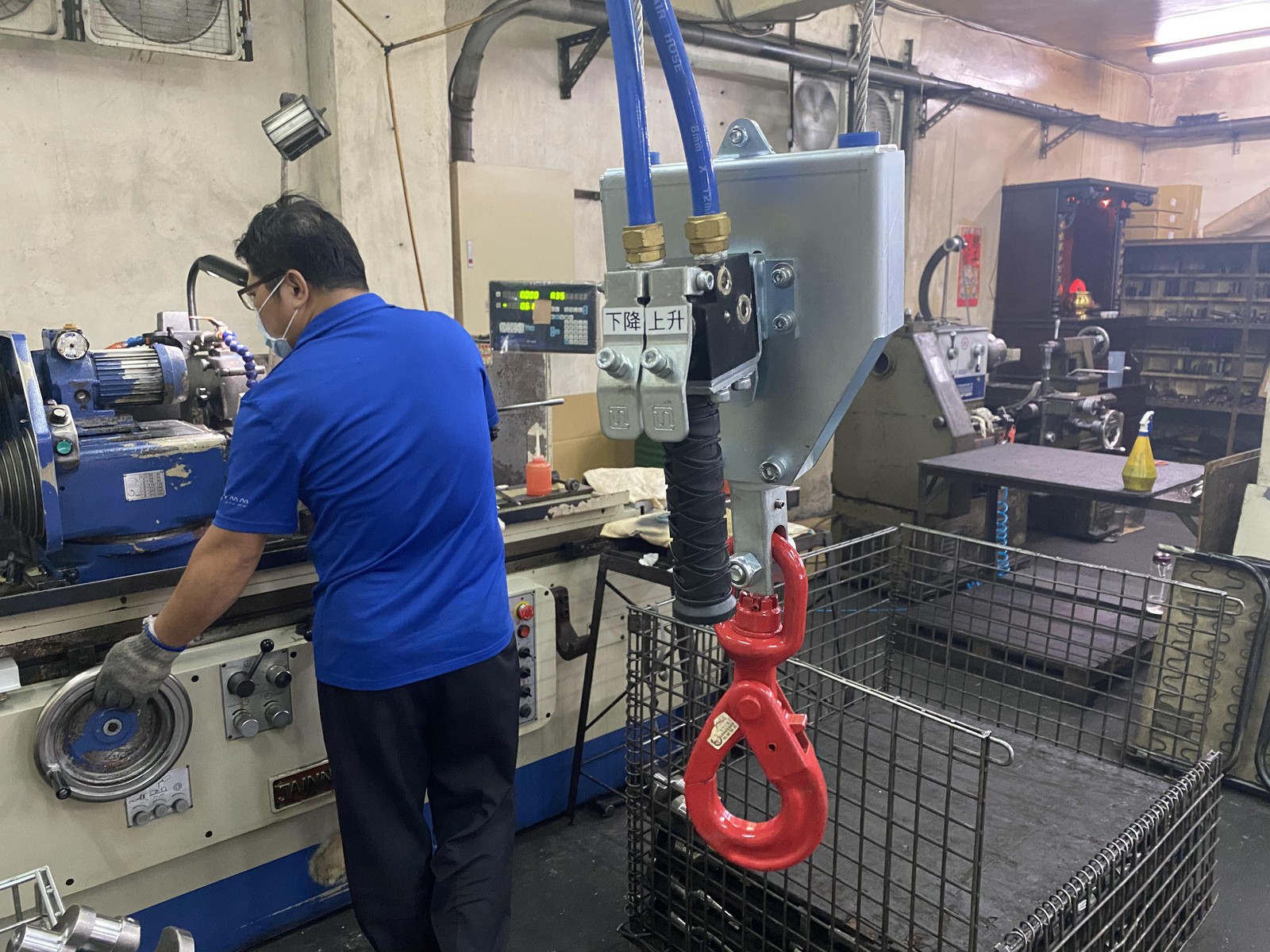

Force-sensing handle: reads the operator's push, moving the load in the same direction and stopping the instant the hand releases.

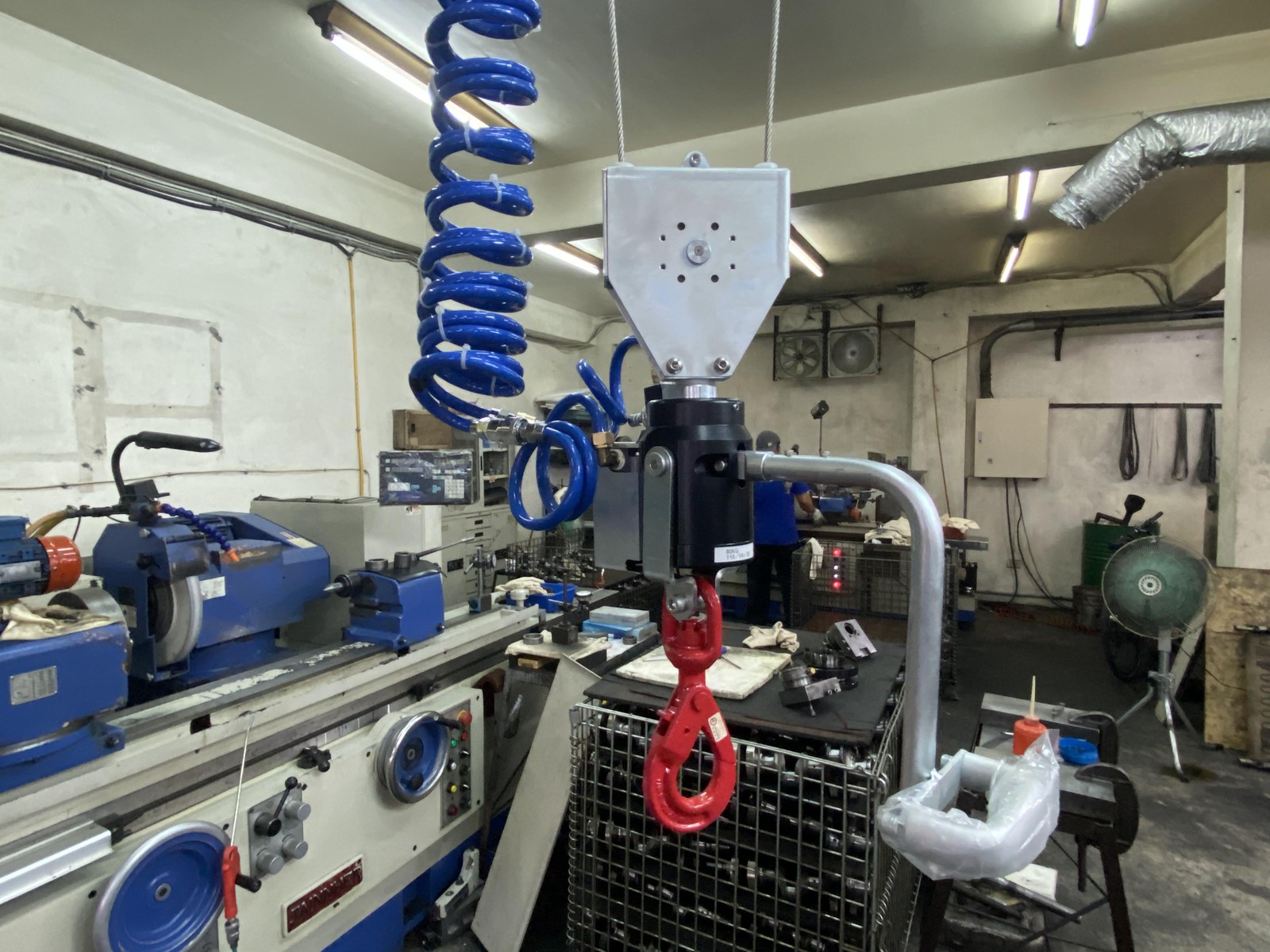

Balancing pneumatic hoist: keeps the load suspended at any height without holding a button down.

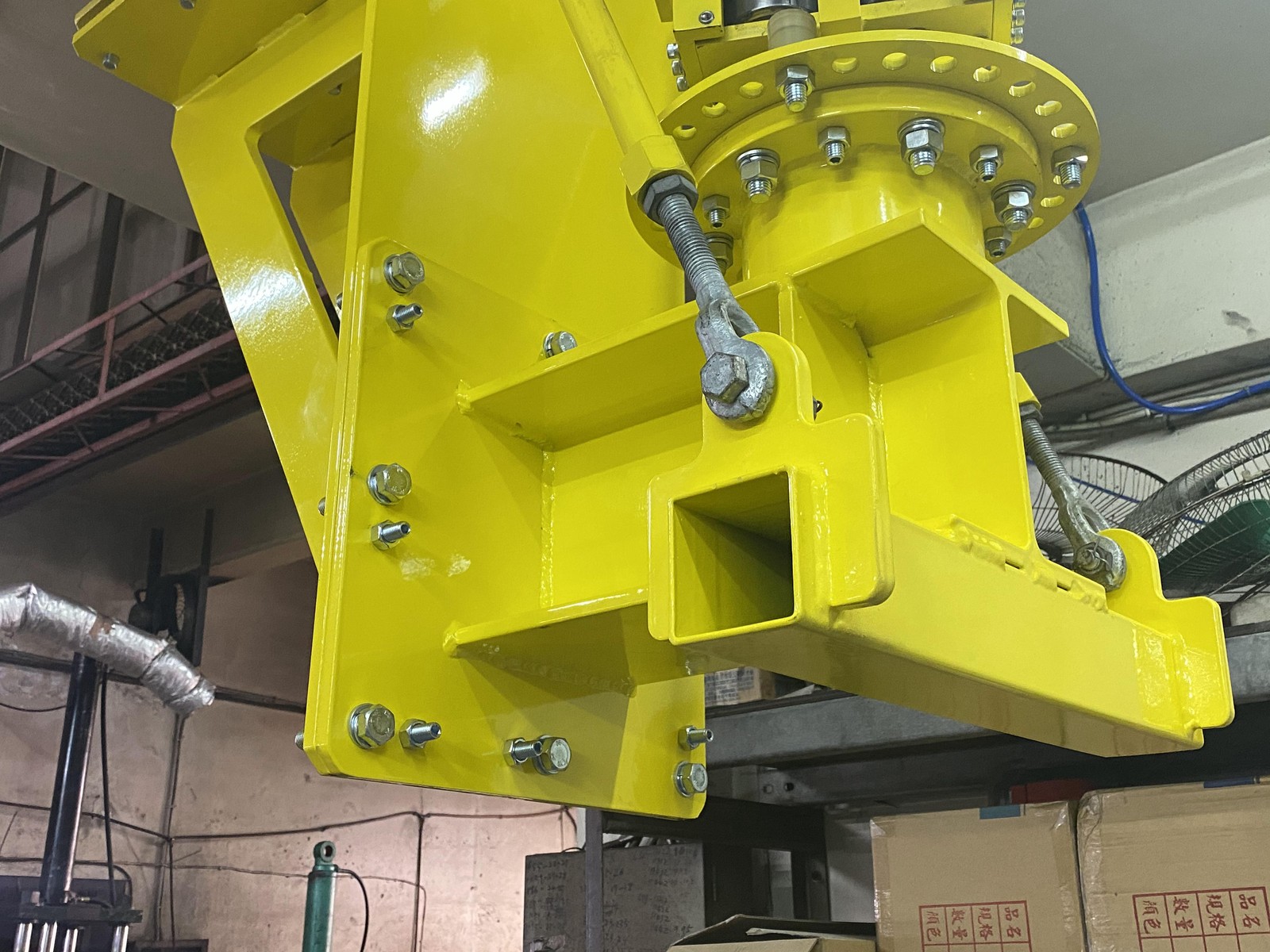

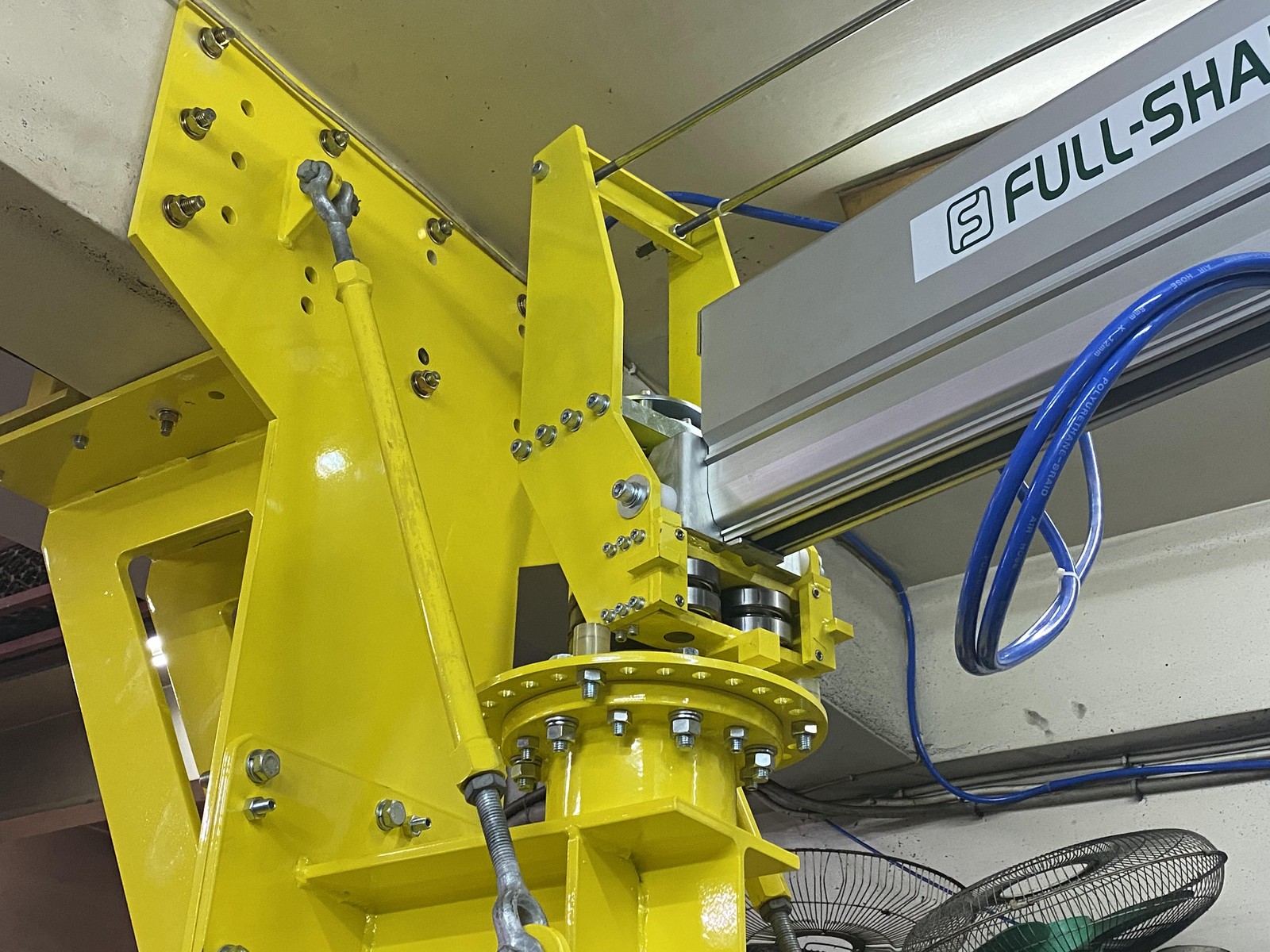

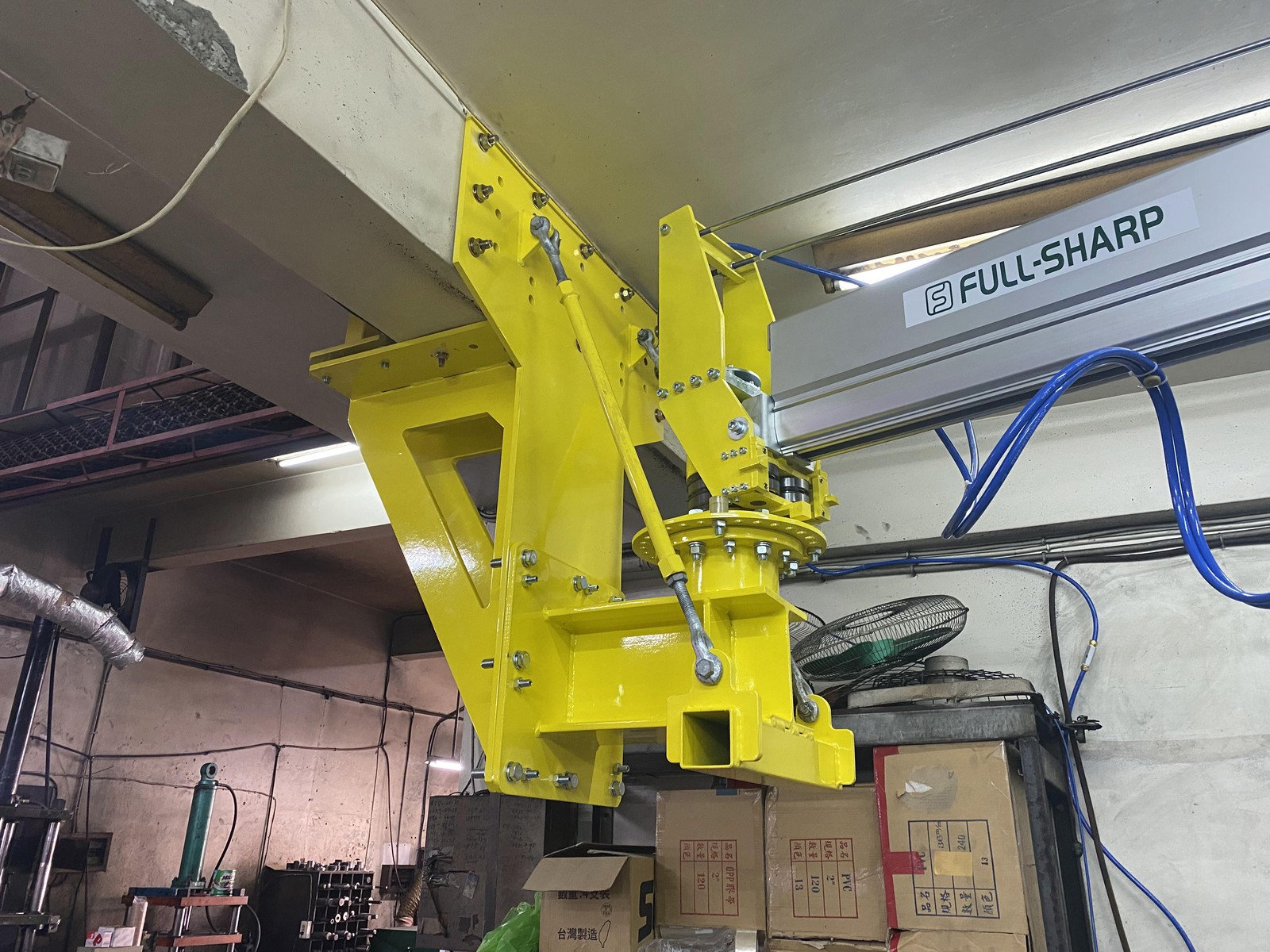

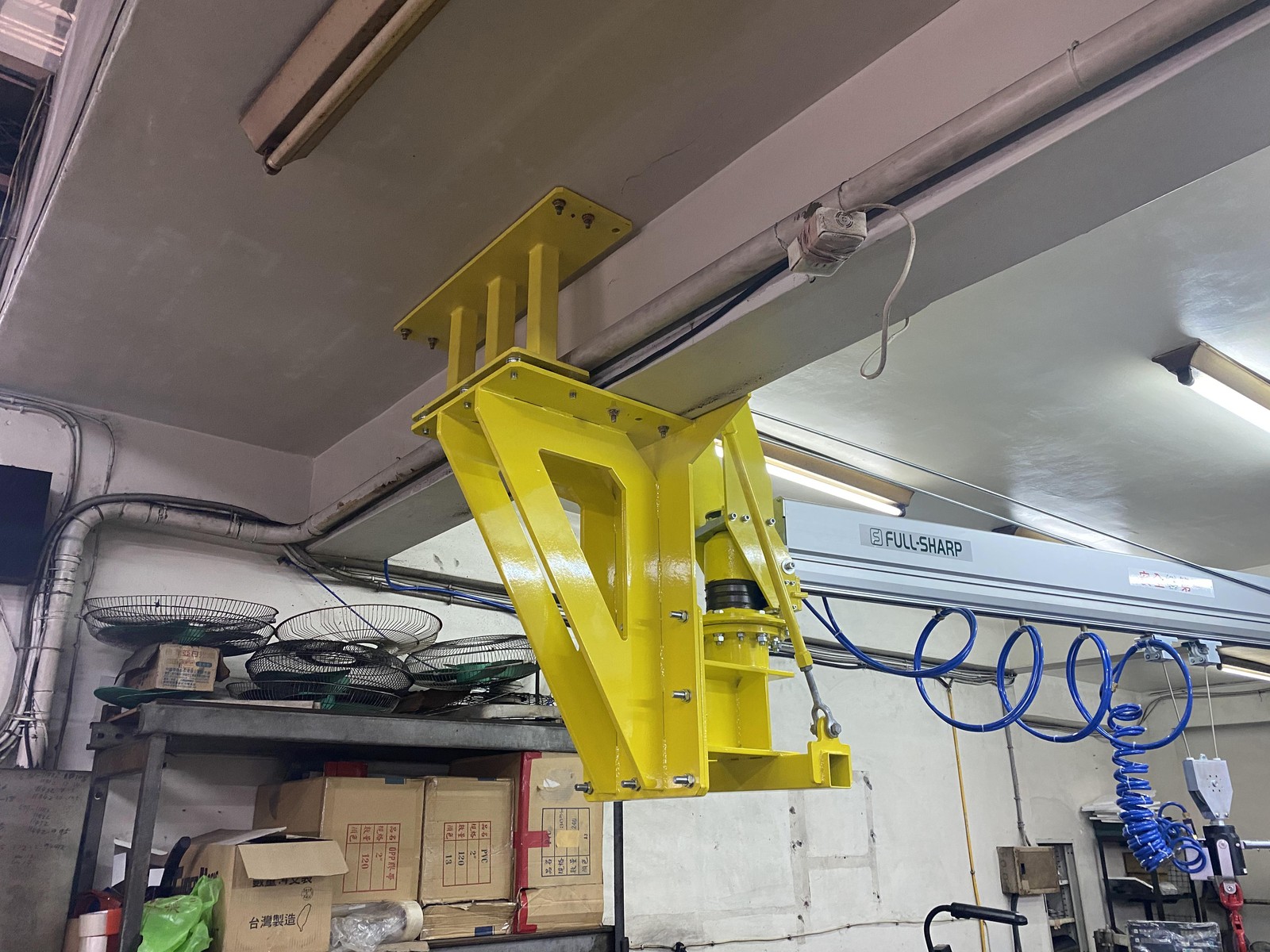

Ceiling mounting structure: bolted to existing beams or trusses, with no extra column under the floor.

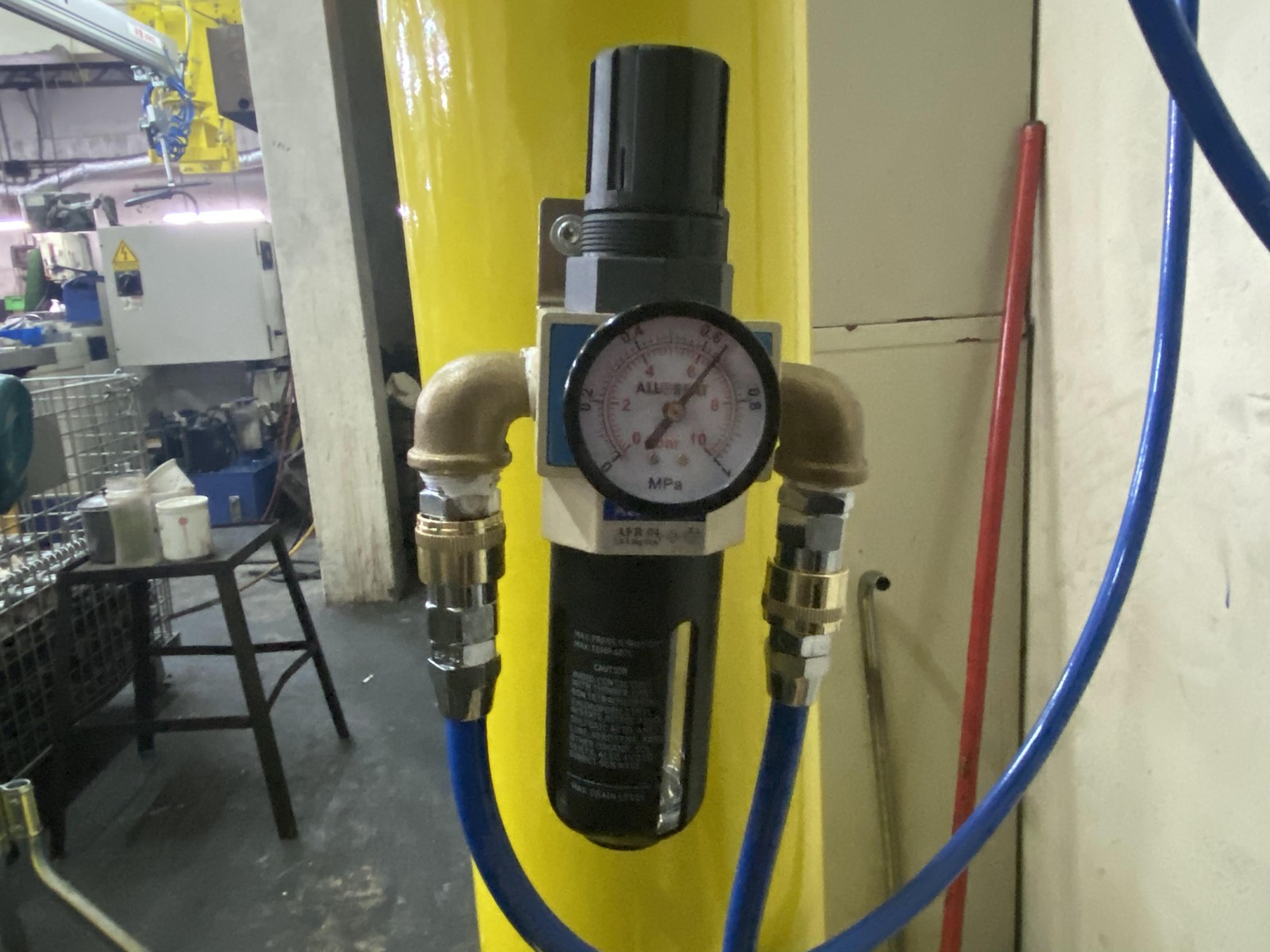

Filter and pressure regulator set: keeps the air clean and pressure steady for consistent operation.

Benefits for Your Facility

Floor stays clear

The entire system hangs from the ceiling, so walkways and equipment layout remain unchanged.

Right on the first try

The load follows the hand smoothly, positioning precisely instead of nudging step by step.

Less tiring to operate

Operators only apply light force, keeping precision consistent through a full shift.

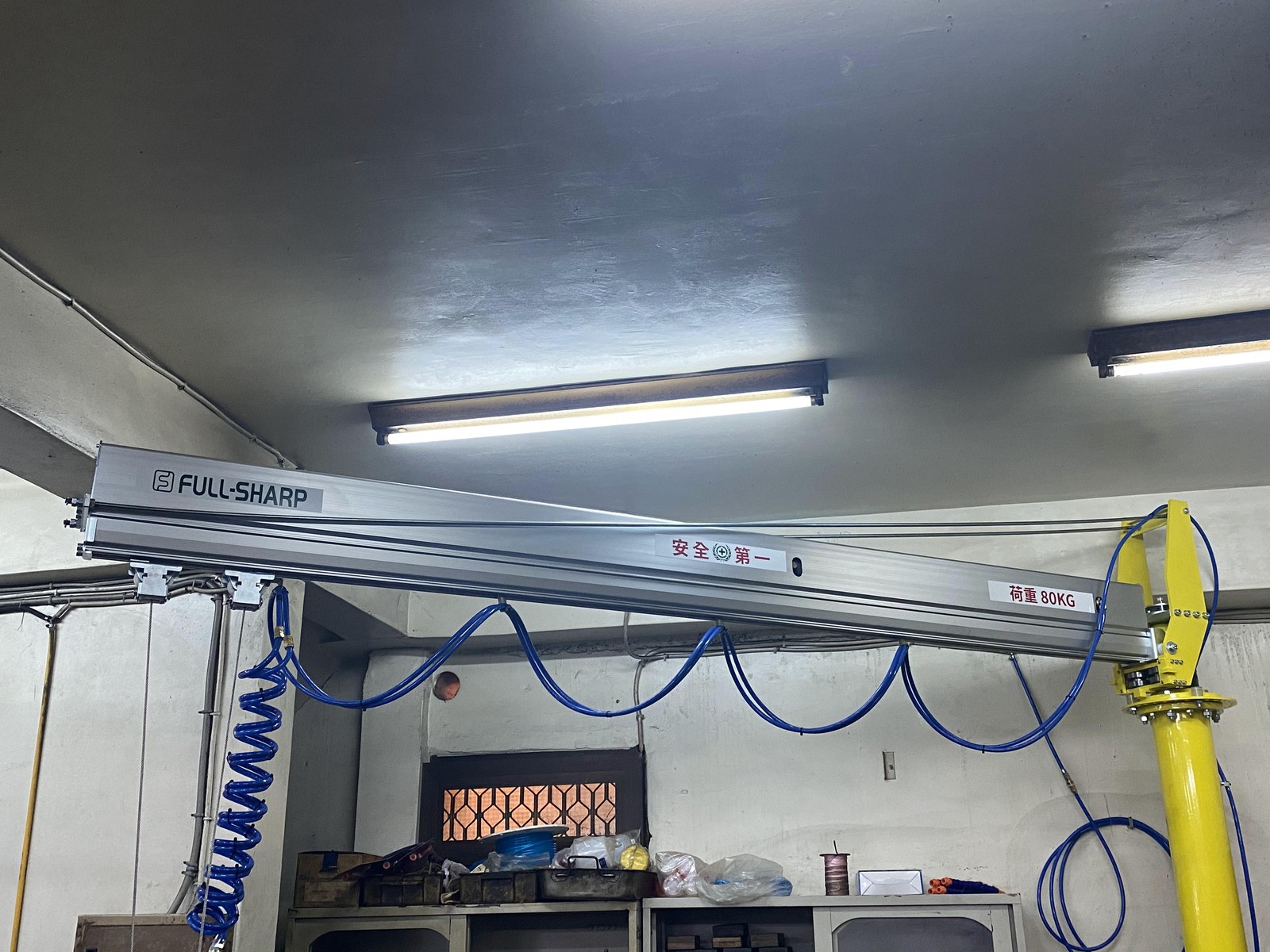

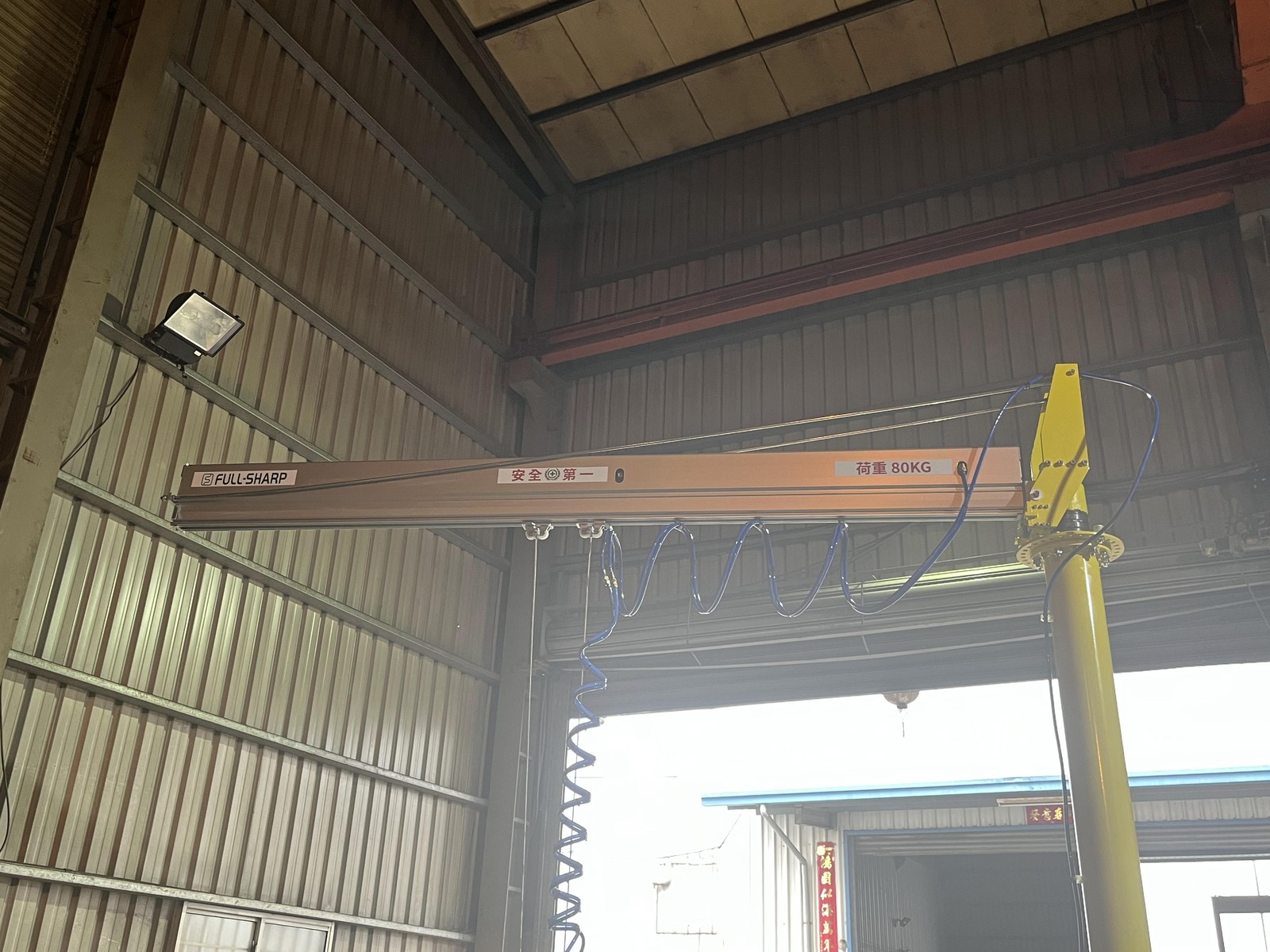

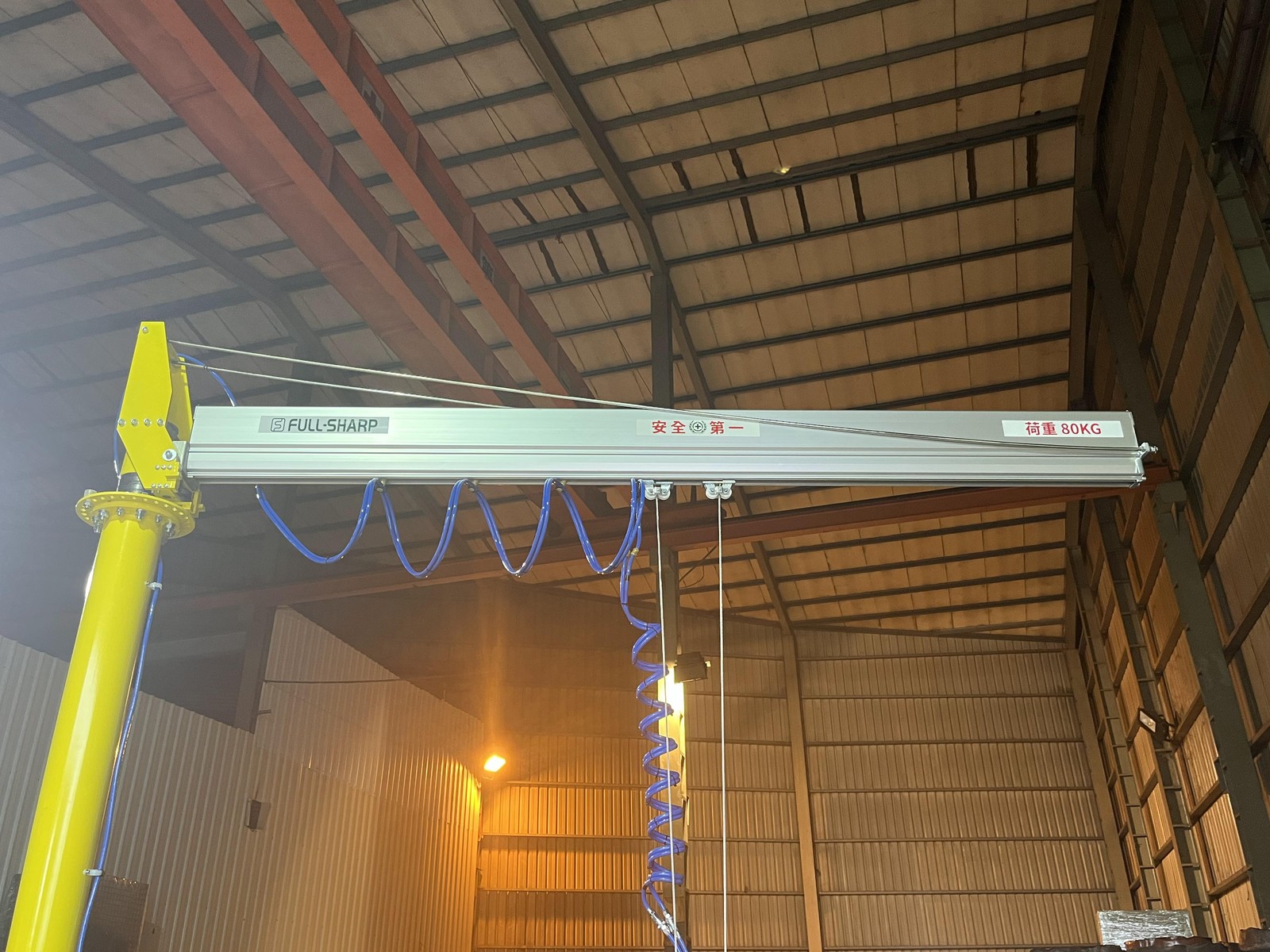

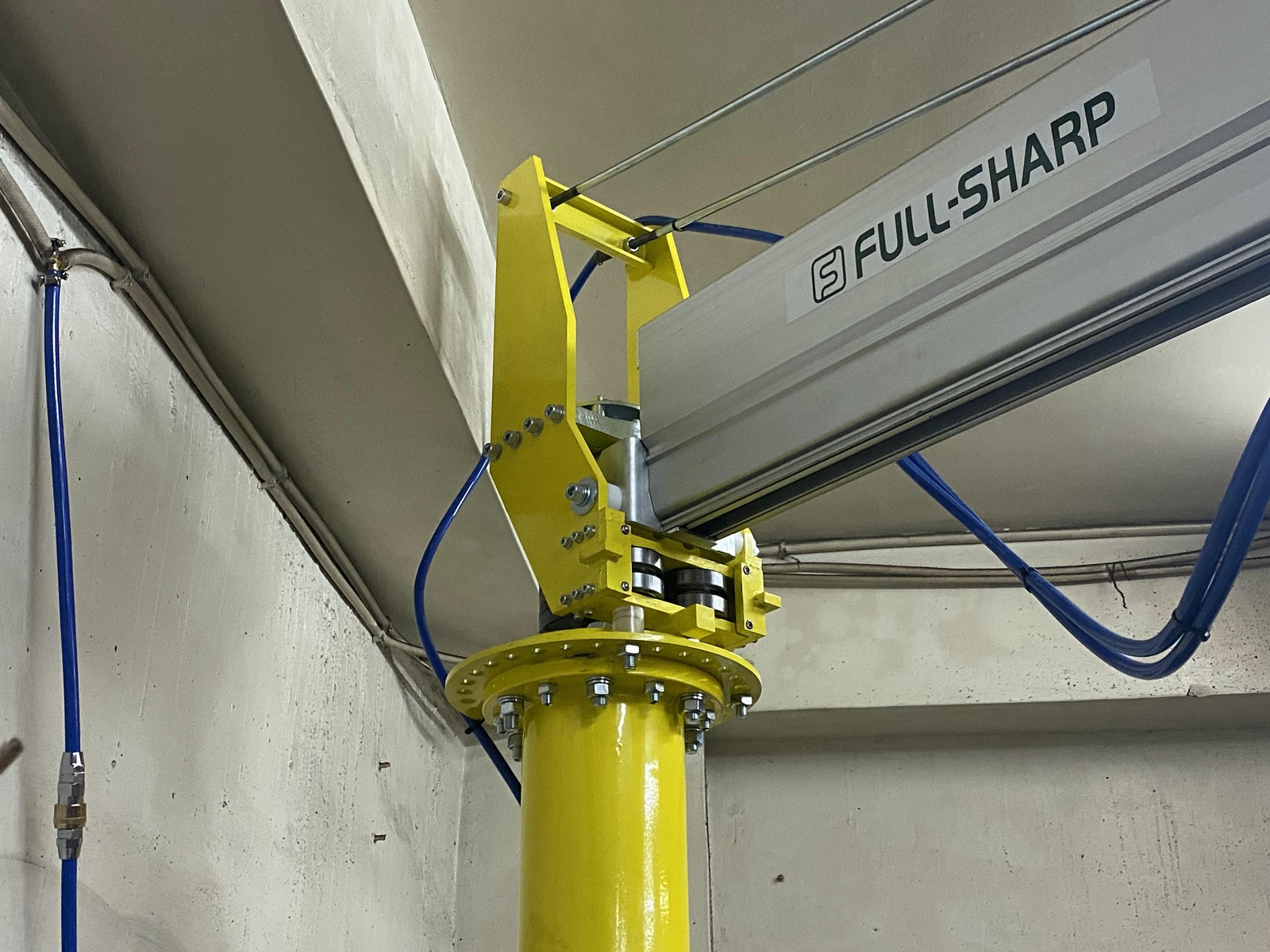

Actual Installation Photos

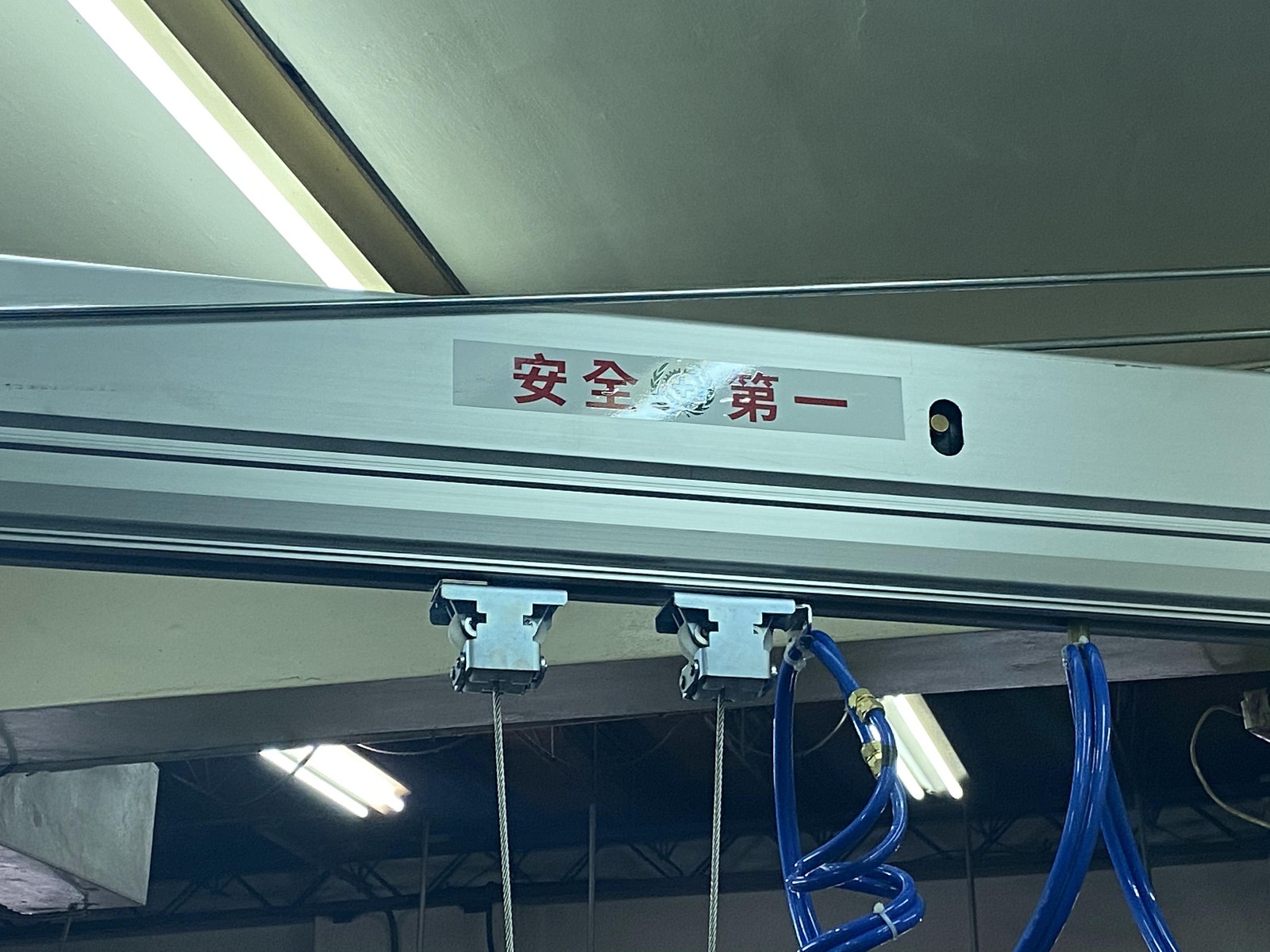

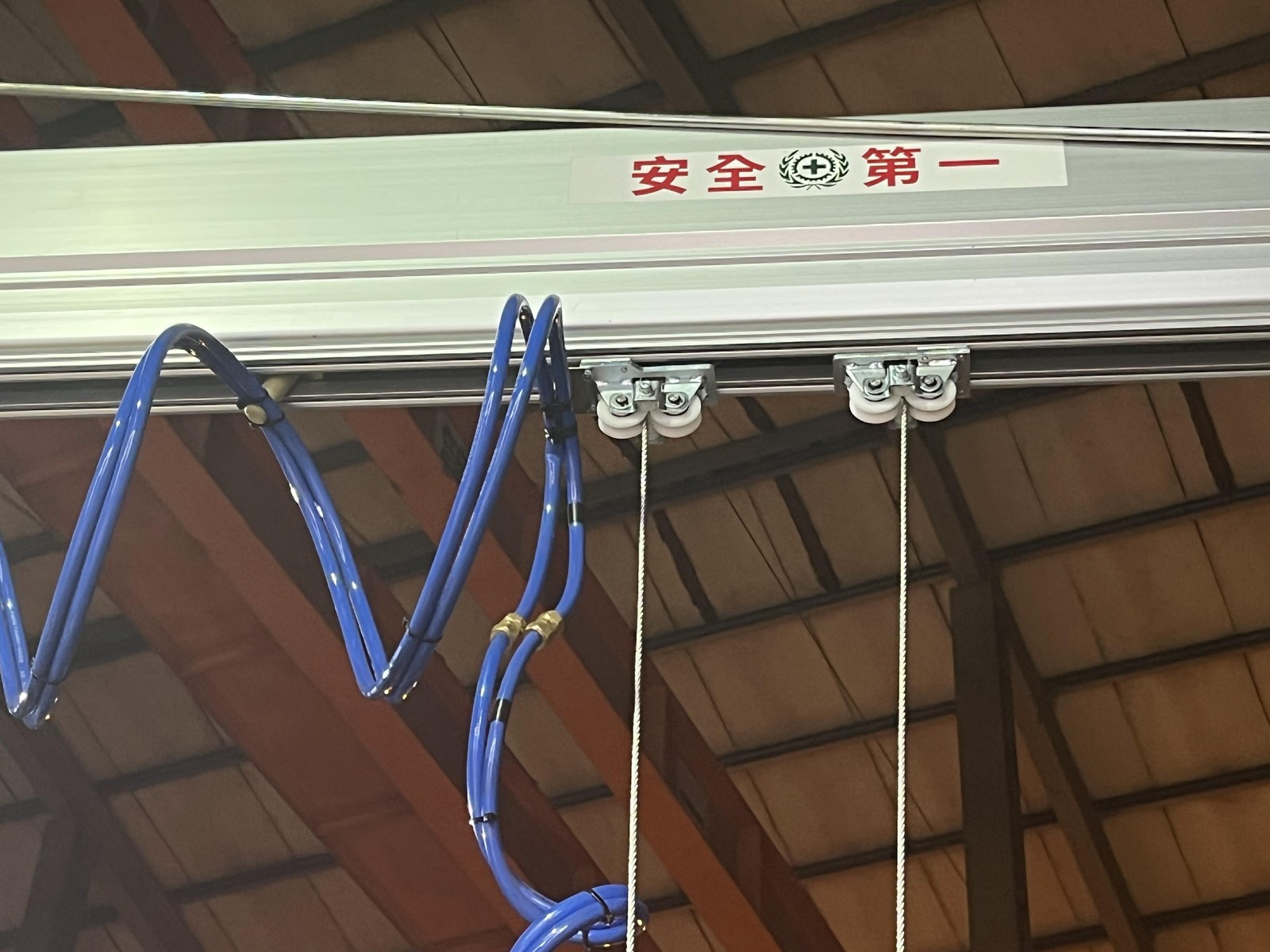

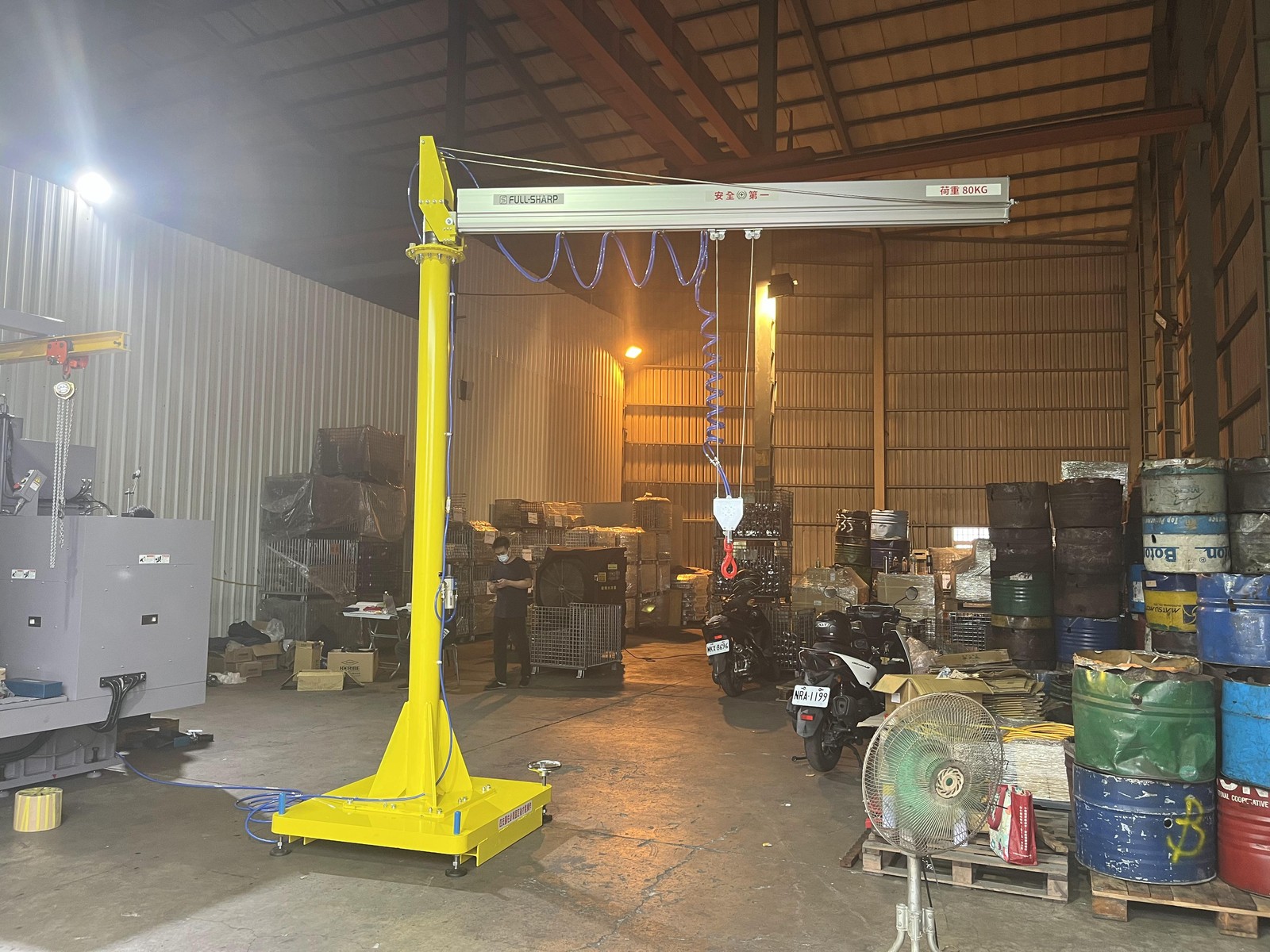

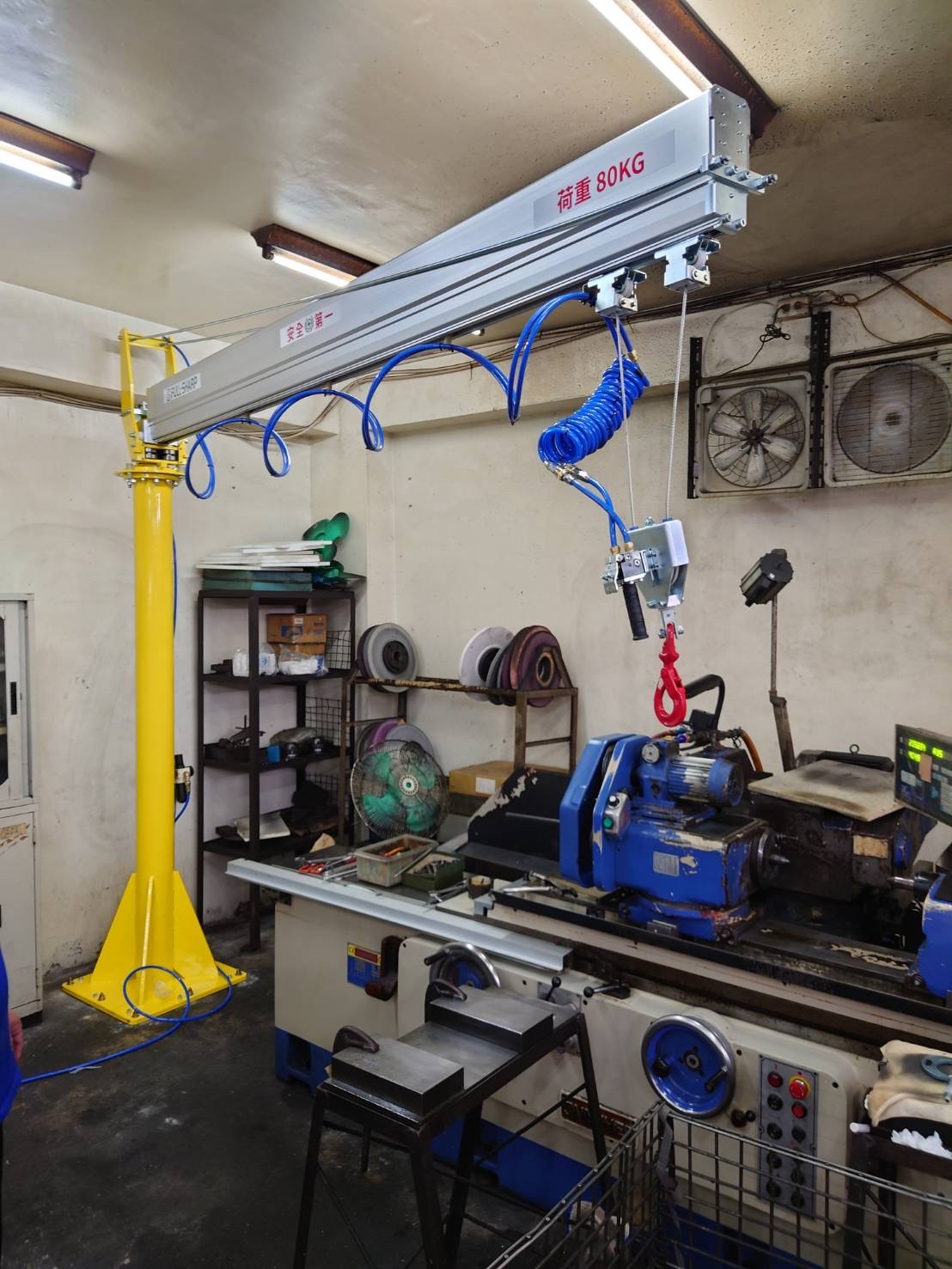

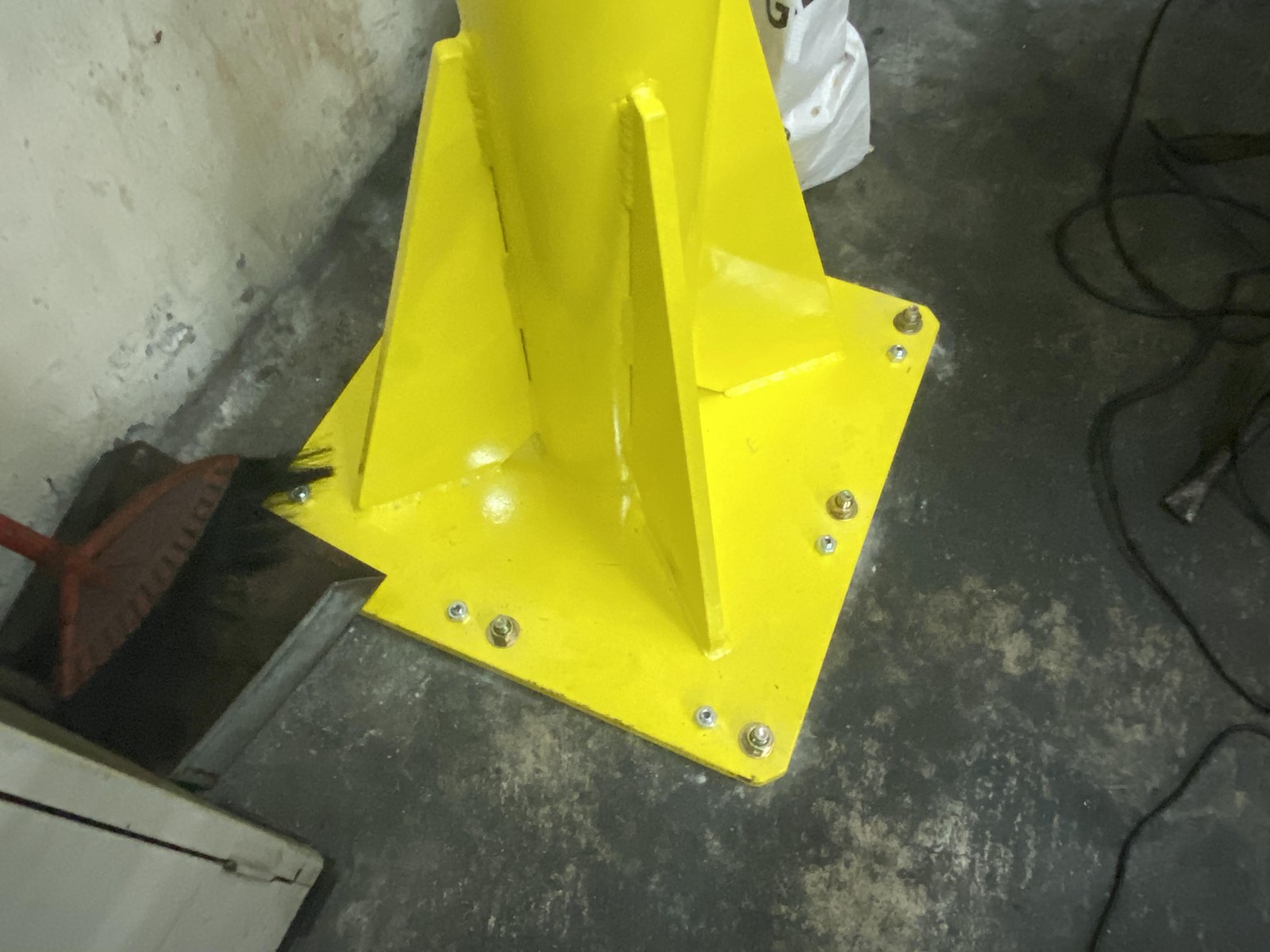

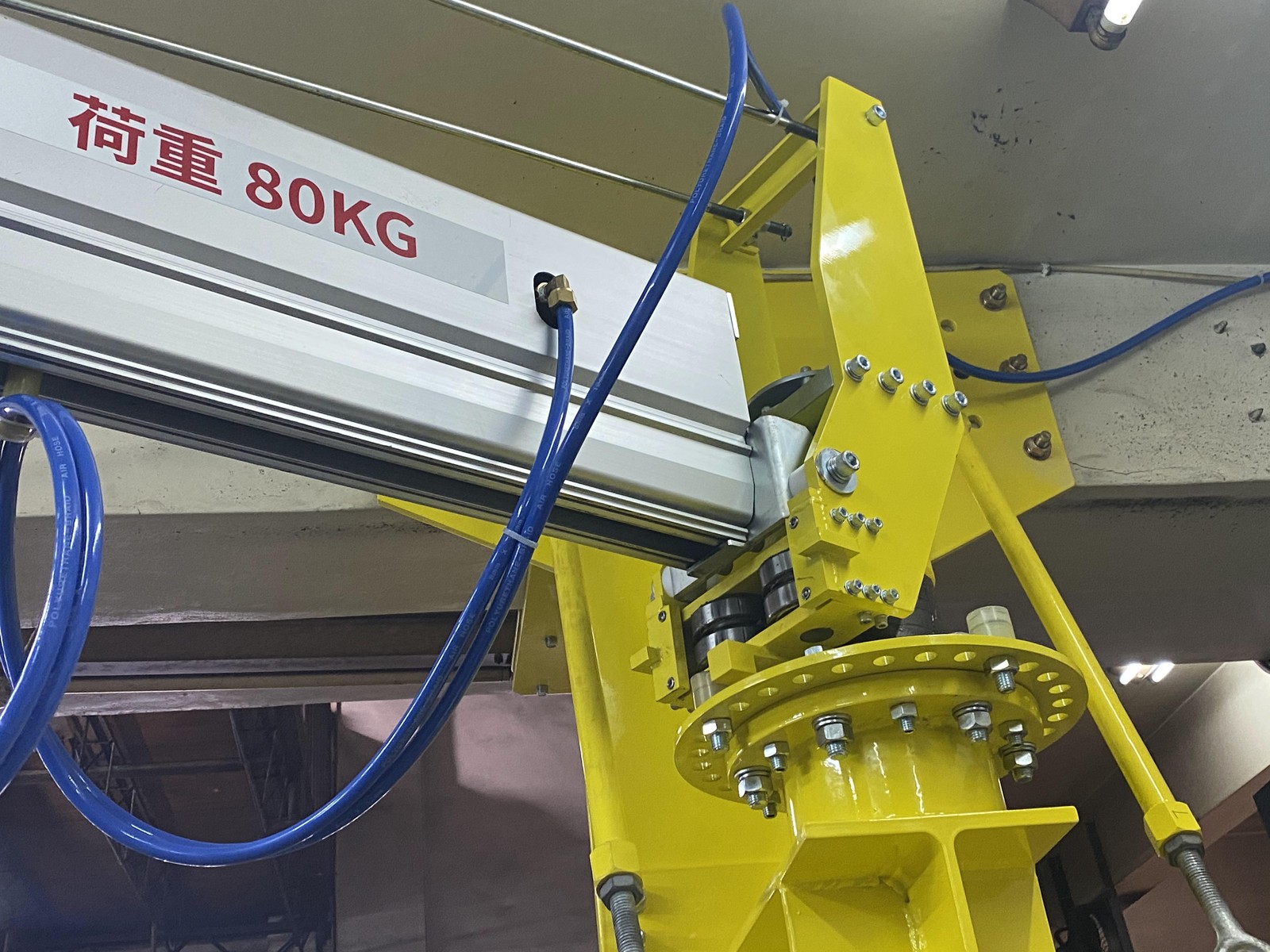

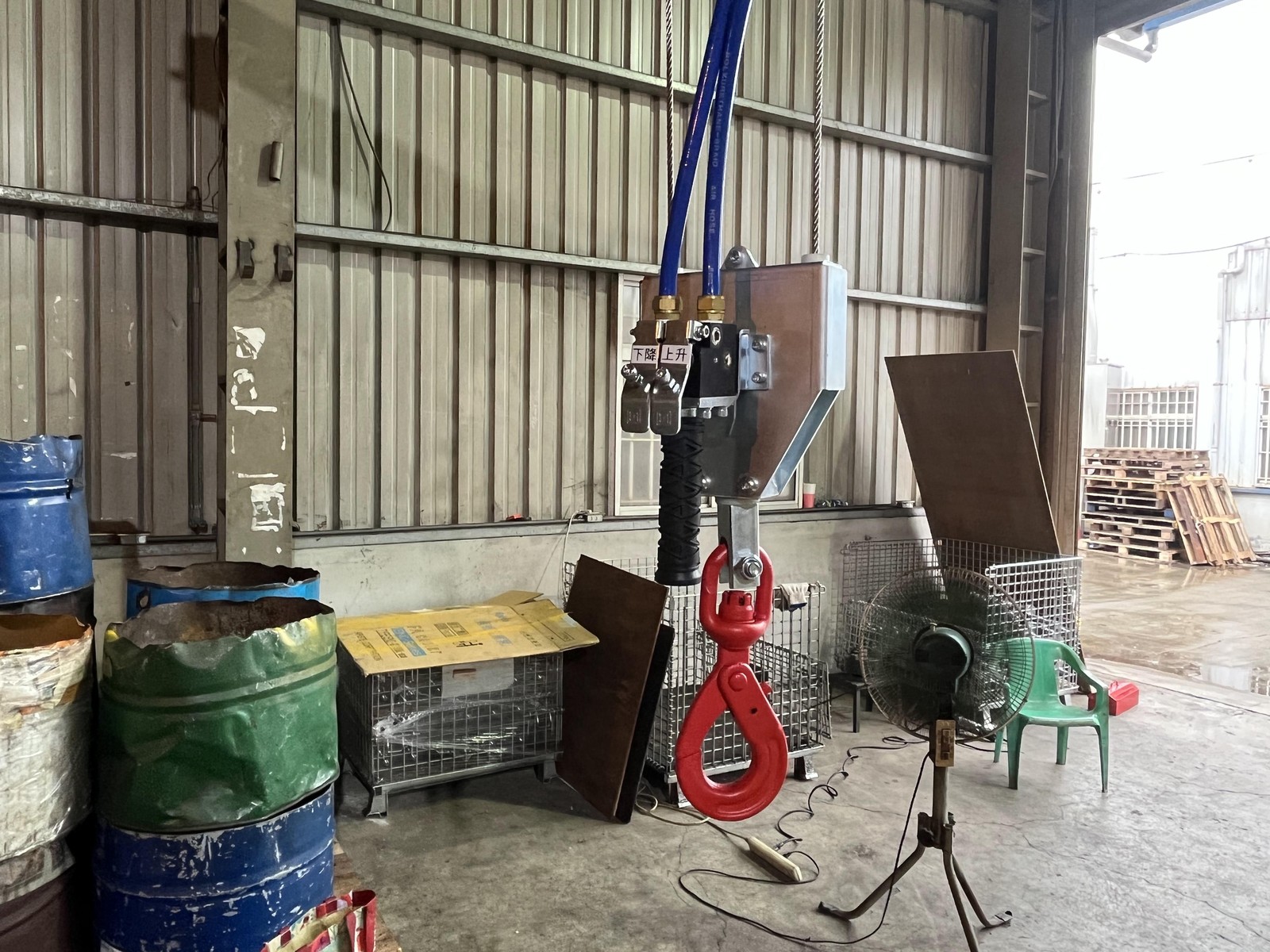

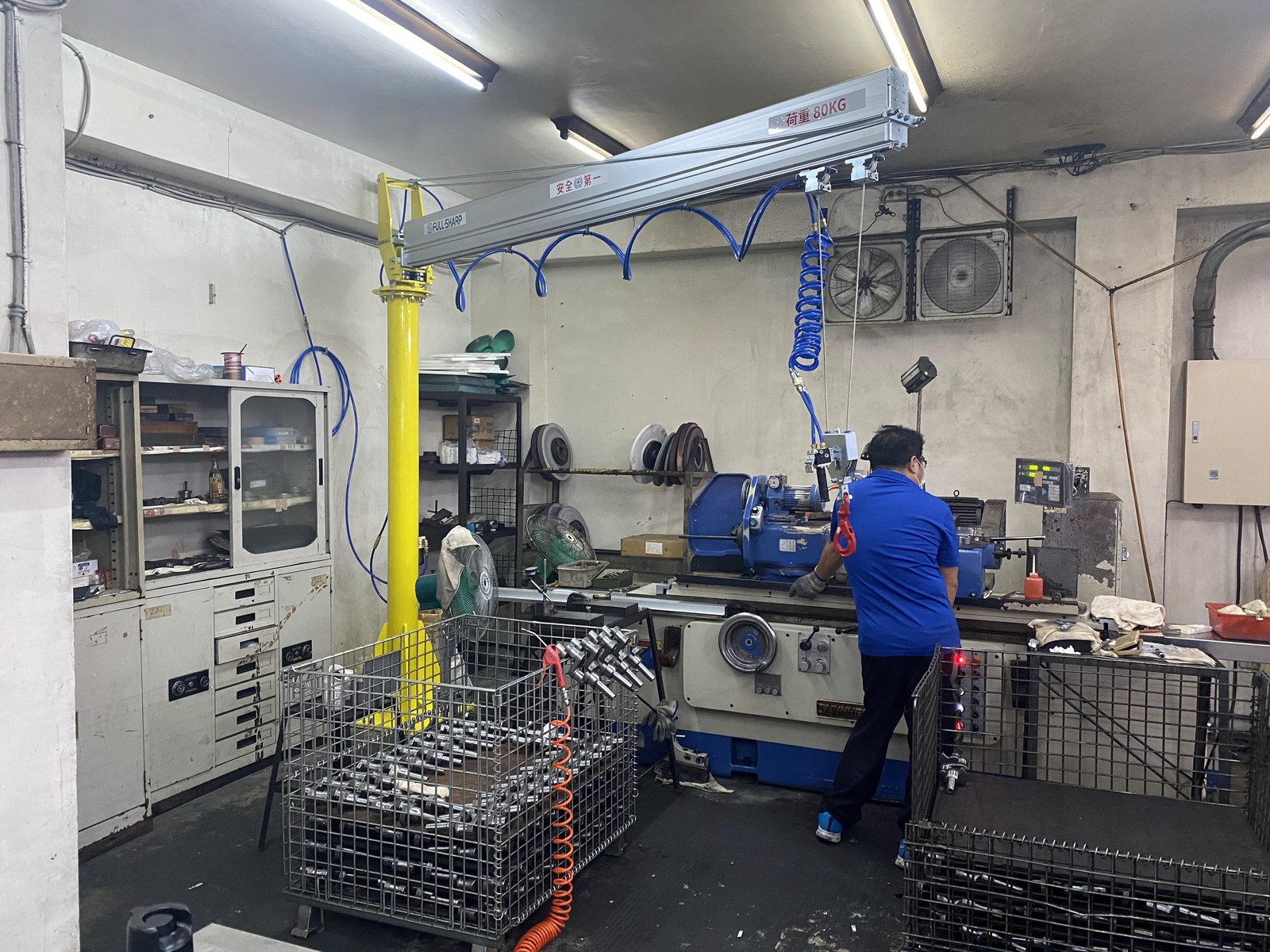

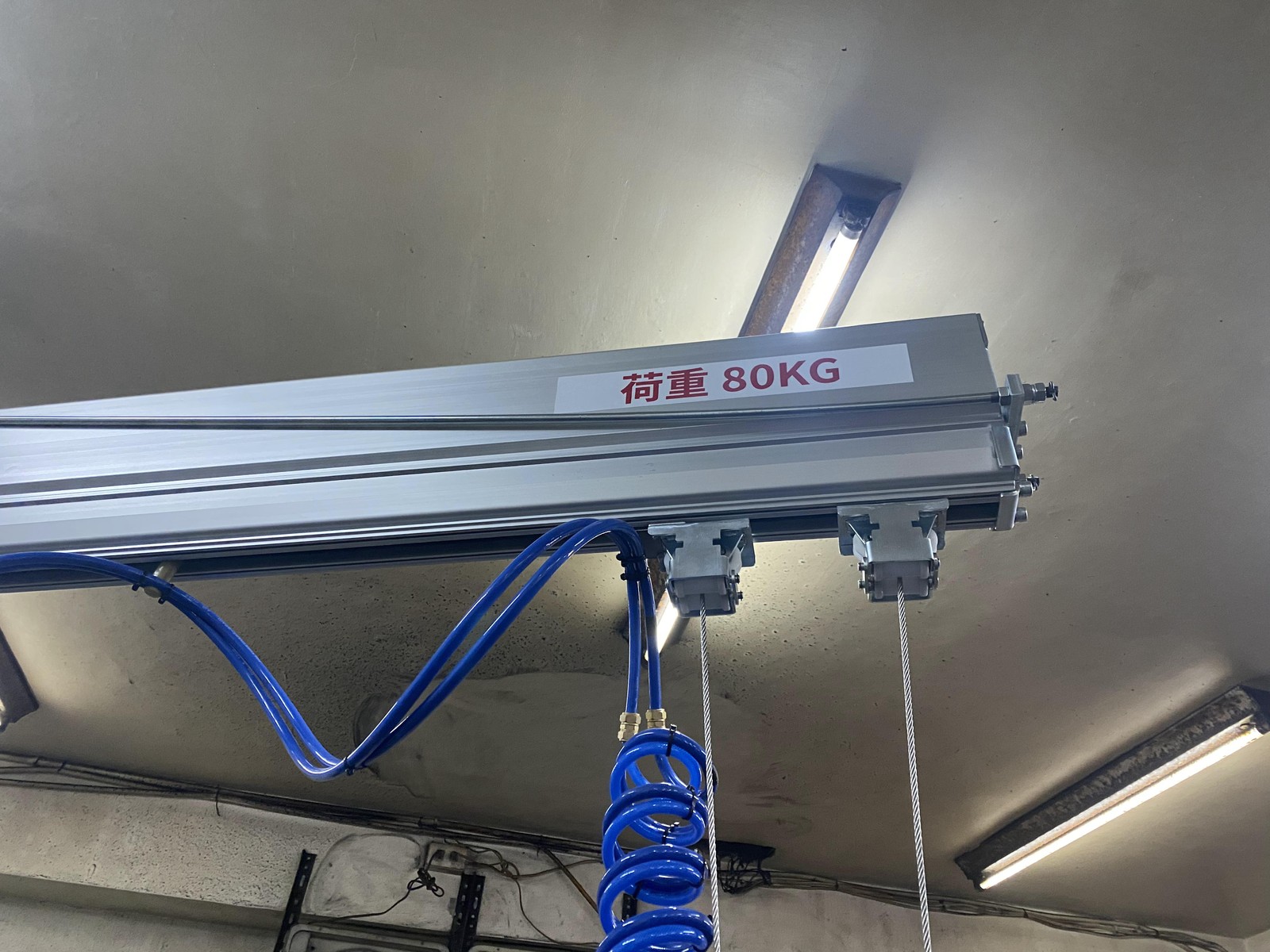

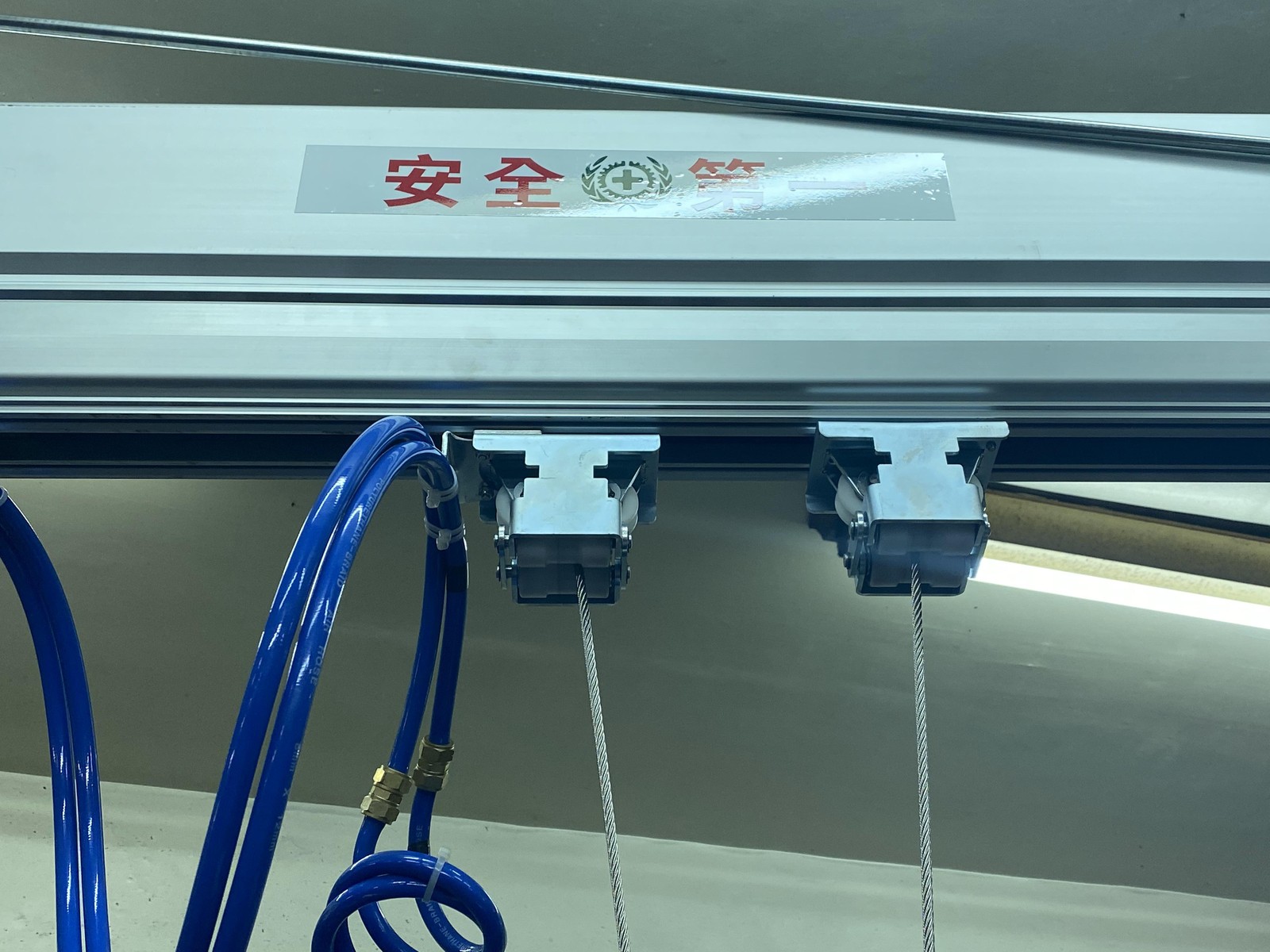

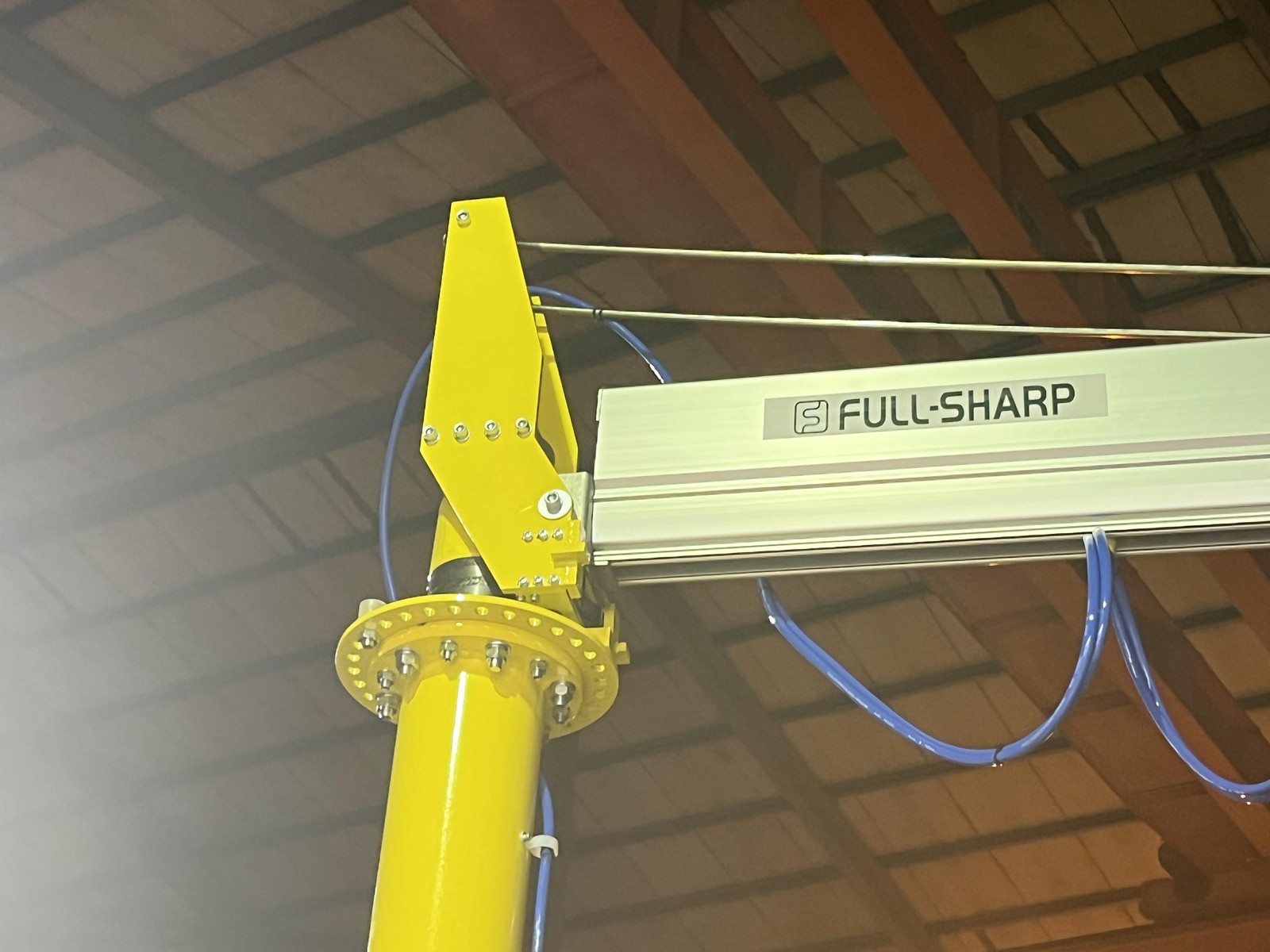

Ceiling-Mounted Pneumatic Jib Crane with Force-Sensing Control - ảnh 1

Ceiling-Mounted Pneumatic Jib Crane with Force-Sensing Control - ảnh 2

Ceiling-Mounted Pneumatic Jib Crane with Force-Sensing Control - ảnh 3

Ceiling-Mounted Pneumatic Jib Crane with Force-Sensing Control - ảnh 4

Ceiling-Mounted Pneumatic Jib Crane with Force-Sensing Control - ảnh 5

Ceiling-Mounted Pneumatic Jib Crane with Force-Sensing Control - ảnh 6

Ceiling-Mounted Pneumatic Jib Crane with Force-Sensing Control - ảnh 7

Ceiling-Mounted Pneumatic Jib Crane with Force-Sensing Control - ảnh 8

Ceiling-Mounted Pneumatic Jib Crane with Force-Sensing Control - ảnh 9

Ceiling-Mounted Pneumatic Jib Crane with Force-Sensing Control - ảnh 10

Ceiling-Mounted Pneumatic Jib Crane with Force-Sensing Control - ảnh 11

Ceiling-Mounted Pneumatic Jib Crane with Force-Sensing Control - ảnh 12

Ceiling-Mounted Pneumatic Jib Crane with Force-Sensing Control - ảnh 13

Ceiling-Mounted Pneumatic Jib Crane with Force-Sensing Control - ảnh 14

Ceiling-Mounted Pneumatic Jib Crane with Force-Sensing Control - ảnh 15

Ceiling-Mounted Pneumatic Jib Crane with Force-Sensing Control - ảnh 16

Ceiling-Mounted Pneumatic Jib Crane with Force-Sensing Control - ảnh 17

Ceiling-Mounted Pneumatic Jib Crane with Force-Sensing Control - ảnh 18

Ceiling-Mounted Pneumatic Jib Crane with Force-Sensing Control - ảnh 19

Ceiling-Mounted Pneumatic Jib Crane with Force-Sensing Control - ảnh 20

Ceiling-Mounted Pneumatic Jib Crane with Force-Sensing Control - ảnh 21

Ceiling-Mounted Pneumatic Jib Crane with Force-Sensing Control - ảnh 22

Ceiling-Mounted Pneumatic Jib Crane with Force-Sensing Control - ảnh 23

Ceiling-Mounted Pneumatic Jib Crane with Force-Sensing Control - ảnh 24

Ceiling-Mounted Pneumatic Jib Crane with Force-Sensing Control - ảnh 25

Ceiling-Mounted Pneumatic Jib Crane with Force-Sensing Control - ảnh 26

Ceiling-Mounted Pneumatic Jib Crane with Force-Sensing Control - ảnh 27

Ceiling-Mounted Pneumatic Jib Crane with Force-Sensing Control - ảnh 28

Click a photo to enlarge. Album of 28 photos taken on site.

Suitable Applications

Mechanical assembly workshops
Electronics factories
Part-fixturing stations
Inspection and packaging areas

Installation Consulting for Your Facility

FullSharp weighs the product, measures the required lift travel and the spacing between beams to determine the mounting point and reach. Our engineers also check whether the ceiling structure can bear the load and confirm the compressed air supply before installation. Contact FullSharp to schedule a site survey.
