Pneumatic Jib Crane, Force-Sensing Handle

Parts need to be placed within tight tolerances, and push-button up/down controls are slow and prone to overshoot. Workers have to time each movement carefully, and doing this for long periods causes fatigue and risks colliding with the product.

FullSharp installs a beam-mounted pneumatic jib crane with a force-sensing handle. A sensor reads the force applied by the operator's hand and supplies air accordingly — a light push moves it slowly, a firm push moves it faster. Releasing the handle holds the load still in place.

Beam-Mounted Pneumatic Jib Crane with Force-Sensing Handle

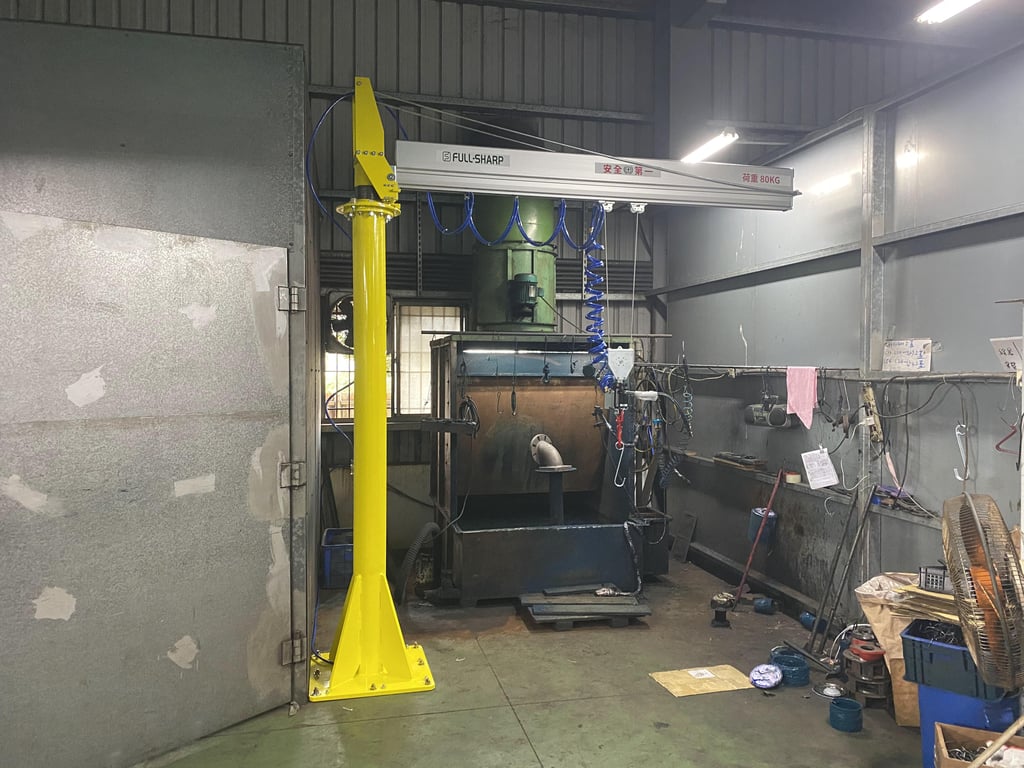

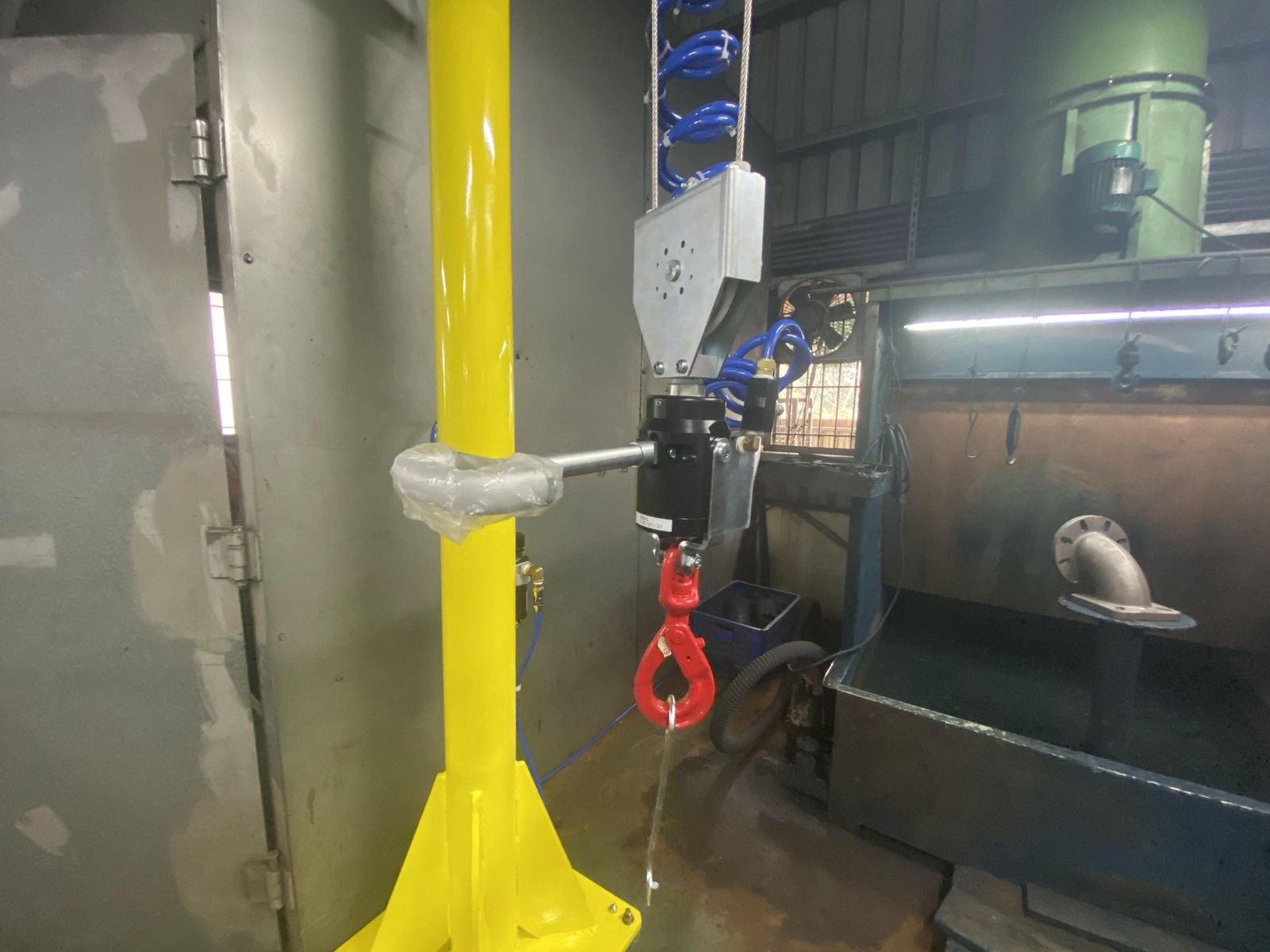

Force-sensing handle fitted on a beam-mounted pneumatic jib crane in an assembly plant.

Installed Equipment

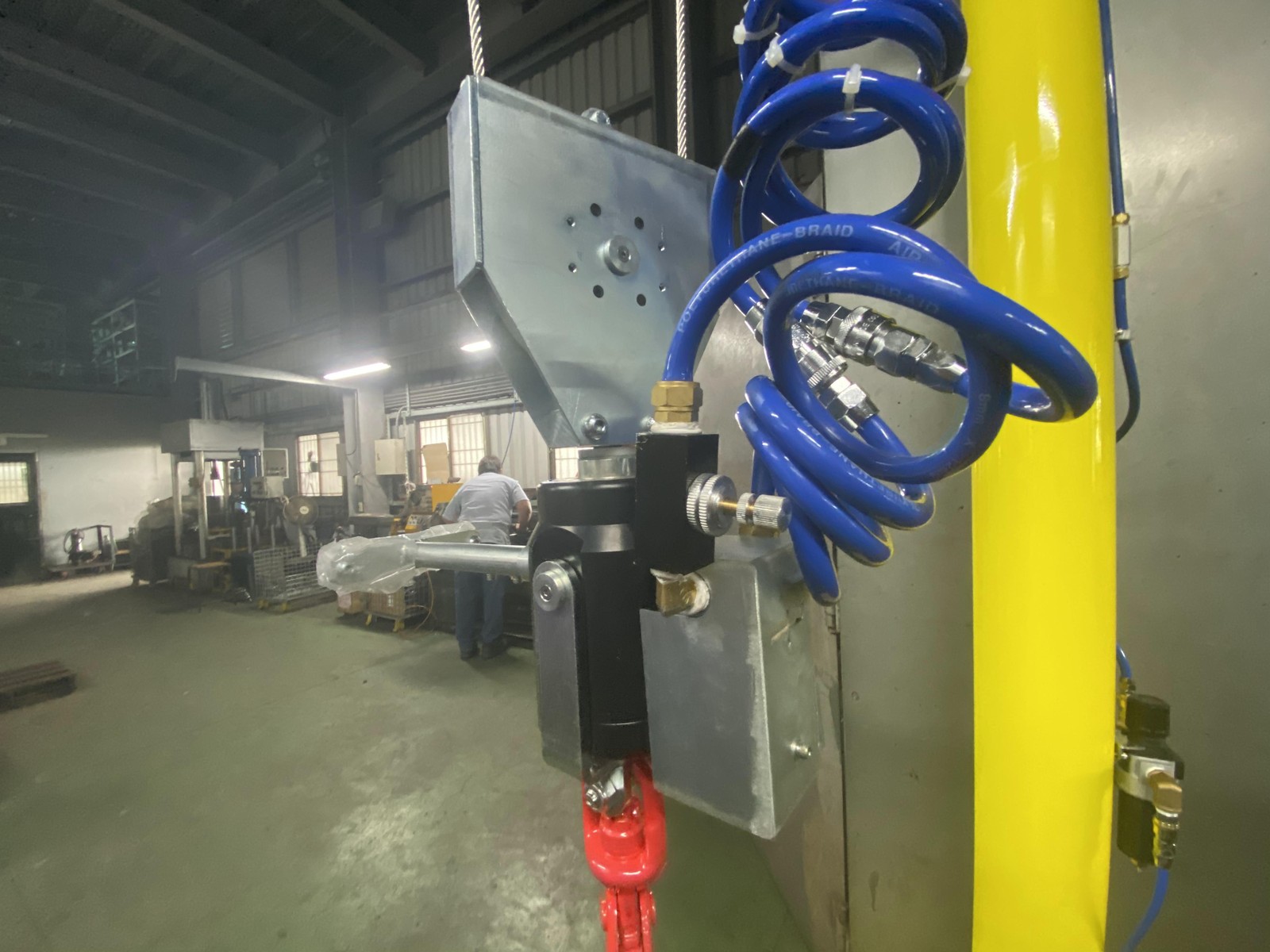

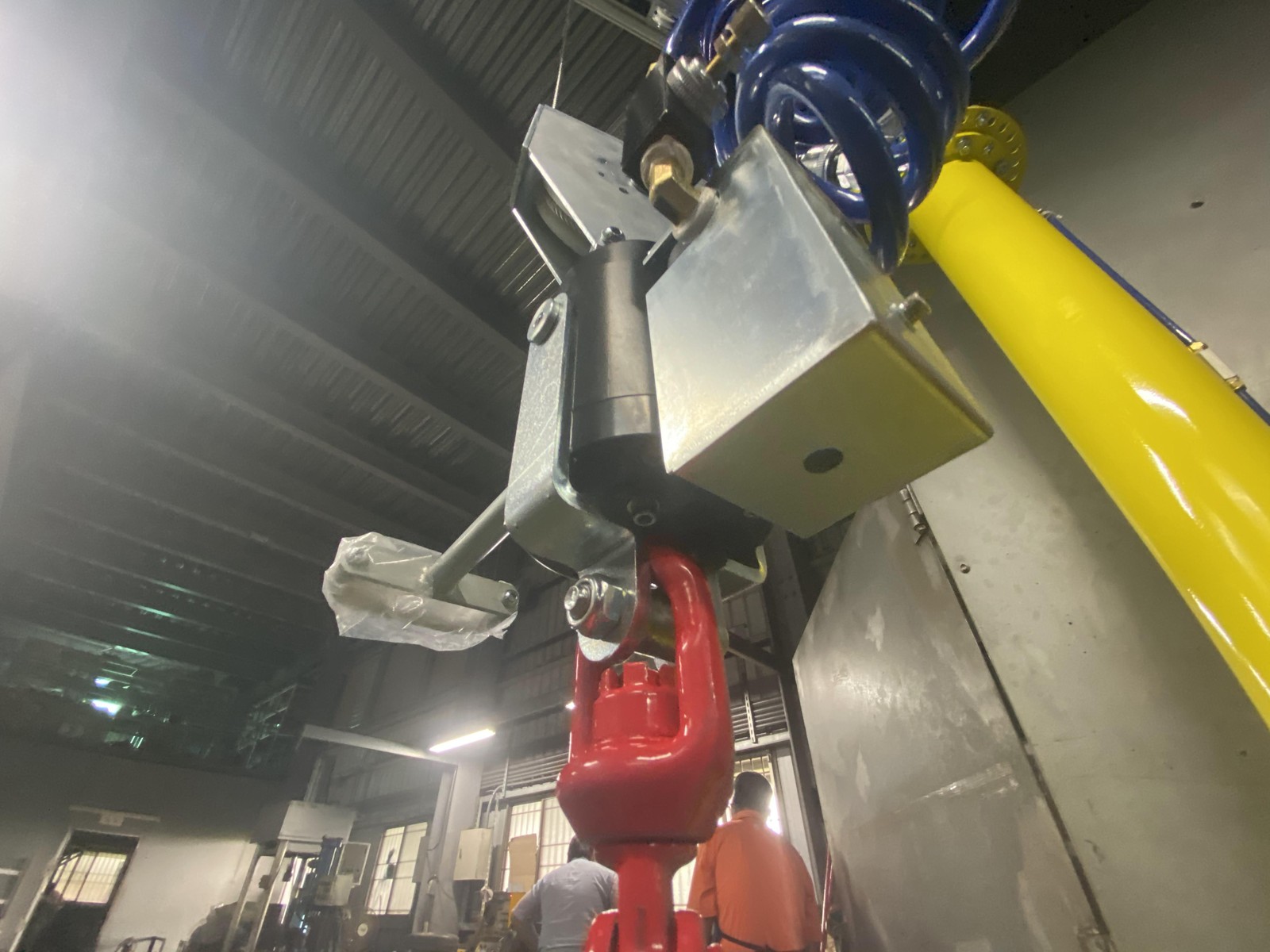

Force-sensing handle: a sensor reads the pushing force of the operator's hand; the load follows the exact direction and speed intended.
Pneumatic hoist: balances the load with air pressure, so the load floats and sets down very smoothly.
Beam-mounted jib crane: bolts directly to an existing beam, with no need to erect an additional column.

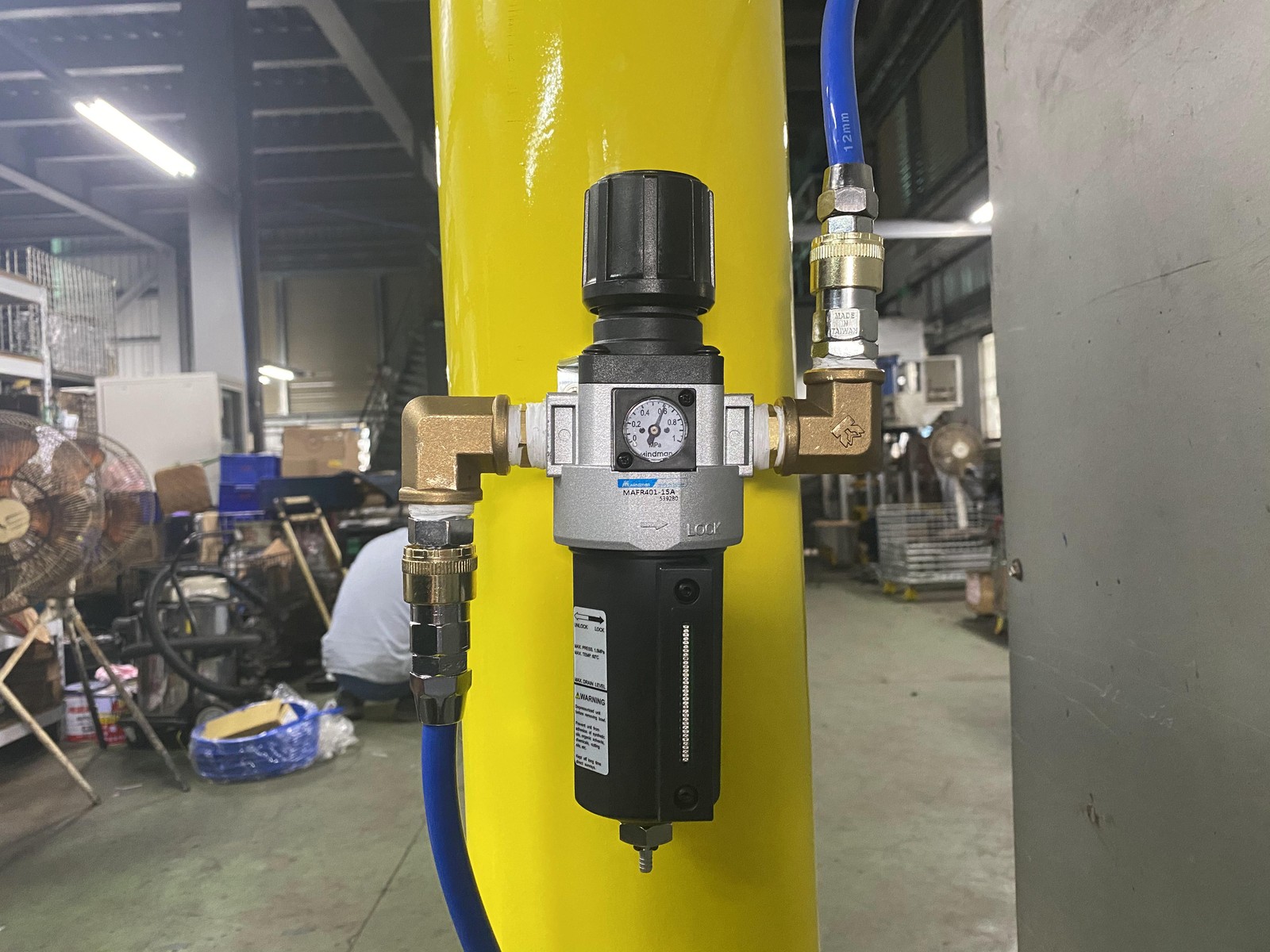

Air filter and regulator unit: filters water and dust from the compressed air and keeps pressure steady so operation doesn't jerk.

Benefits for Your Plant

Precise positioning

The load follows your hand, so aligning with the assembly point doesn't need inching step by step.

Learn it in a shift

No complicated control panel — the motion feels just like carrying by hand, only much lighter.

Floor space unchanged

The crane hangs from an existing beam, so the work area gains no extra column footing.

Actual Installation Photos

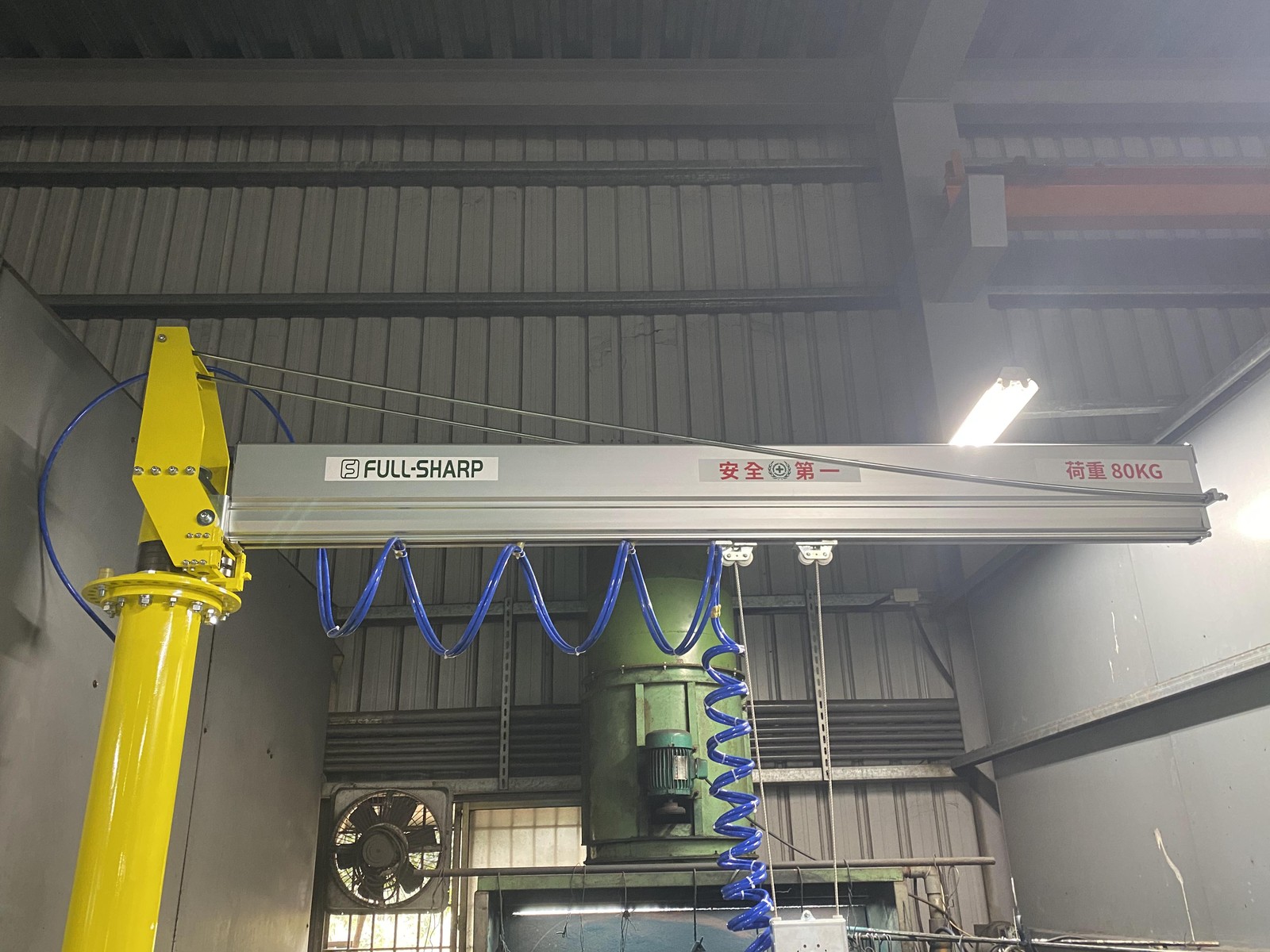

Beam-Mounted Pneumatic Jib Crane with Force-Sensing Handle - ảnh 1

Beam-Mounted Pneumatic Jib Crane with Force-Sensing Handle - ảnh 2

Beam-Mounted Pneumatic Jib Crane with Force-Sensing Handle - ảnh 3

Beam-Mounted Pneumatic Jib Crane with Force-Sensing Handle - ảnh 4

Beam-Mounted Pneumatic Jib Crane with Force-Sensing Handle - ảnh 5

Beam-Mounted Pneumatic Jib Crane with Force-Sensing Handle - ảnh 6

Beam-Mounted Pneumatic Jib Crane with Force-Sensing Handle - ảnh 7

Beam-Mounted Pneumatic Jib Crane with Force-Sensing Handle - ảnh 8

Beam-Mounted Pneumatic Jib Crane with Force-Sensing Handle - ảnh 9

Click a photo to enlarge. 9-photo album taken on site.

Suitable Applications

Mechanical assembly lines
Electronics and component factories
Quality inspection areas
Fixture loading stations

Installation Consulting for Your Plant

FullSharp measures part weight, lifting stroke, and beam spacing to select the right reach and hoist balancing range. Our technicians also check the air pressure and flow rate available at the installation point. Contact FullSharp to schedule a line survey.
