Pneumatic Jib Crane with Hook for CNC Loading 80 kg

Workpieces loaded into the CNC machine weigh around 80 kg. Operators have to carry them from the material rack, thread them through the machine door, and set them onto the chuck. Carrying a heavy load close to the body in a tight space makes it easy to hit the machine table or catch a hand.

FullSharp installs a pneumatic jib crane right beside the machine, fitted with an 80 kg rated hook on the arm end. The pneumatic unit carries the workpiece weight, so the operator only guides the direction and swings the arm to center the workpiece on the chuck, then reverses the motion to unload the finished part.

Pneumatic Jib Crane with Hook for CNC Machine Loading, 80 kg Capacity

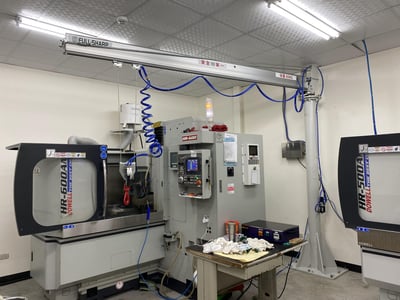

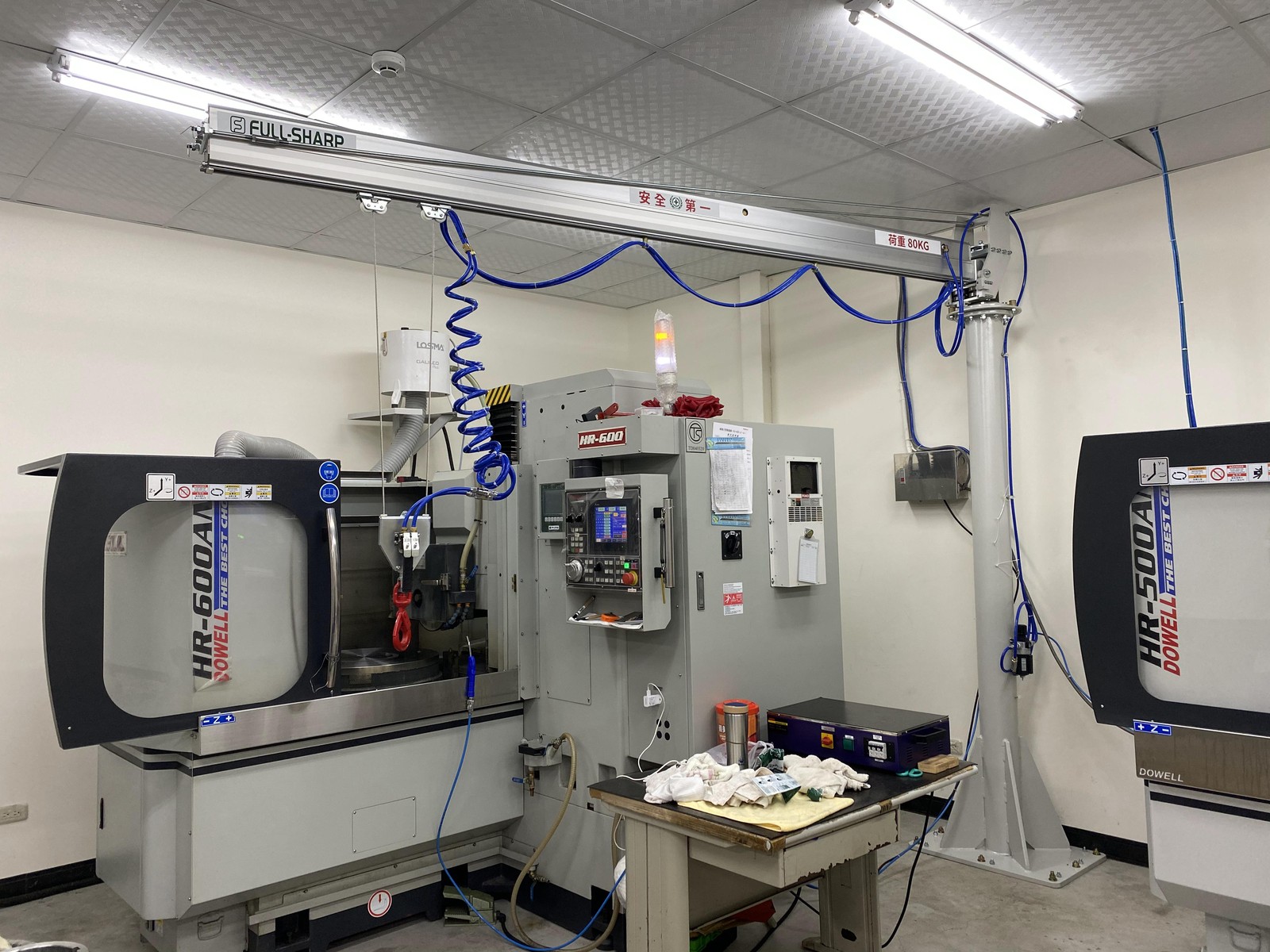

Pneumatic jib crane with hook installed beside a CNC machine, feeding a workpiece into the machining area.

Installed Equipment

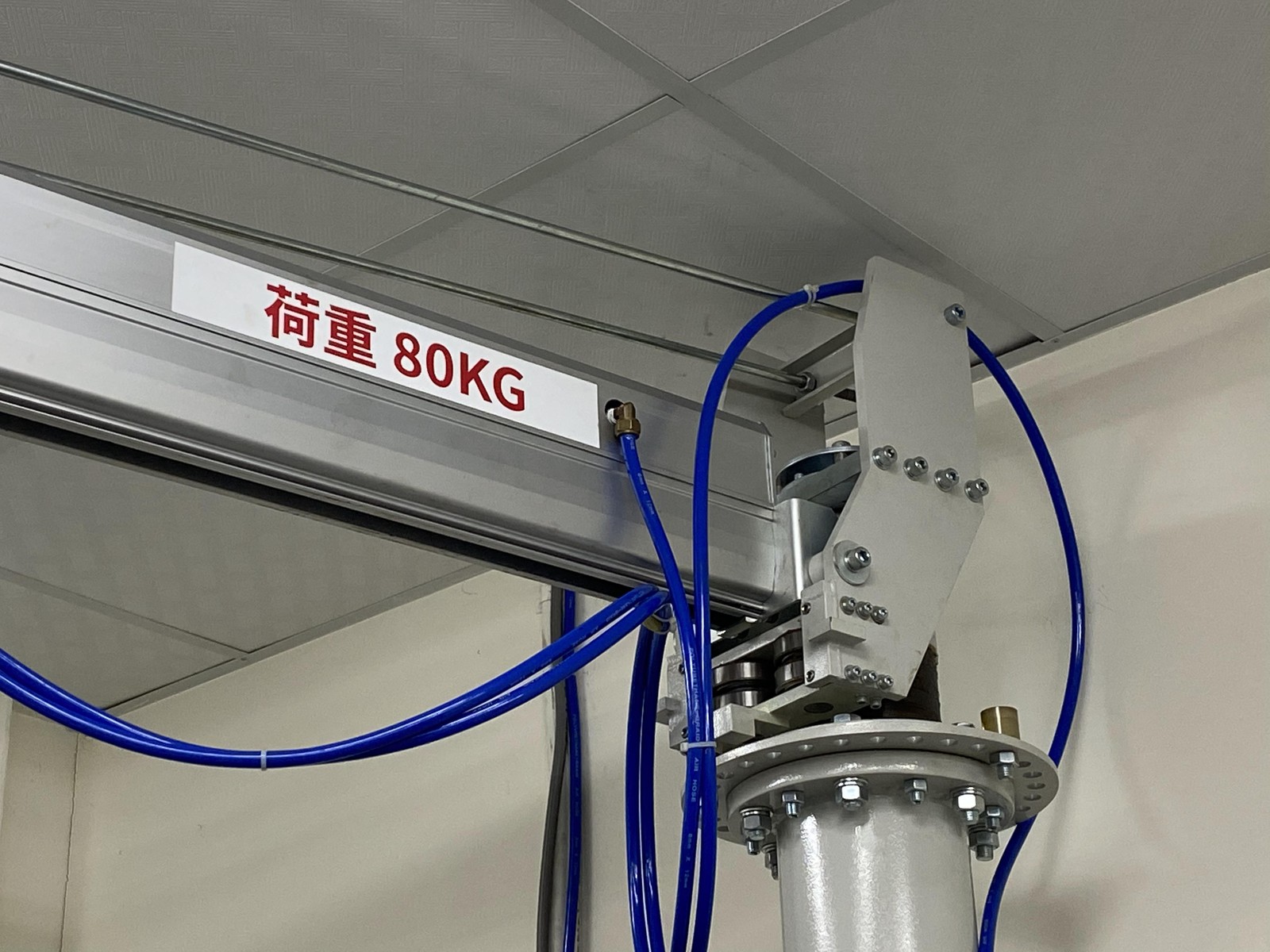

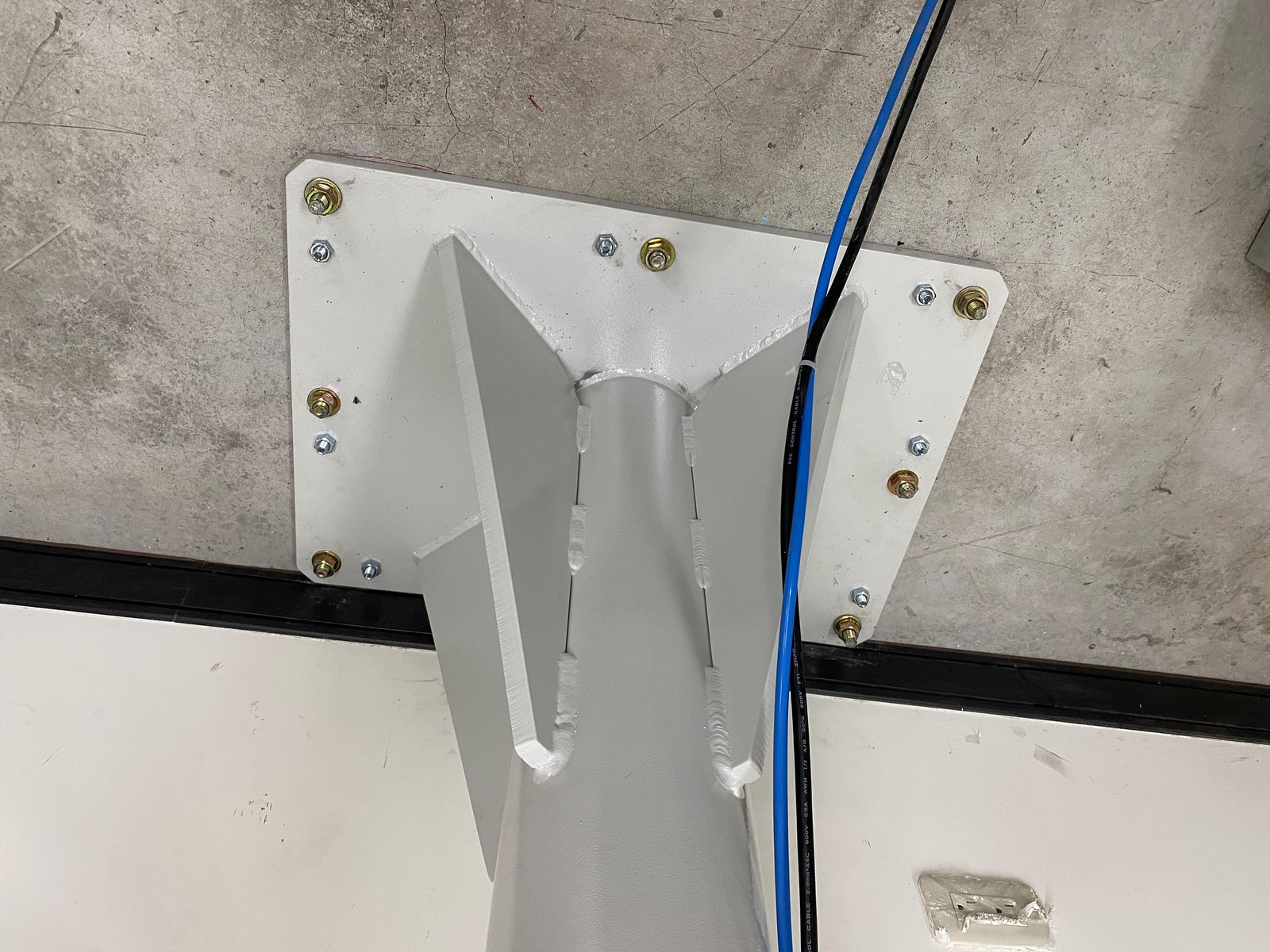

Column and swing arm: mounted right next to the CNC machine, with enough reach to cover the material rack and the chuck.
Pneumatic balancer unit: keeps the workpiece suspended at any height, so the operator raises and lowers it with almost no effort.

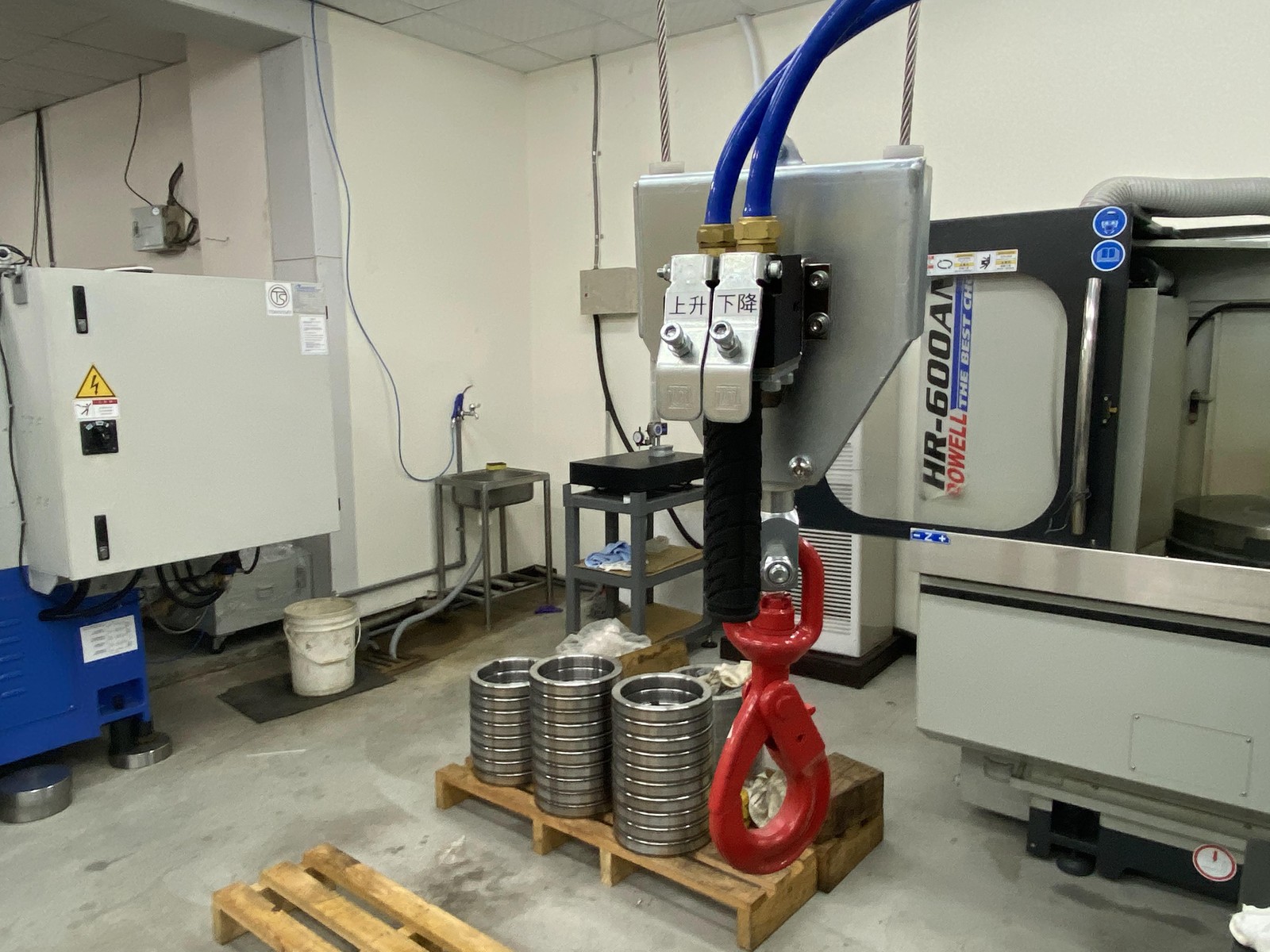

80 kg rated hook: fitted with a safety latch, hooks onto the lifting bail or lifting eye on the workpiece.
Control handle: a compact lift/lower valve that fits in the palm, operable even when standing close to the machine door.

Key Specifications

Load capacity80 kg
Power sourcePneumatic
End effectorHook
Installation photos8

Benefits for Your Plant

Faster loading

No need to call in extra staff or wait for a crane. Downtime between workpieces is shorter.

Fewer machine collisions

The workpiece follows the rigid arm without swinging inside the machine door, reducing damage to the chuck and cutting tools.

Less strain on operators

The pneumatic unit carries the load instead of the operator, who can stand upright instead of straining to lift.

Actual Installation Photos

Pneumatic Jib Crane with Hook for CNC Machine Loading, 80 kg Capacity - ảnh 1

Pneumatic Jib Crane with Hook for CNC Machine Loading, 80 kg Capacity - ảnh 2

Pneumatic Jib Crane with Hook for CNC Machine Loading, 80 kg Capacity - ảnh 3

Pneumatic Jib Crane with Hook for CNC Machine Loading, 80 kg Capacity - ảnh 4

Pneumatic Jib Crane with Hook for CNC Machine Loading, 80 kg Capacity - ảnh 5

Pneumatic Jib Crane with Hook for CNC Machine Loading, 80 kg Capacity - ảnh 6

Pneumatic Jib Crane with Hook for CNC Machine Loading, 80 kg Capacity - ảnh 7

Click a photo to enlarge. Album of 7 photos taken on site.

Suitable Applications

CNC turning and milling shops
Batch machining of heavy parts
Fixture and mold change areas
Precision machining lines

Get an Installation Plan for Your Plant

FullSharp visits your site to measure the workpiece weight, the distance from the material rack to the machine door, and the ceiling height above the machine. We then choose the column position, arm reach, and end effector type to match your exact parts. Schedule a site survey with FullSharp to get a solution.
